Generic Scan Tool (GST)

HVAC Control Module Scan Tool Output Controls:

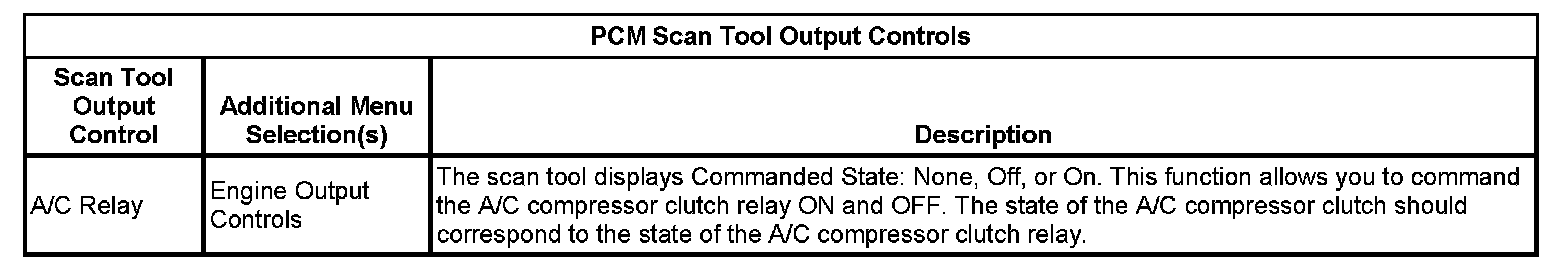

PCM Scan Tool Output Controls:
