Heated Seat Control Module Replacement - Front

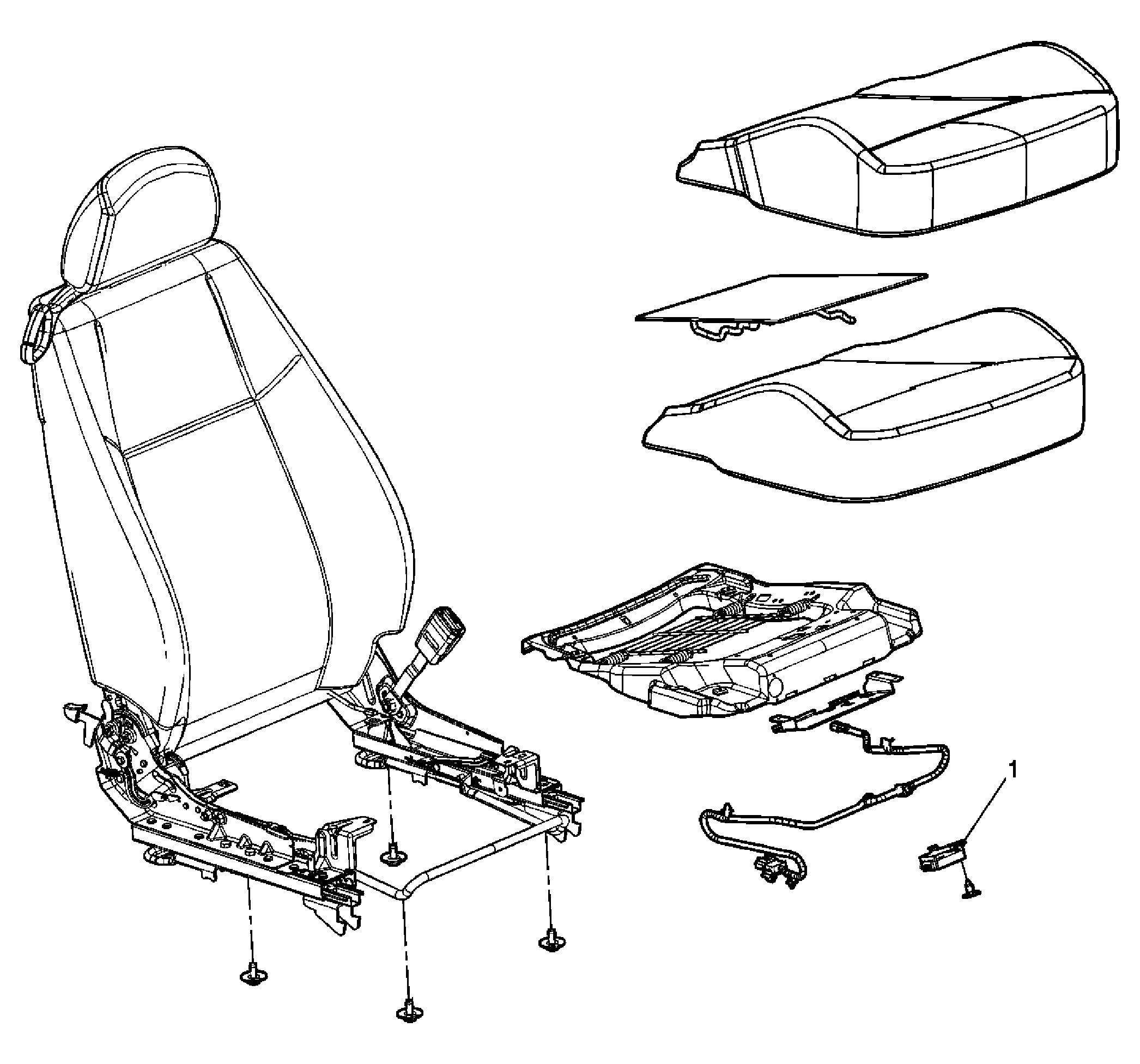

Fig 1: Heated Seat Control Module - Front
GM1549363Courtesy of GENERAL MOTORS CORP.
Heated Seat Control Module Replacement - Front

Callout Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices.
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedures: Remove the front seat. Refer to Seat Replacement - Front Bucket .
1 Heater Module Assembly, Seat
Tip:
  • Disconnect the electrical connectors.
  • The heater module is located in the passenger seat.
