Back View of PCM Connector C1

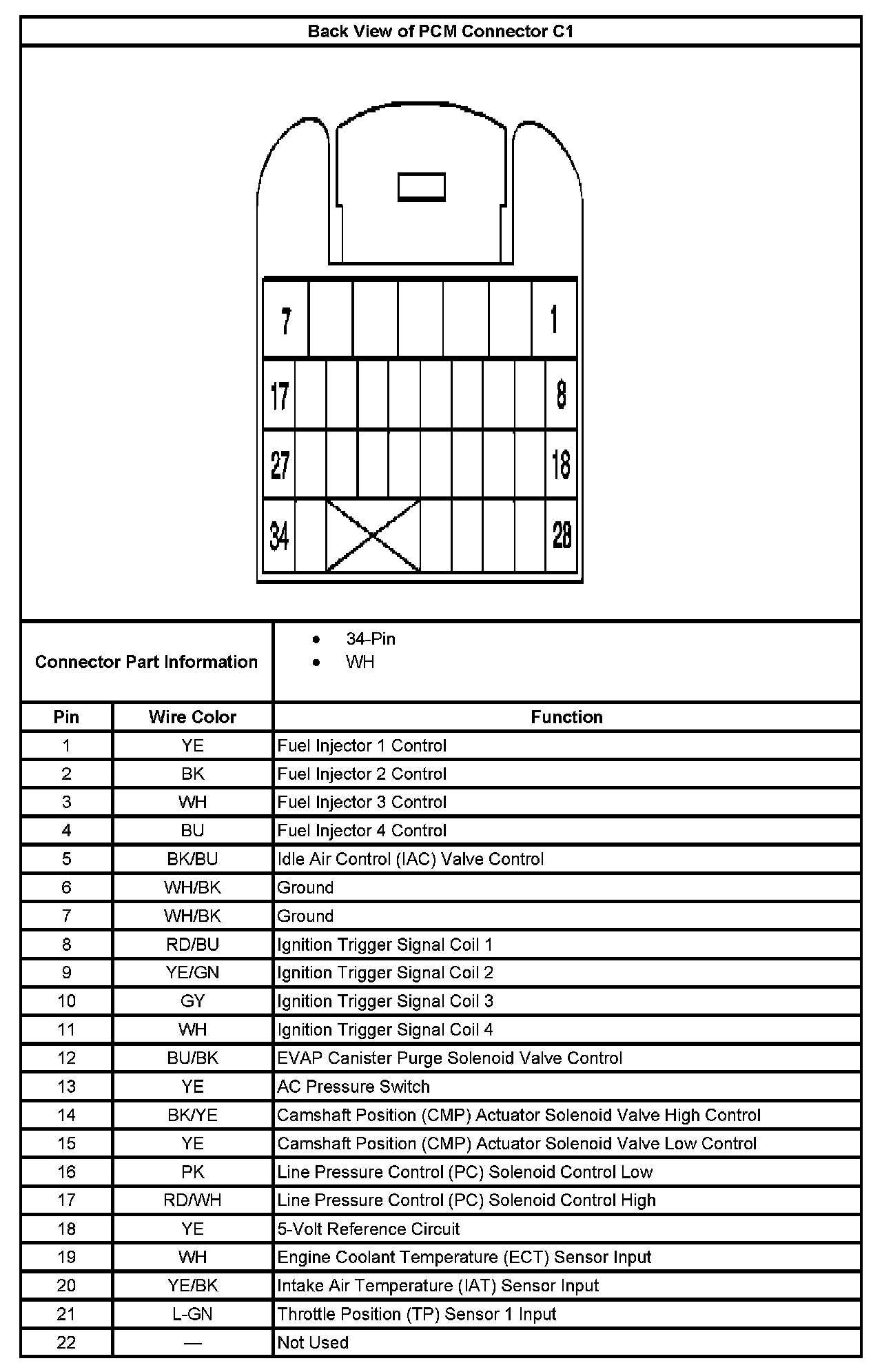

Back View Of PCM Connector C1 Part 1:
Back View Of PCM Connector C1 Part 2:
