Back View of PCM Connector C3

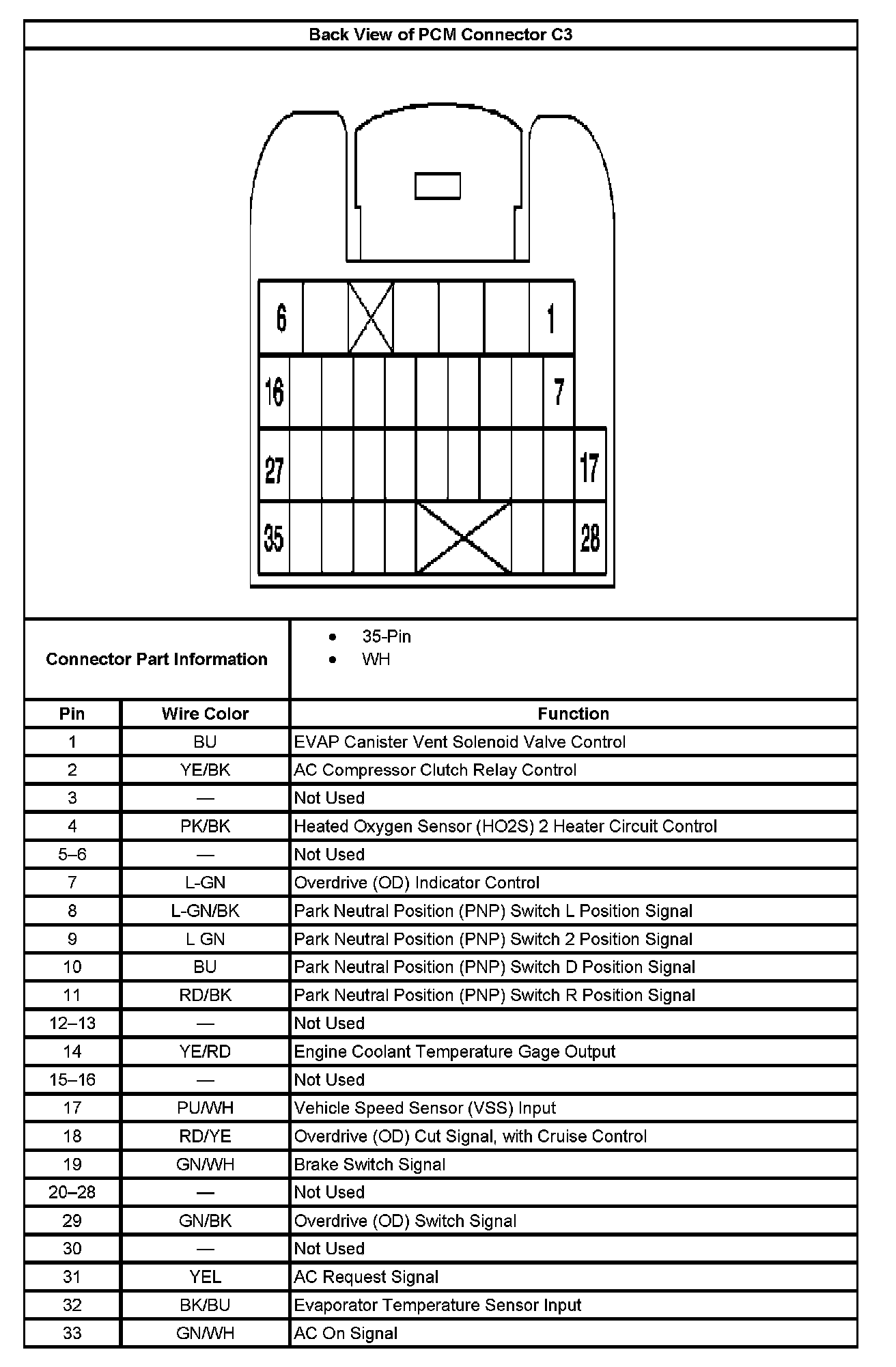

Back View Of PCM Connector C3 Part 1:
Back View Of PCM Connector C3 Part 2:
