Vehicle Speed Sensor: Locations

Tire Pressure Monitoring System Component Views

Tire Pressure Monitoring

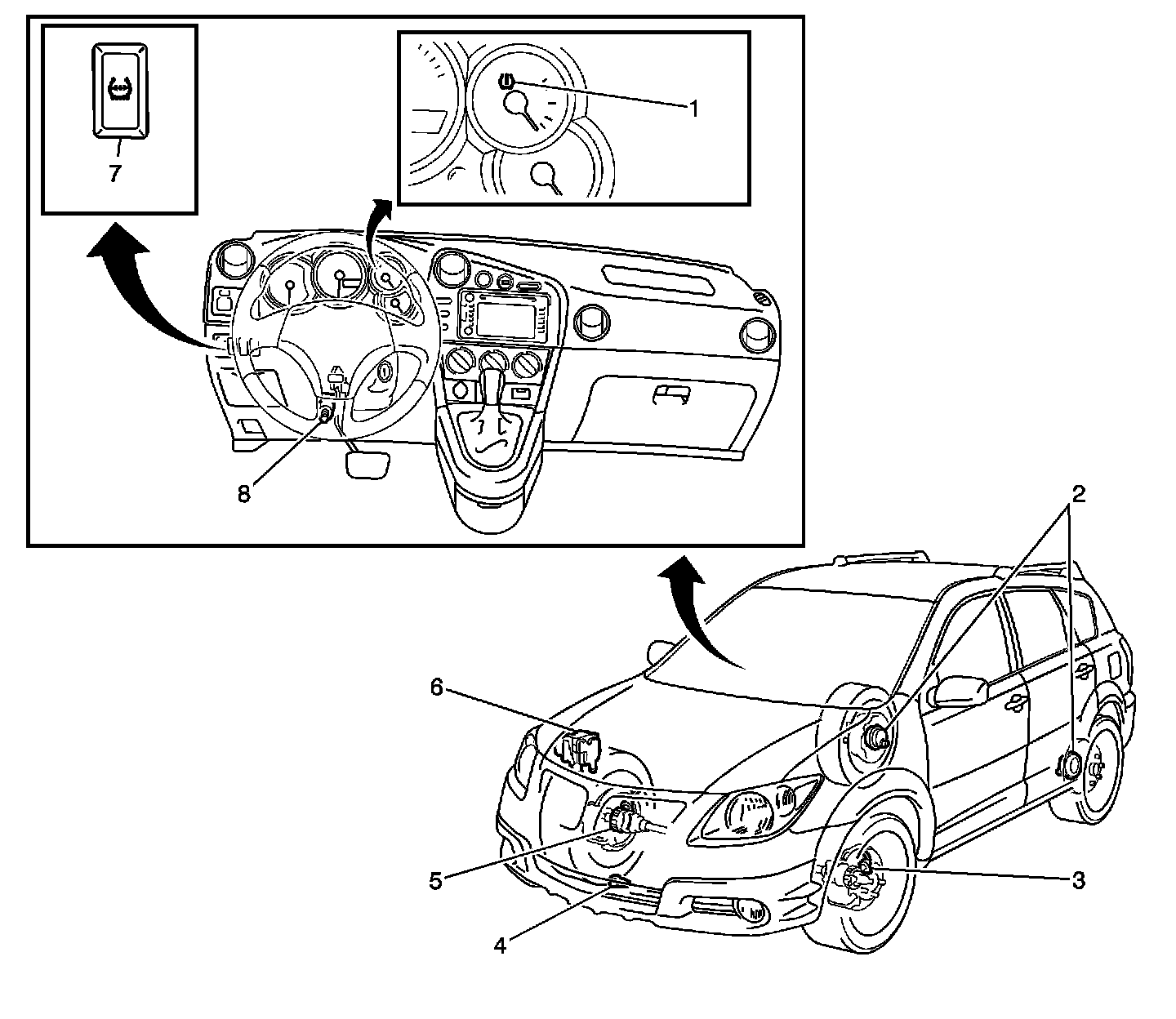

Tire Pressure Monitoring:

1 - Low Tire Pressure Warning Light
2 - Speed Sensors
3 - Speed Sensor
4 - Ambient Temperature Sensor
5 - Speed Sensor
6 - Electronic Brake Control Module/Tire Pressure Monitor ECU
7 - Tire Pressure Warning Reset Switch
8 - Stop Lamp Switch
