Underhood Fuse Block

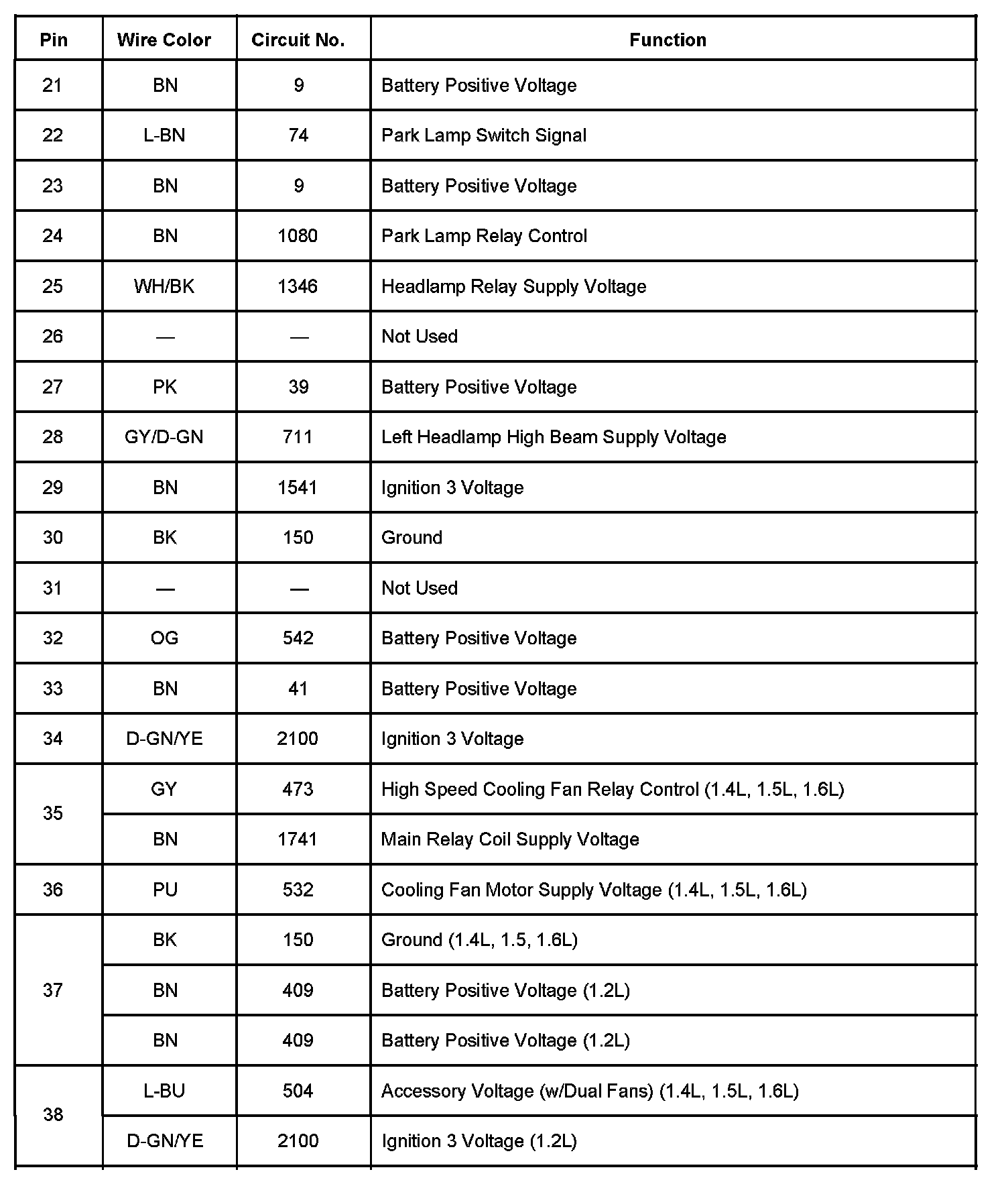

Fuse Block - Underhood Wire Entry, Part 1:

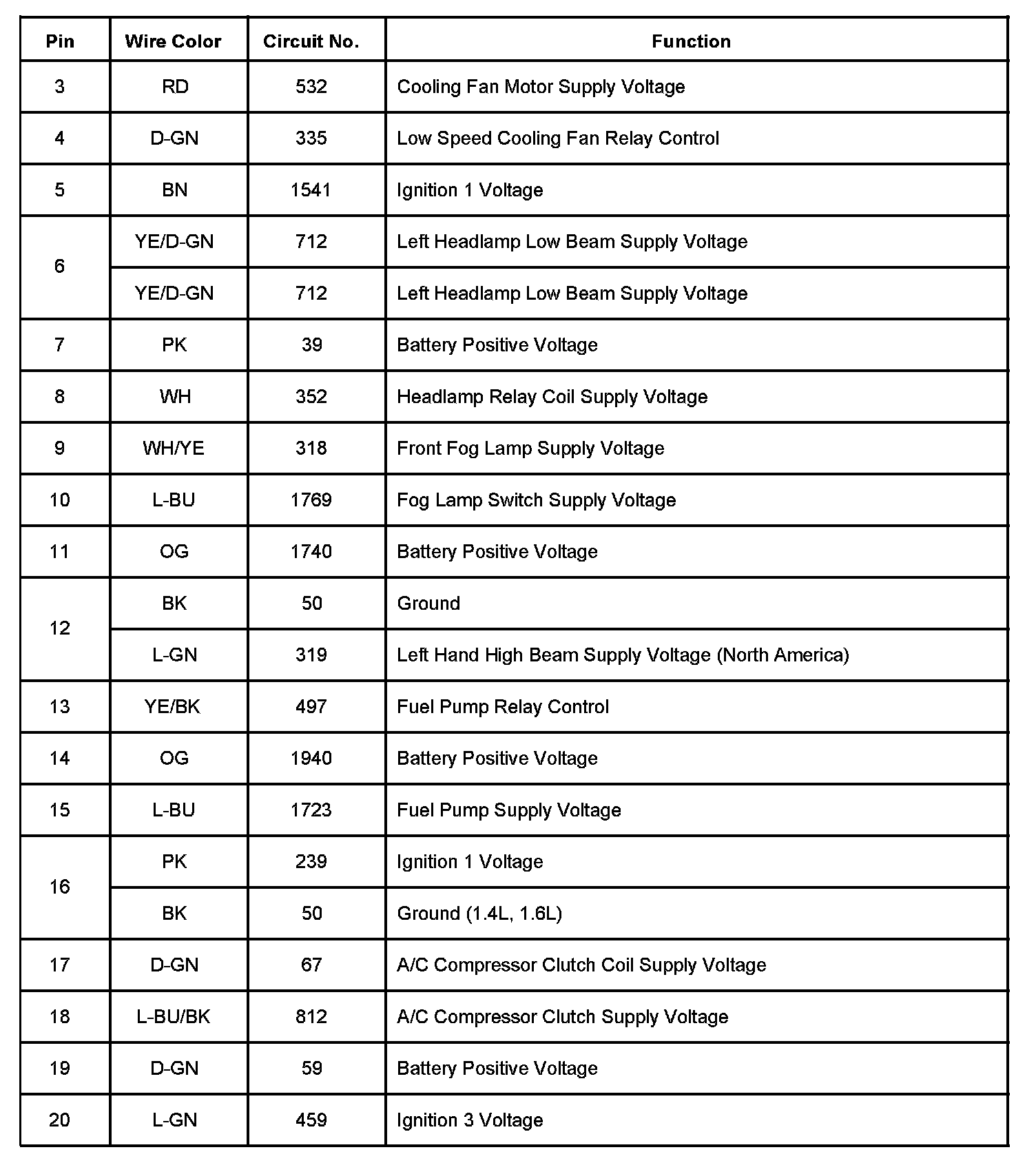

Fuse Block - Underhood Wire Entry, Part 2:

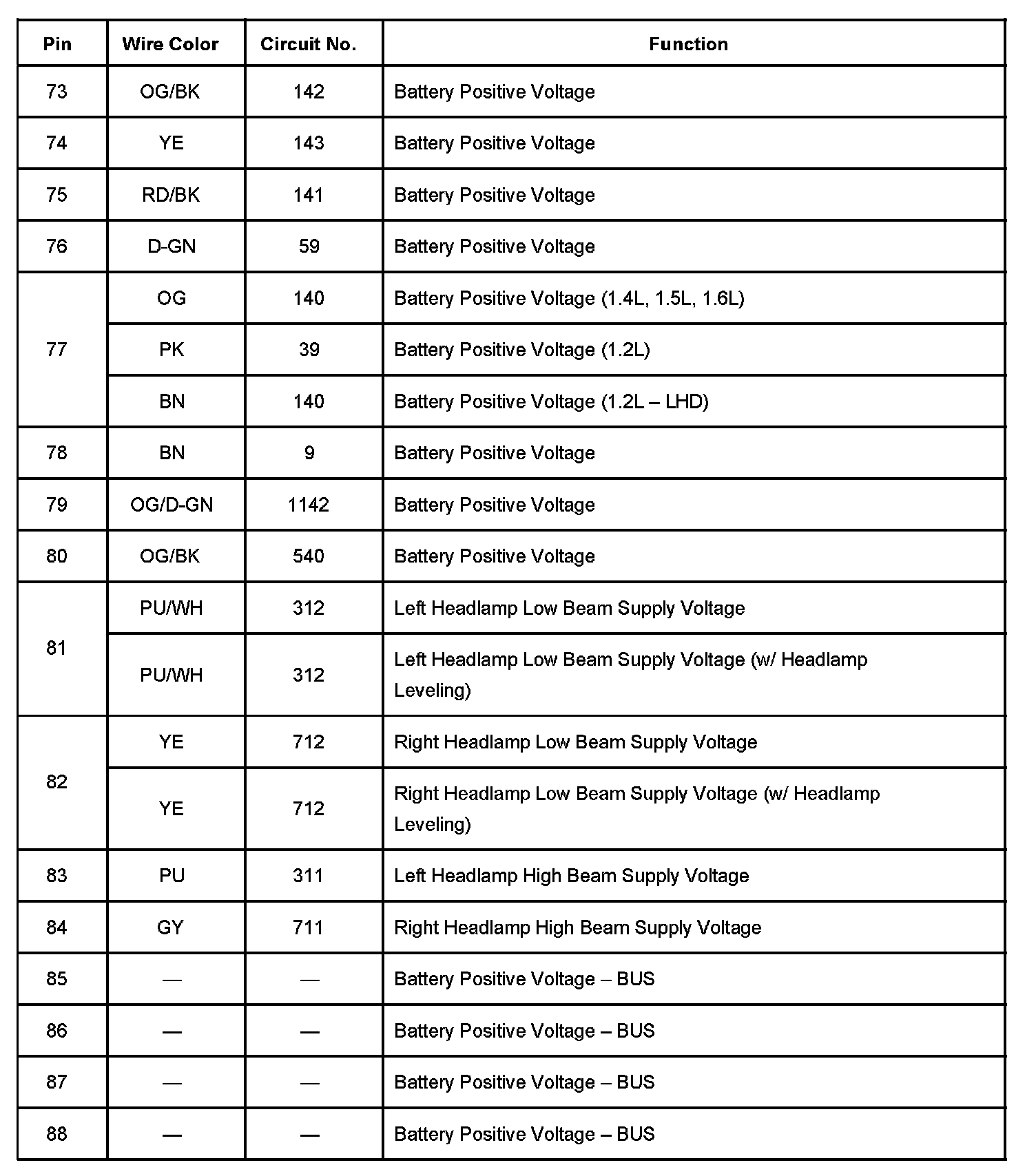

Fuse Block - Underhood Wire Entry, Part 3:

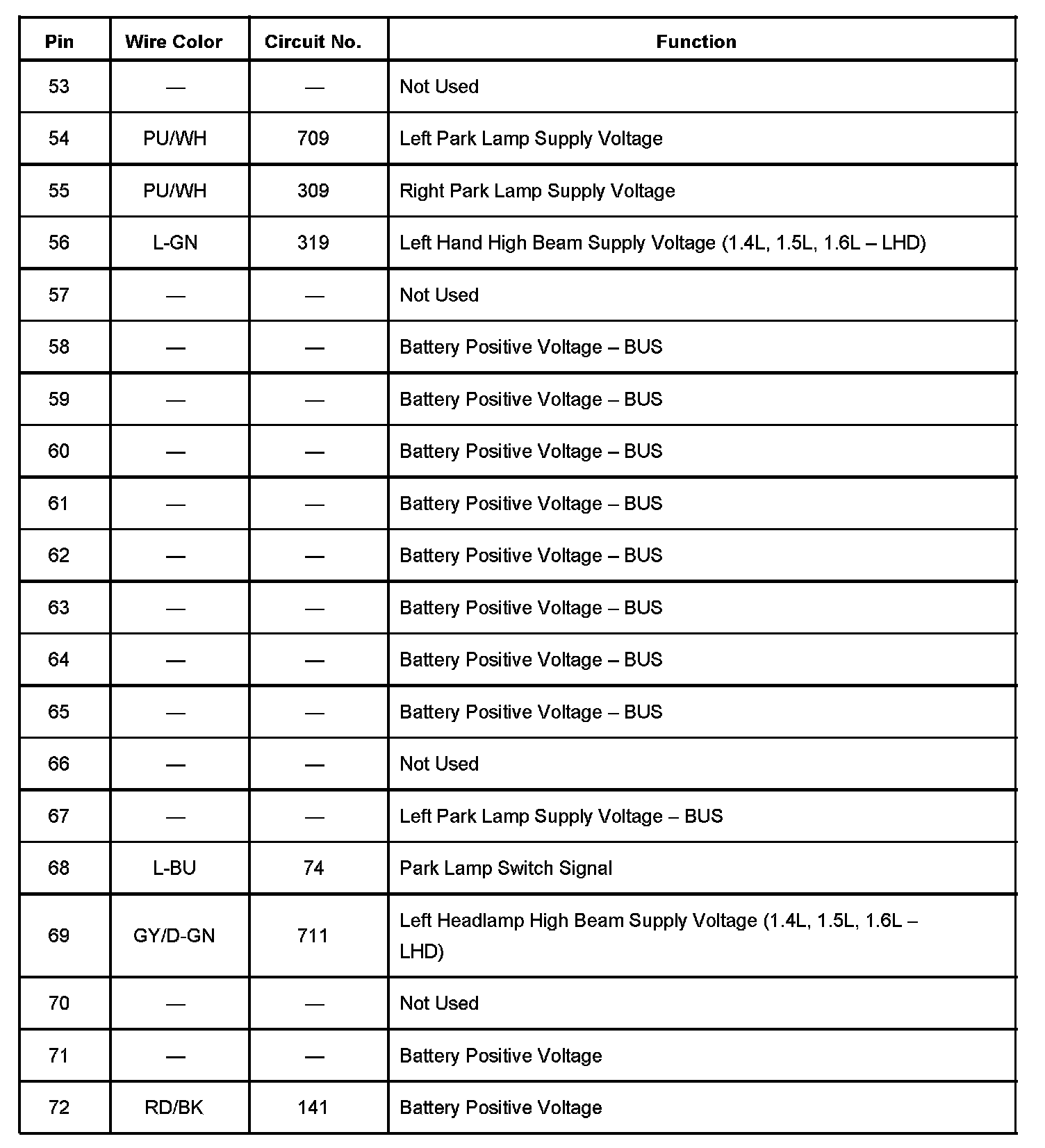

Fuse Block - Underhood Wire Entry, Part 4:

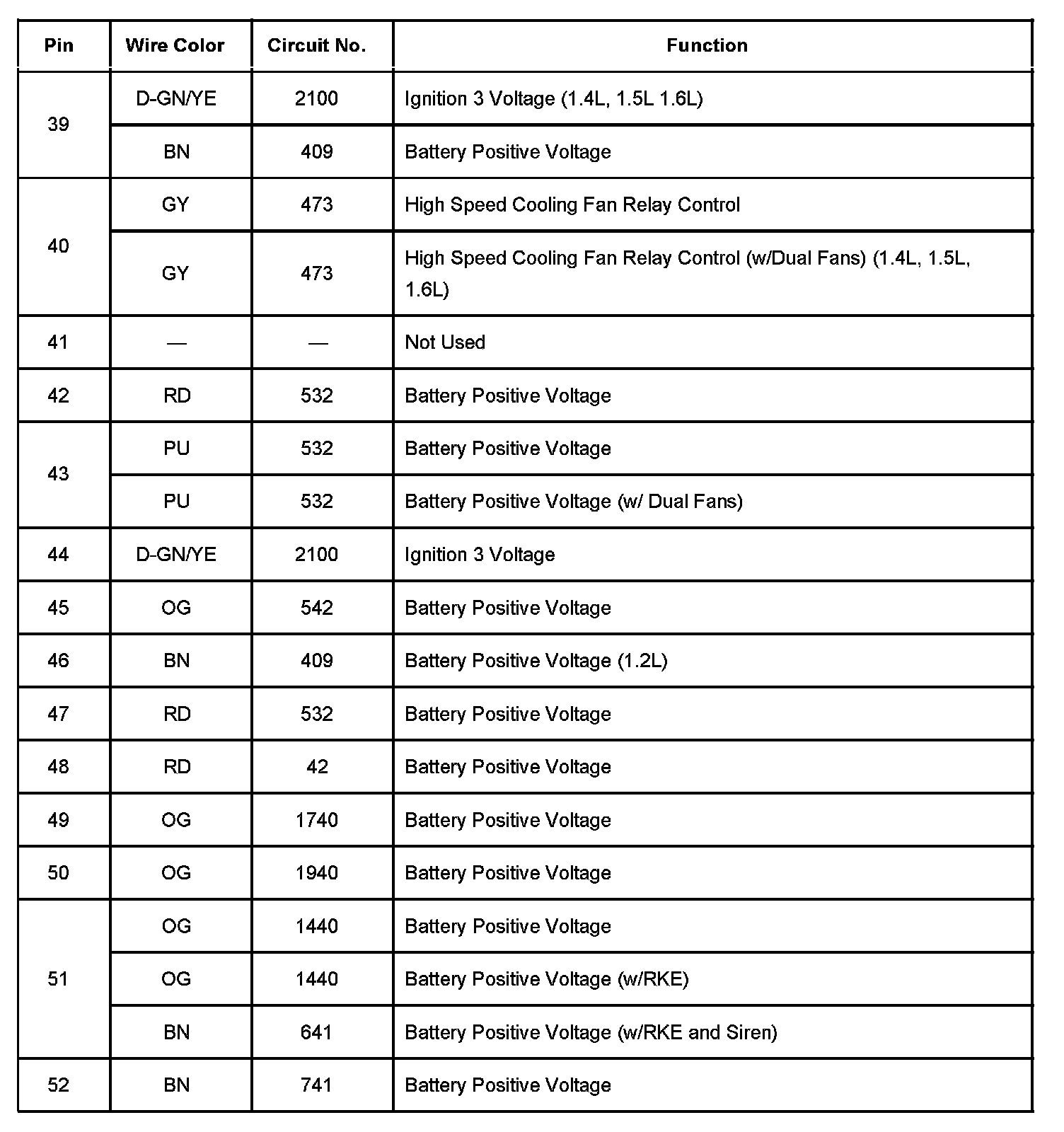

Fuse Block - Underhood Wire Entry, Part 5:




Fuse Block - Underhood Wire Entry, Part 6:




Fuse Block - Underhood Wire Entry, Part 7:
