Home >> Pontiac >> 2005 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> SP201
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

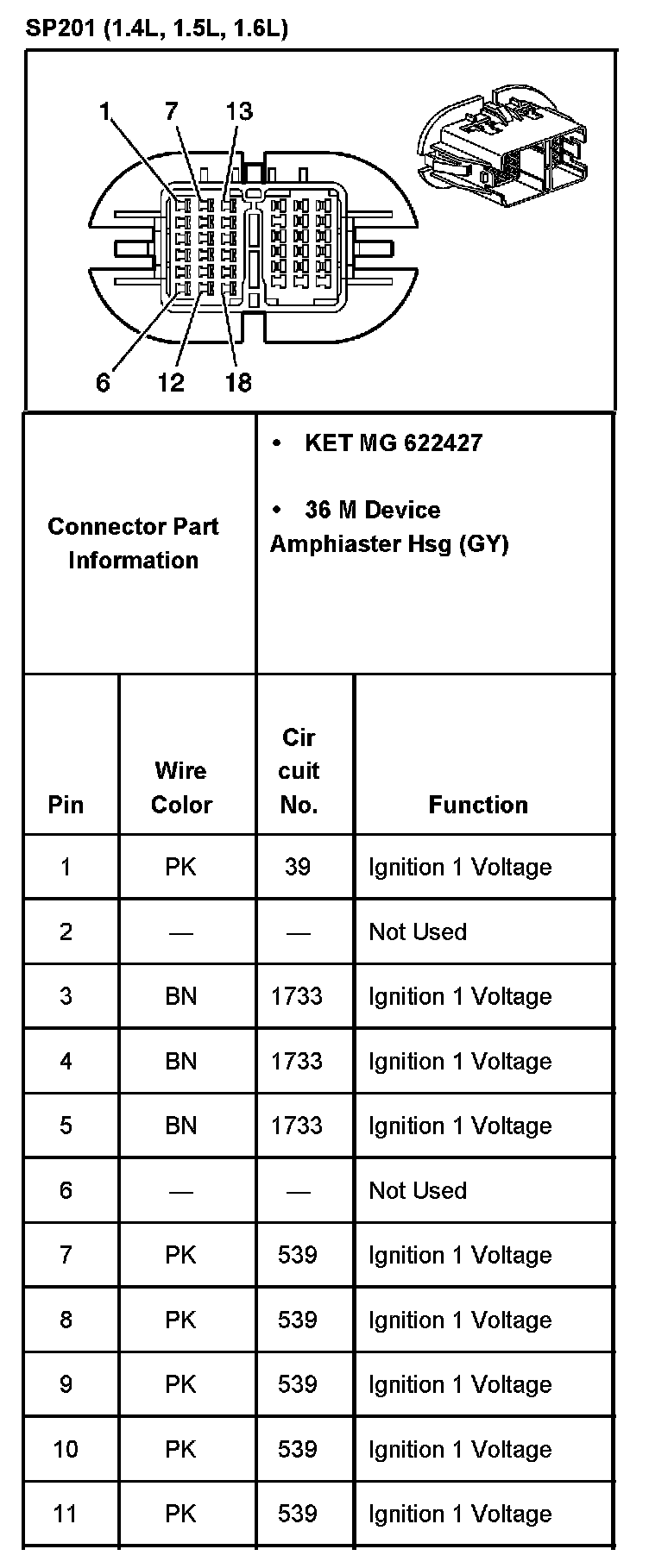

SP201

SP201 Part 1:



SP201 Part 2:
