Power Window Switch

Window Switch - Driver LHD Part 1:




Window Switch - Driver LHD Part 2:




Window Switch - Driver RHD Part 1:




Window Switch - Driver RHD Part 2:




Window Switch - Passenger Part 1:




Window Switch - Passenger Part 2:

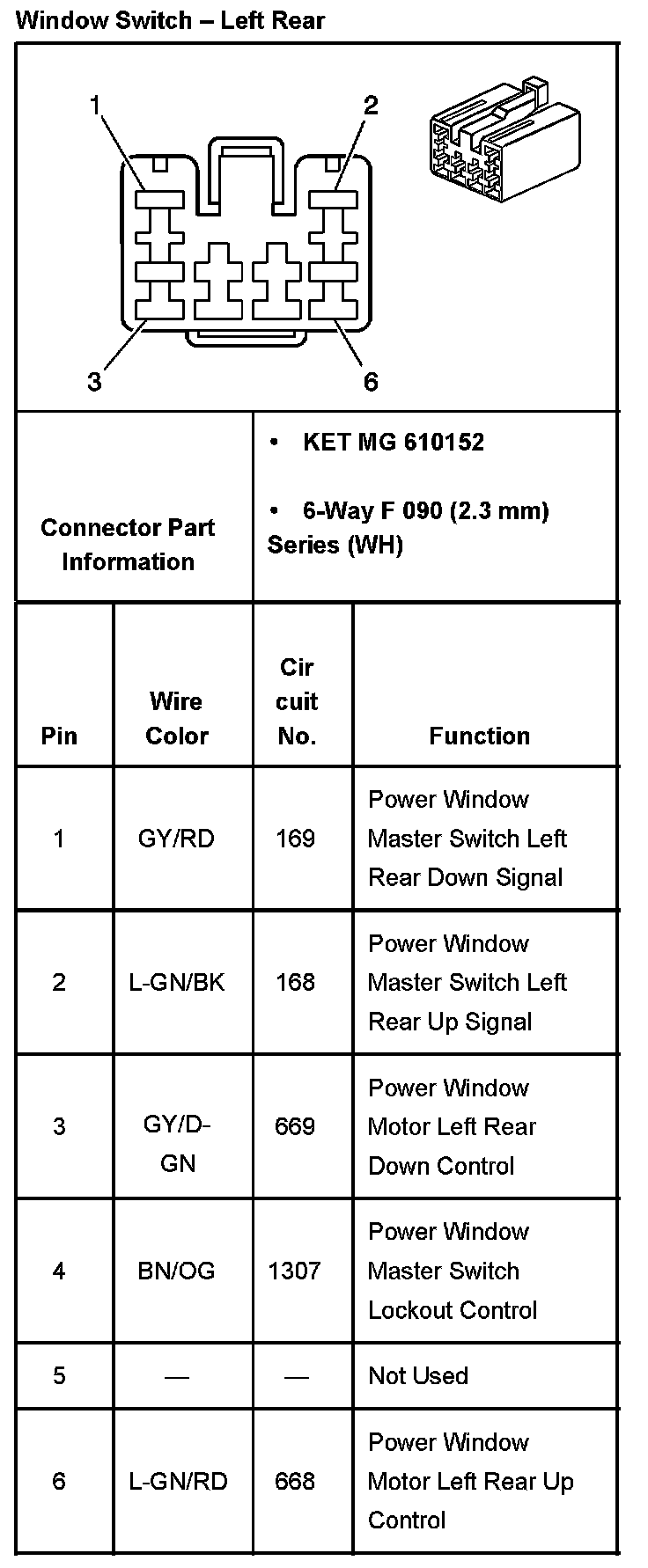

Window Switch - Left Rear:




Window Switch - Right Rear:
