Clutch Components

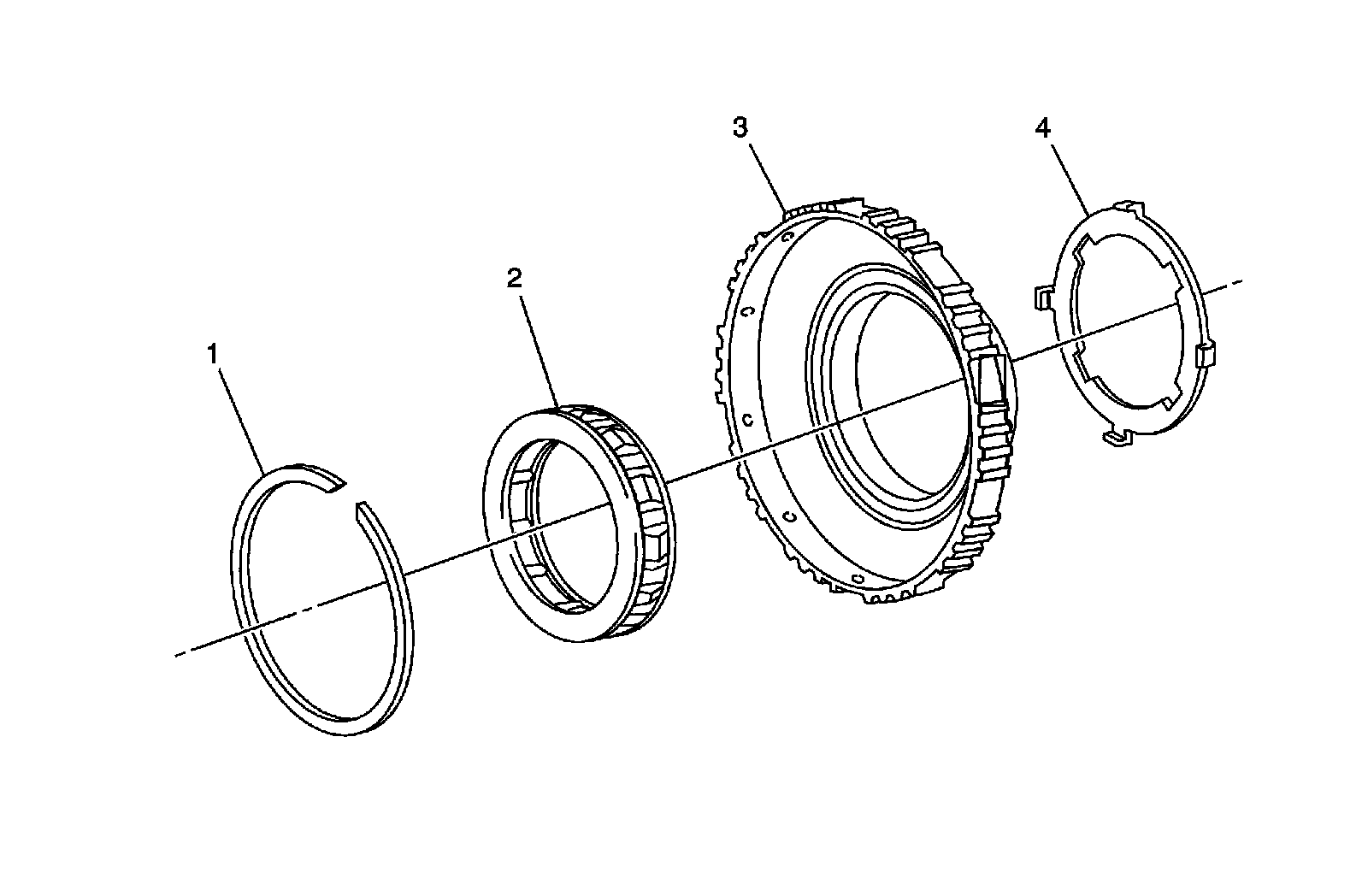

One-Way Clutch:

One-Way Clutch

1 - Snap Ring
2 - One-Way Clutch
3 - Second Brake Hub
4 - Retainer

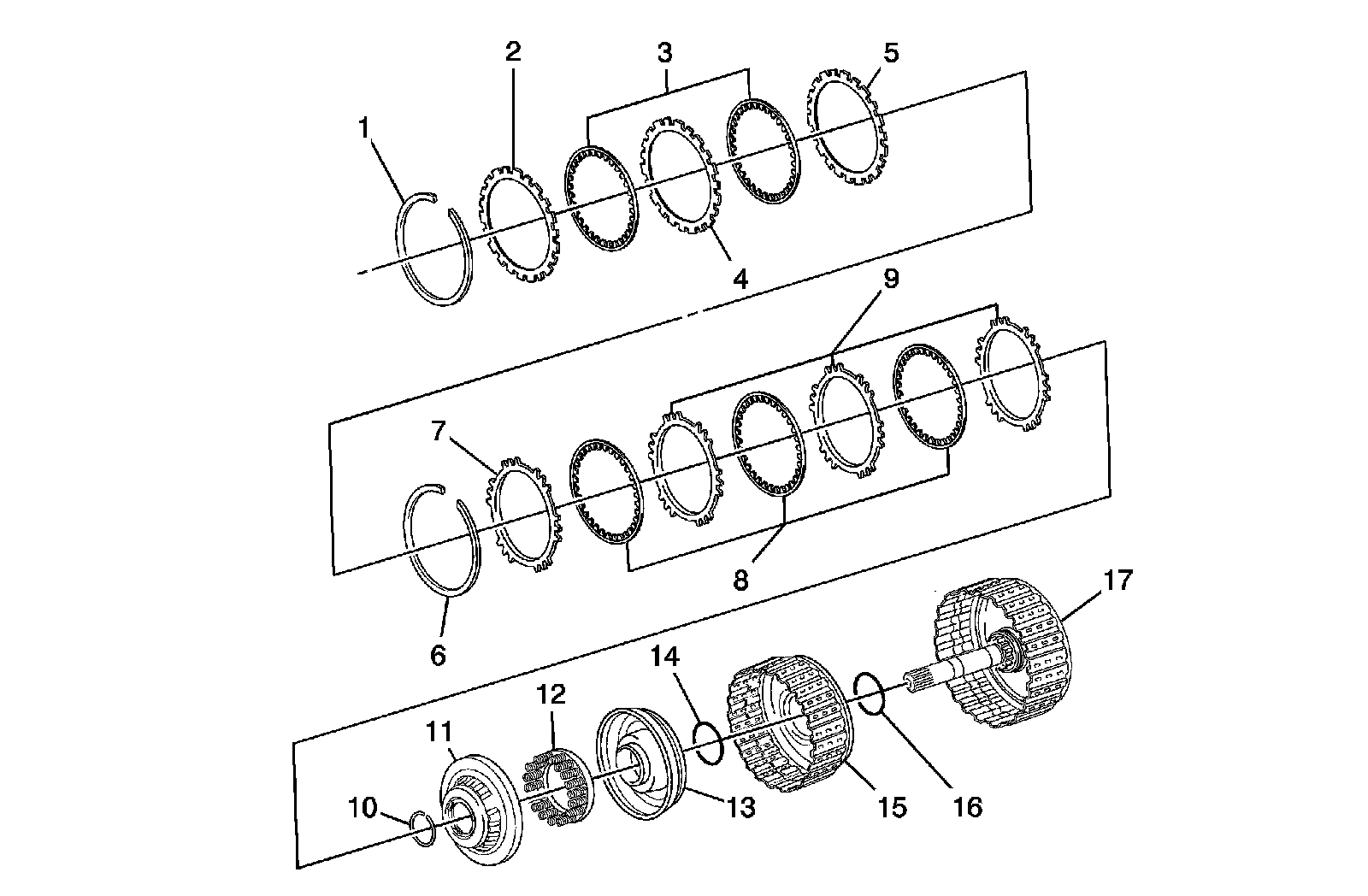

Forward and Reverse Clutch:

Forward and Reverse Clutch

1 - Seal Ring
2 - Flange
3 - Disc
4 - Plate
5 - Flange
6 - Snap Ring
7 - Flange
8 - Disc
9 - Plate
10 - Snap Ring
11 - Clutch Balancer
12 - Forward Clutch Return Spring
13 - Forward Clutch Piston
14 - O-Ring
15 - Forward Clutch Drum
16 - O-Ring
17 - Intermediate Shaft Sub-Assembly
