Lamp Control Module: Diagrams

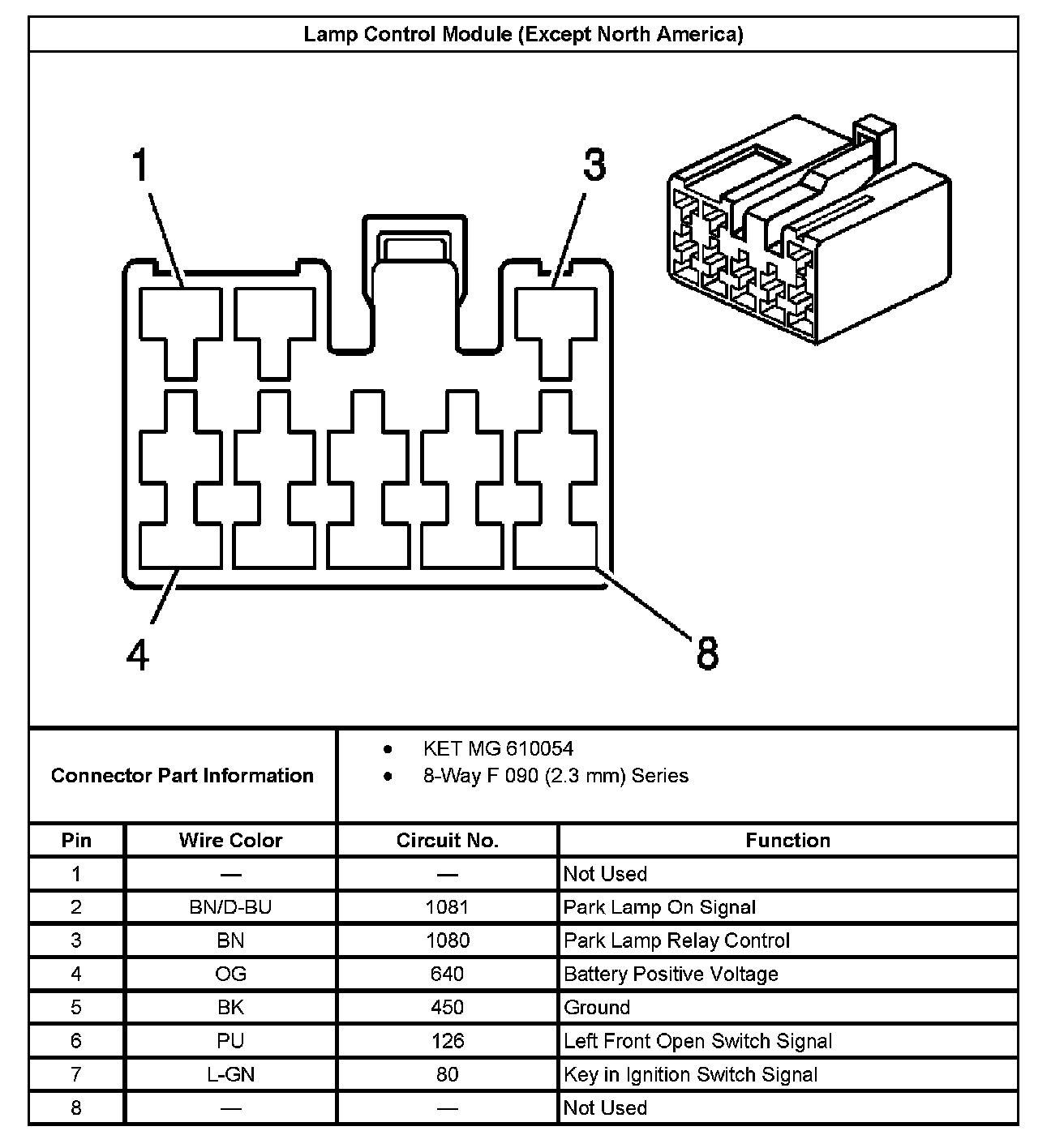

Lamp Control Module (Except North America):



Lamp Control Module (Except North America):
