Engine Control Module





Engine Control Module

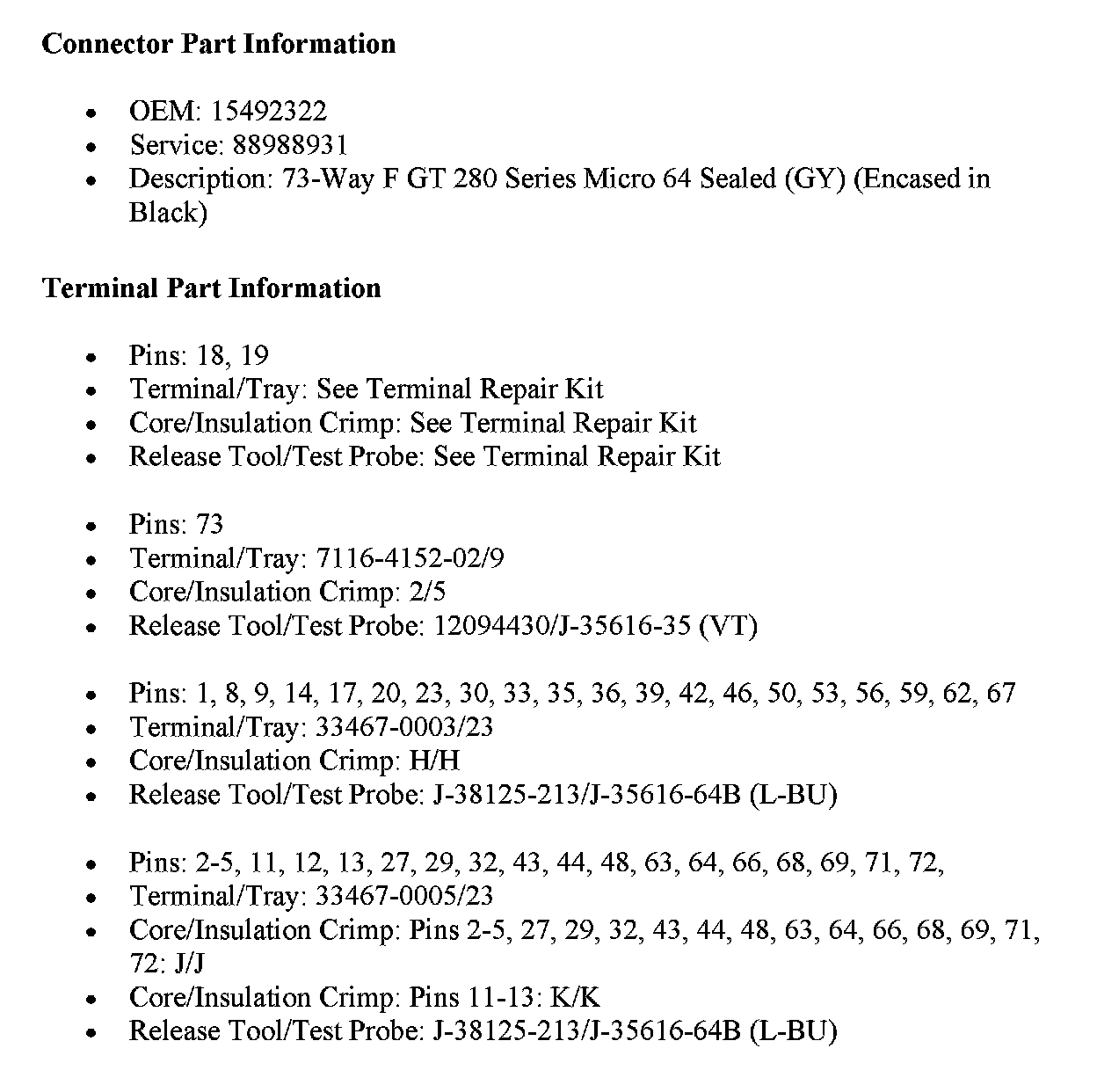

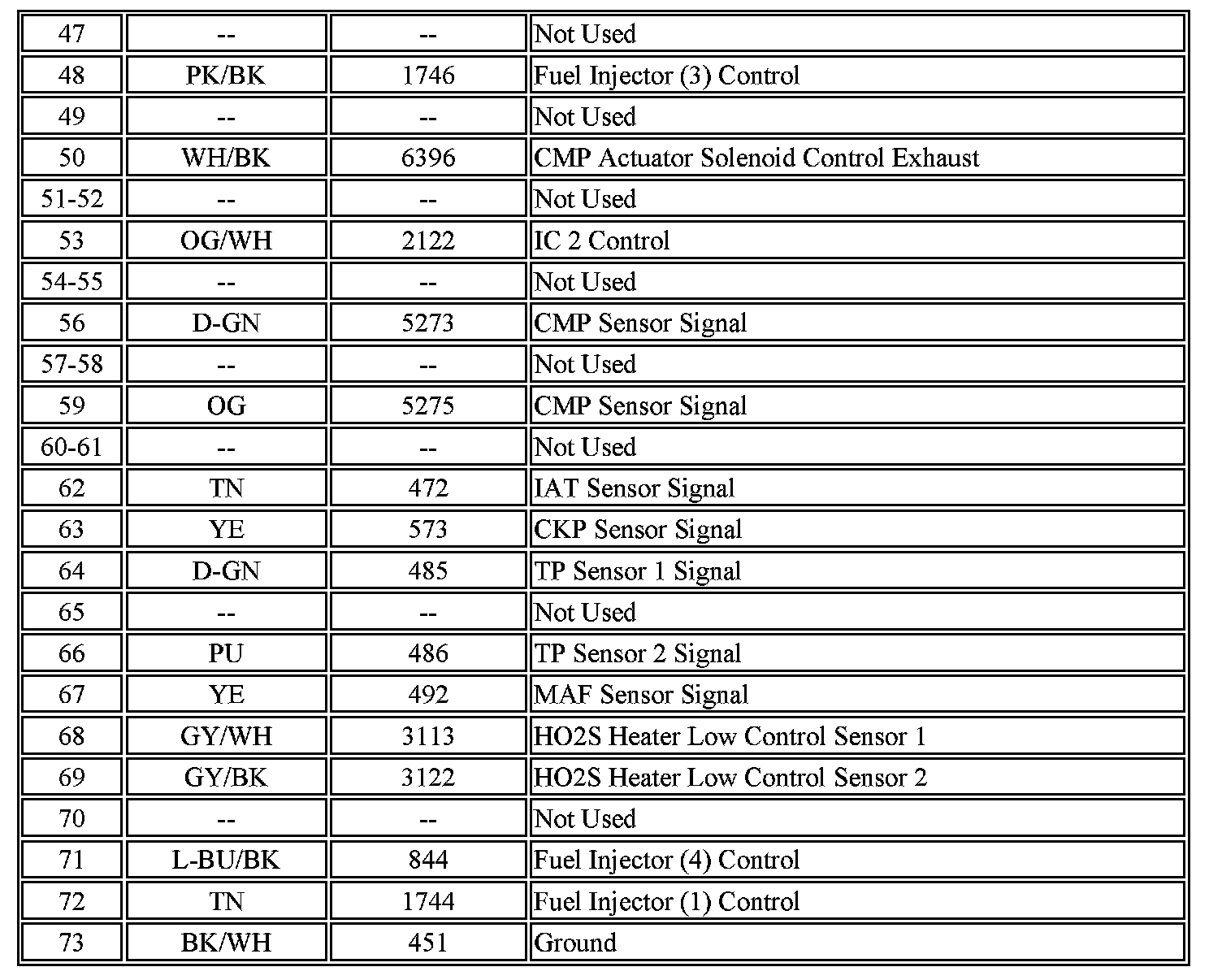

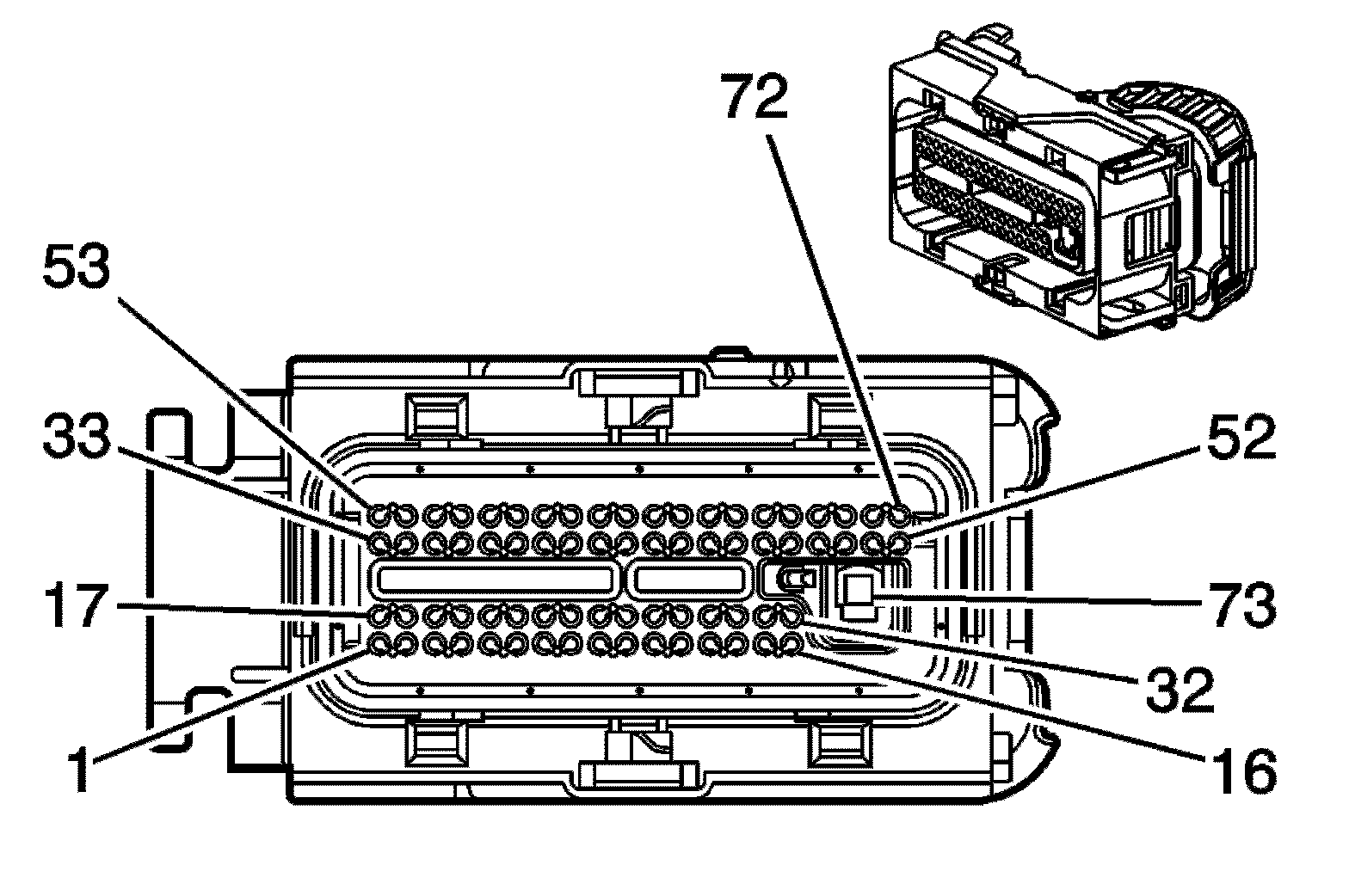

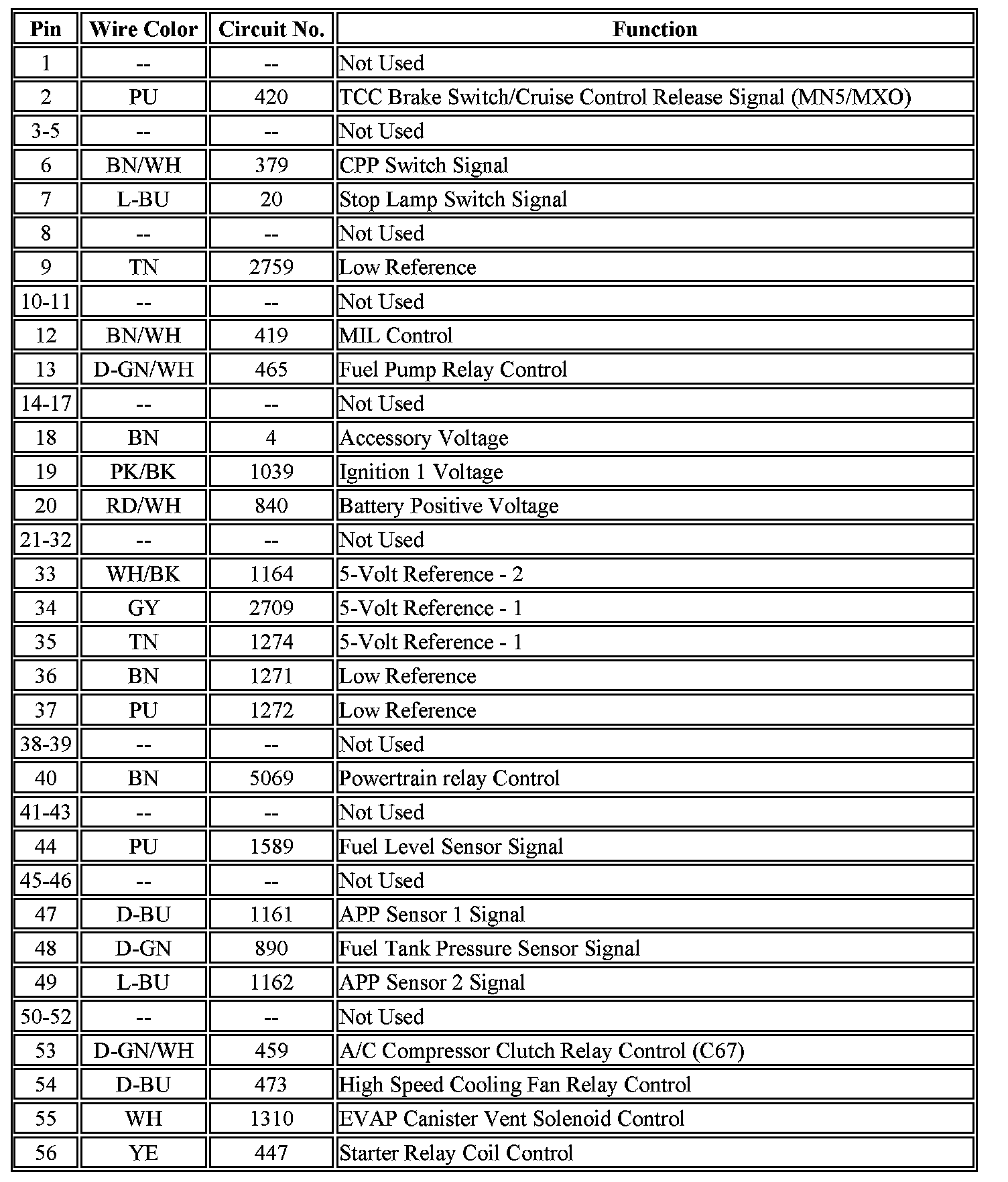

Engine Control Module (ECM) C1

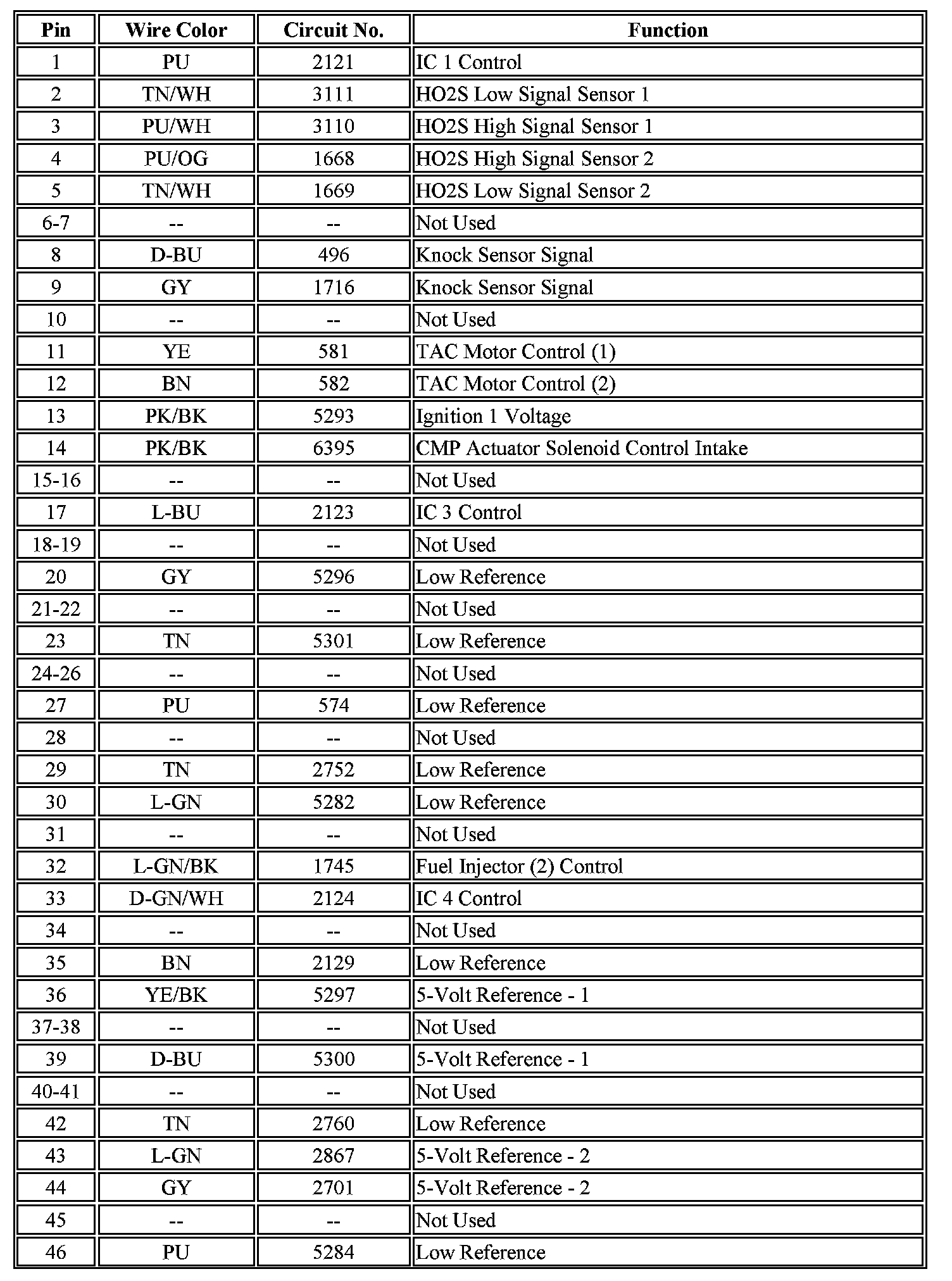

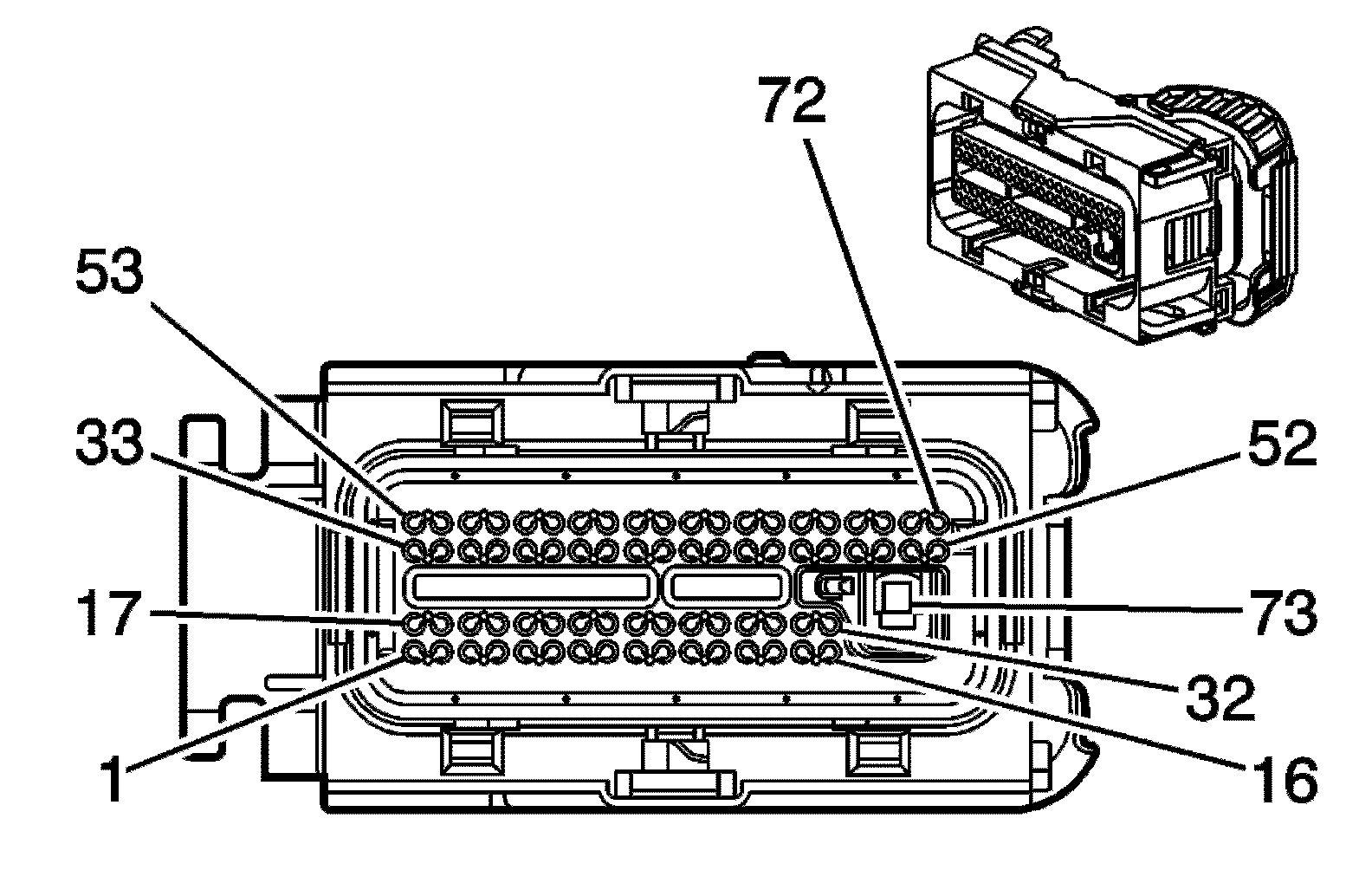

Engine Control Module (ECM) C2

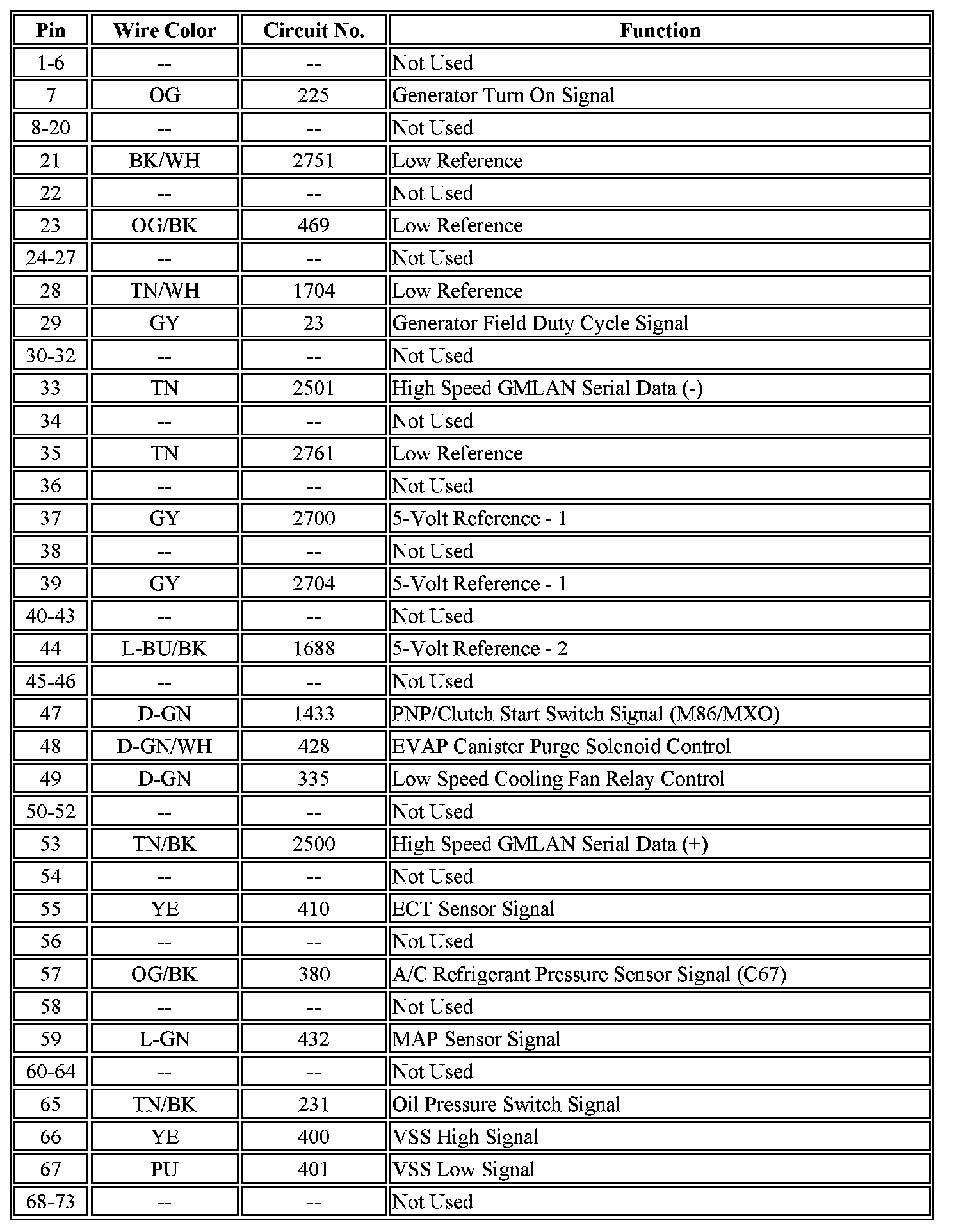

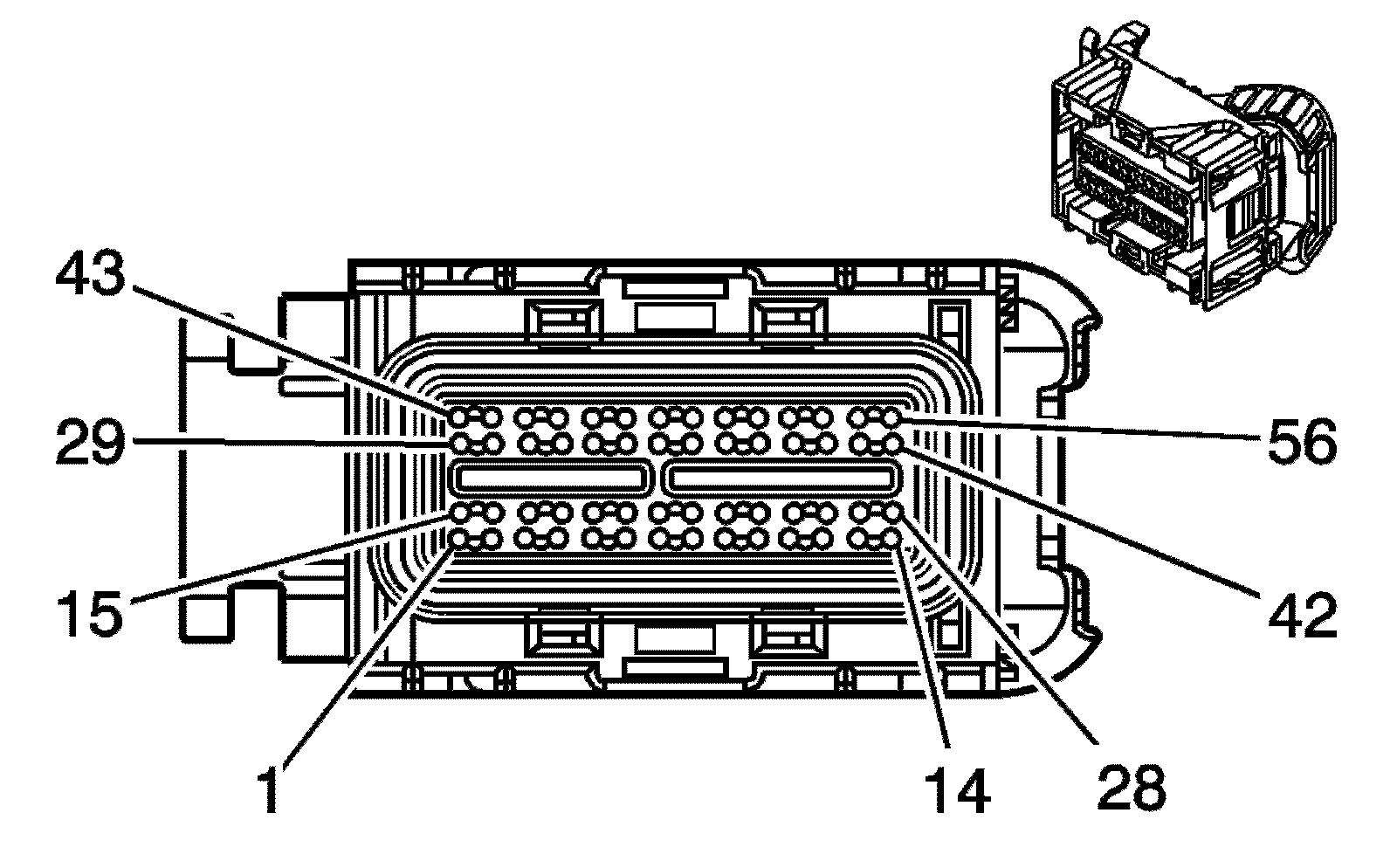

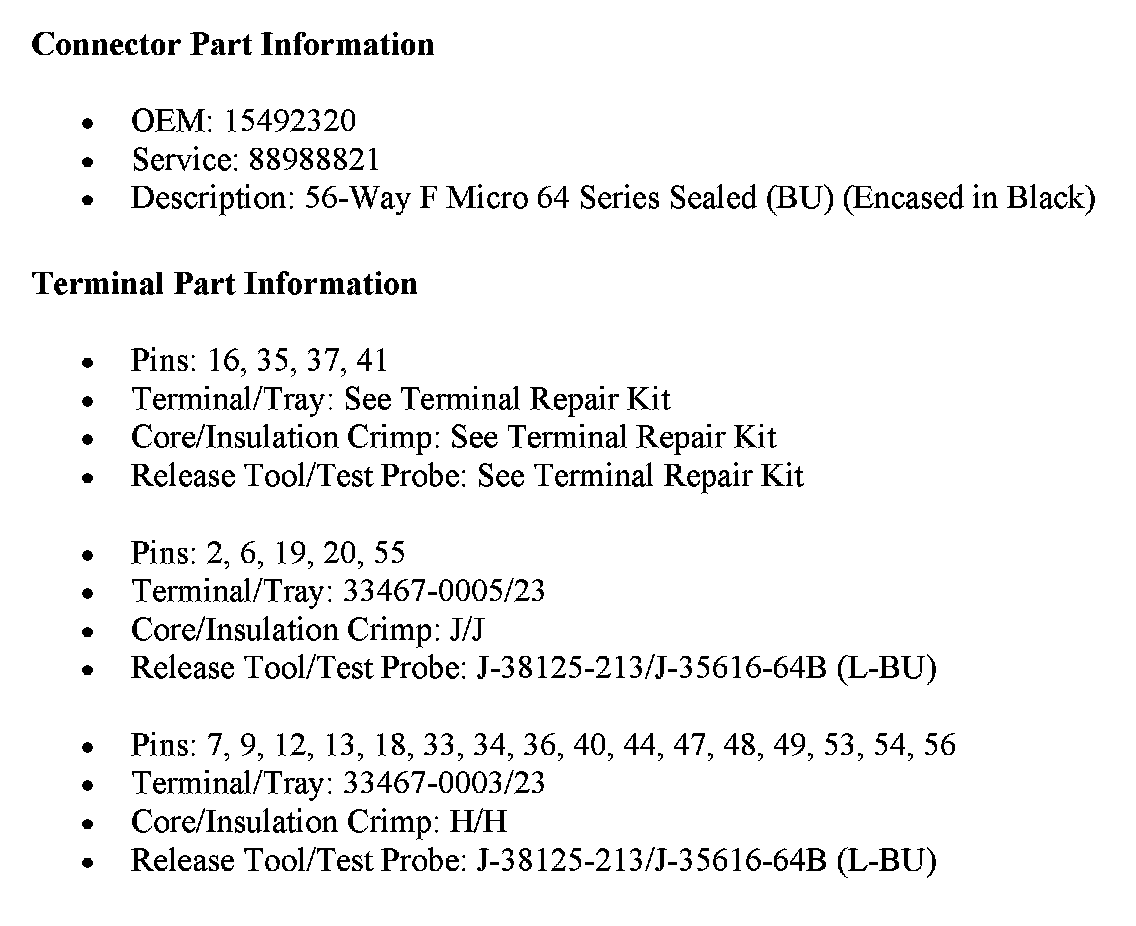

Engine Control Module (ECM) C3
