Engine Controls Component Views

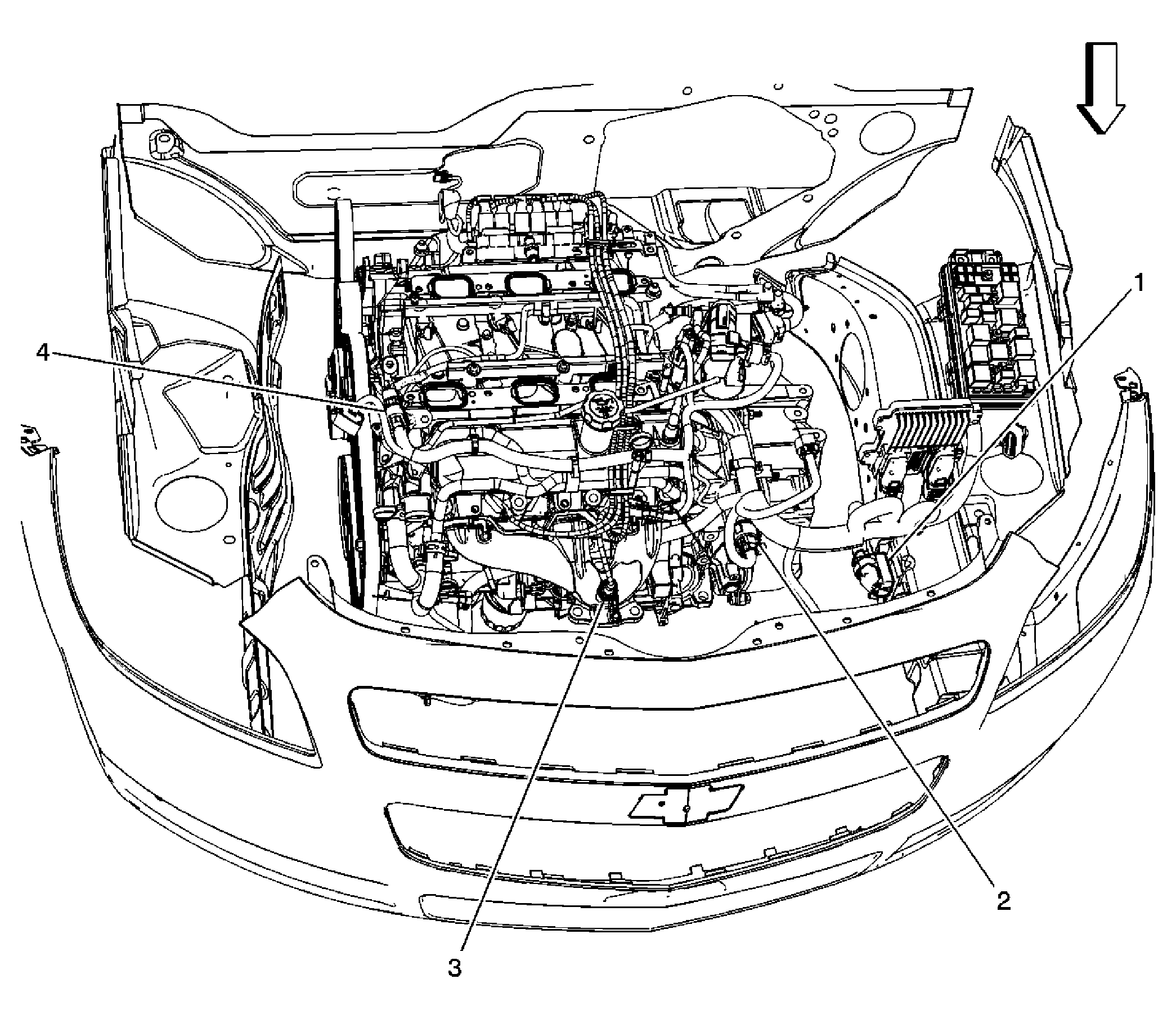

Fig 1: Identifying Engine Control Components (Front of Engine)
GM1829688Courtesy of GENERAL MOTORS CORP.
Callouts For Fig 1

Callout Component Name
1 Transmission Control Module (TCM)
2 C100
3 Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
4 C130

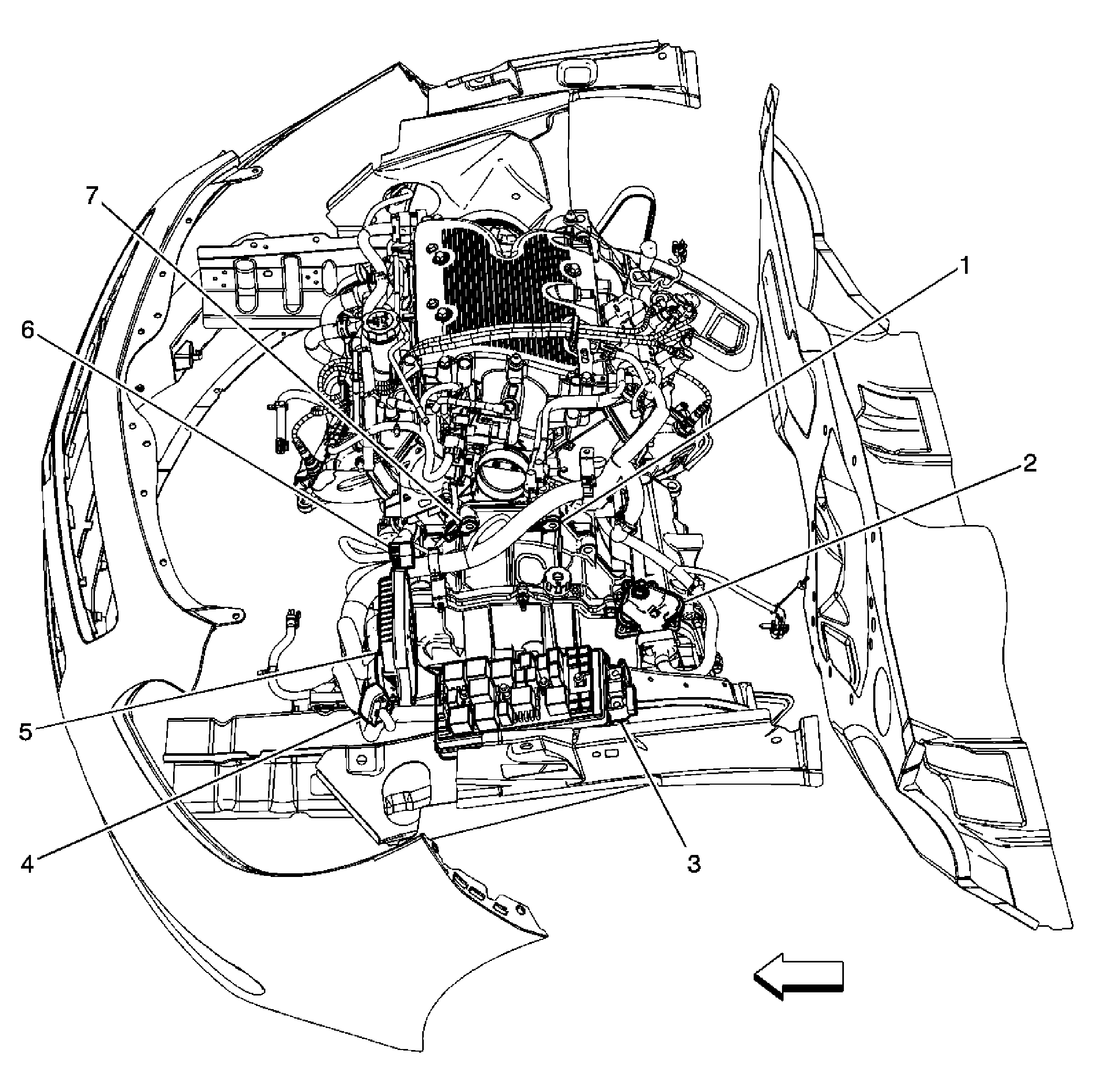

Fig 2: Identifying Engine Control Components (Left Side of Engine)
GM1829701Courtesy of GENERAL MOTORS CORP.
Callouts For Fig 2

Callout Component Name
1 G106
2 Park / Neutral Position (PNP) Switch
3 Fuse Block - Underhood
4 C108
5 Engine Control Module (ECM)
6 C103
7 G105

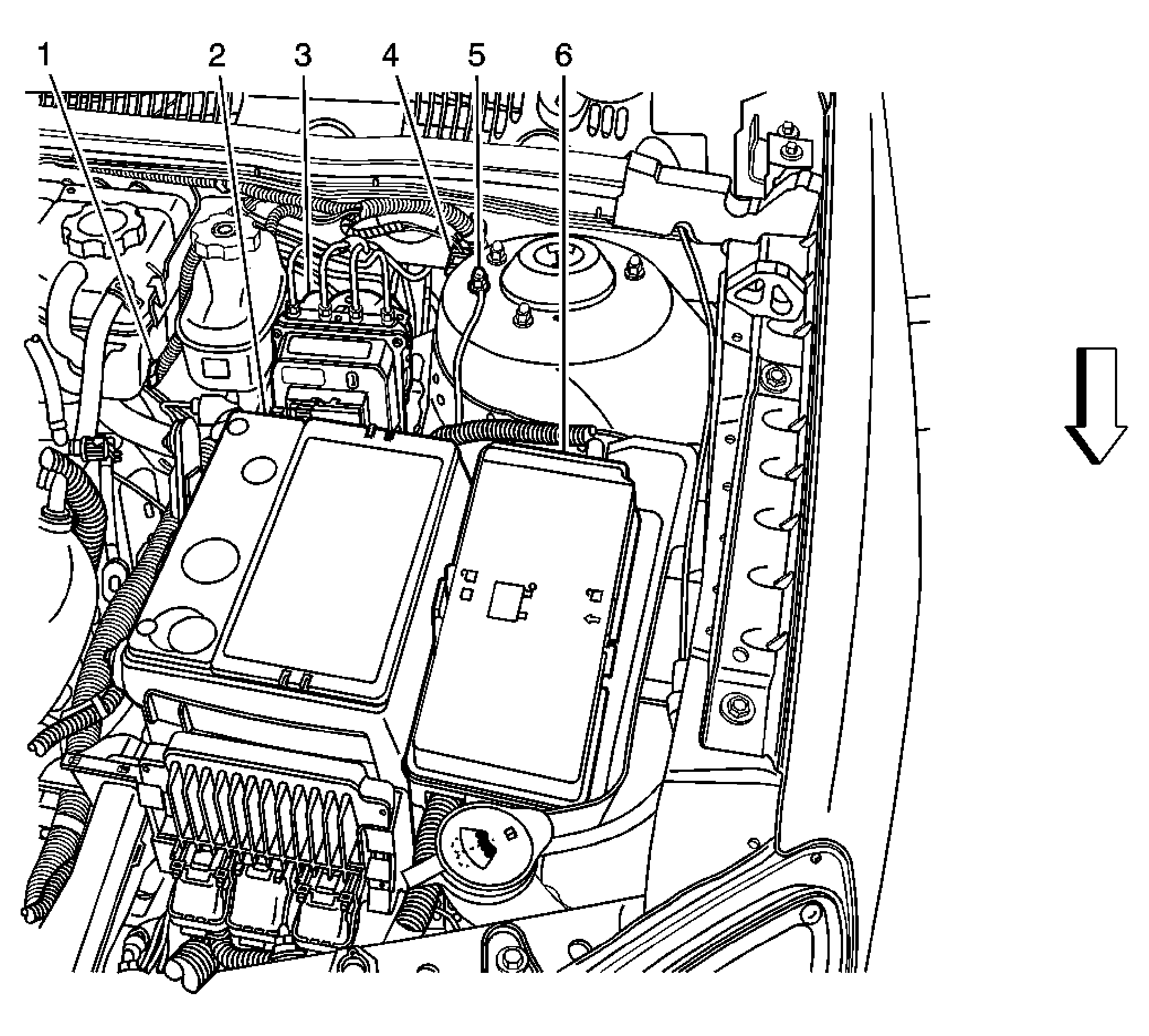

Fig 3: Identifying Engine Control Components (Left Rear of Engine Compartment)
GM1843416Courtesy of GENERAL MOTORS CORP.
Callouts For Fig 3

Callout Component Name
1 Coolant Level Switch
2 Battery
3 Electronic Brake Control Module (EBCM)
4 C101
5 G103
6 Fuse Block - Underhood
Fig 4: Identifying Engine Control Components (Lower Left Front of Engine)
GM1265648Courtesy of GENERAL MOTORS CORP.
Callouts For Fig 4

Callout Component Name
1 Engine Oil Pressure (EOP) Sensor
2 Starter
3 Starter Solenoid
4 Knock Sensor (KS) 2

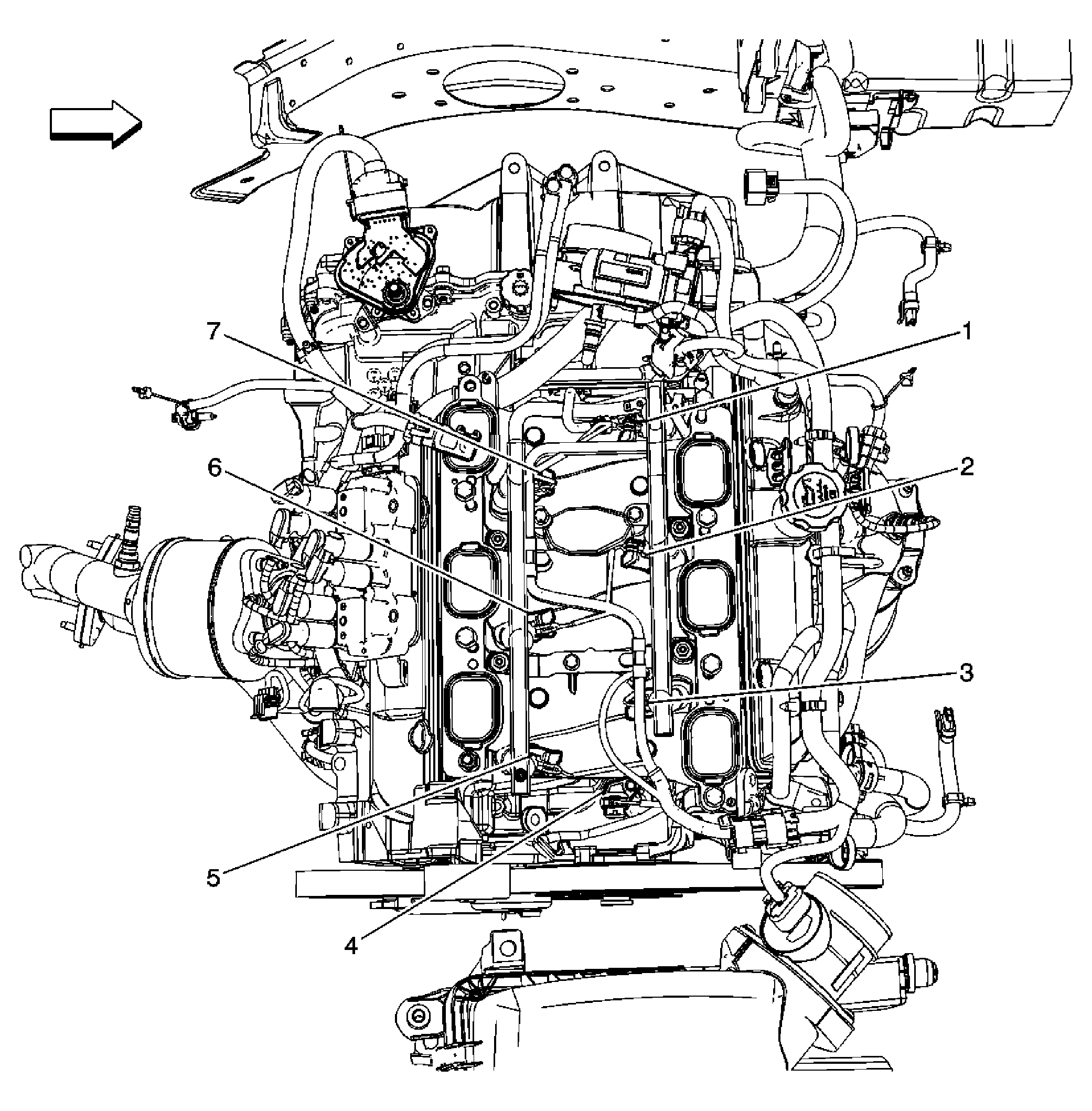

Fig 5: Identifying Engine Control Components (Top View of Engine)
GM1829714Courtesy of GENERAL MOTORS CORP.
Callouts For Fig 5

Callout Component Name
1 Fuel Injector 6
2 Fuel Injector 5
3 Fuel Injector 4
4 Camshaft Position (CMP) Sensor
5 Fuel Injector 1
6 Fuel Injector 2
7 Fuel Injector 3
Fig 6: Identifying Engine Control Components (Fuel Rail/Injectors - LA1 Component View)
GM741412Courtesy of GENERAL MOTORS CORP.
Callouts For Fig 6

Callout Component Name
1 Fuel Injector 1
2 Fuel Injector 3
3 Fuel Injector 5
4 Fuel Rail
5 Fuel Injector 6
6 Fuel Injector 4
7 Fuel Injector 2

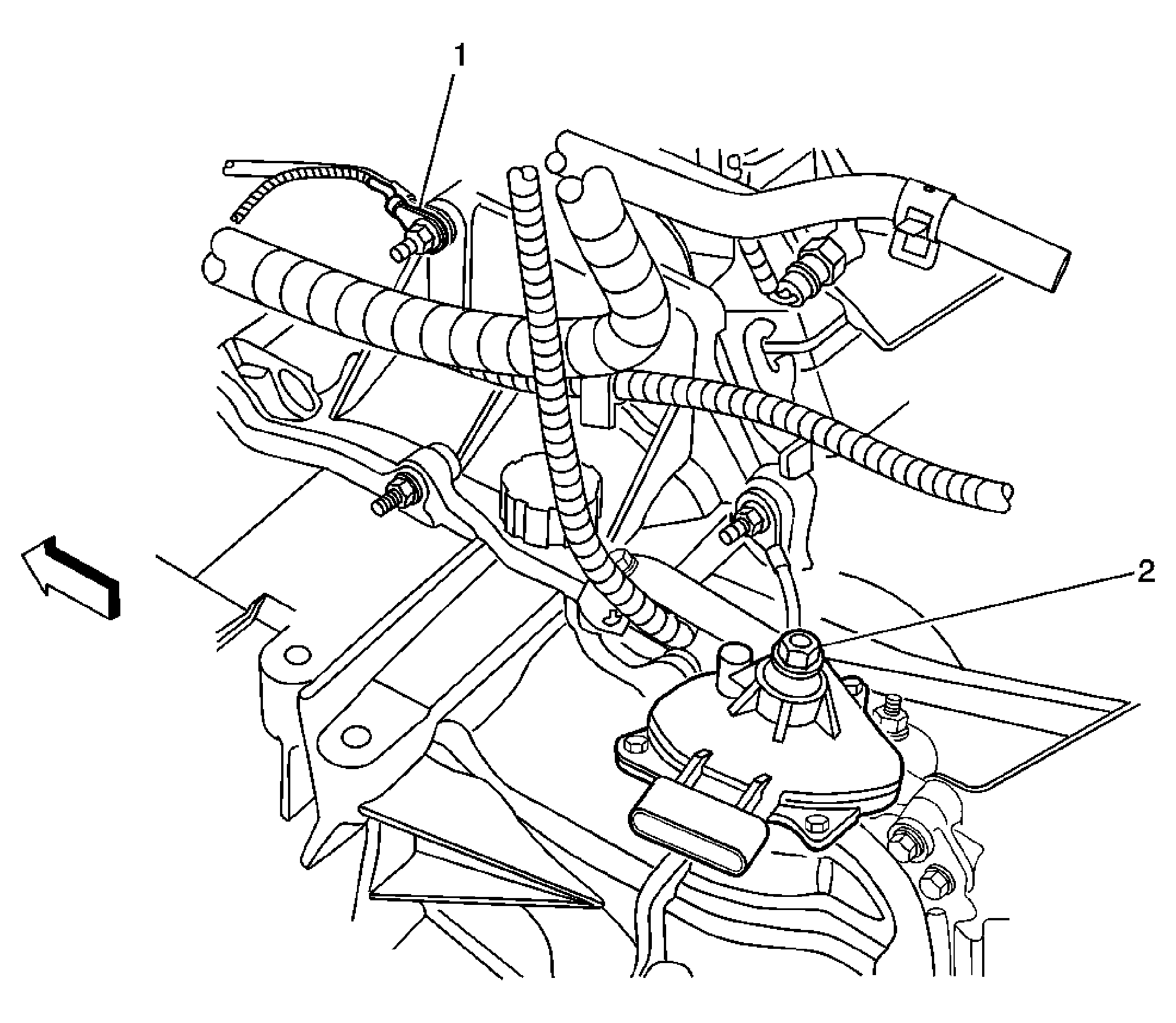

Fig 7: Identifying Engine Control Components (Left Rear of Engine)
GM1843432Courtesy of GENERAL MOTORS CORP.
Callouts For Fig 7

Callout Component Name
1 G105
2 Park Neutral Position (PNP) Switch

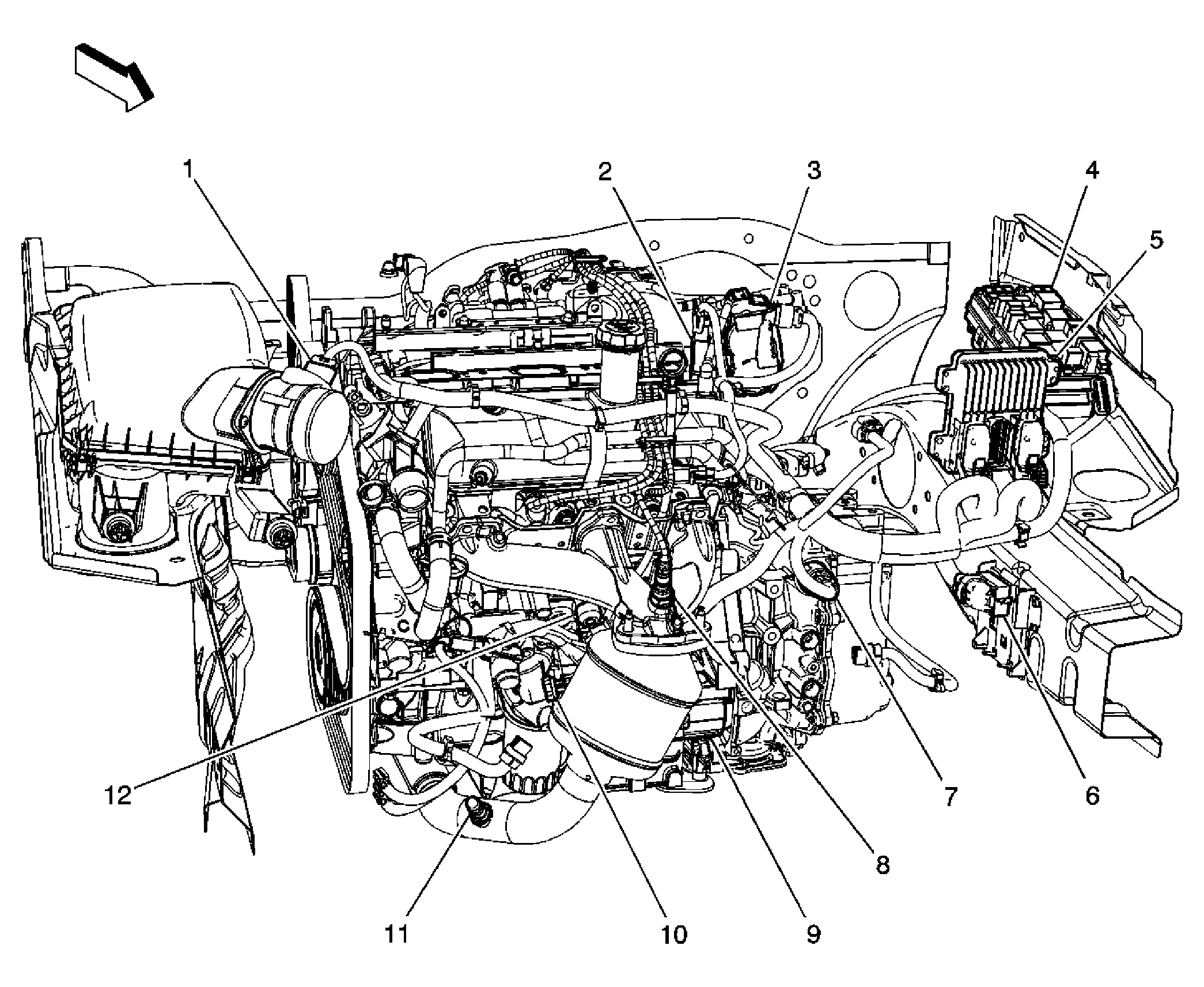

Fig 8: Identifying Engine Control Components (Front View of Engine)
GM1829705Courtesy of GENERAL MOTORS CORP.
Callouts For Fig 8

Callout Component Name
1 MAF / IAT Sensor
2 Evaporative Emission (EVAP) Canister Purge Solenoid Valve
3 Throttle Actuator Control (TAC) Module
4 Fuse Block - Underhood
5 Engine Control Module (ECM)
6 Transmission Control Module (TCM)
7 C100
8 Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
9 Starter
10 Engine Oil Pressure (EOP) Sensor
11 Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
12 Knock Sensor 2

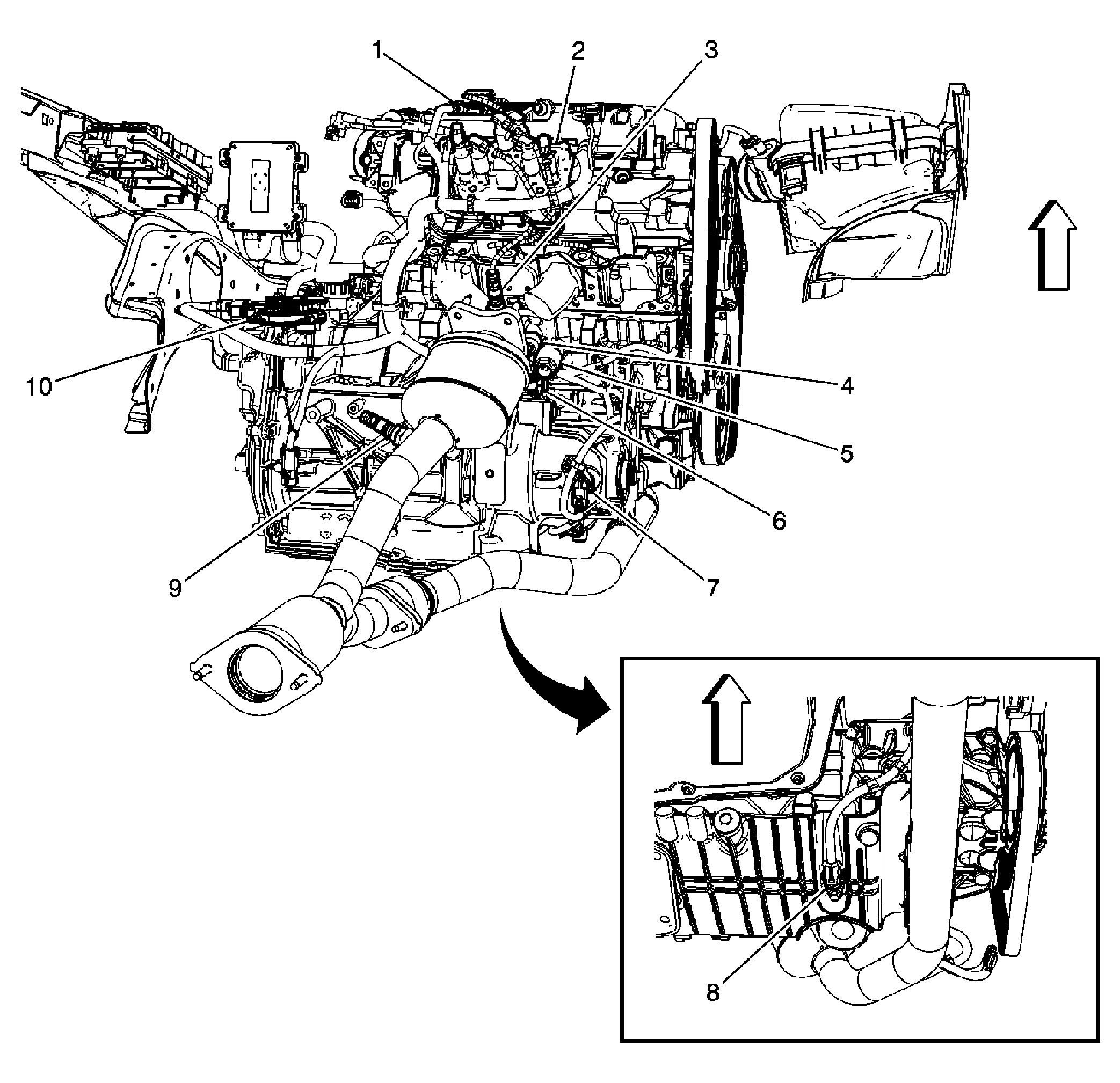

Fig 9: Identifying Engine Control Components (Rear View of Engine)
GM1829711Courtesy of GENERAL MOTORS CORP.
Callouts For Fig 9

Callout Component Name
1 MAP Sensor
2 Ignition Control Module (ICM)
3 Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
4 Knock Sensor 1
5 Engine Coolant Temperature (ECT) Sensor
6 Crankshaft Position (CKP) Sensor
7 Vehicle Speed Sensor (VSS)
8 Engine Oil Level Sensor
9 Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
10 Park / Neutral Position (PNP) Switch
Fig 10: Identifying Engine Control Components (Below Left Side Of I/P)
GM1530115Courtesy of GENERAL MOTORS CORP.
Callouts For Fig 10

Callout Component Name
1 Brake Pedal Position Sensor
2 Accelerator Pedal Position (APP) Sensor
3 Accelerator Pedal
4 Brake Pedal
Fig 11: Identifying Engine Control Components (HO2S)
GM1265692Courtesy of GENERAL MOTORS CORP.
Callouts For Fig 11

Callout Component Name
1 Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
2 Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
Fig 12: Identifying Engine Control Components (Under Right Rear Of Vehicle)
GM1530186Courtesy of GENERAL MOTORS CORP.
Callouts For Fig 12

Callout Component Name
1 Evaporative Emission (EVAP) Canister
2 Evaporative Emission (EVAP) Canister Vent Solenoid Valve
3 Fuel Tank Filler Neck
Fig 13: Identifying Engine Control Components (Top of Fuel Tank)
GM1394468Courtesy of GENERAL MOTORS CORP.
Callouts For Fig 13

Callout Component Name
1 Fuel Tank Pressure (FTP) Sensor, Connector
2 Fuel Pump and Sender Assembly
3 Fuel Pump and Sender Assembly Connector
4 Fuel Tank
