System Diagram

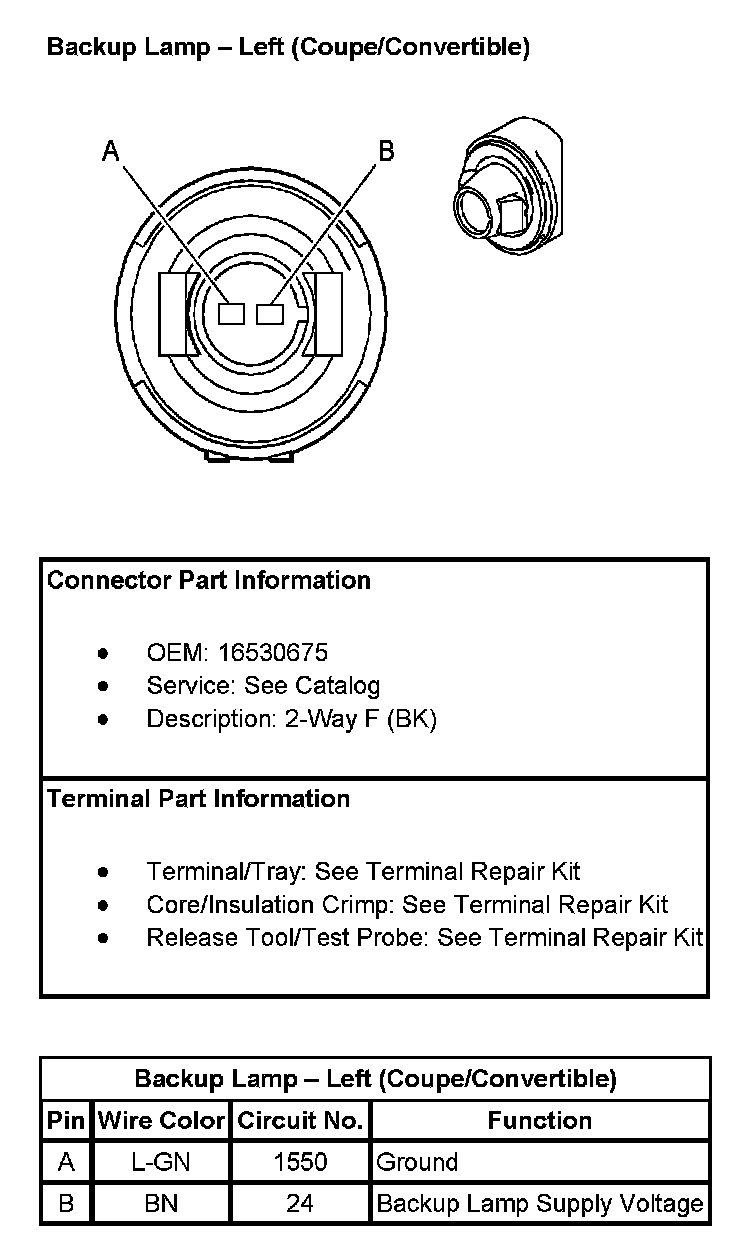

Backup Lamp - Left (Coupe/Convertible):

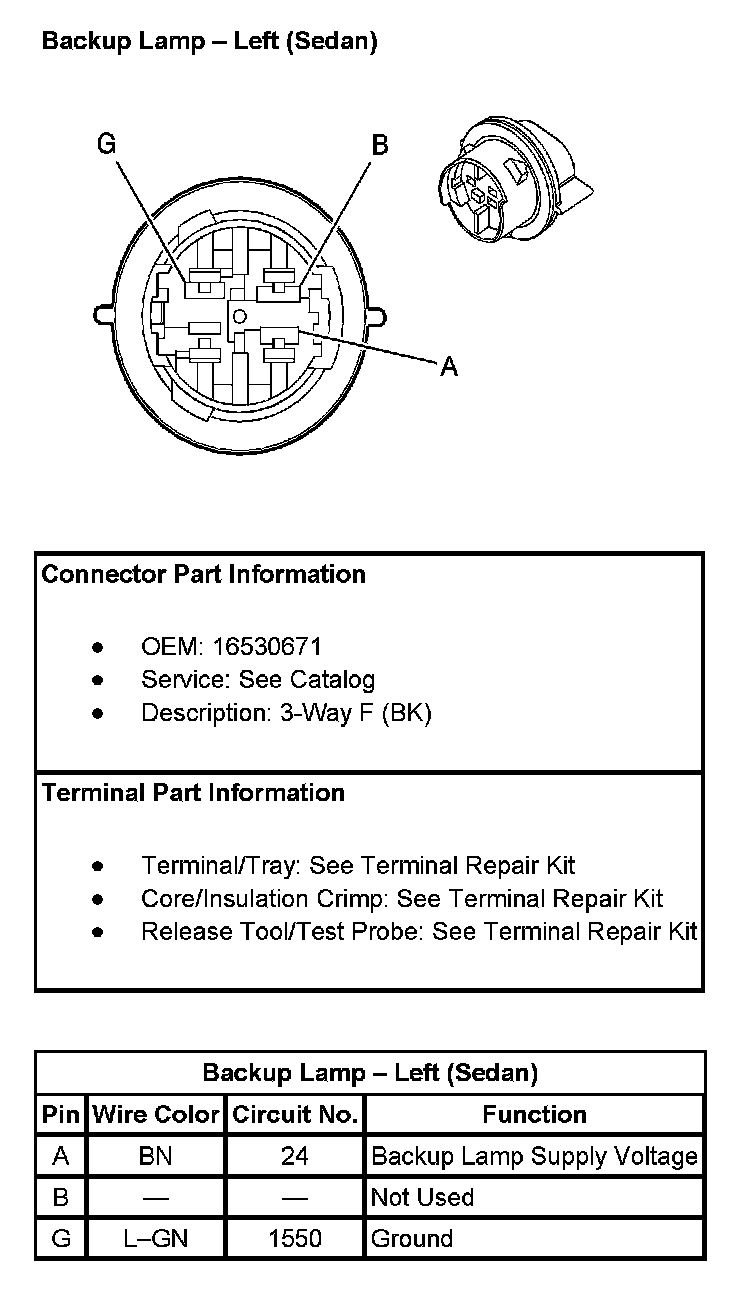

Backup Lamp - Left (Sedan):

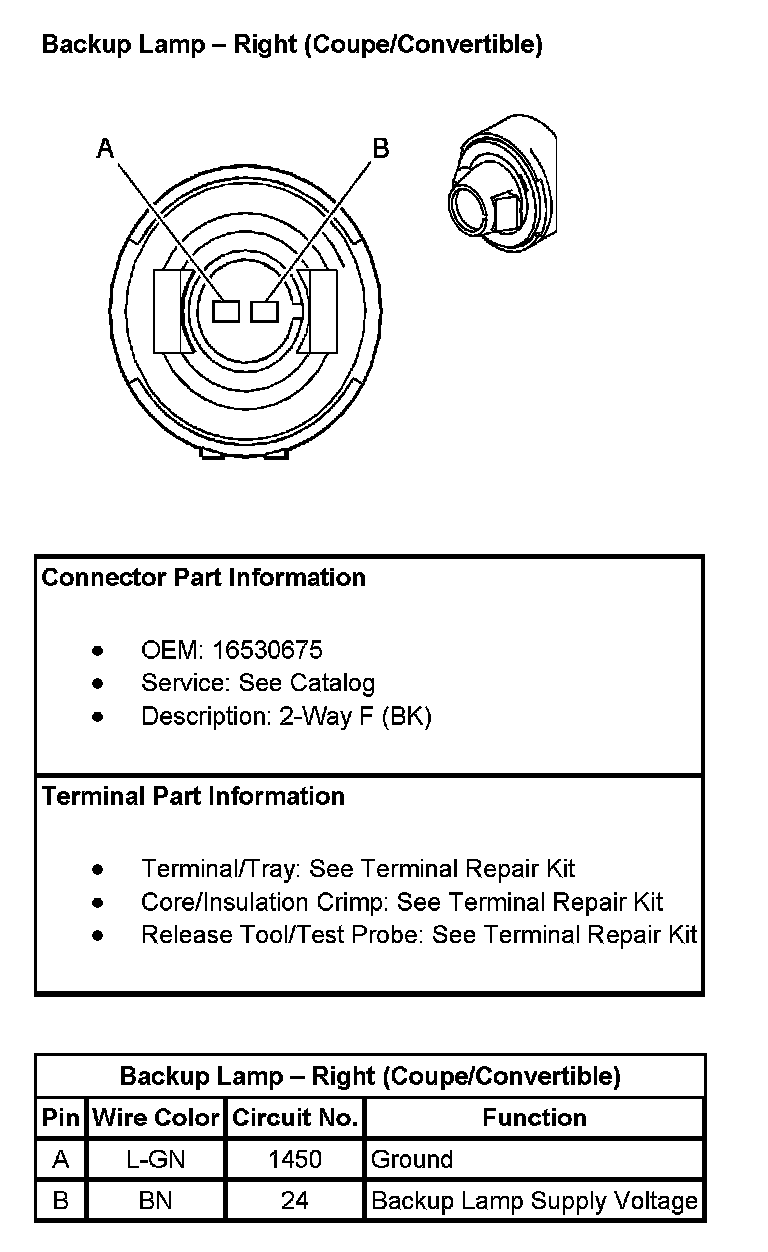

Backup Lamp - Right (Coupe/Convertible):

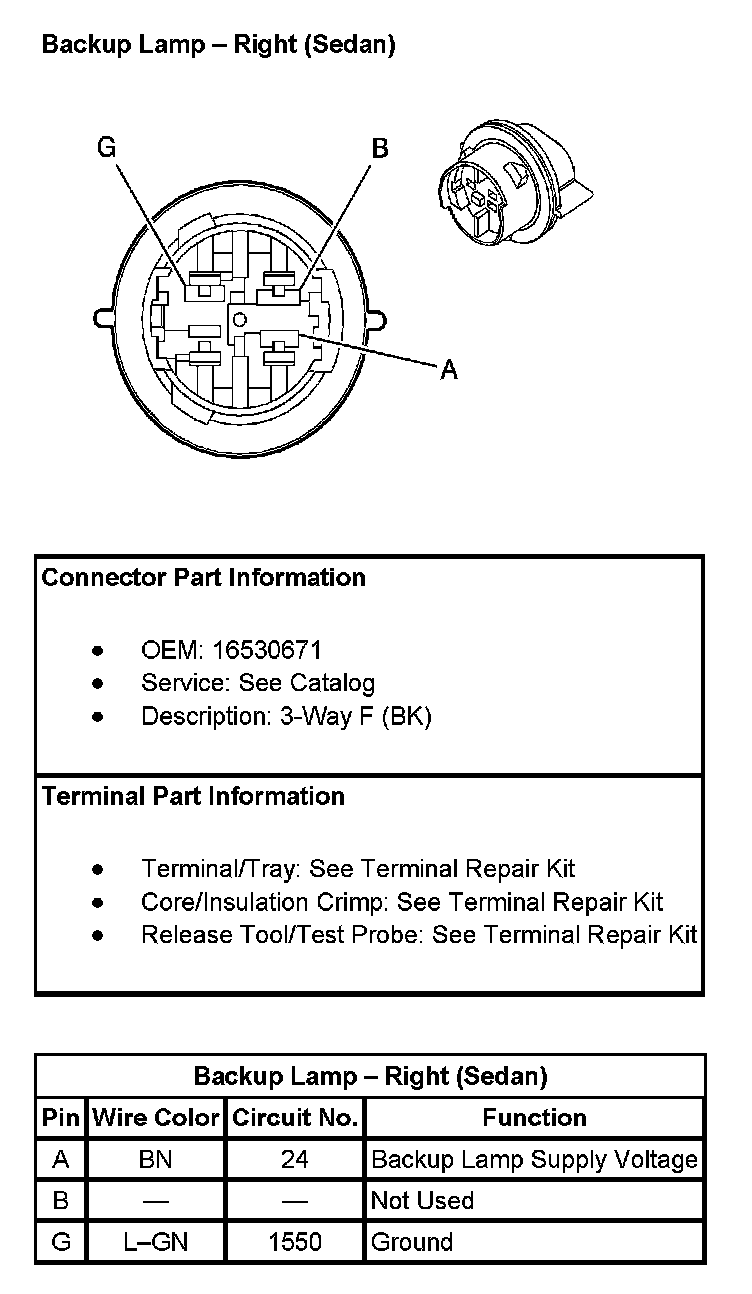

Backup Lamp - Right (Sedan):
