Front Door Latch

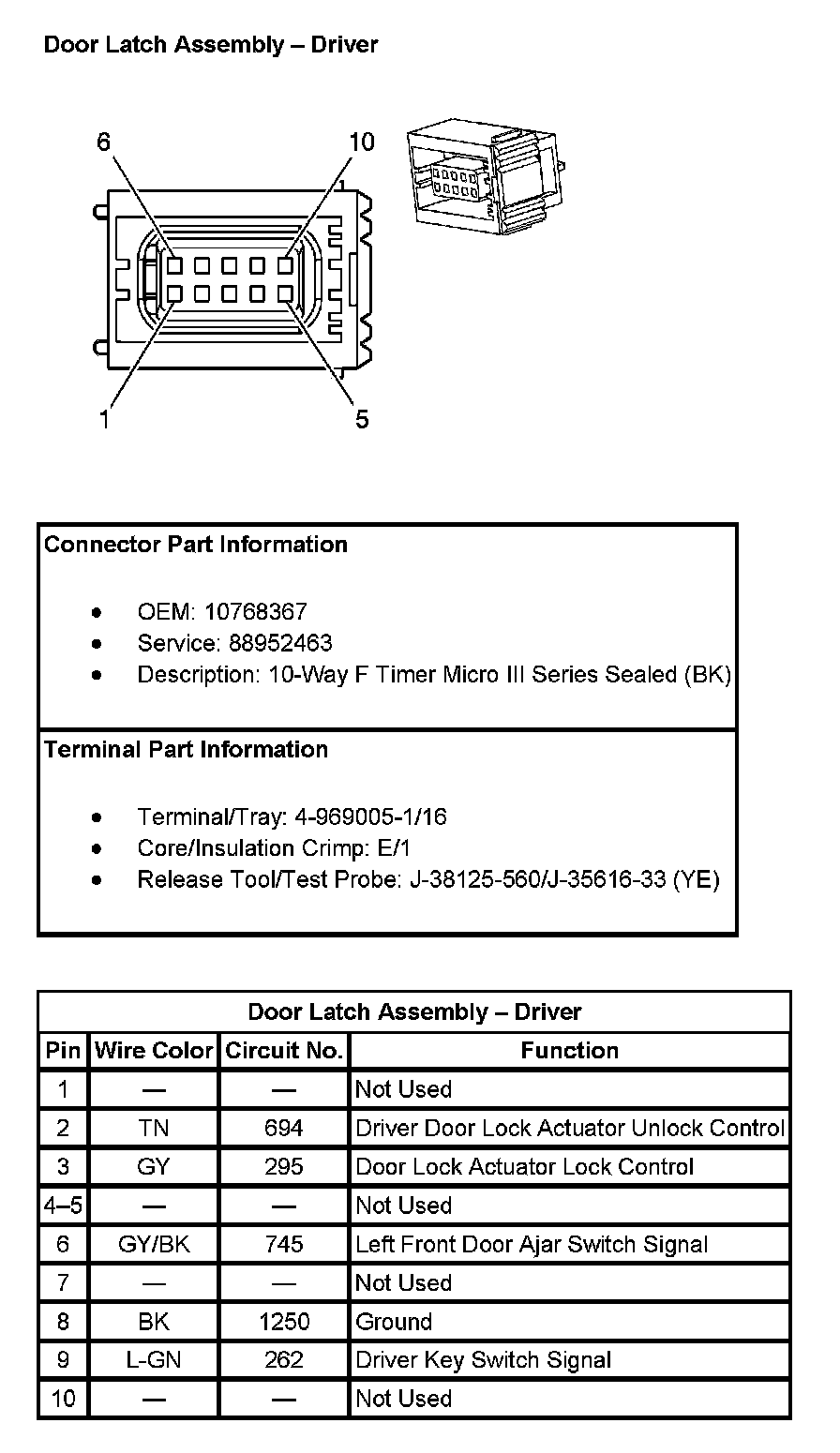

Door Latch Assembly - Driver:

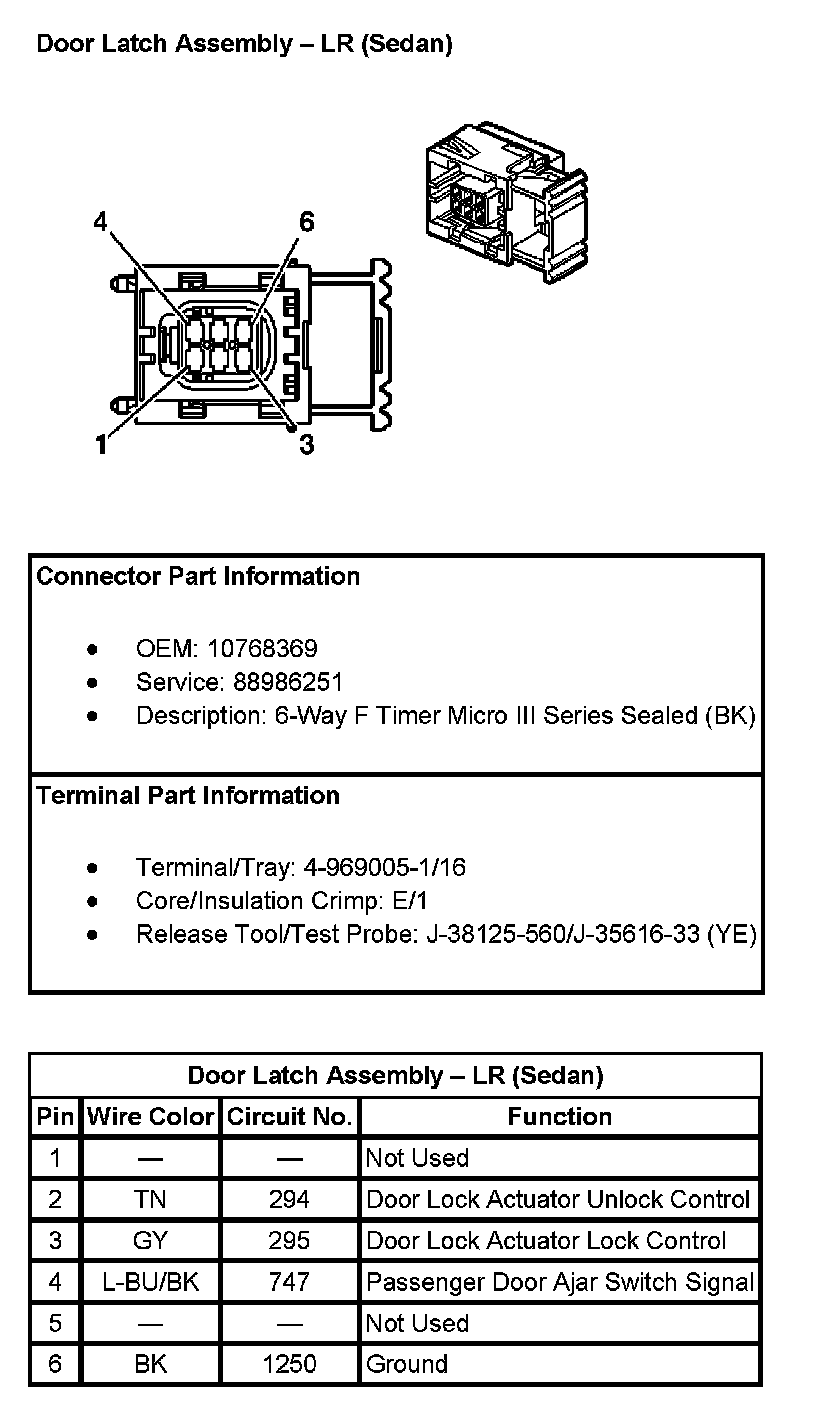

Door Latch Assembly - LR (Sedan):

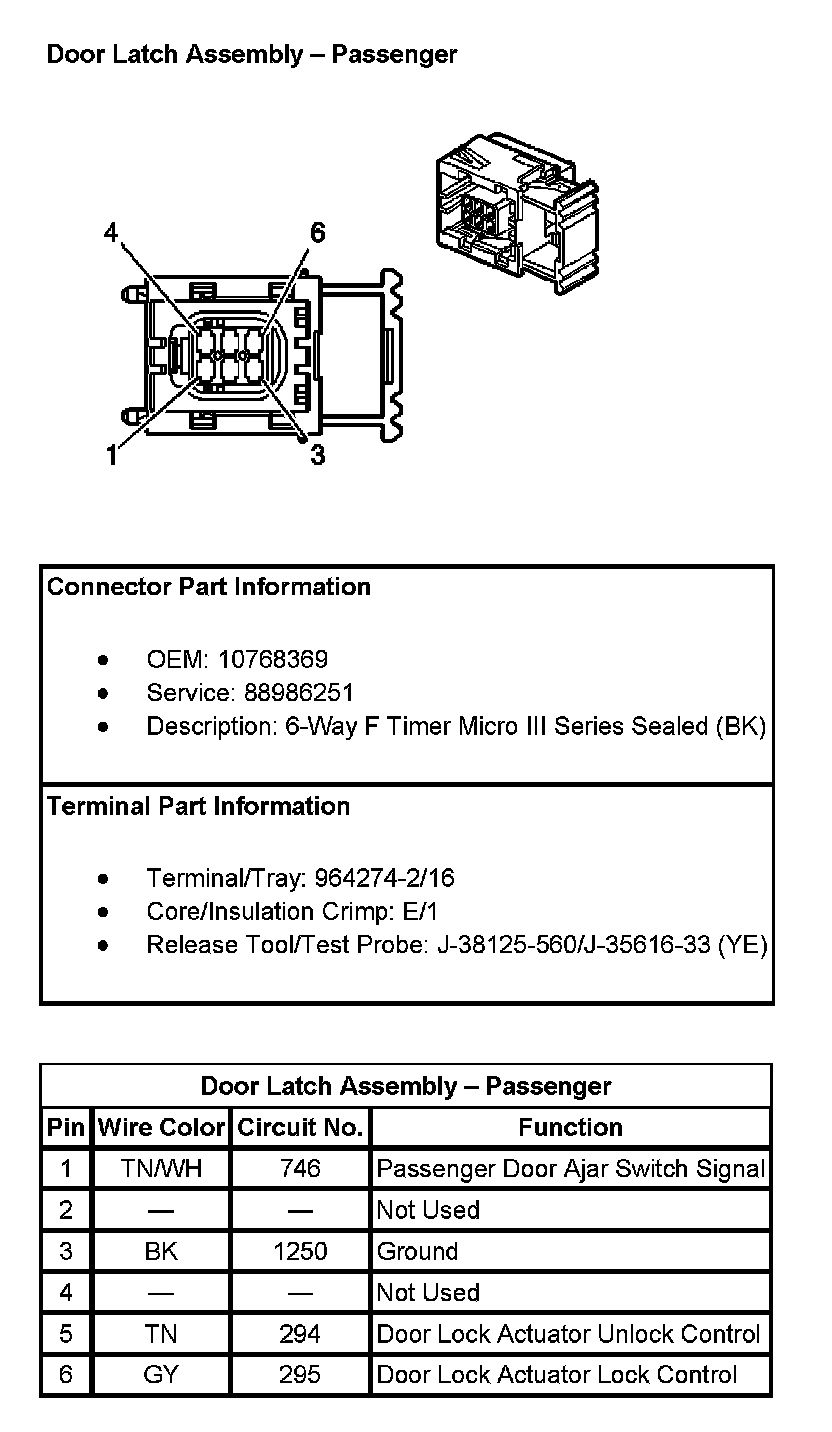

Door Latch Assembly - Passenger:



Door Latch Assembly - RR (Sedan):
