Fuel Tank Pressure Sensor: Service and Repair

Fuel Tank Pressure Sensor Replacement

Removal Procedure




1. Remove the fuel tank.
2. Disconnect the fuel tank fuel pump module wiring harness electrical connector (2) from the fuel tank pressure sensor.




3. Gently pull upward in order to remove the fuel tank pressure sensor from the fuel tank module.

Installation Procedure




1. Lightly lubricate the sensor seal with clean engine oil.
2. Press the sensor down fully into the fuel tank module.

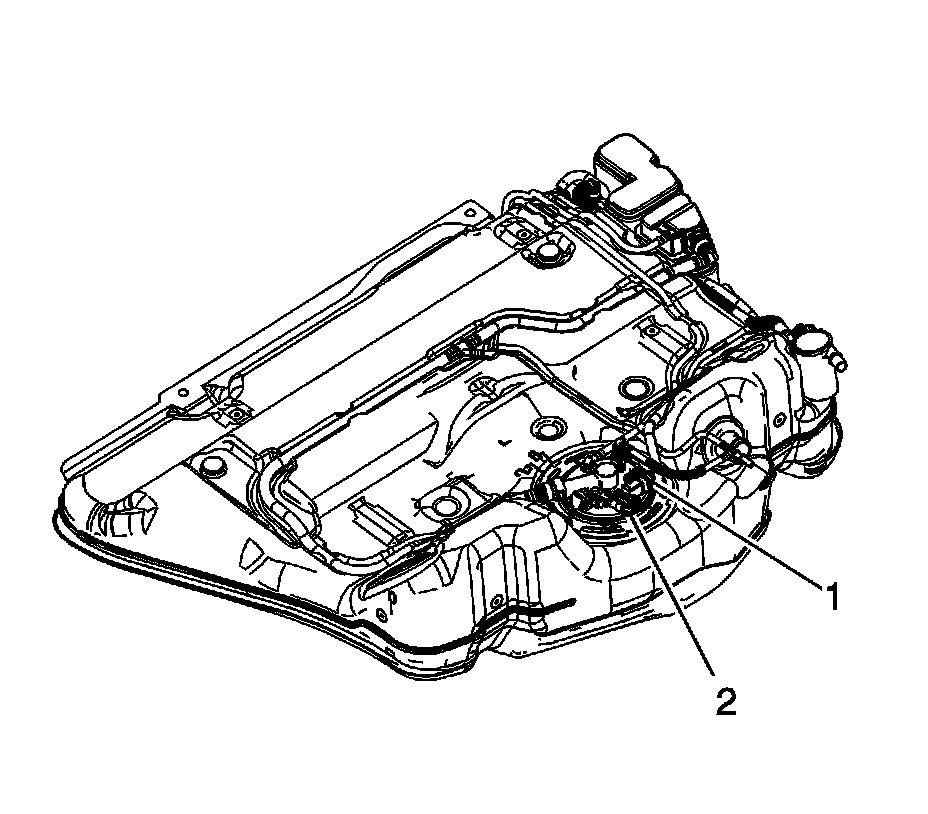

3. Connect the fuel tank fuel pump module wiring harness electrical connector (1) to the fuel tank pressure sensor.
4. Install the fuel tank.
