Inflatable Restraint Steering Wheel Module Replacement

WARNING: This page is about a different car, the 2007 Buick LaCrosse and 2007 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

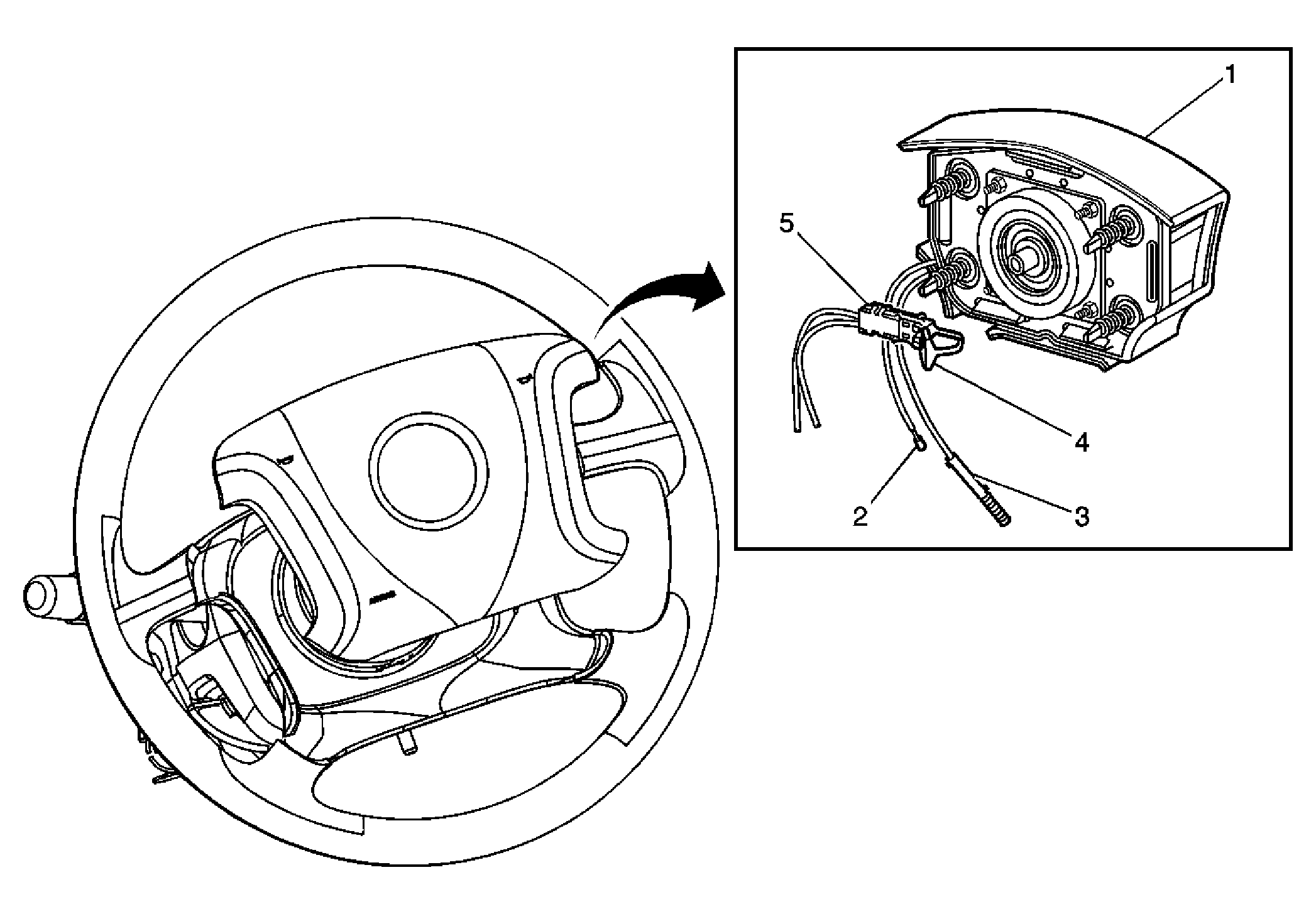

Fig 1: Inflatable Restraint Steering Wheel Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: A deployed dual stage inflator module will look the same whether one or both stages were used, always assume a deployed dual stage inflator module has an active stage 2. Improper handling or servicing can activate the inflator module and cause personal injury. CAUTION: Refer to SIR Inflator Module Handling and Storage Caution . Fastener Tightening Specifications Refer to Fastener Tightening Specifications .Preliminary Procedure: Disable and Enable Zone 3. Refer to SIR Disabling and Enabling .
1	Module, Inflatable Driver Restraint Tip: Use the J 44298 to remove the module. See Special Tools . When using the tool, rotate the steering wheel so that 2 of the 4 access slots on the back side of the steering are pointed at the 12 o'clock position. Tools Required: J 44298 Driver Air Bag Removal Tool. See Special Tools .
2	Connector, Ground Lead
3	Connector, Horn Lead
4	Connector, Yellow Connector Position Assurance (CPA)
5	Connector, Inflatable Driver Restraint Module
6	Module, Deploy Refer to Inflator Module Handling and Scrapping . Tip: This service procedure applies only if the air bag that have a DTC, and must be returned for warranty purposes only.
