Seat Temperature Element

Heated Seat Element - Driver Back:

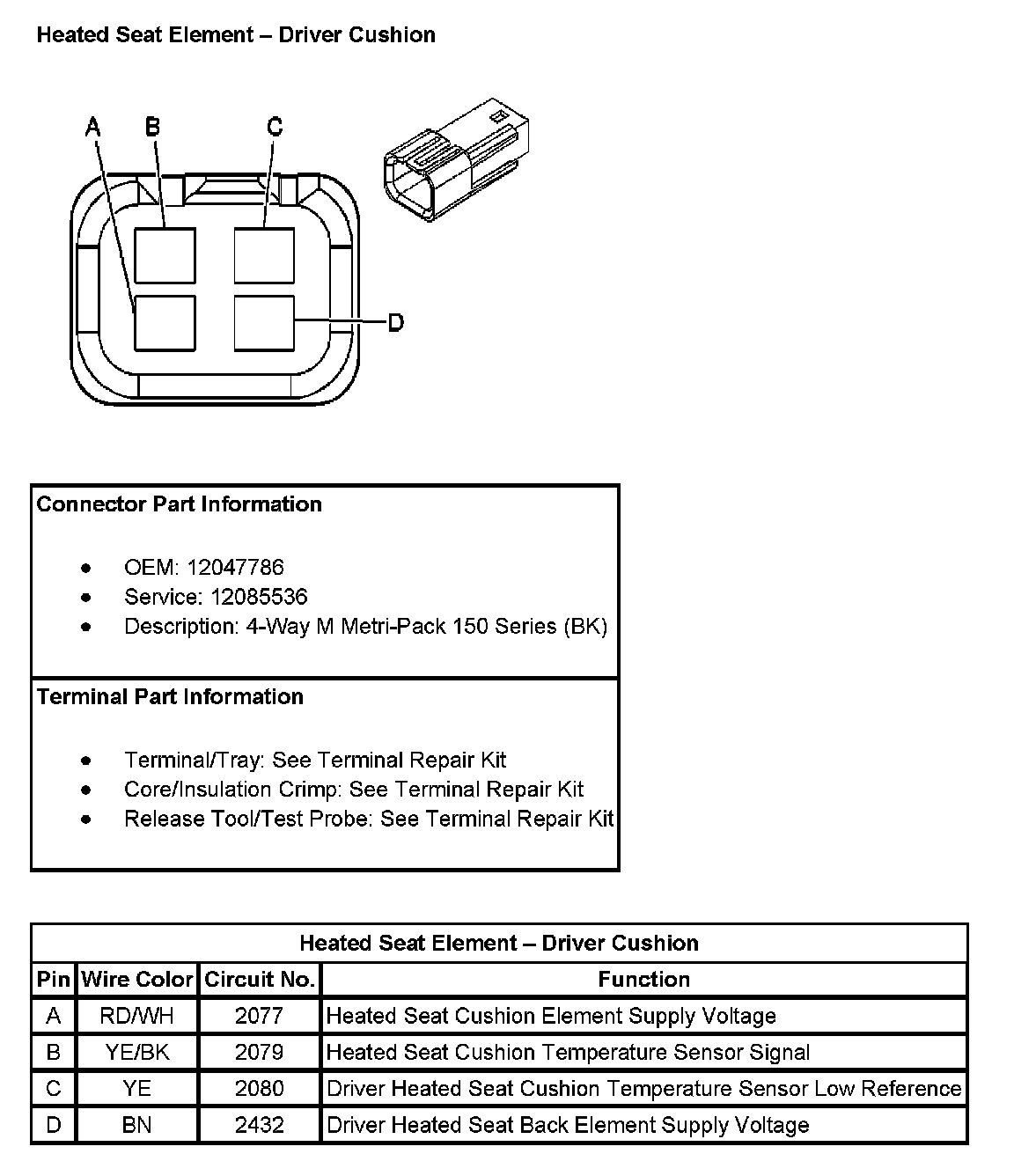

Heated Seat Element - Driver Cushion:



Heated Seat Element - Front Passenger Back:

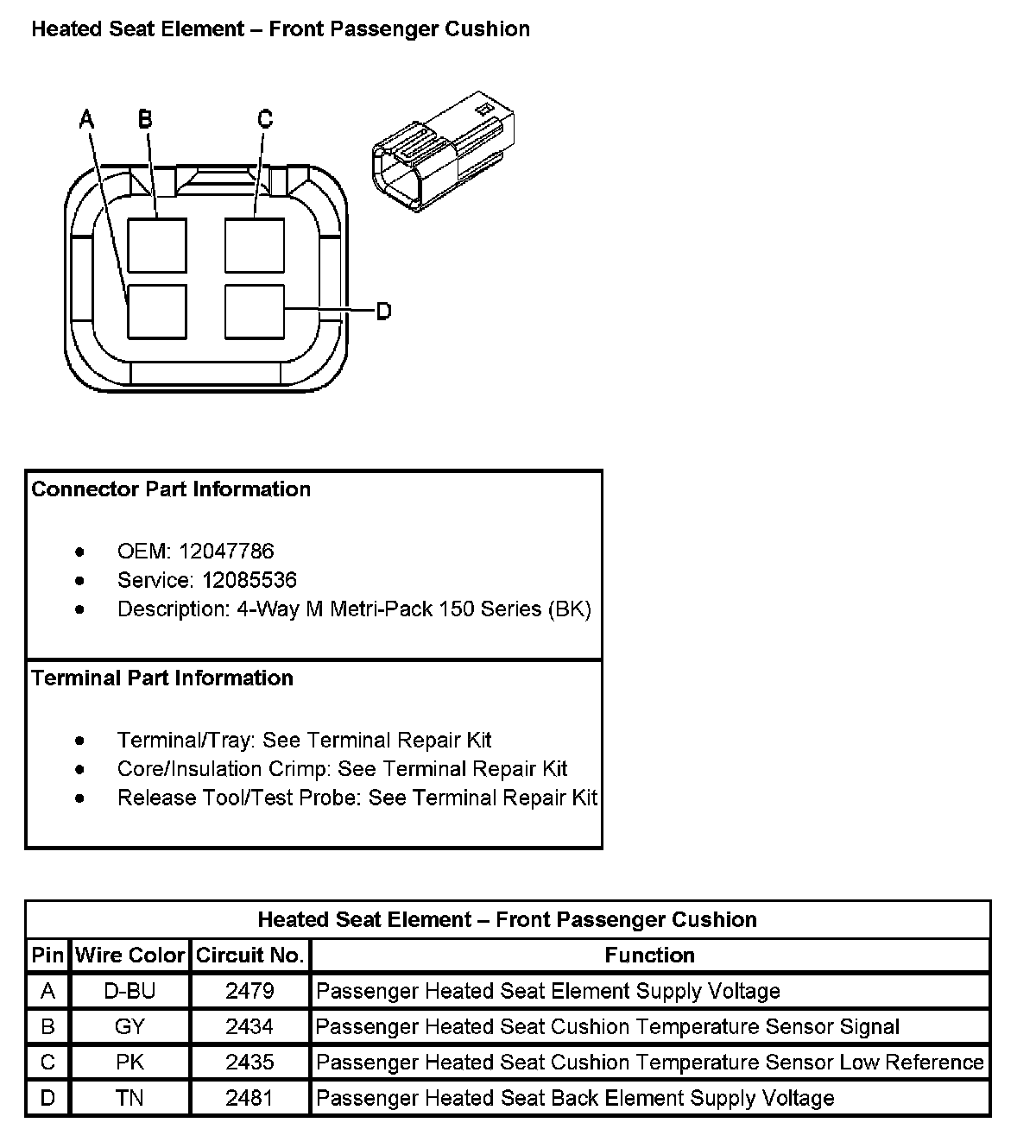

Heated Seat Element - Front Passenger Cushion:
