Power Steering Pump Replacement

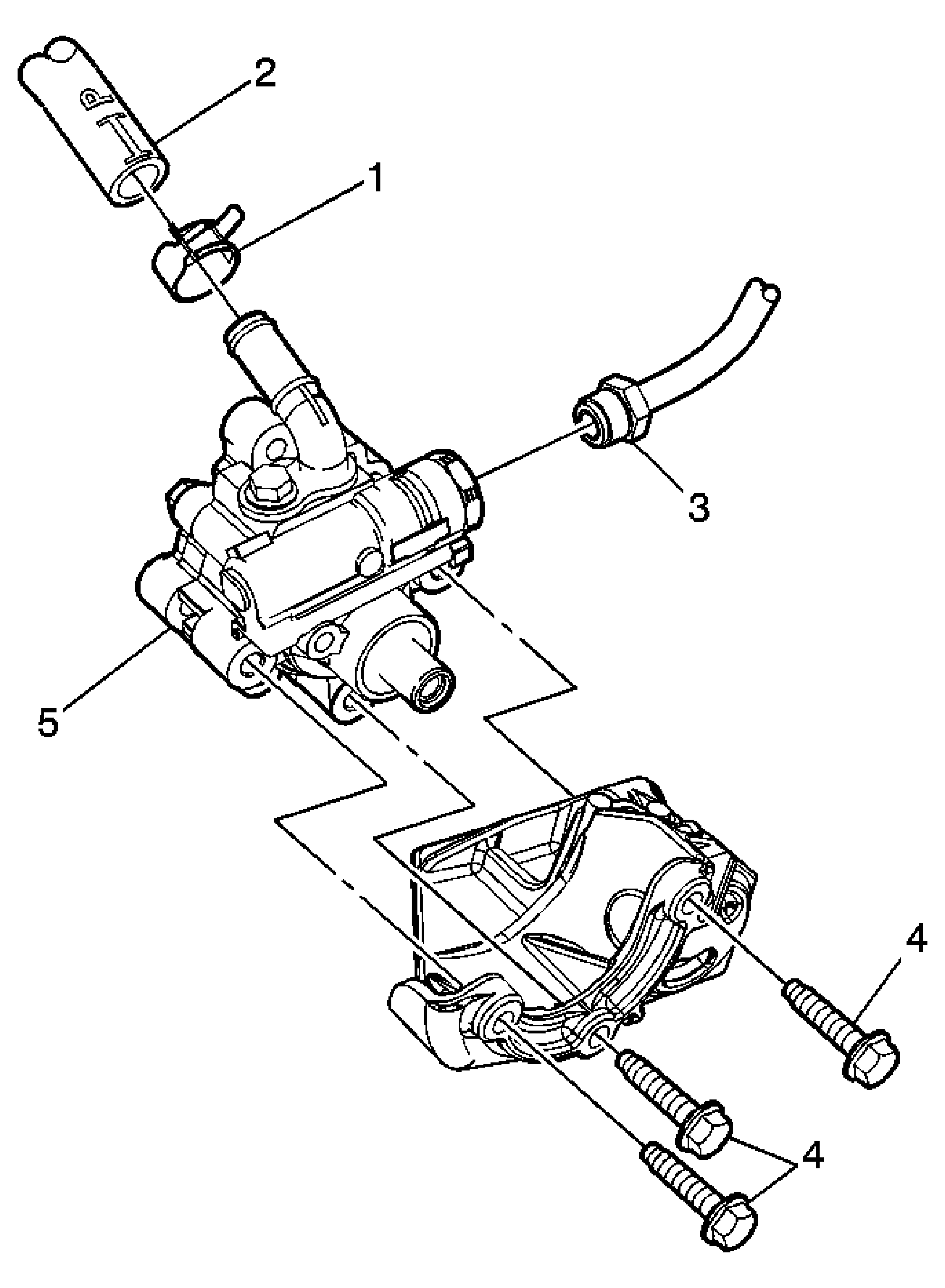

Fig 1: Power Steering Pump

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . If equipped, remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement . If equipped, remove the charged air cooler inlet pipe. Refer to Charge Air Cooler Inlet Pipe Replacement .
1	Reservoir Outlet Hose Clamp
2	Reservoir Outlet Hose
3	Power Steering Gear Inlet Pipe/Hose Fitting NOTE: Refer to Fastener Notice . Tighten: 27 N.m (20 lb ft)
4	Power Steering Pump Bolts (Qty: 3) Procedure: Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Tighten: 22 N.m (16 lb ft)
5	Power Steering Pump Tip: Remove the power steering pump from the top of the vehicle.
