Installation Procedure

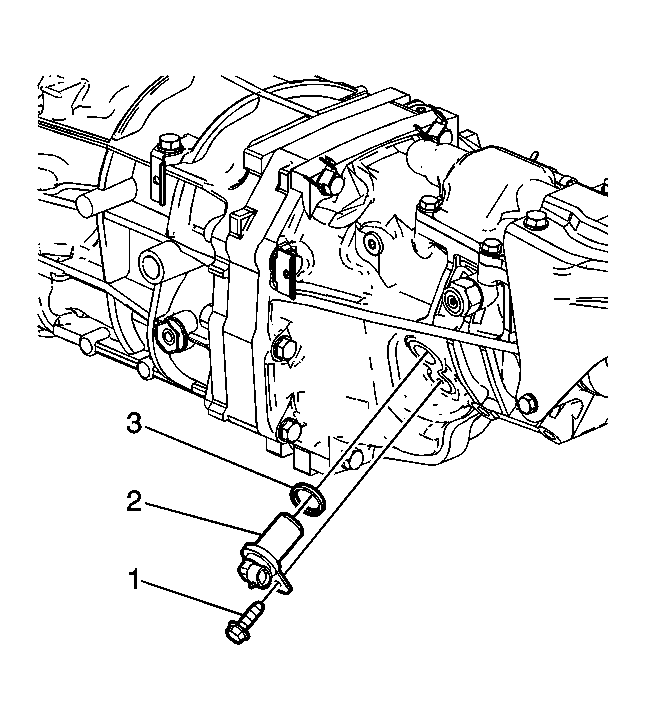

    Fig 1: Vehicle Speed Sensor
    GM1602275Courtesy of GENERAL MOTORS CORP.
  1. Install the O-ring seal (3) to the VSS (2).
  2. Install the VSS (2) to the transmission.
    3. NOTE: Refer to Fastener Notice .
  3. Install the VSS bolt (1).

    Tighten:  Tighten the bolt to 17 N.m (13 lb ft).

    4. Fig 2: VSS Bolt
    GM1602274Courtesy of GENERAL MOTORS CORP.
  4. Connect the VSS electrical connector (2).
  5. Install the front floor closeout panel. Refer to Floor Panel Tunnel Panel Front Closeout Panel Replacement .
  6. Lower the vehicle.
