Fascia Views



Harness Routing Views

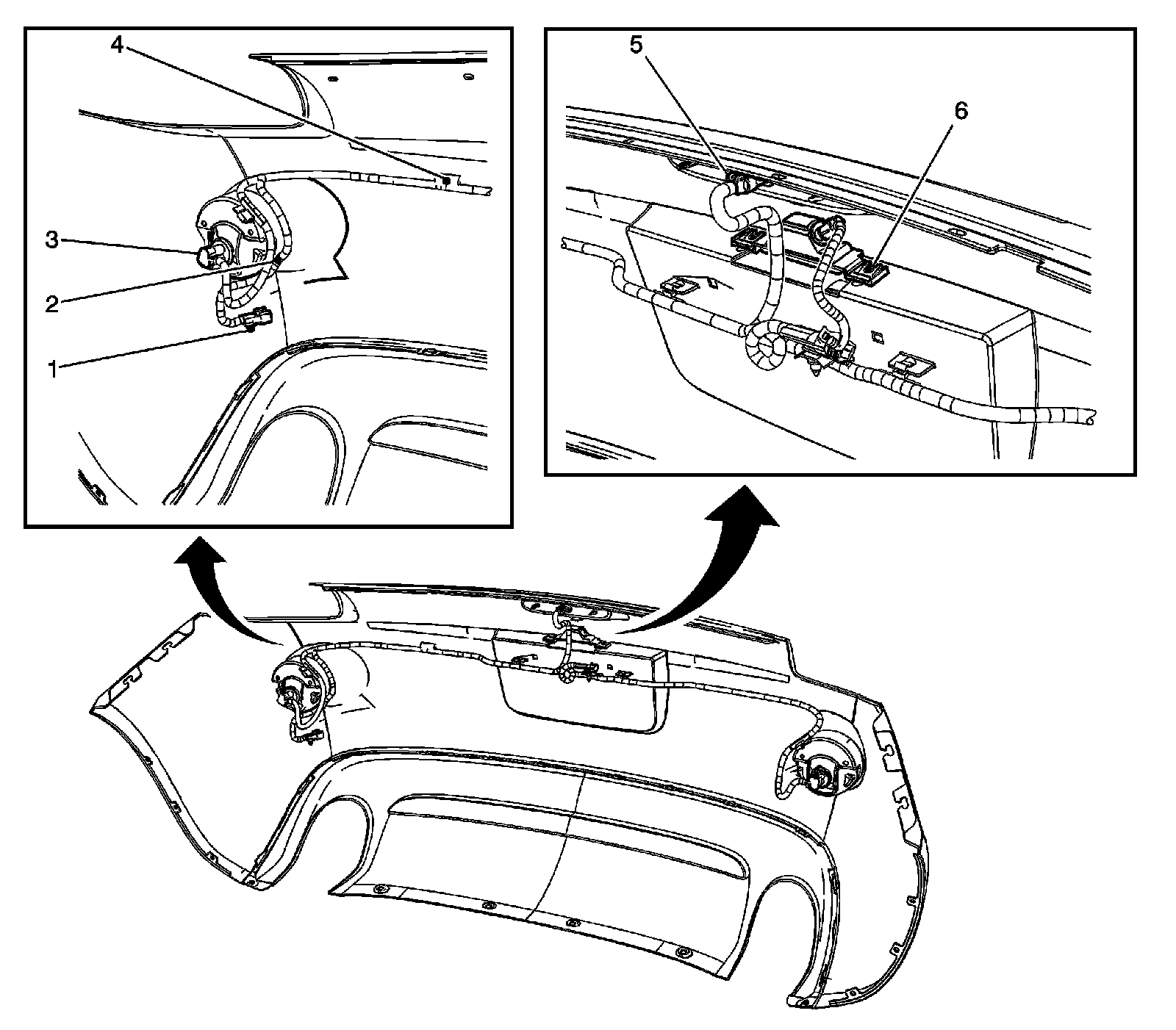

Rear Fascia Harness




1 - C440
2 - S901
3 - Backup Lamp - RH
4 - S402
5 - Center High Mounted Stop Lamp (CHMSL)
6 - License Lamp
