Home >> Pontiac >> 2007 >> Solstice L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Underhood Fuse Block
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Underhood Fuse Block



Location View:

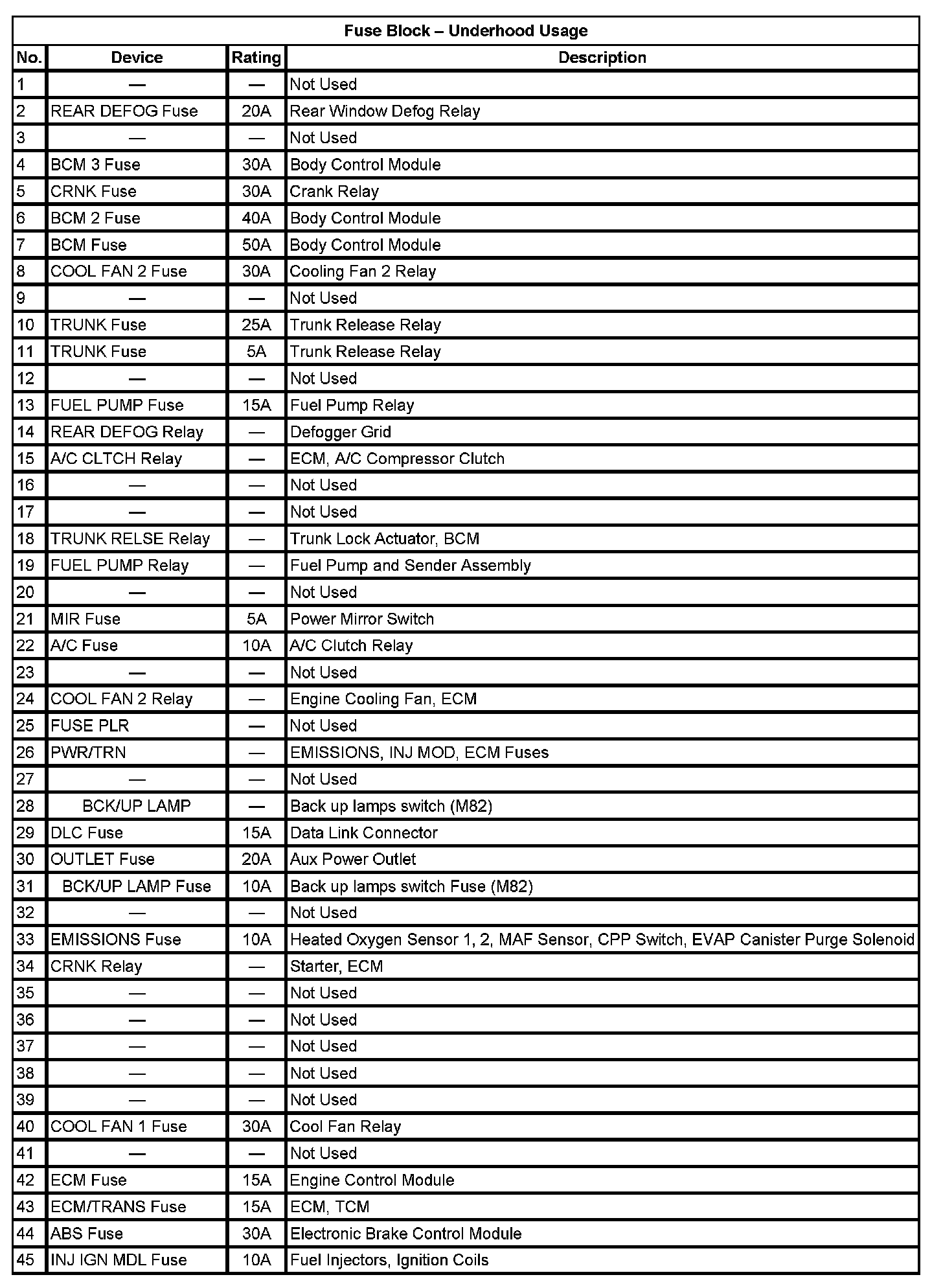

Application Table (Part 1):

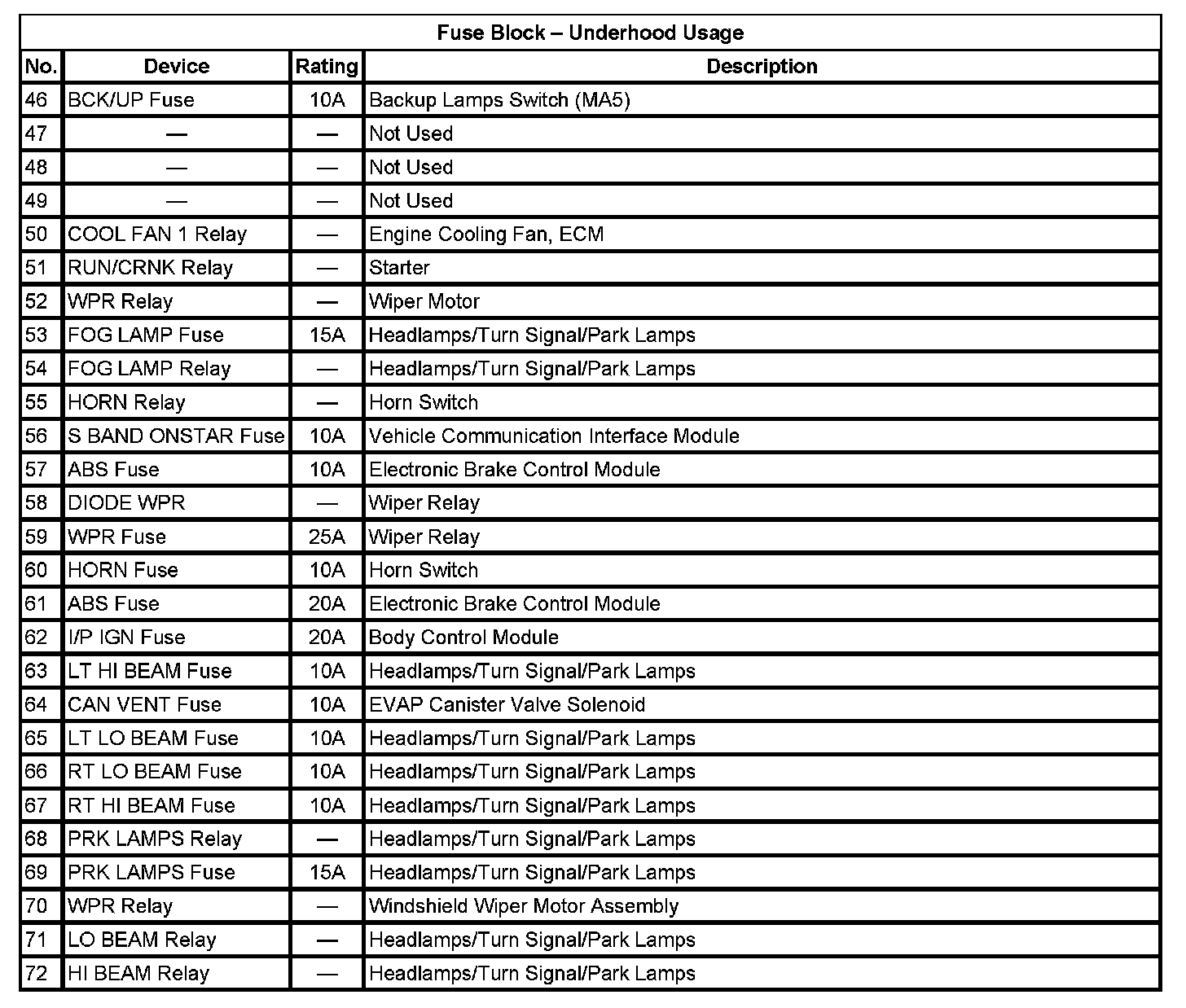

Application Table (part 2):

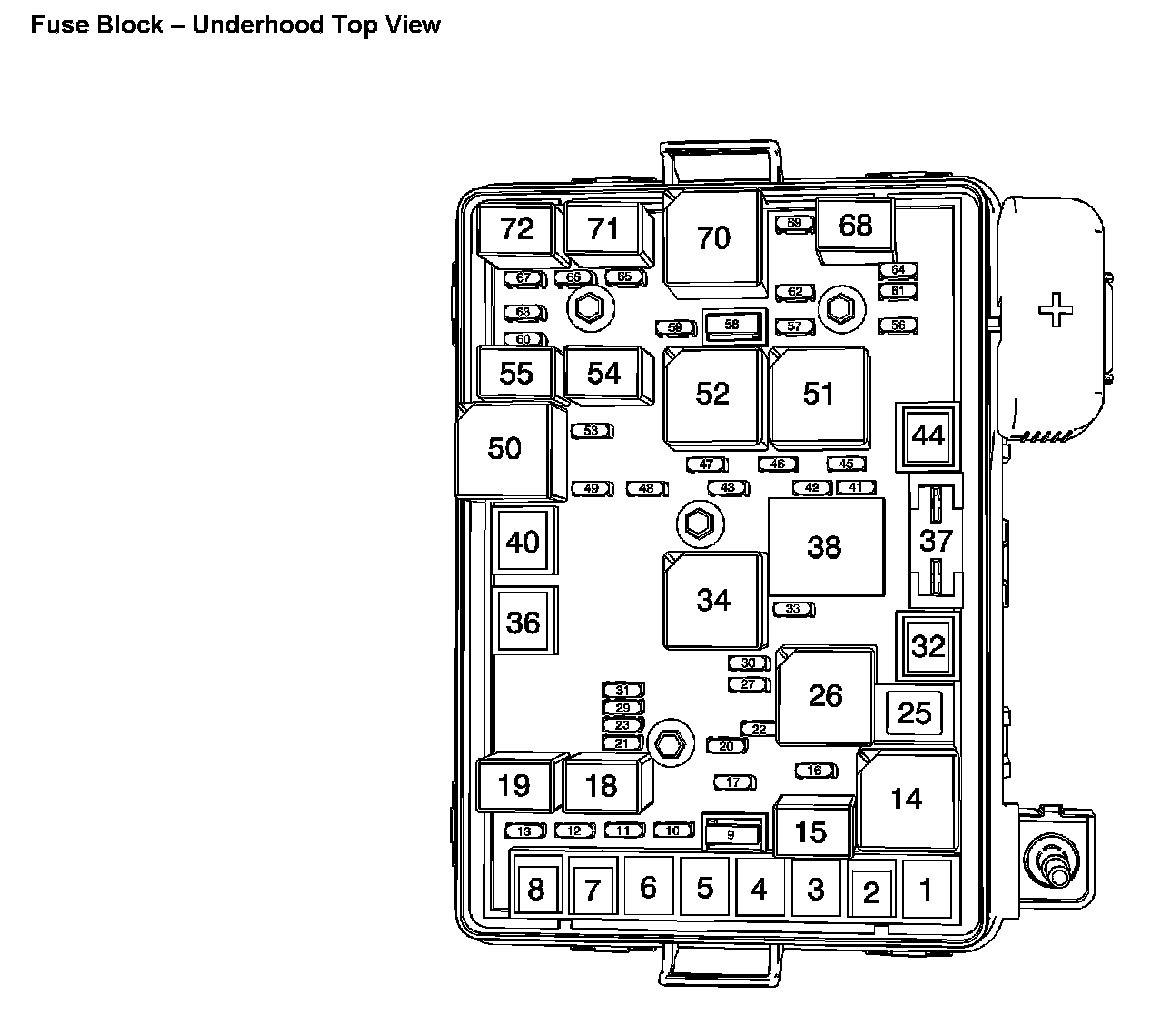

Location View:

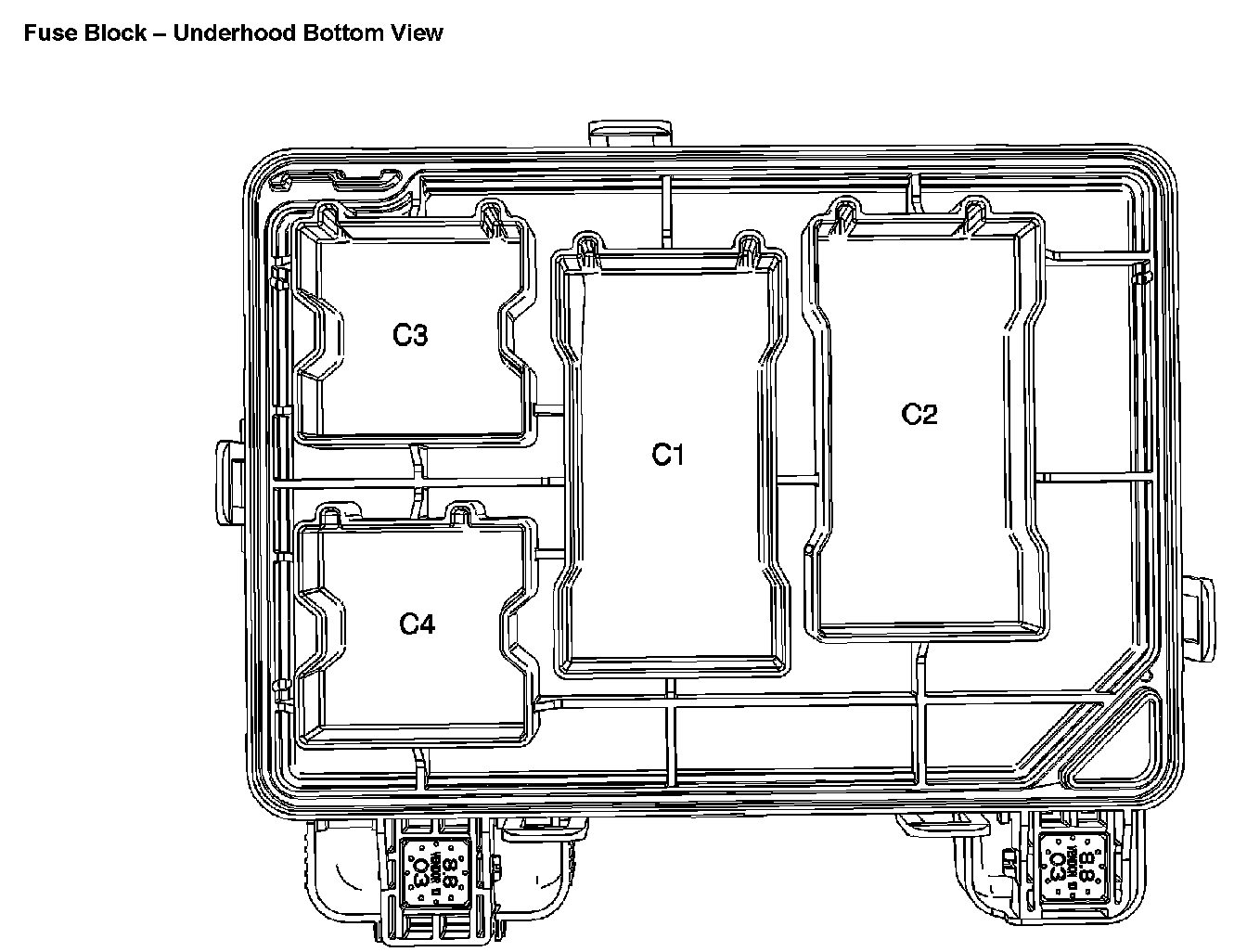

Location View:
