Electronic Brake Control Module: Locations



Antilock Brake System Component Views

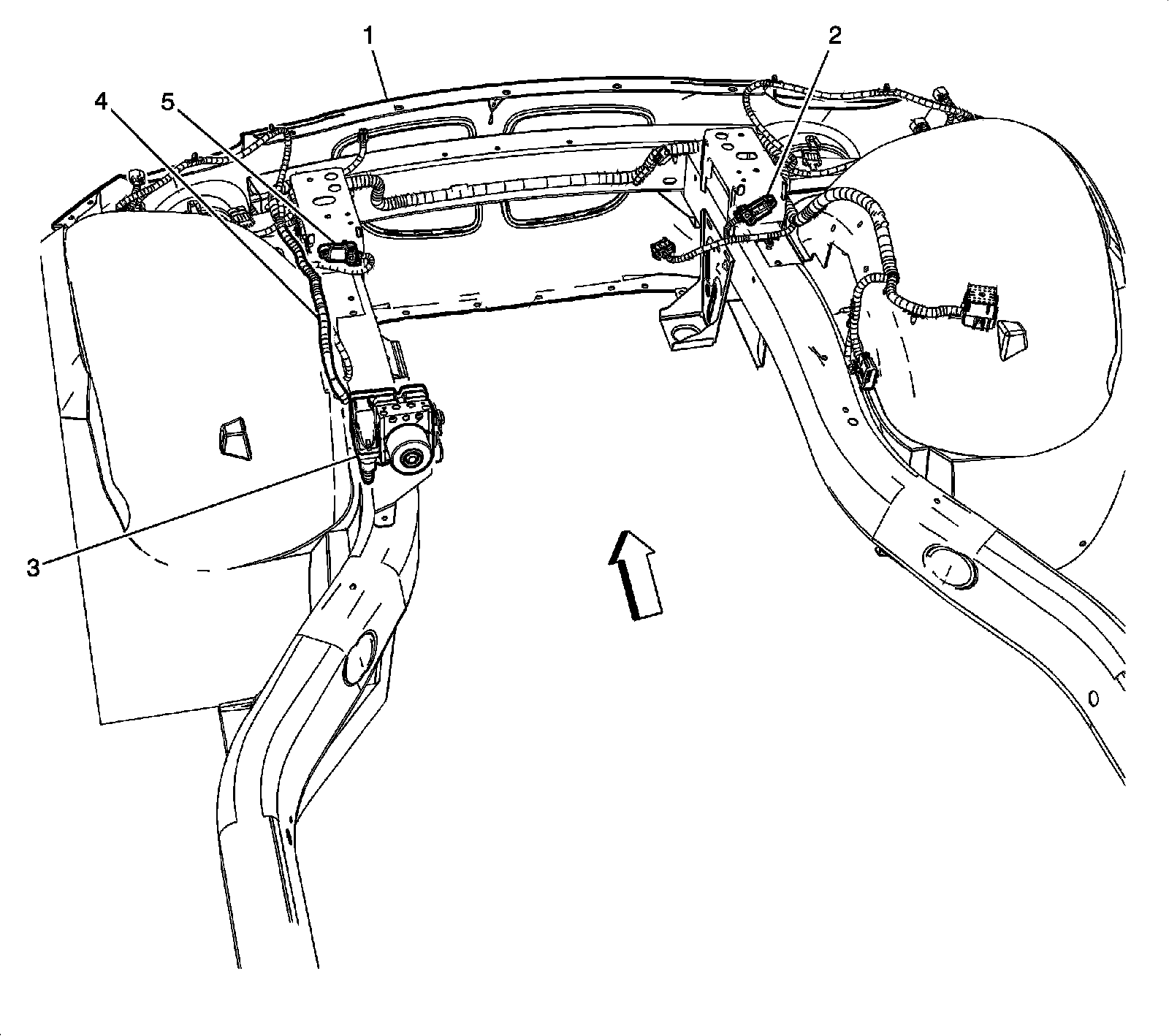

Front Engine Compartment

Front Engine Compartment:




1 - Front Fascia
2 - Inflatable Restraint Front End Sensor - Right
3 - Electronic Brake Control Module (EBCM)
4 - Forward Lamp Harness
5 - Inflatable Restraint Front End Sensor - Left
