4-5 Clutch Drum Assembly

Disassembled Views - continued

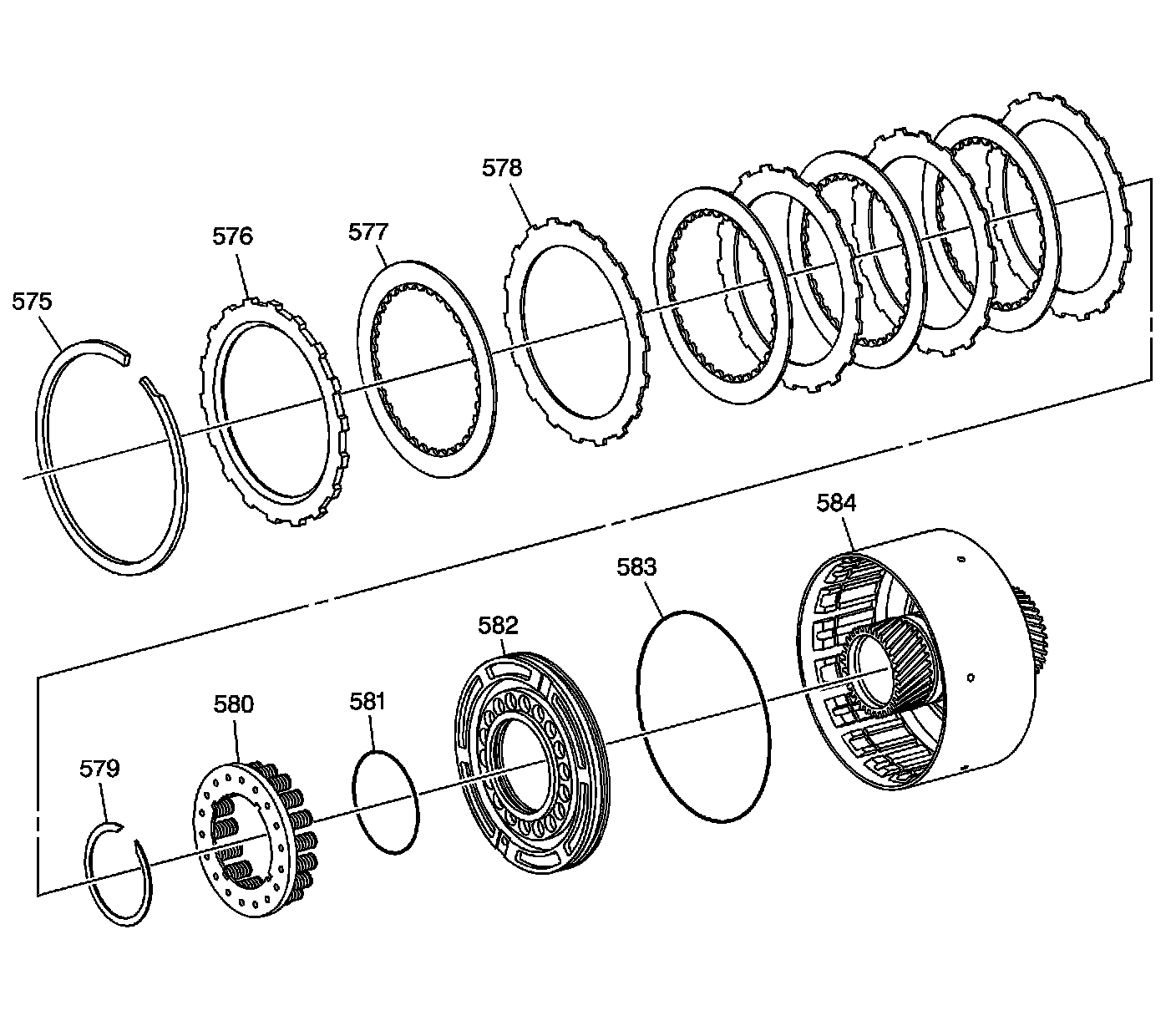

4-5 Clutch Drum Assembly

4-5 Clutch Drum Assembly:

575 - 4-5 Clutch Backing Plate Retaining Ring
576 - 4-5 Clutch Backing Plate (Selective)
577 - 4-5 Clutch Plate Assembly - Fiber (4)
578 - 4-5 Clutch Plate - Steel (4)
579 - 4-5 Clutch Piston Return Spring Retaining Ring
580 - 4-5 Clutch Piston Return Spring Assembly
581 - 4-5 Clutch Piston Inner Seal
582 - 4-5 Clutch Piston
583 - 4-5 Clutch Piston Outer Seal
584 - 4-5 Clutch Drum Assembly
