Installation Procedure

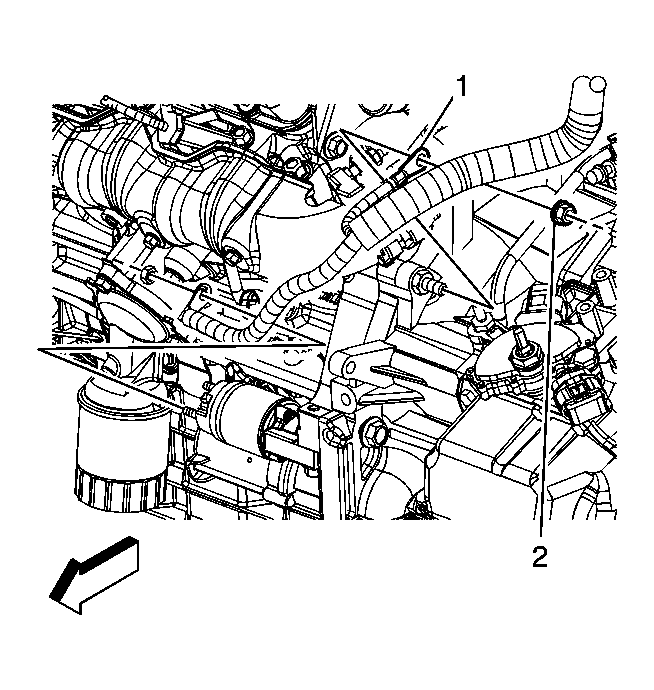

    Fig 1: View Of Negative Battery Cable
    GM1822524Courtesy of GENERAL MOTORS CORP.
  1. Install the negative battery cable to the wiring loom and re-tape the loom.
  2. Install the negative battery cable ground terminal (1) to the transaxle stud.
    3. NOTE: Refer to Fastener Notice .
  3. Install the negative battery cable ground terminal nut (2) to the transaxle stud.

    Tighten:  Tighten the nut to 45 N.m (33 lb ft).

    4. Fig 2: View Of Negative Battery Cable Ground Terminal Nu
    GM1822523Courtesy of GENERAL MOTORS CORP.
  4. Install the negative battery cable ground terminal to the wheelhouse stud.
  5. Install the negative battery cable ground terminal nut to the wheelhouse stud.

    Tighten:  Tighten the nut to 12 N.m (106 lb in).

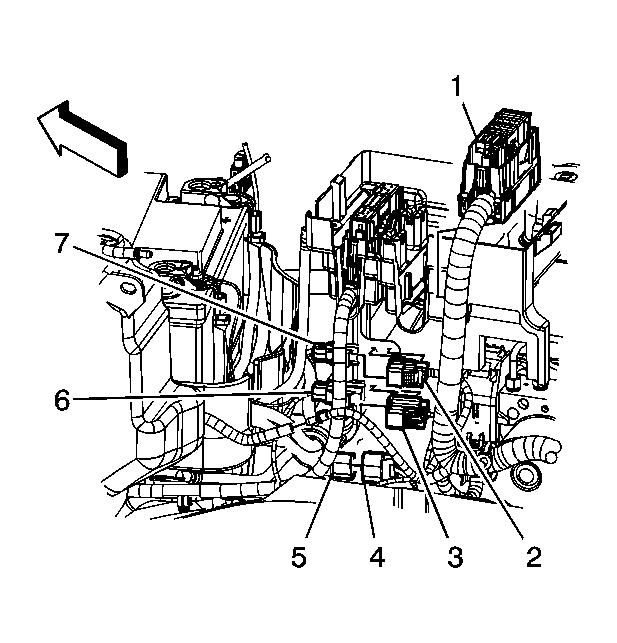

    6. Fig 3: View Of Battery, Cables & Related Components
    GM1822518Courtesy of GENERAL MOTORS CORP.
  6. Connect the body wiring harness electrical connector (4) to the battery current sensor (5).
  7. Connect the negative battery cable electrical connector (7) to the body wiring harness electrical connector (2).
    8. Fig 4: View Of Battery Cables & Terminal Nut
    GM1822394Courtesy of GENERAL MOTORS CORP.
  8. Connect the positive and negative battery cable clip (3) to the battery tray support bracket.
  9. Install the battery box. Refer to Battery Box Replacement .
