Installation Procedure

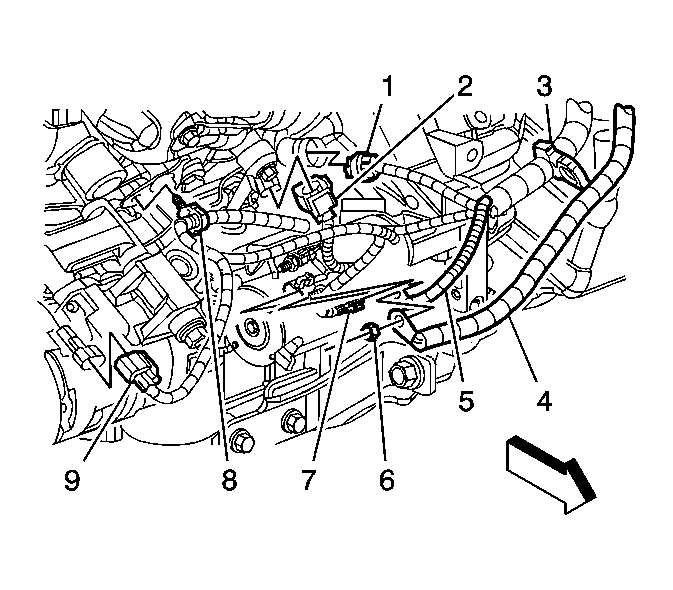

    Fig 1: Identifying Battery Cables & Engine Wiring Harness Clips
    GM1822245Courtesy of GENERAL MOTORS CORP.
  1. Install the positive battery cable to the wire loom and re-tape the loom.
  2. Install the positive battery cable (4) lead to the starter solenoid.
  3. Install the positive battery cable to the engine wiring harness clip (3).
    4. NOTE: Refer to Fastener Notice .
  4. Install the positive battery cable terminal to starter solenoid nut (6).

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

    5. Fig 2: Identifying Battery Box
    GM1822394Courtesy of GENERAL MOTORS CORP.
  5. Connect the positive and negative battery cable clip (3) to the battery tray support bracket.
  6. Install the battery box. Refer to Battery Box Replacement .

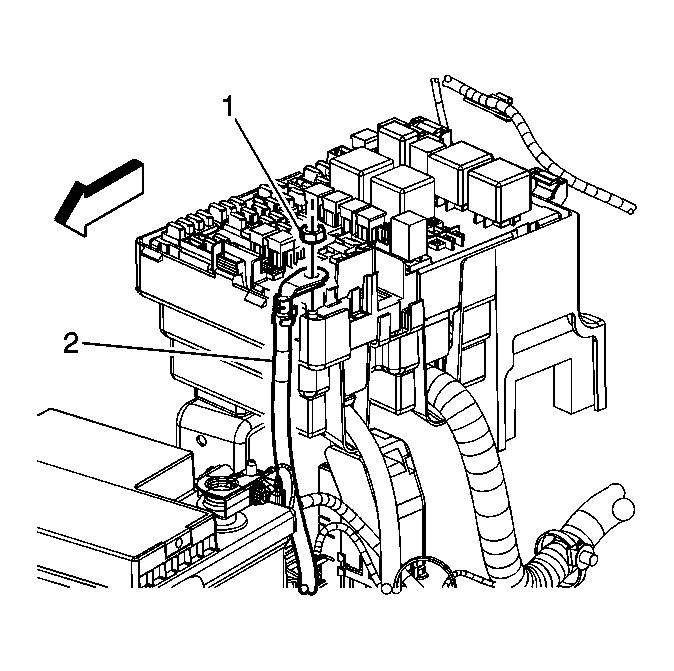

    7. Fig 3: View Of Battery Terminals
    GM1822582Courtesy of GENERAL MOTORS CORP.
  7. Install the positive battery cable terminal (2) to the UBEC stud.
  8. Install the positive battery cable terminal nut (1) to the UBEC stud.

    Tighten:  Tighten the nut to 15 N.m (11 lb ft).

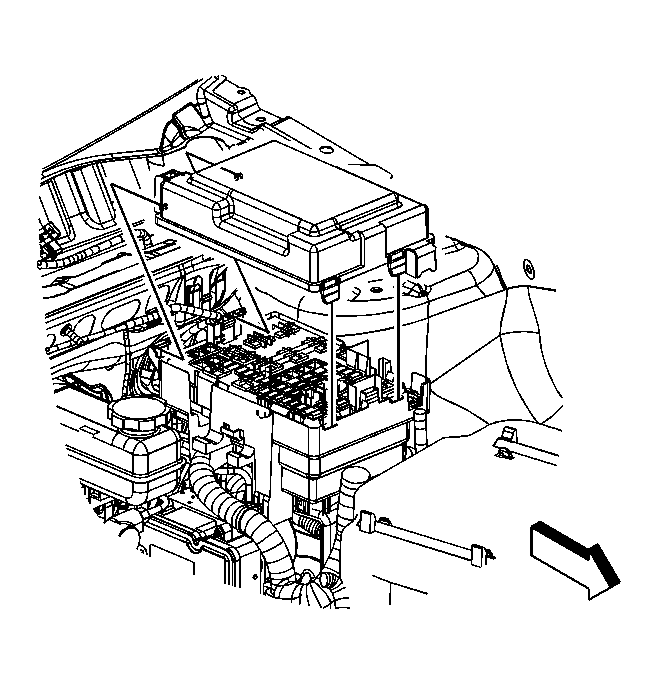

    9. Fig 4: View Of Battery & Battery Box
    GM1822579Courtesy of GENERAL MOTORS CORP.
  9. Install the UBEC cover.
  10. Install the battery. Refer to Battery Replacement .
