Installation Procedure

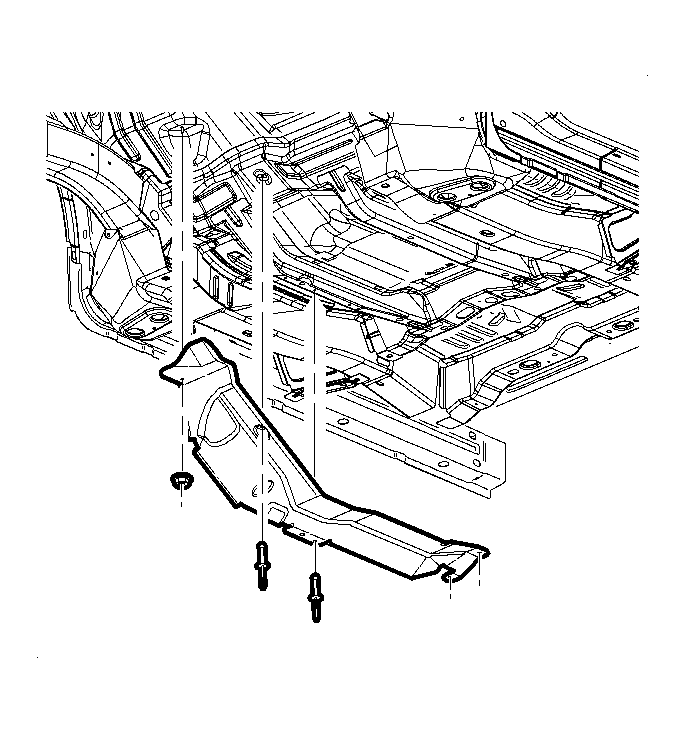

    Fig 1: Positioning Shield Onto The Vehicle
    GM927081Courtesy of GENERAL MOTORS CORP.
  1. Position the shield to the vehicle, aligning the front hole stud. Place the rear of the shield under the rear shield and against the underbody.
    2. NOTE: Refer to Fastener Notice .
  2. Install the nut and tighten.

    Tighten:  Tighten the heat shield-to-underbody nut to 10 N.m (89 lb in).

  3. Install the rivets.
  4. Install the catalytic converter. Refer to Catalytic Converter Replacement .
