Installation Procedure

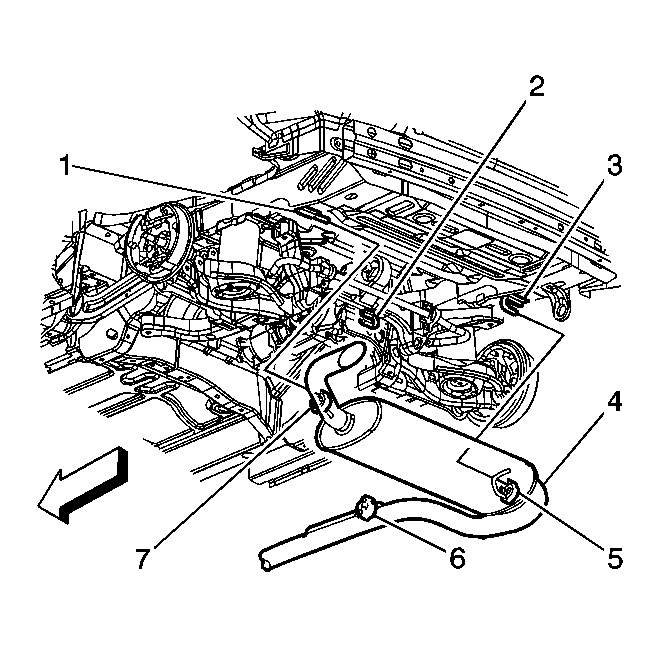

    Fig 1: View Of Exhaust System
    GM1370521Courtesy of GENERAL MOTORS CORP.
  1. Position the exhaust system (4) to the vehicle and install the rubber isolators (5, 6, 7) to the hangers (1, 2, 3).
    2. Fig 2: View Of Gasket & Exhaust Pipe
    GM926819Courtesy of GENERAL MOTORS CORP.
  2. Install the new gasket onto the catalytic converter pipe flange.
    3. NOTE: Refer to Fastener Notice .
  3. Assemble the exhaust system pipe to the catalytic converter pipe and install new nuts.

    Tighten:  Tighten the nuts to 37 N.m (27 lb ft).

  4. Check the entire exhaust system for leaks.
  5. Lower the vehicle.
