Front Seat Belt Buckle Replacement

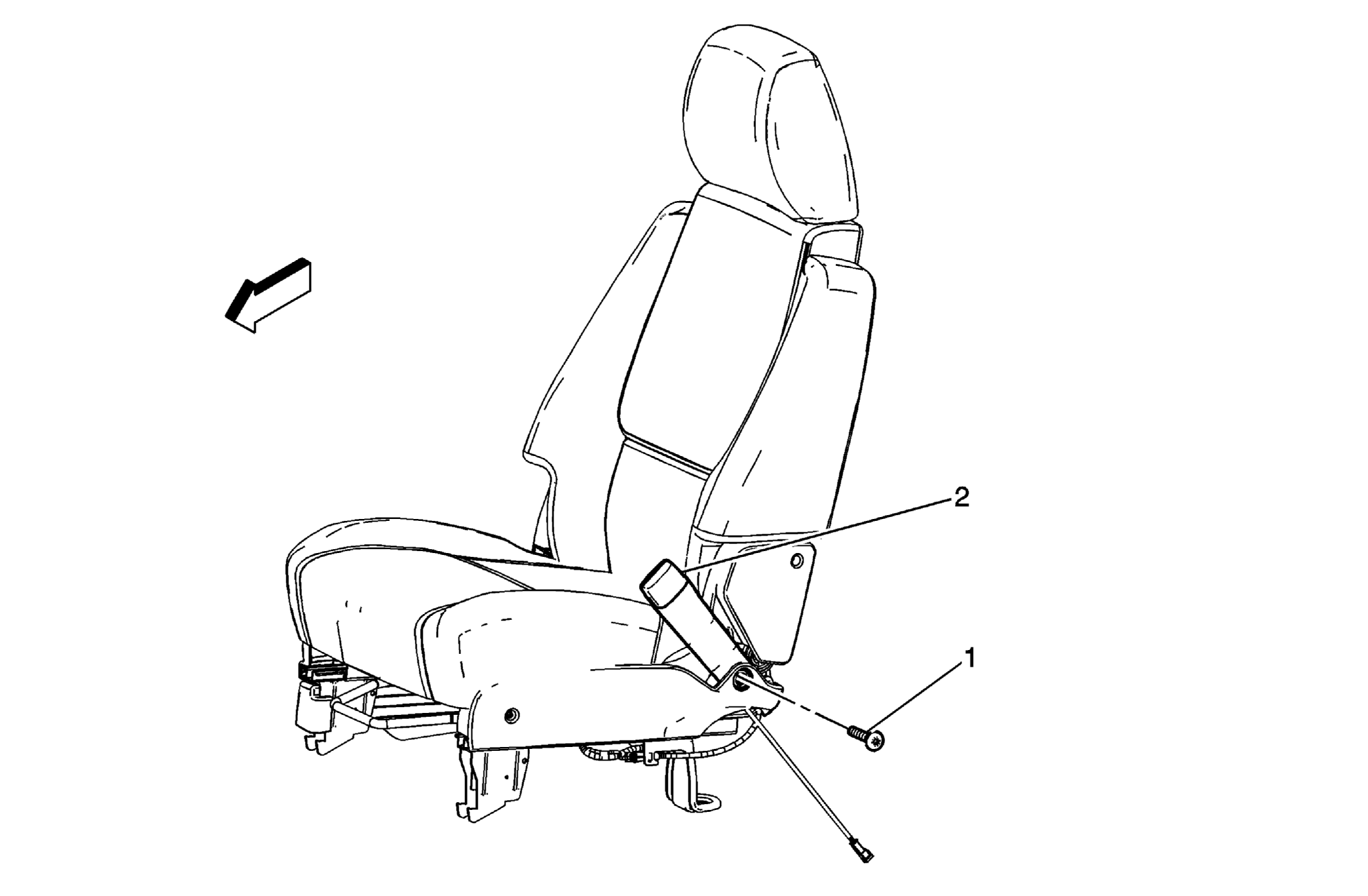

Fig 1: View Of Front Seat Belt Buckle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Seat Belt Buckle Bolt (Qty: 1) NOTE: Refer to Fastener Notice . Tighten: 45 N.m (33 lb ft)
2	Front Seat Belt Buckle Tip: Disconnect the electrical connector under the seat. Slide the buckle assembly upwards and out from between the seat cushion and the seat cushion inner trim panel.
