Cruise Control Switch: Locations

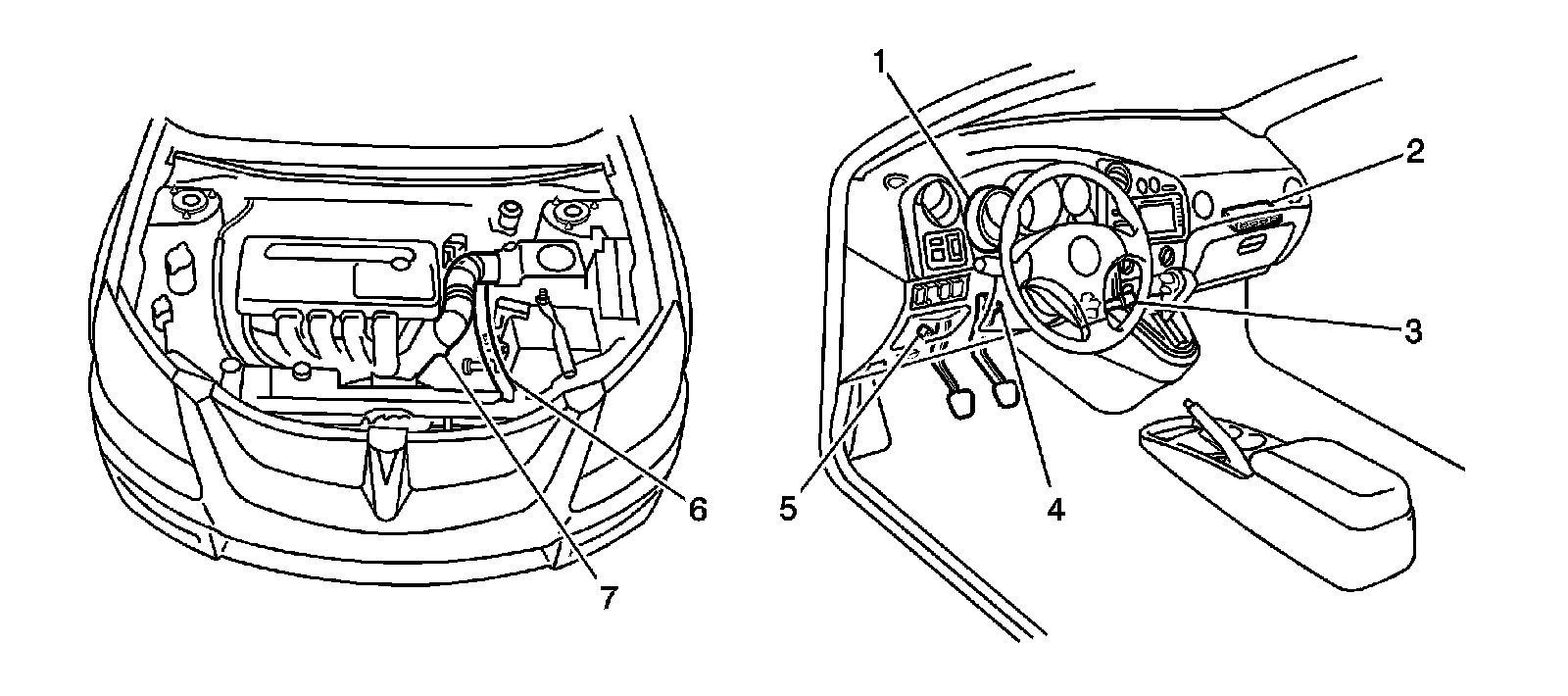

Cruise Control Component Views

Cruise Control Components




1 - Instrument Panel Cluster
2 - Powertrain Control Module
3 - Cruise Control Switch
4 - Stop Lamp Switch
5 - Clutch Switch
6 - Park/Neutral Position Switch
7 - Throttle Actuator Control (TAC) Motor
