Fuse Block - Instrument Panel

Fuse Block - Instrument Panel C3 W/Sunroof:

Fuse Block - Instrument Panel C3 W/O Sunroof:

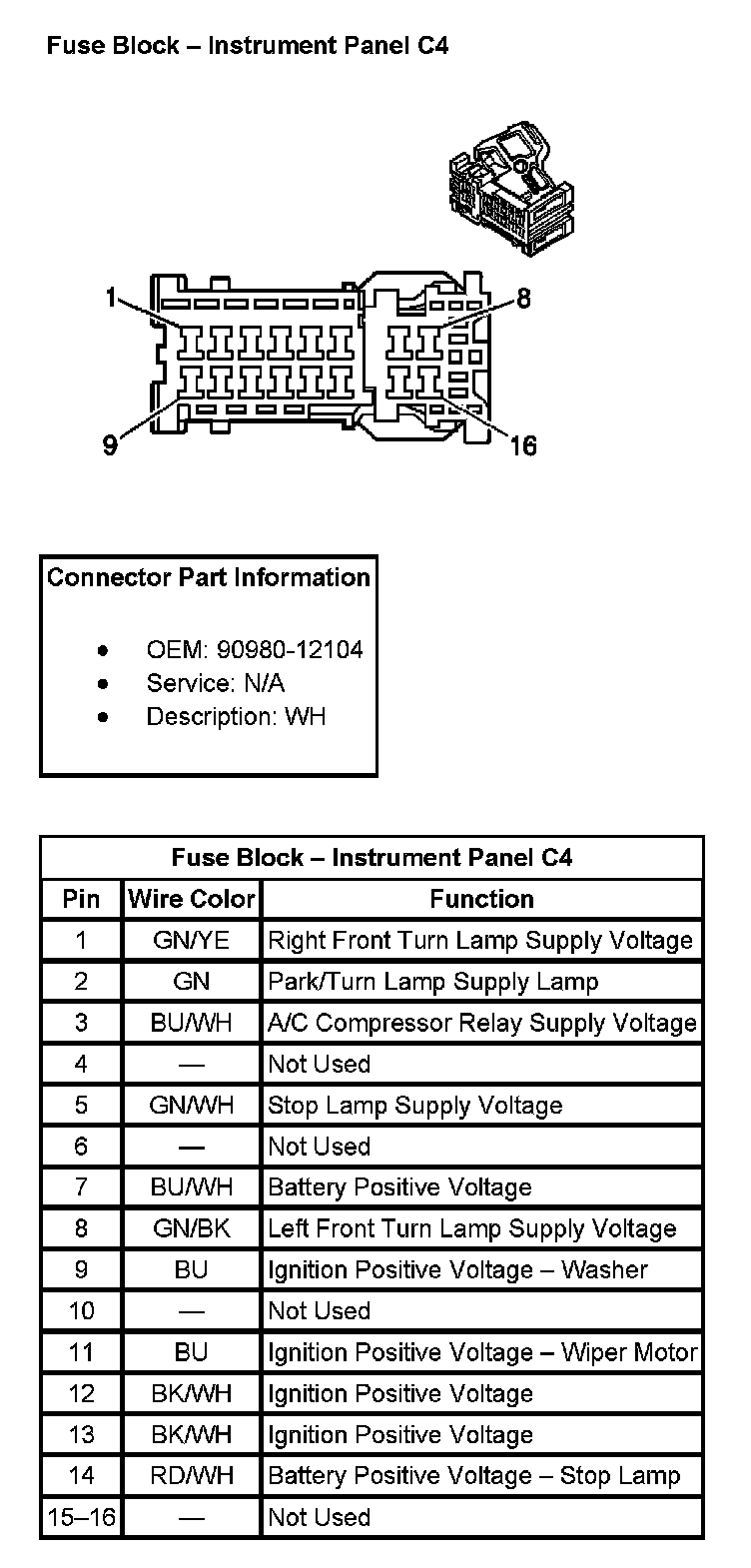

Fuse Block - Instrument Panel C4:

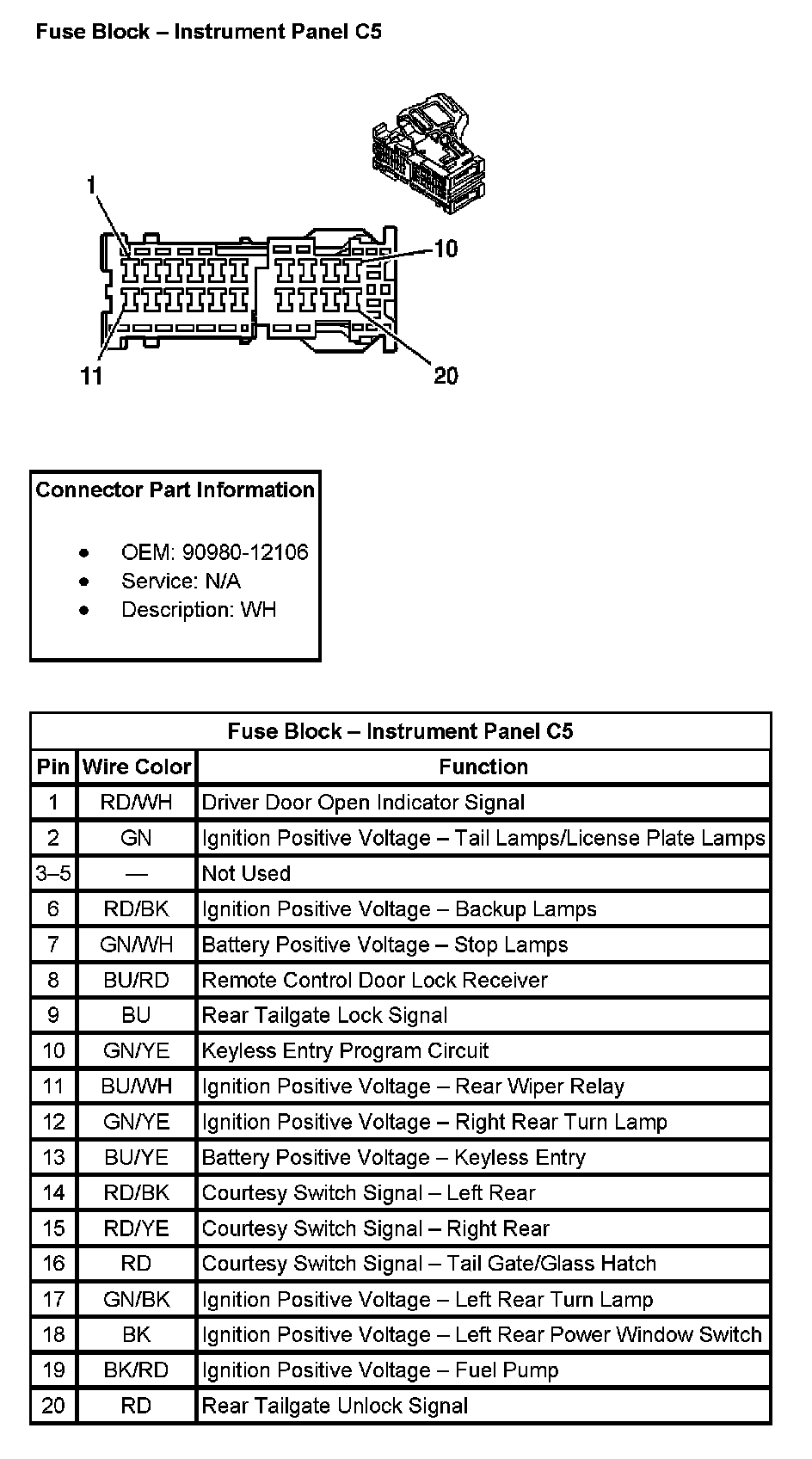

Fuse Block - Instrument Panel C5:

Fuse Block - Instrument Panel C6:

Fuse Block - Instrument Panel C7:

Fuse Block - Instrument Panel C8:

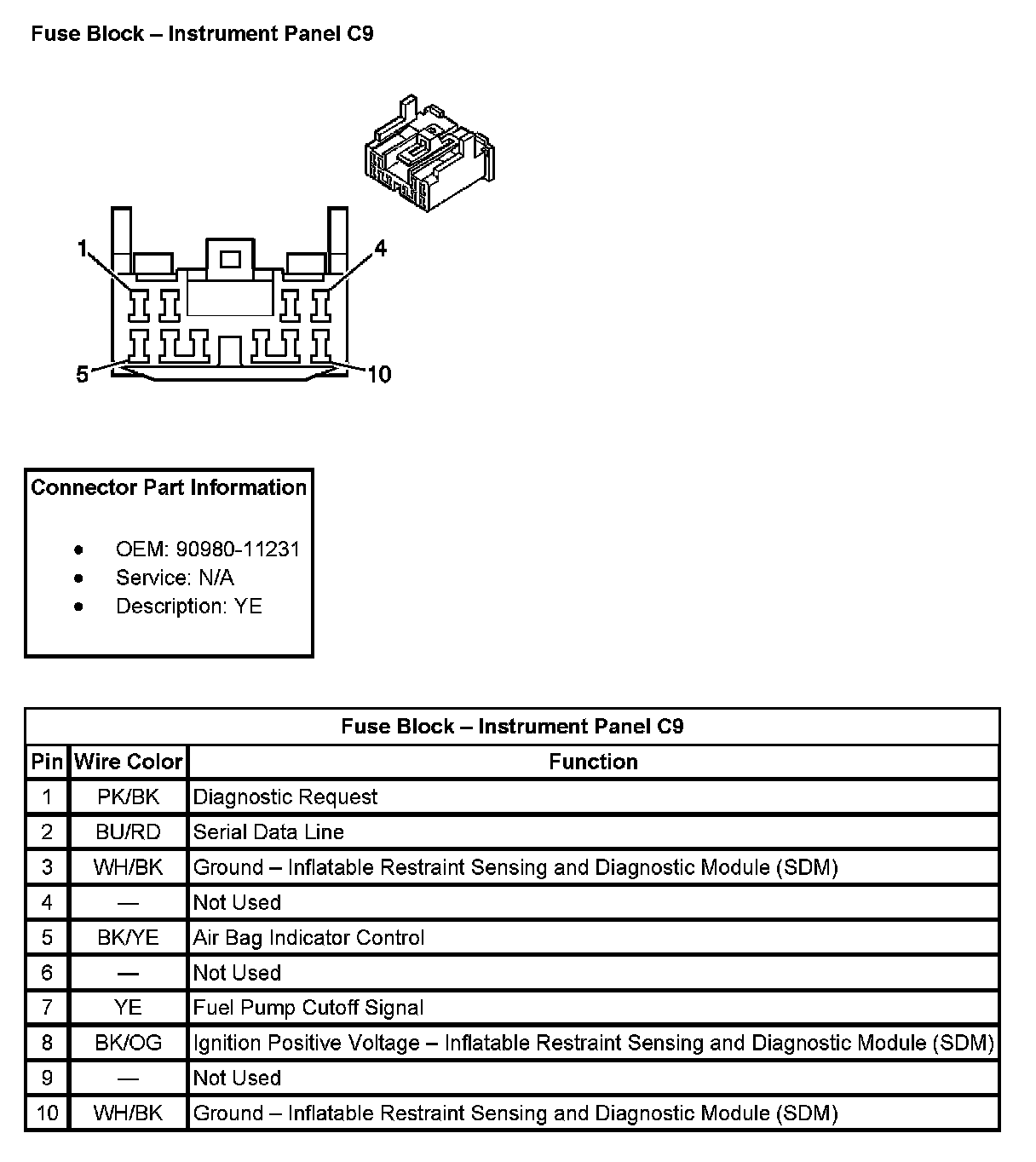

Fuse Block - Instrument Panel C9:

Fuse Block - Instrument Panel C10:

Fuse Block - Instrument Panel C11:

Fuse Block - Instrument Panel C12:

Fuse Block - Instrument Panel C13:
