Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Dash

G00364443

Courtesy of GENERAL MOTORS CORP.

Fig 2: Left Side Of HVAC Case

G00364446

Courtesy of GENERAL MOTORS CORP.

Fig 3: Left Rear Engine Compartment (3.5L)

G00456640

Courtesy of GENERAL MOTORS CORP.

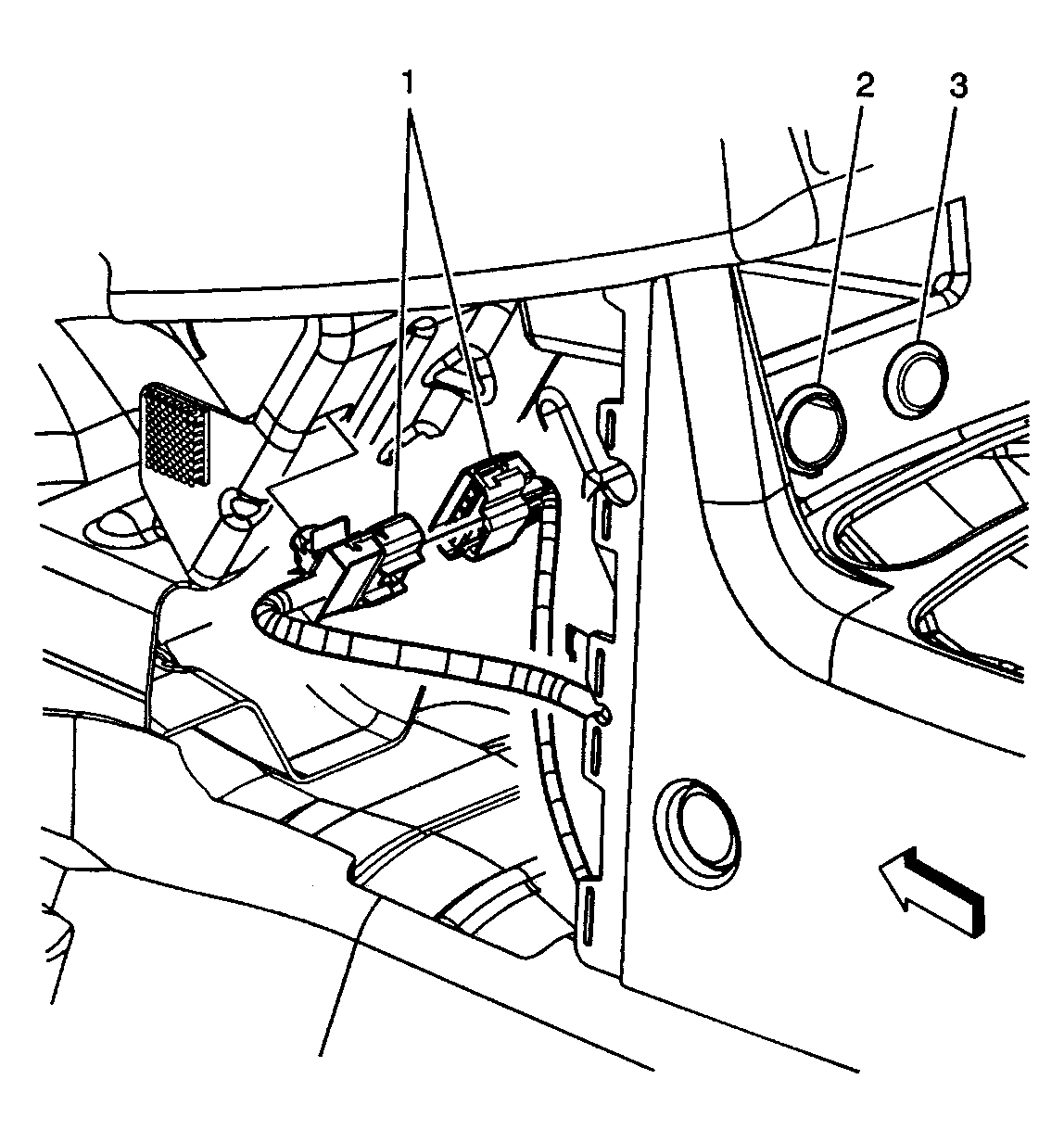

Fig 4: Left Front Of Floor Console

G00456641

Courtesy of GENERAL MOTORS CORP.

Fig 5: Automatic Transmission (4T45-E)

G00364450

Courtesy of GENERAL MOTORS CORP.

Fig 6: Rear Compartment Lid

G00364452

Courtesy of GENERAL MOTORS CORP.

Fig 7: Interior

G00364454

Courtesy of GENERAL MOTORS CORP.

Fig 8: Right Side Of Dash

G00364455

Courtesy of GENERAL MOTORS CORP.

Fig 9: Right Side Of Dash

G00456642

Courtesy of GENERAL MOTORS CORP.

Fig 10: Right Front Door

G00364459

Courtesy of GENERAL MOTORS CORP.

Fig 11: Top Of Engine (3.5L & 3.9L)

G00364464

Courtesy of GENERAL MOTORS CORP.

Fig 12: Rear Of Engine (3.5L)

G00364467

Courtesy of GENERAL MOTORS CORP.

Fig 13: Exhaust Assembly

G00364471

Courtesy of GENERAL MOTORS CORP.

Fig 14: Under Right Rear Of Vehicle

G00364472

Courtesy of GENERAL MOTORS CORP.

Fig 15: Top Of Fuel Tank

G00364473

Courtesy of GENERAL MOTORS CORP.

Fig 16: Radiator Support

G00364474

Courtesy of GENERAL MOTORS CORP.

Fig 17: Rear Roof Rail

G00364483

Courtesy of GENERAL MOTORS CORP.

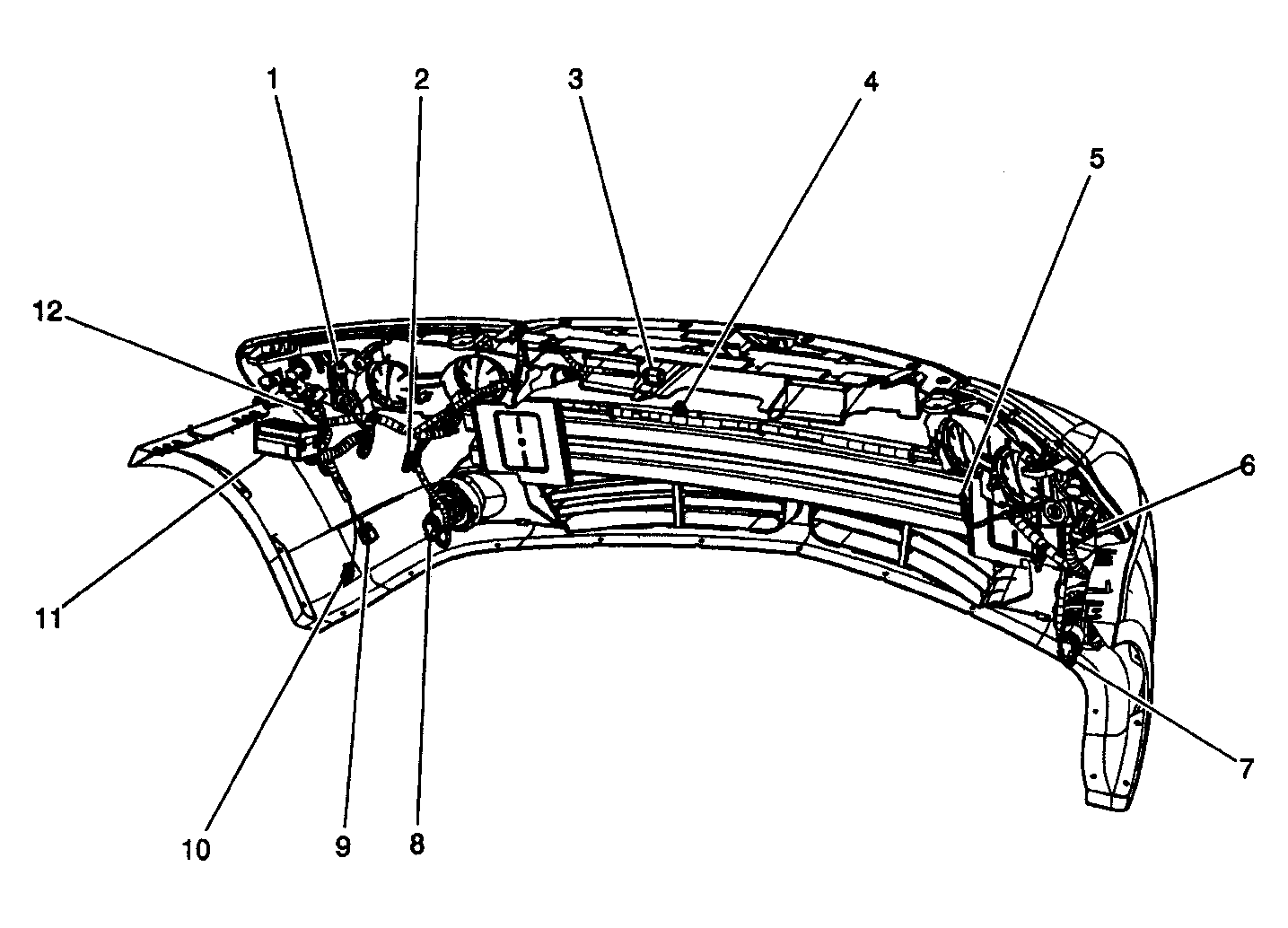

Fig 18: Front Bumper

G00456643

Courtesy of GENERAL MOTORS CORP.

Fig 19: Front Of Engine (3.5L)

G00364492

Courtesy of GENERAL MOTORS CORP.

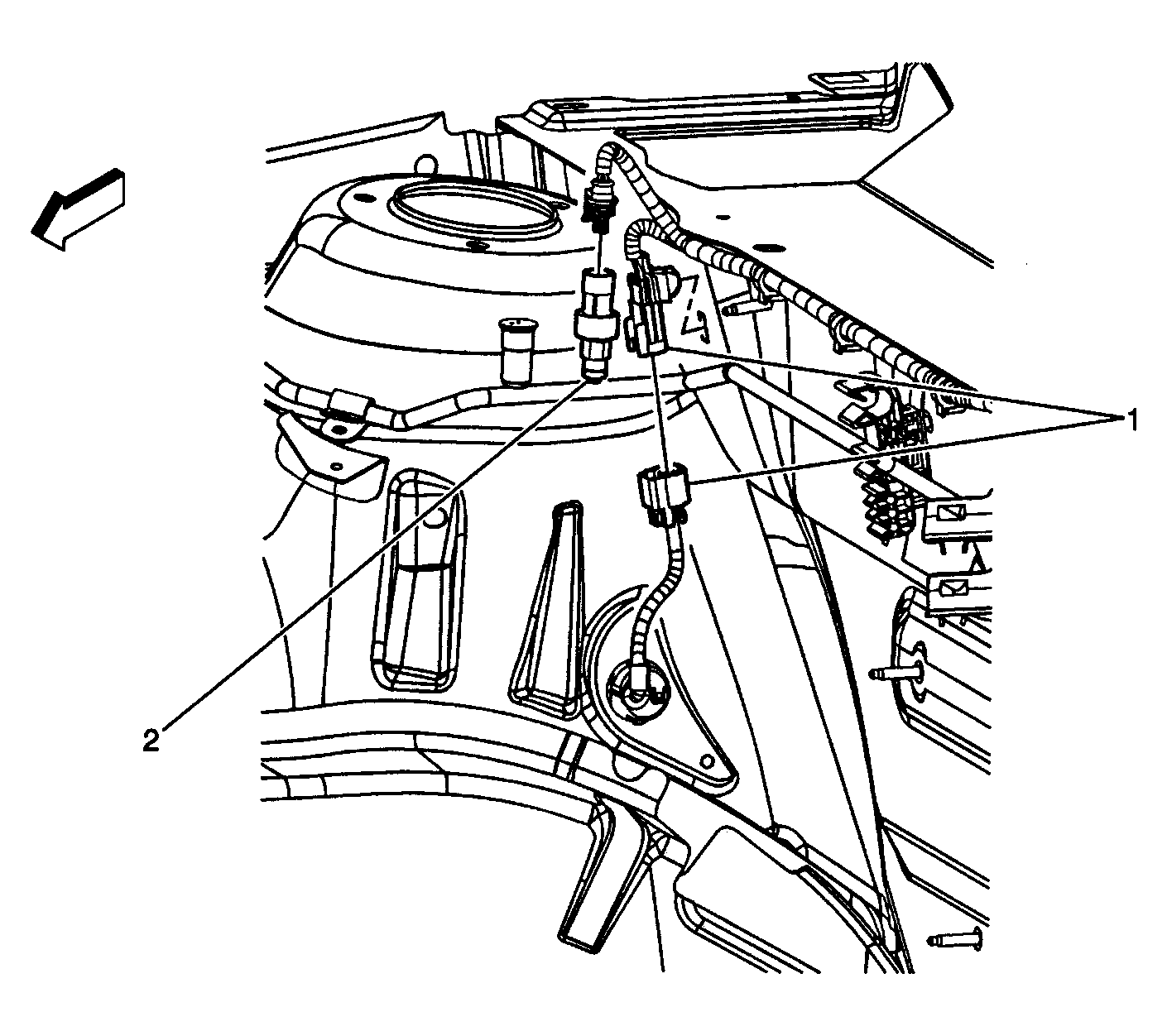

Fig 20: Right Rear Of Engine Compartment

G00456644

Courtesy of GENERAL MOTORS CORP.

Fig 21: Left Side Of HVAC Case

G00364494

Courtesy of GENERAL MOTORS CORP.

Fig 22: HVAC Unit (Manual)

G00364495

Courtesy of GENERAL MOTORS CORP.

Fig 23: Right Side Of Dash

G00364496

Courtesy of GENERAL MOTORS CORP.

Fig 24: Steering Wheel

G00364497

Courtesy of GENERAL MOTORS CORP.

Fig 25: Upper Left Rear Of Engine Compartment

G00364499

Courtesy of GENERAL MOTORS CORP.

Fig 26: Rear Of Sunroof

G00364505

Courtesy of GENERAL MOTORS CORP.

Fig 27: Front Impact Bar

G00364507

Courtesy of GENERAL MOTORS CORP.

Fig 28: Left Door

G00364508

Courtesy of GENERAL MOTORS CORP.

Fig 29: Under Center Console

G00456646

Courtesy of GENERAL MOTORS CORP.

Fig 30: Side Impact Modules

G00364510

Courtesy of GENERAL MOTORS CORP.

Fig 31: Under Driver Seat

G00456645

Courtesy of GENERAL MOTORS CORP.

Fig 32: Under Front Passenger's Seat

G00456647

Courtesy of GENERAL MOTORS CORP.

Fig 33: Engine Compartment

G00364521

Courtesy of GENERAL MOTORS CORP.

Fig 34: Rear Bumper Assembly

G00456648

Courtesy of GENERAL MOTORS CORP.

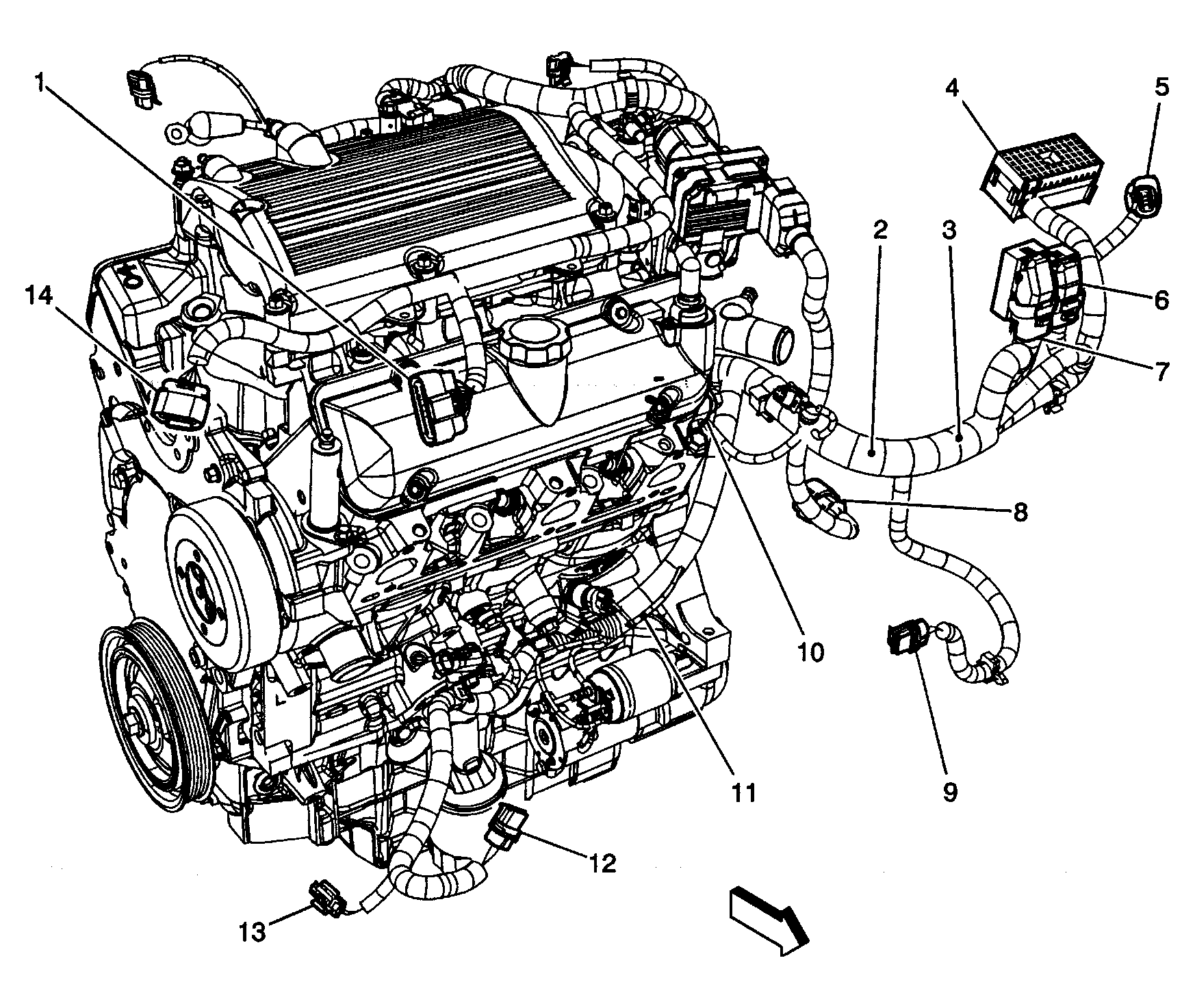

Fig 35: Rear Of Engine (3.5L)

G00456639

Courtesy of GENERAL MOTORS CORP.

Fig 36: Left Side Of Console

G00456649

Courtesy of GENERAL MOTORS CORP.

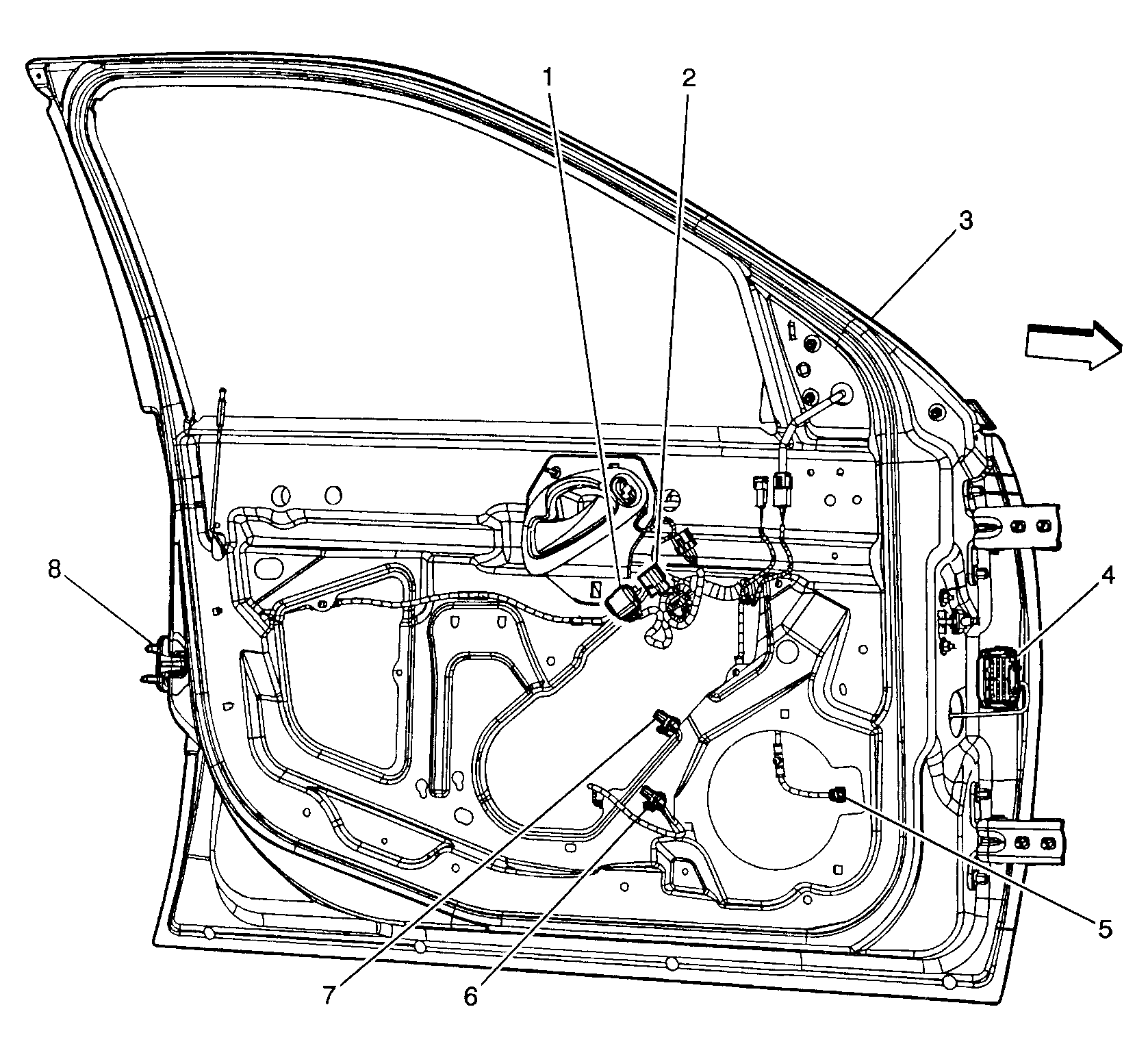

Fig 37: Driver Door

G00456650

Courtesy of GENERAL MOTORS CORP.

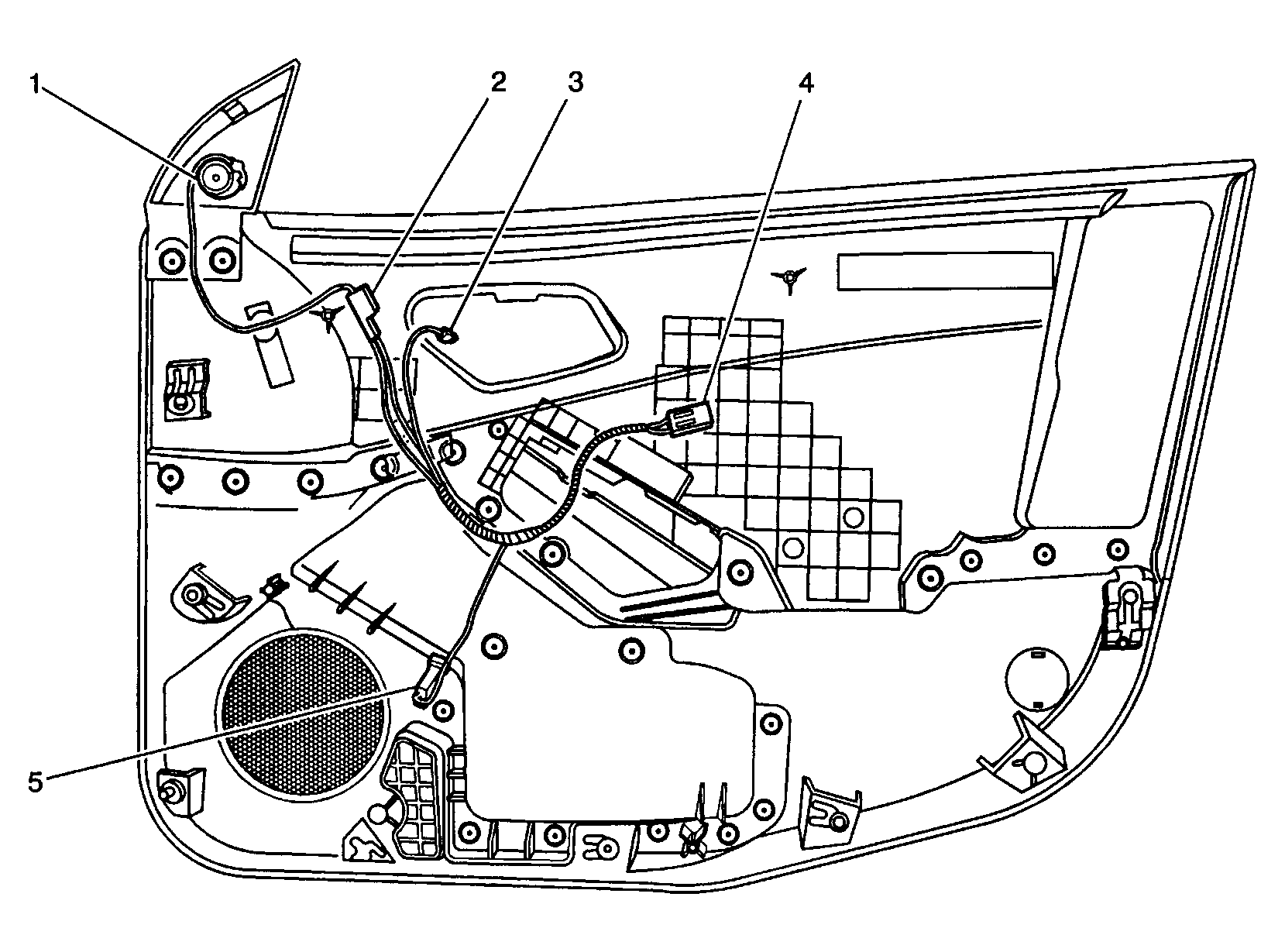

Fig 38: Left Front Door Trim Pad

G00456651

Courtesy of GENERAL MOTORS CORP.

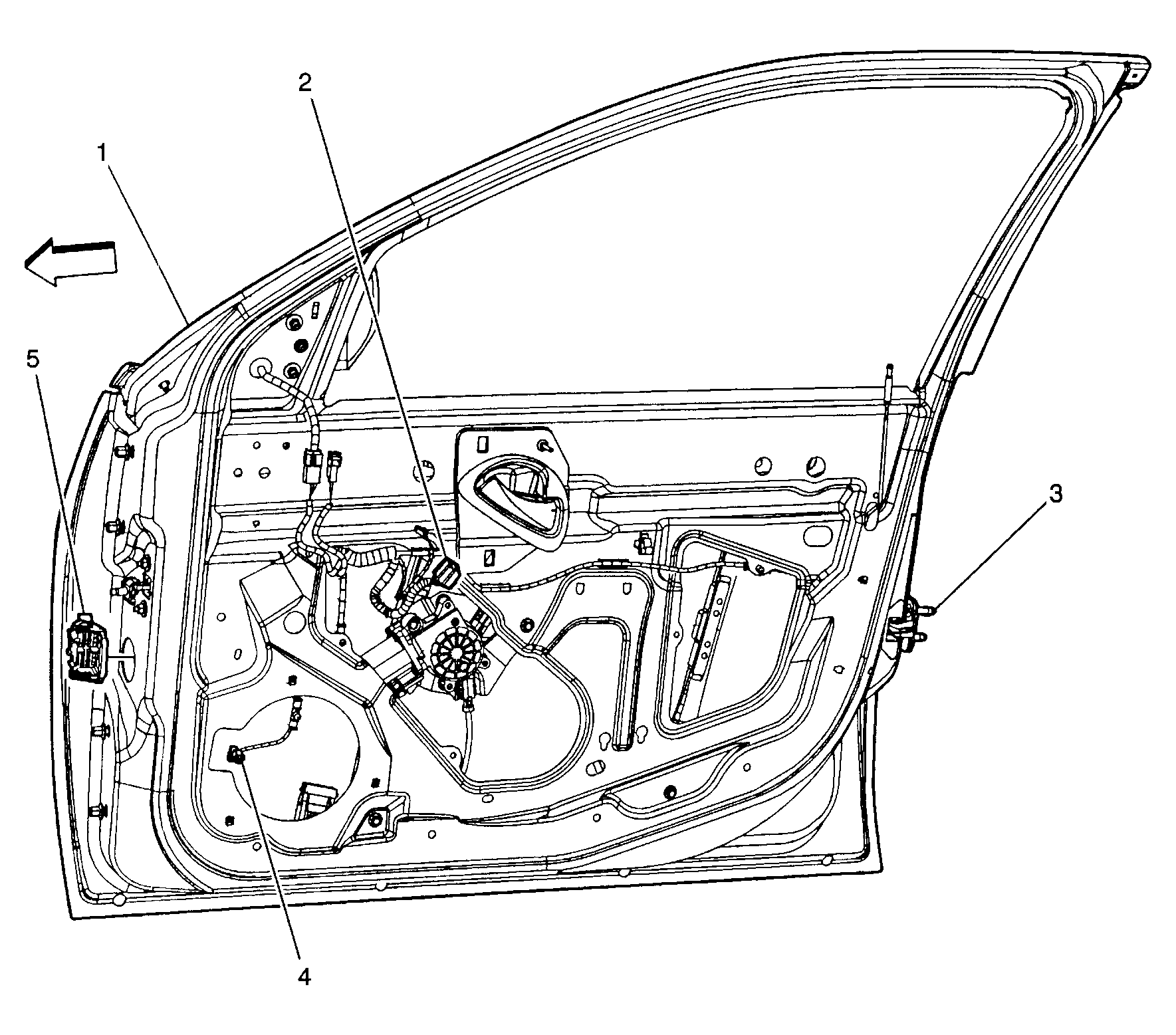

Fig 39: Front Passenger Door

G00456652

Courtesy of GENERAL MOTORS CORP.

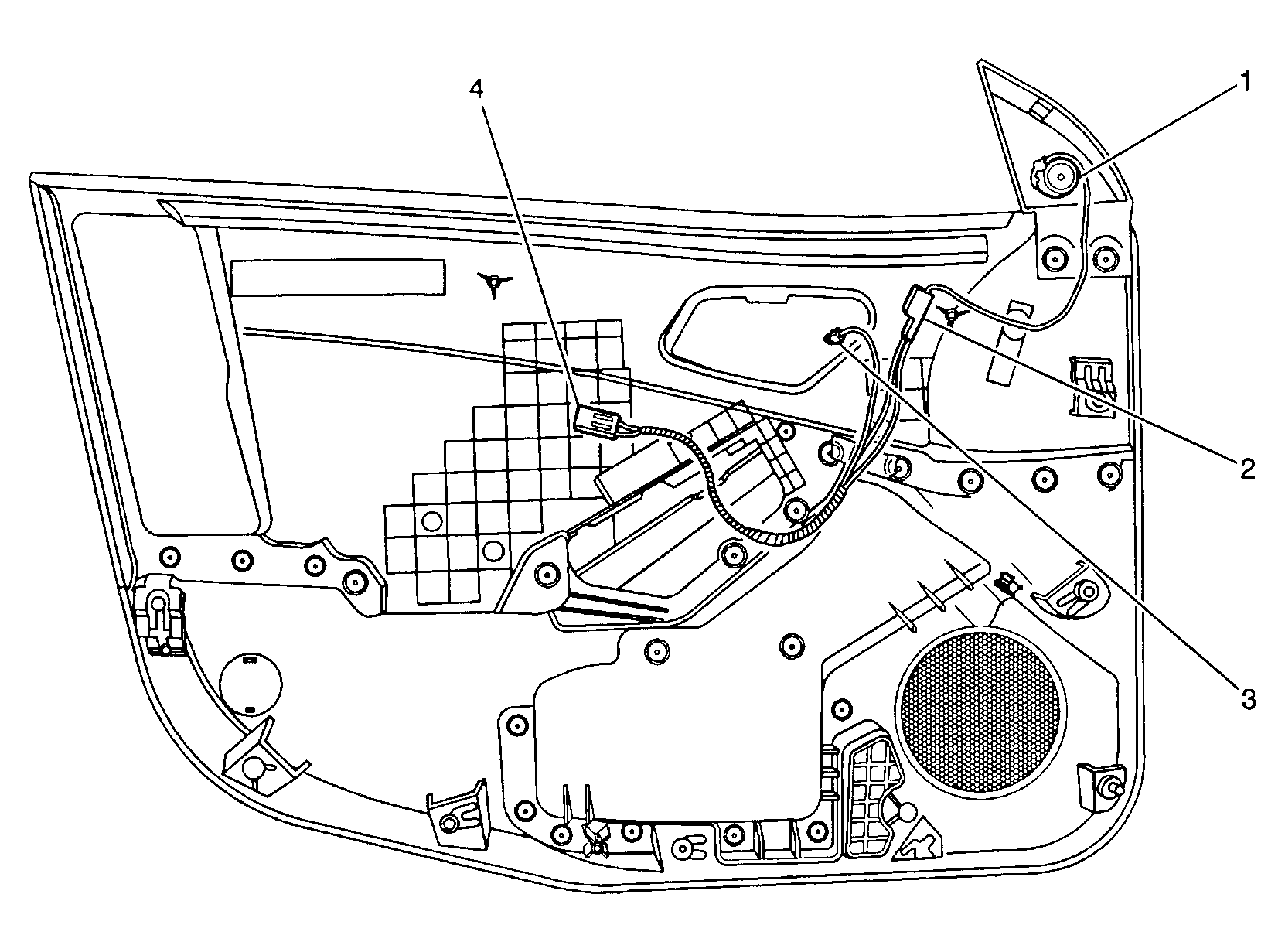

Fig 40: Right Front Door Trim Pad

G00456653

Courtesy of GENERAL MOTORS CORP.

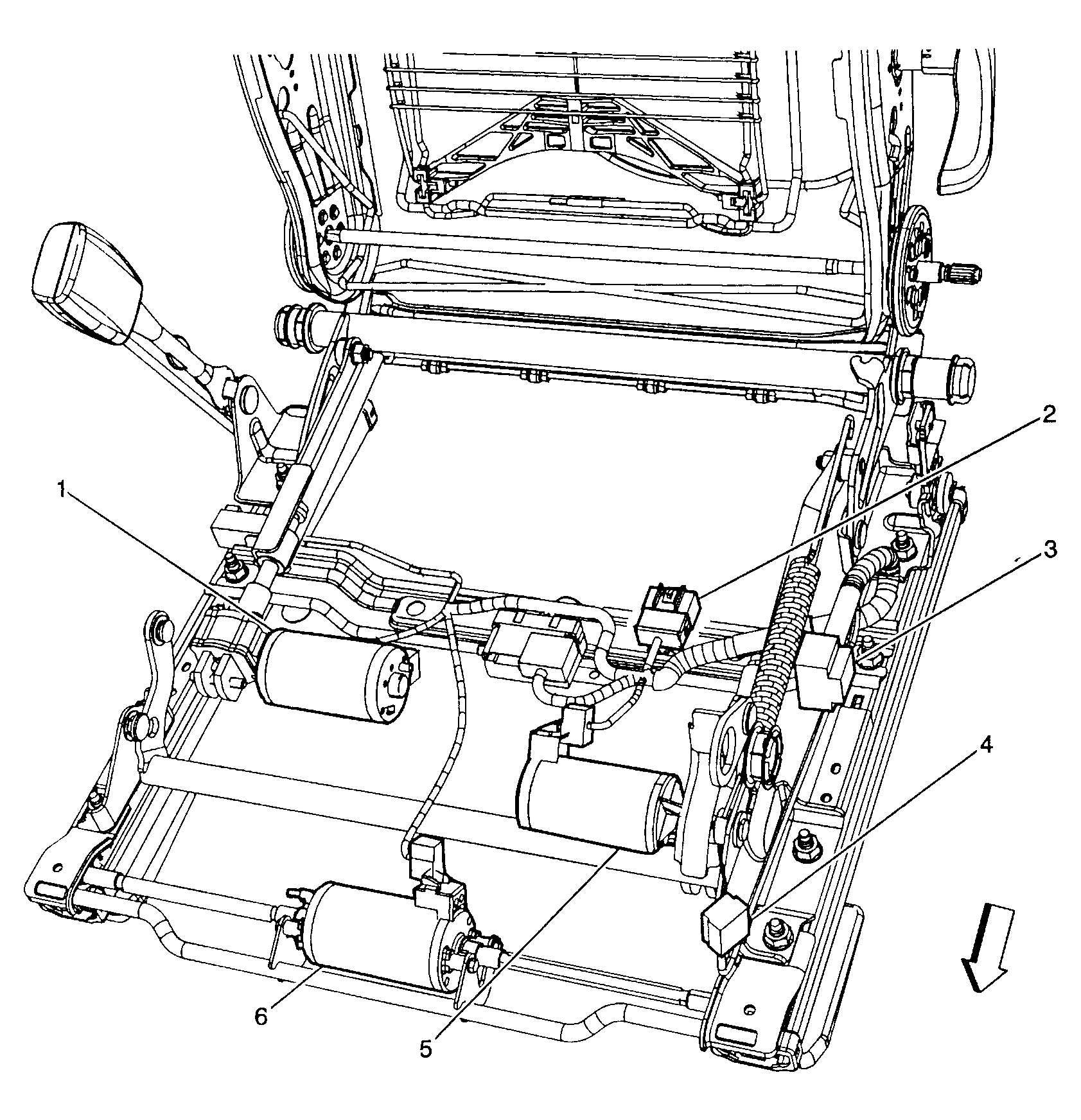

Fig 41: Driver's Seat

G00456654

Courtesy of GENERAL MOTORS CORP.

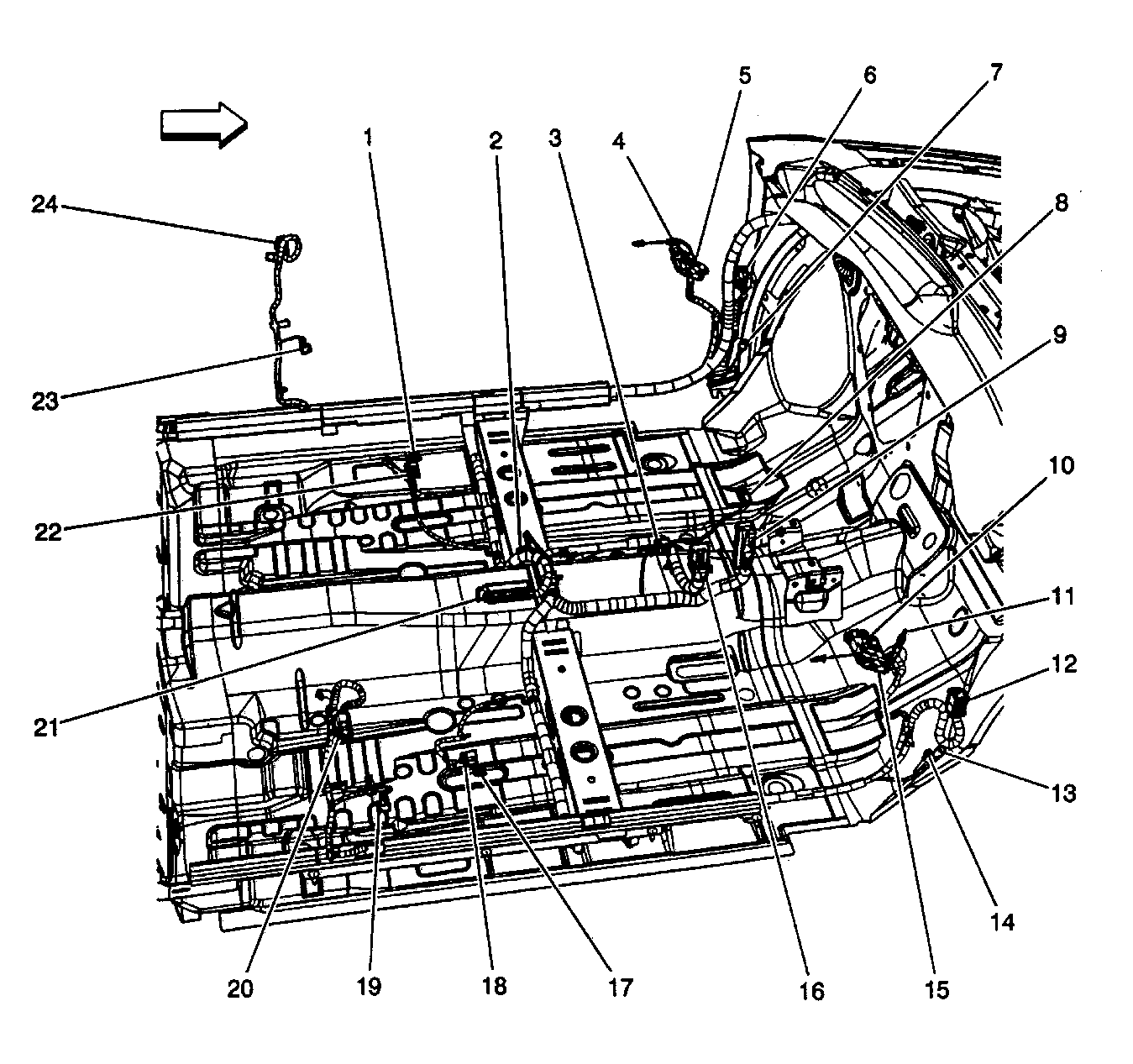

Fig 42: Front Pan

G00456655

Courtesy of GENERAL MOTORS CORP.

Fig 43: Rear Compartment

G00456656

Courtesy of GENERAL MOTORS CORP.

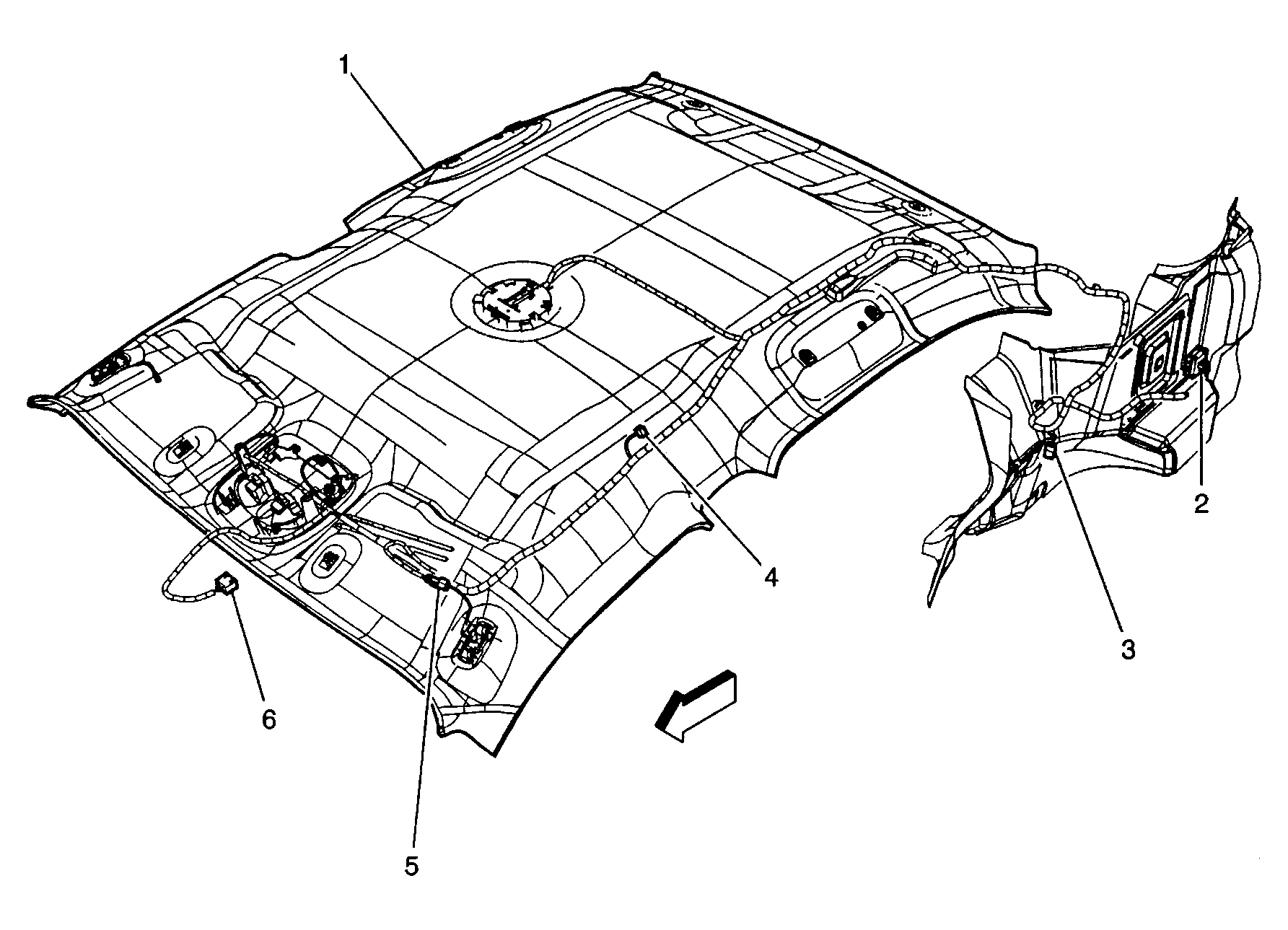

Fig 44: Headliner (W/O Sunroof)

G00456657

Courtesy of GENERAL MOTORS CORP.

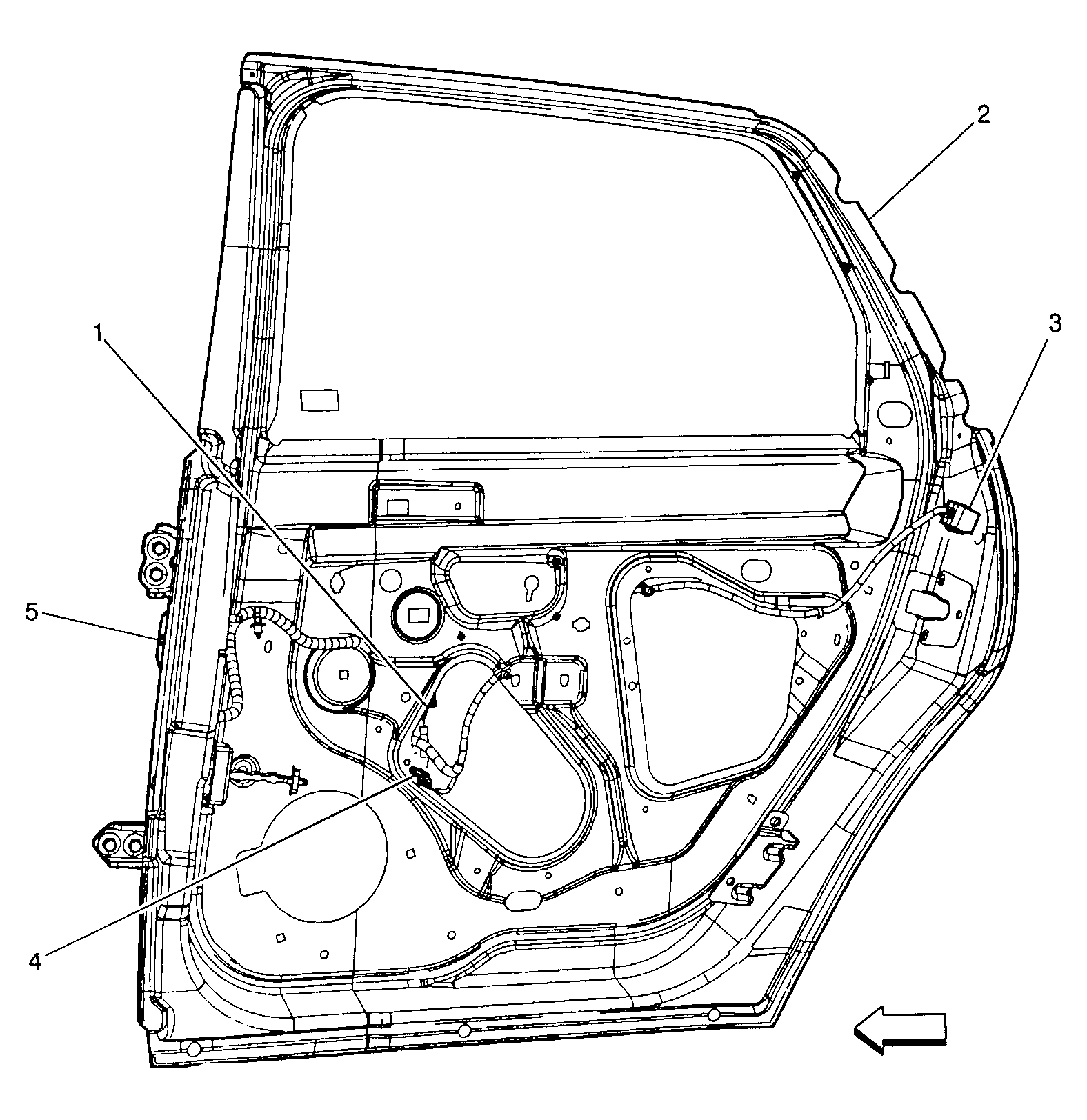

Fig 45: Left Rear Door

G00456658

Courtesy of GENERAL MOTORS CORP.

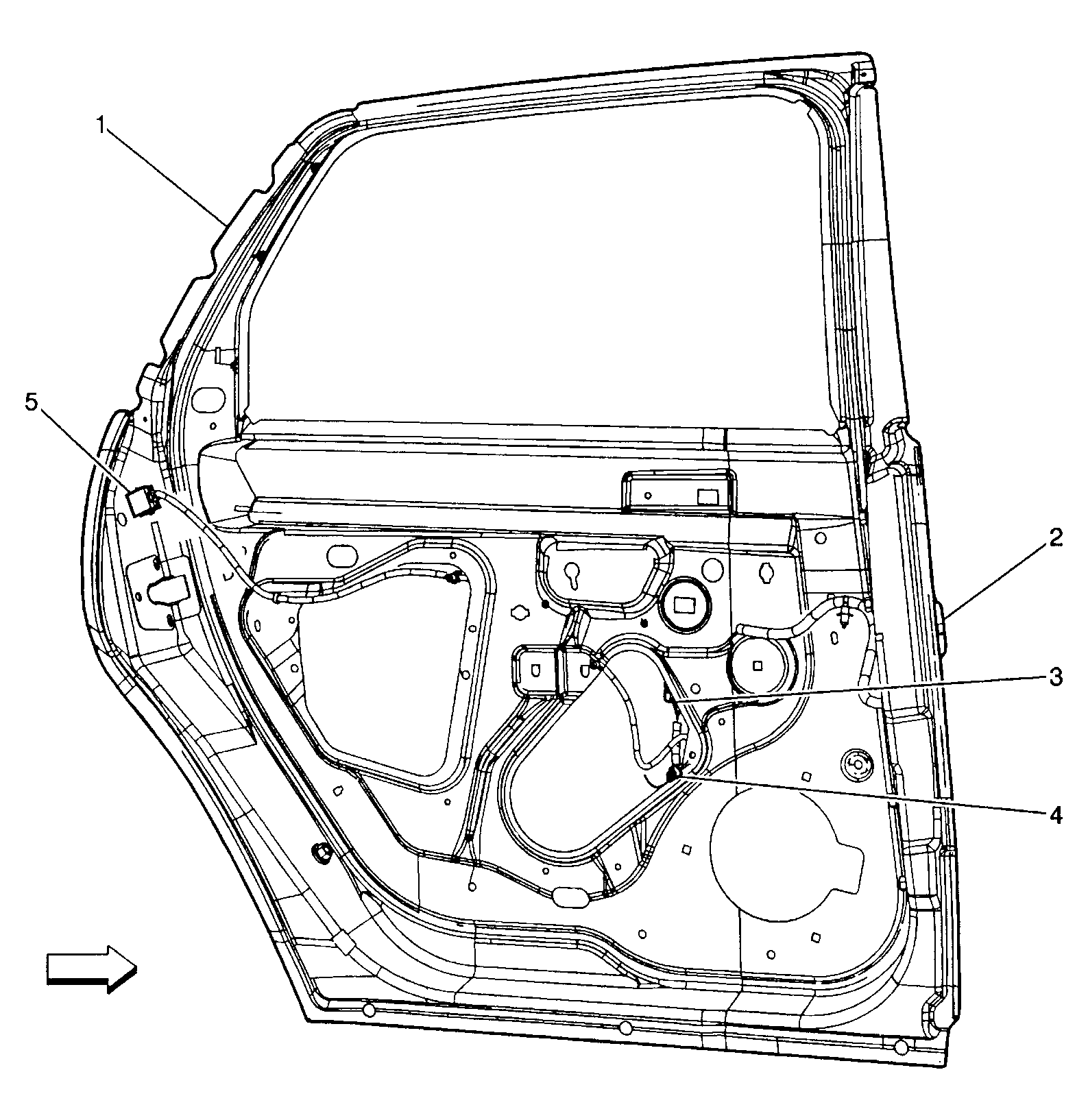

Fig 46: Right Rear Door

G00456659

Courtesy of GENERAL MOTORS CORP.

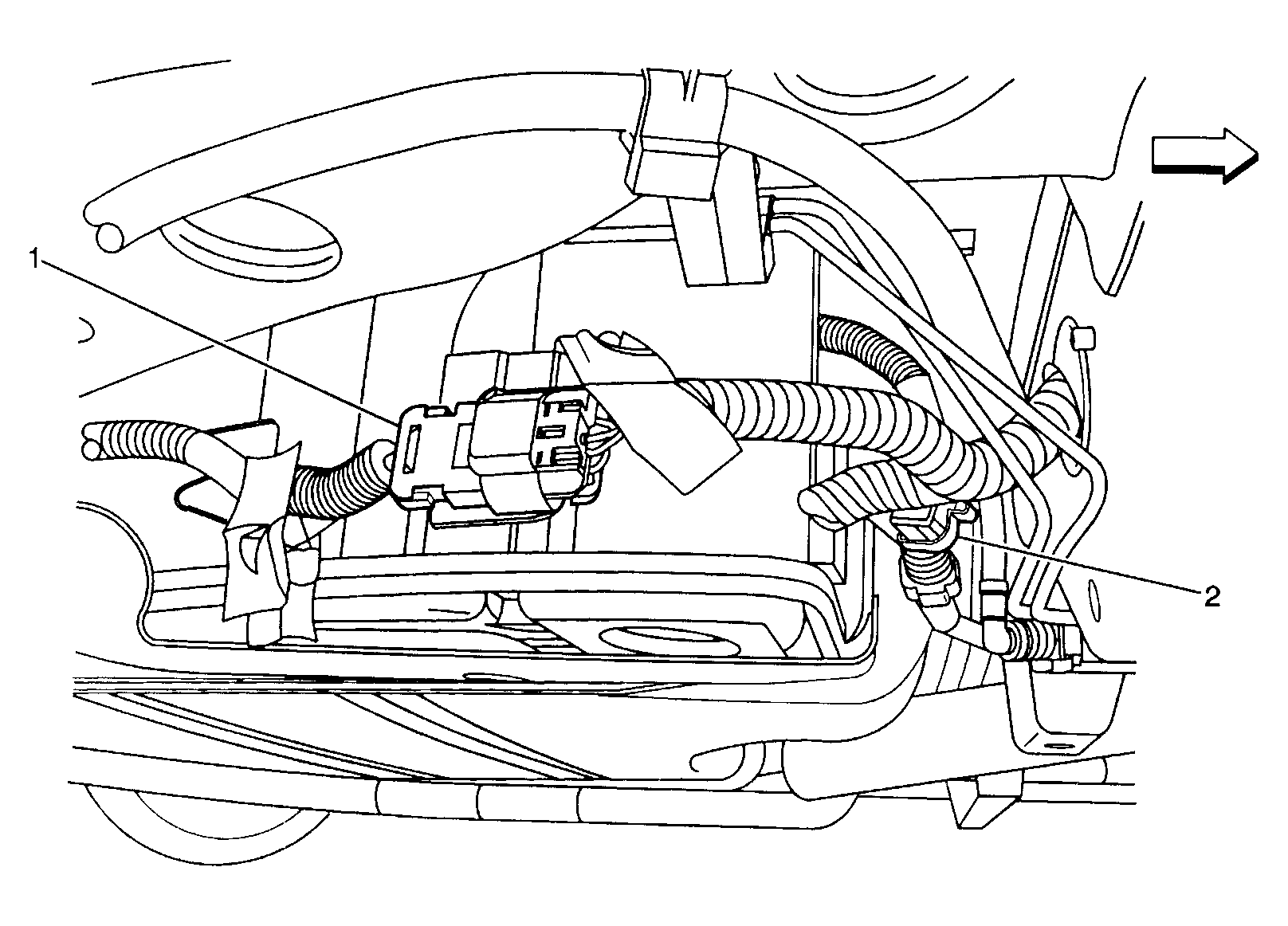

Fig 47: Right Rear Of Vehicle

G00456660

Courtesy of GENERAL MOTORS CORP.

Fig 48: Body Control Module (BCM)

G00420014

Courtesy of GENERAL MOTORS CORP.

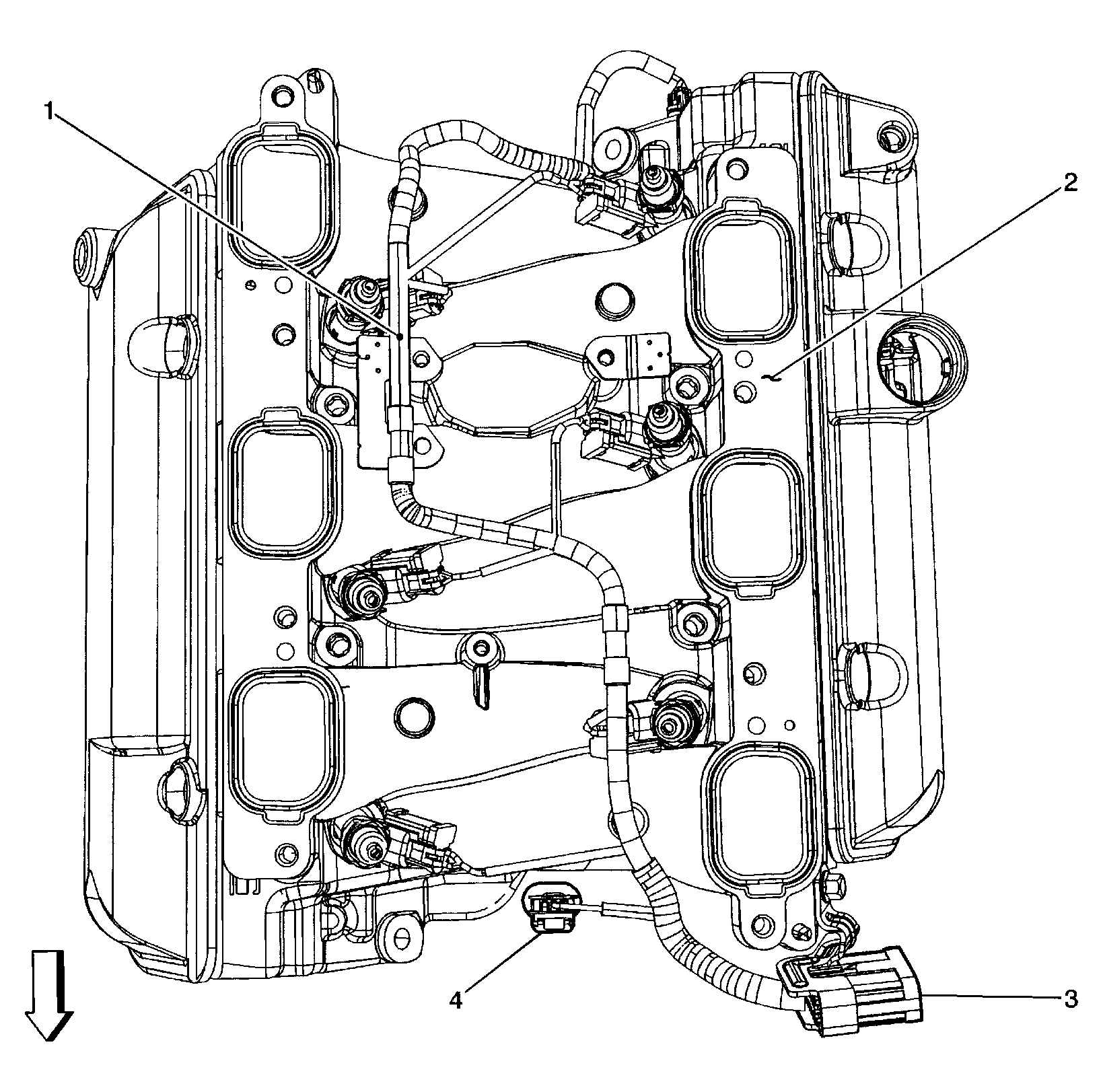

Fig 49: Top Of Engine (3.9L)

G00456661

Courtesy of GENERAL MOTORS CORP.

Fig 50: Front Of Engine Compartment (3.9L)

G00420017

Courtesy of GENERAL MOTORS CORP.

Fig 51: Left Side Of Engine (3.9L)

G00420018

Courtesy of GENERAL MOTORS CORP.

Fig 52: Right Side Of Engine (3.9L)

G00420020

Courtesy of GENERAL MOTORS CORP.

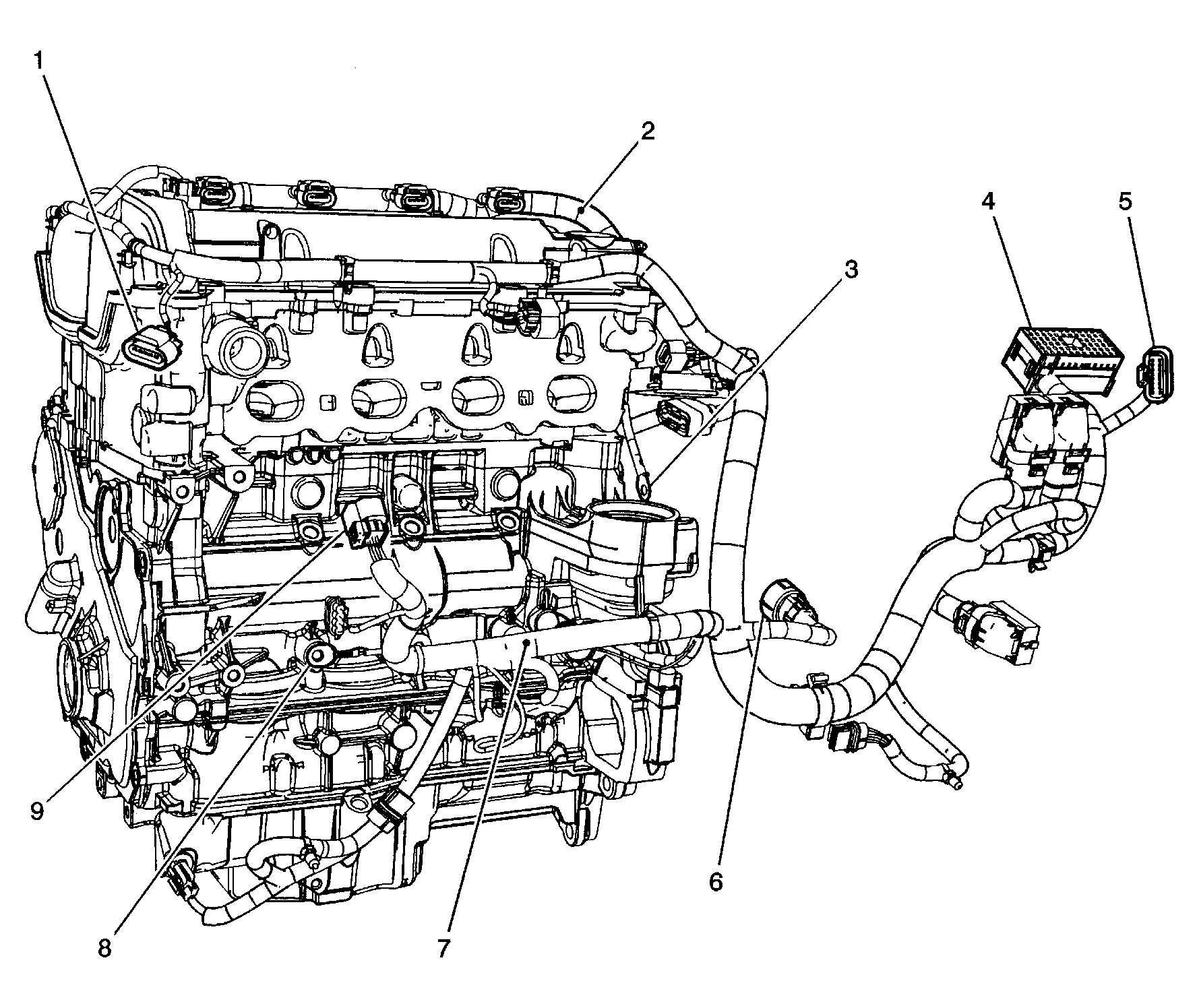

Fig 53: Left Side Of Engine (2.4L)

G00456662

Courtesy of GENERAL MOTORS CORP.

Fig 54: Left Side Of Engine (2.4L)

G00420024

Courtesy of GENERAL MOTORS CORP.

Fig 55: Right Side Of Engine (2.4L)

G00420026

Courtesy of GENERAL MOTORS CORP.

Fig 56: Left Side Of Engine (3.9L)

G00456663

Courtesy of GENERAL MOTORS CORP.

Fig 57: Under Center Floor Console

G00420029

Courtesy of GENERAL MOTORS CORP.

Fig 58: Automatic Transmission (4T65-E)

G00420031

Courtesy of GENERAL MOTORS CORP.

Fig 59: Left Rear Of Engine Compartment (2.4L & 3.9L)

G00456664

Courtesy of GENERAL MOTORS CORP.

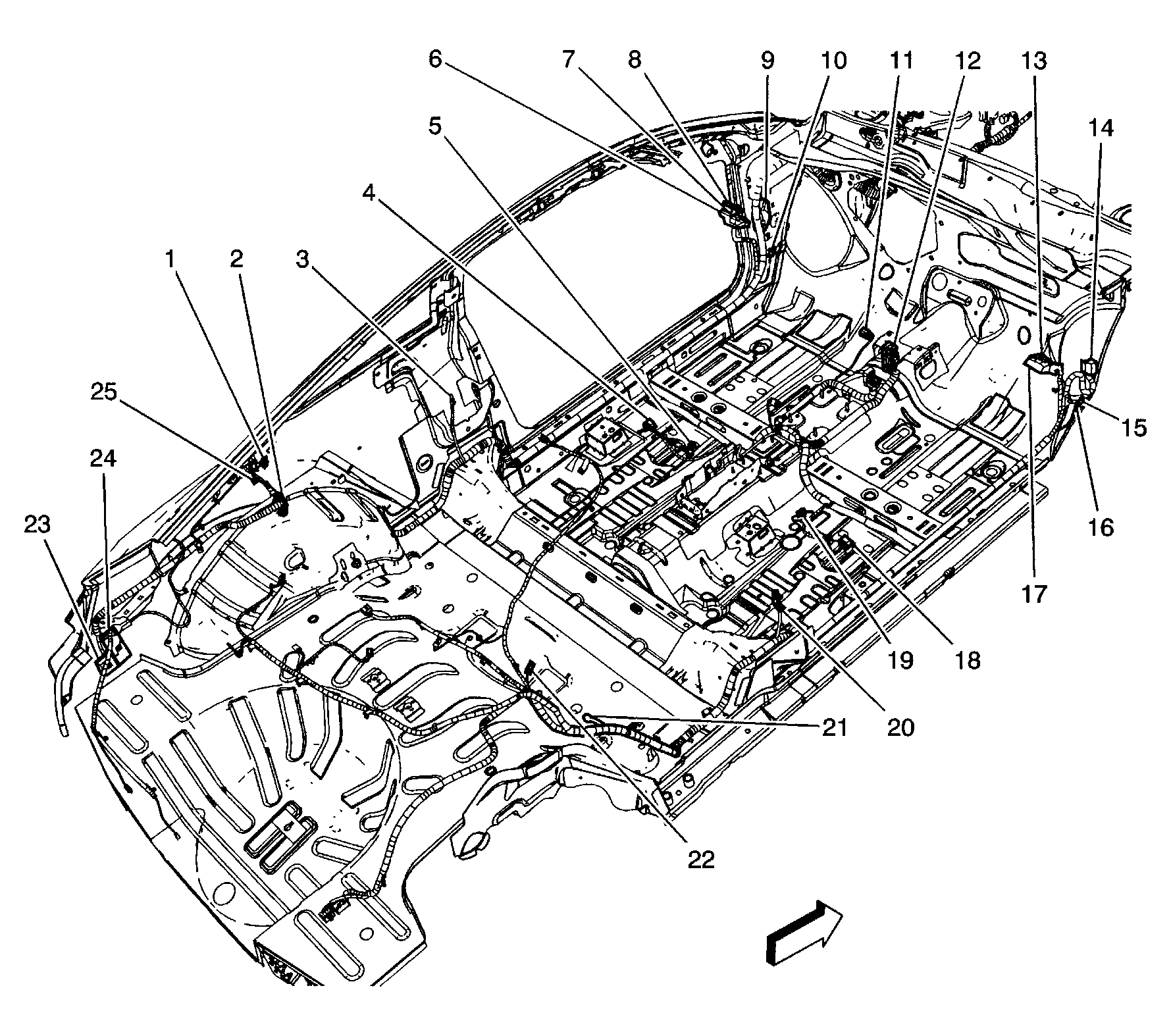

Fig 60: Vehicle Overview

G00456665

Courtesy of GENERAL MOTORS CORP.

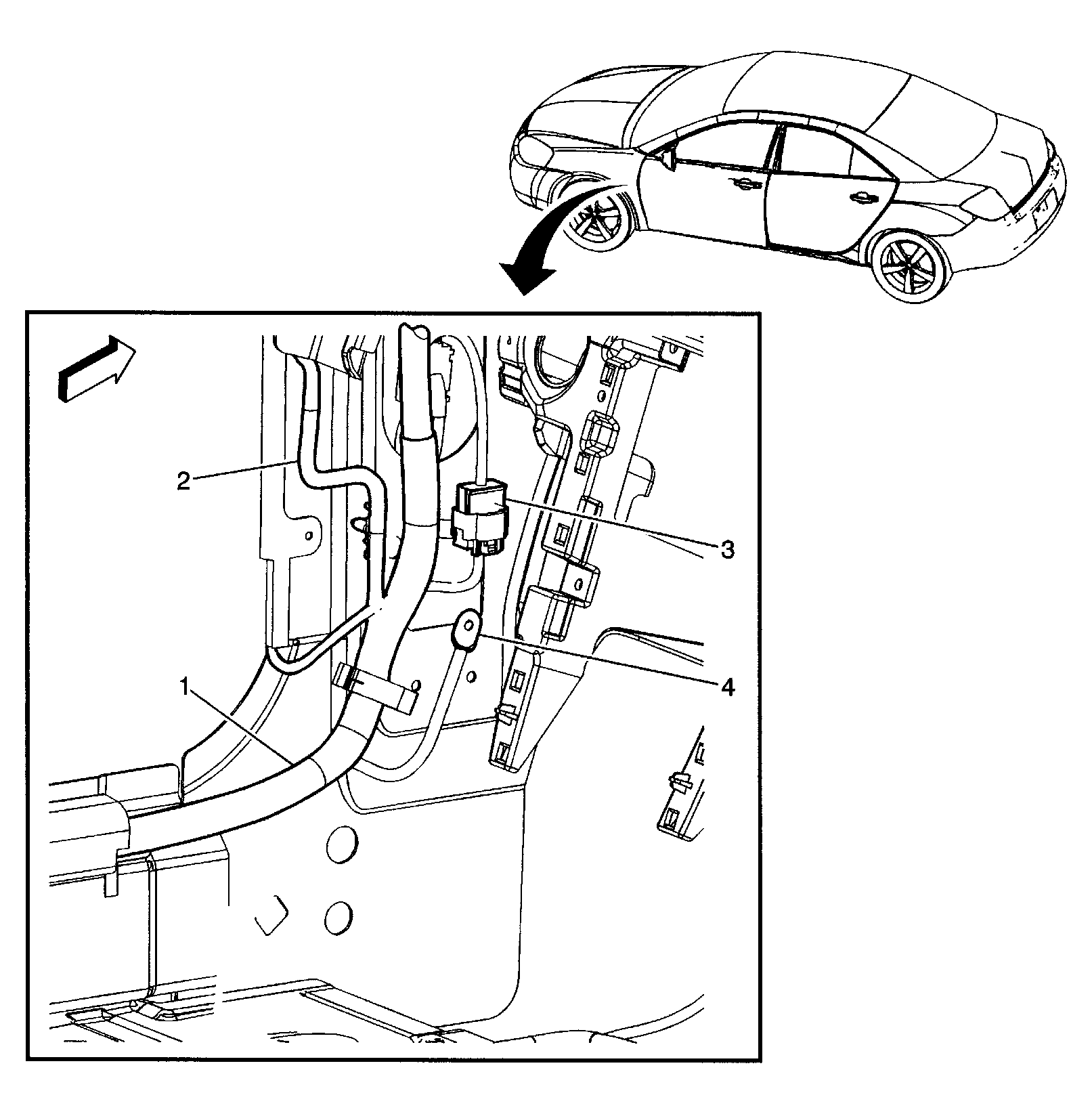

Fig 61: Left Kick Panel

G00456666

Courtesy of GENERAL MOTORS CORP.

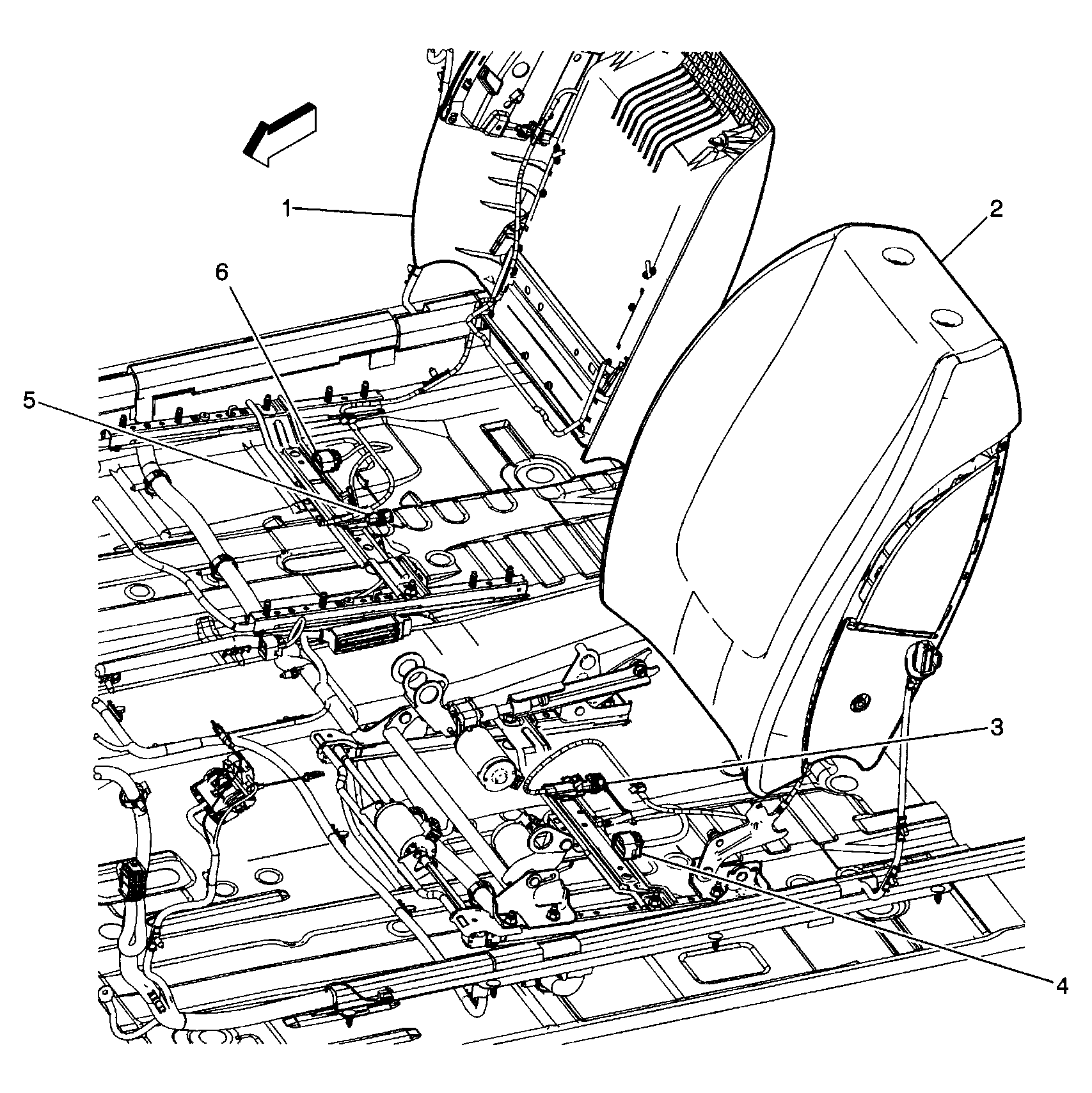

Fig 62: Under Driver & Front Passenger Seats

G00456667

Courtesy of GENERAL MOTORS CORP.

Fig 63: HVAC Unit (Automatic)

G00421477

Courtesy of GENERAL MOTORS CORP.

Fig 64: Front Right Side Of Center Console

G00421479

Courtesy of GENERAL MOTORS CORP.

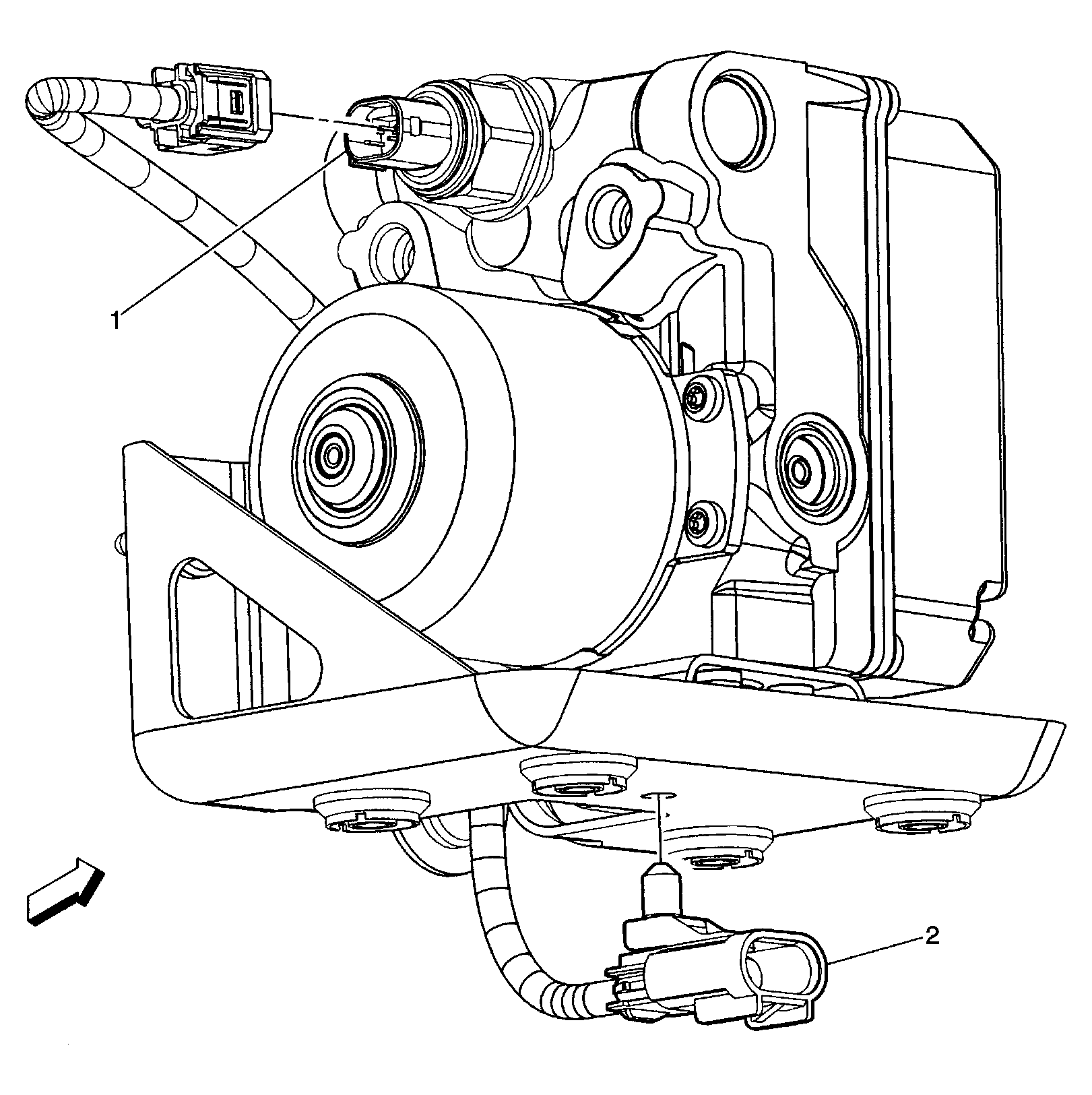

Fig 65: Left Rear Of Engine Compartment

G00456668

Courtesy of GENERAL MOTORS CORP.

Fig 66: Rear Compartment (Convertible)

G00421483

Courtesy of GENERAL MOTORS CORP.

Fig 67: Left "B" Pillar

G00421487

Courtesy of GENERAL MOTORS CORP.

Fig 68: Left "C" Pillar

G00456669

Courtesy of GENERAL MOTORS CORP.

Fig 69: Right "C" Pillar

G00421489

Courtesy of GENERAL MOTORS CORP.

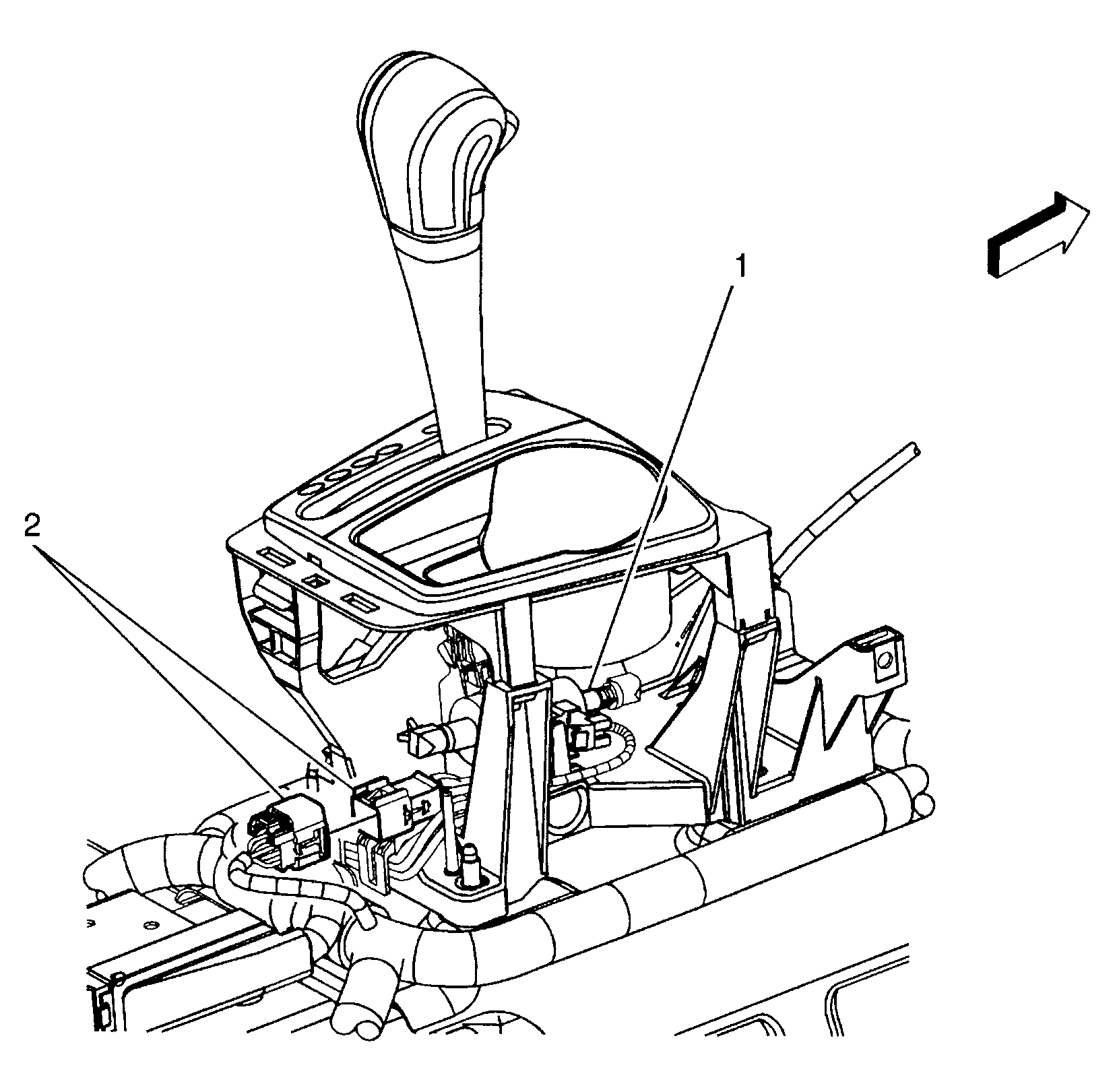

Fig 70: Shift Lock Control Component

G00456670

Courtesy of GENERAL MOTORS CORP.

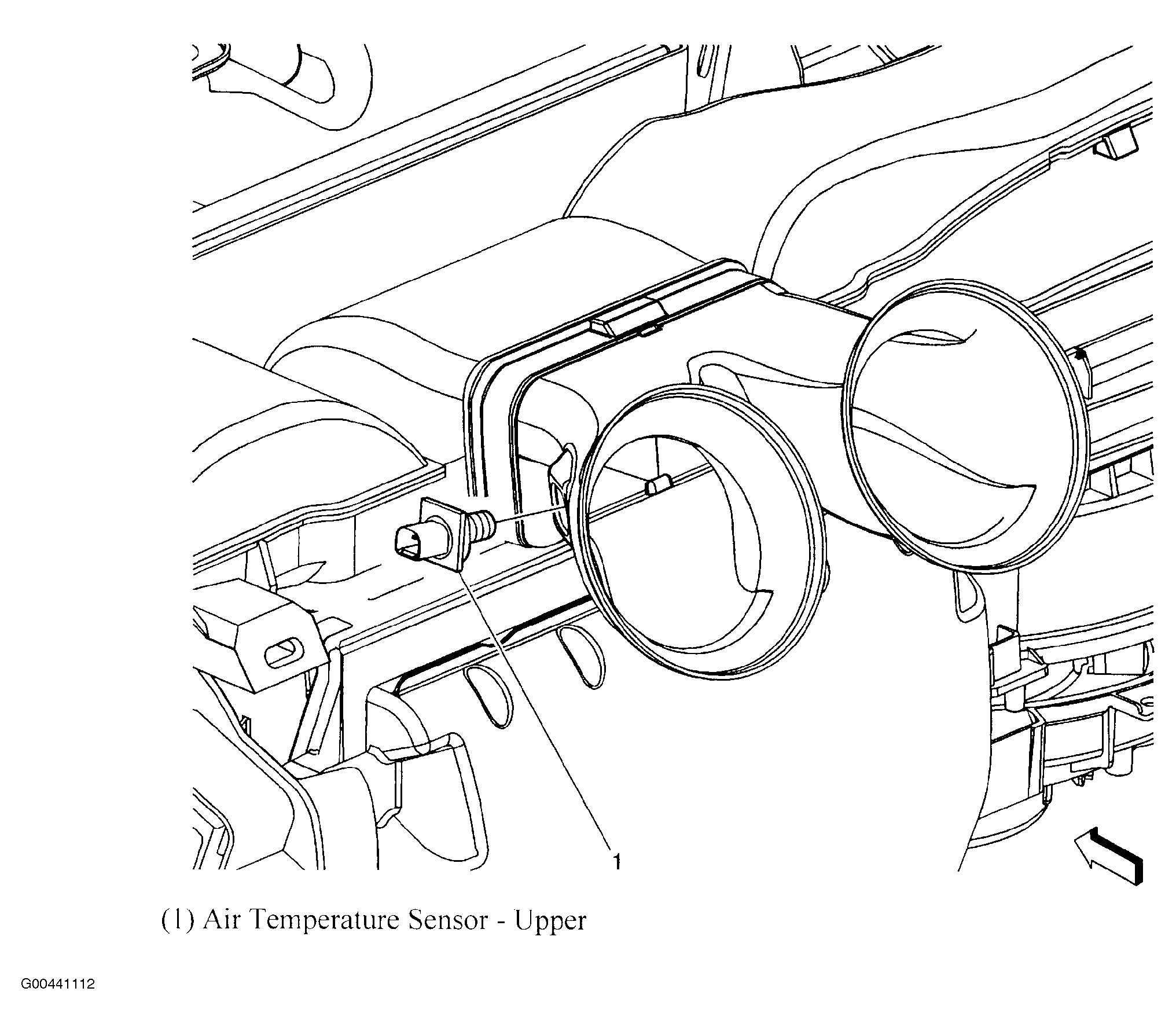

Fig 71: Center Of Instrument Panel

G00441112

Courtesy of GENERAL MOTORS CORP.

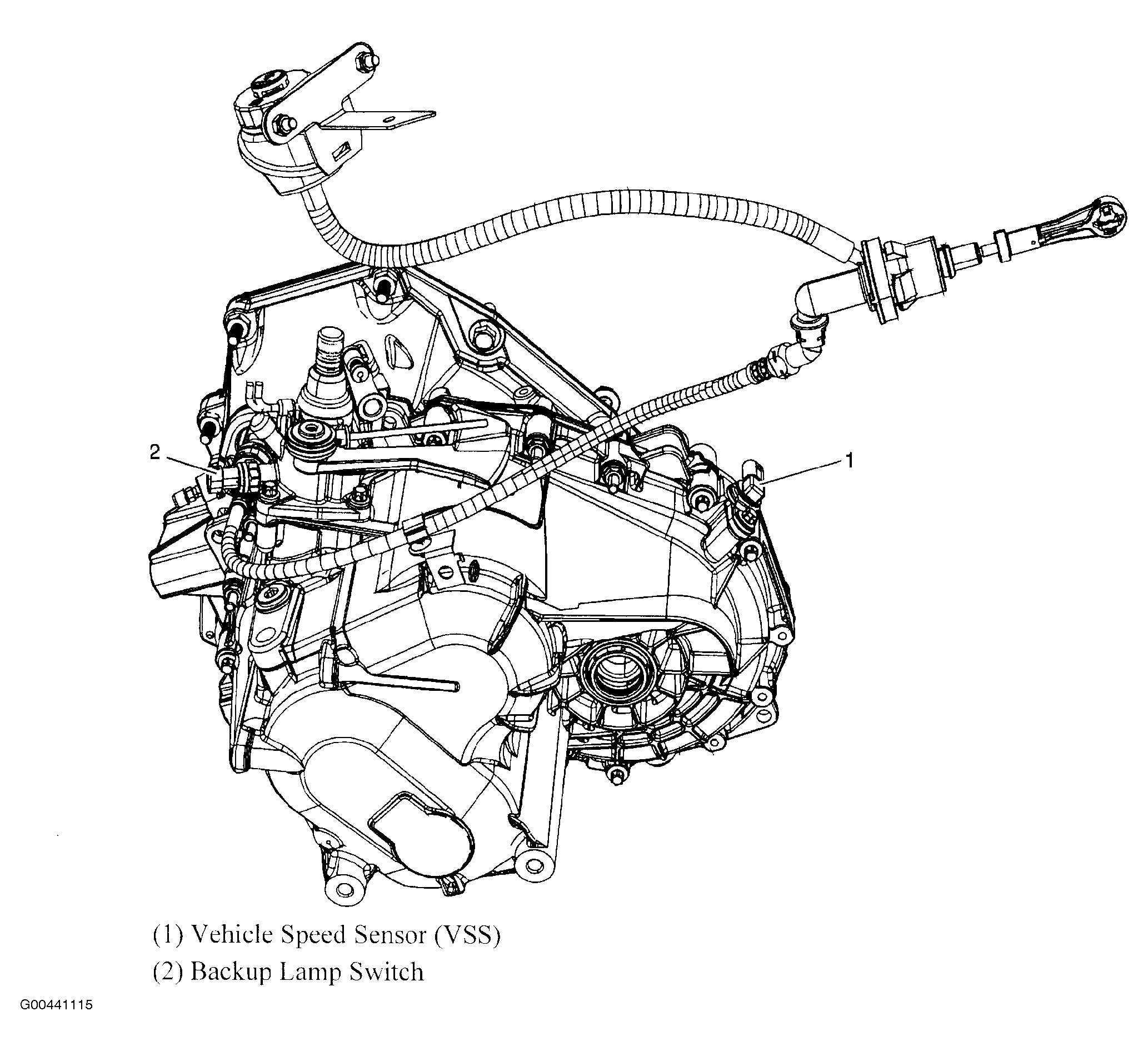

Fig 72: Right Rear Of Manual Transmission

G00441115

Courtesy of GENERAL MOTORS CORP.

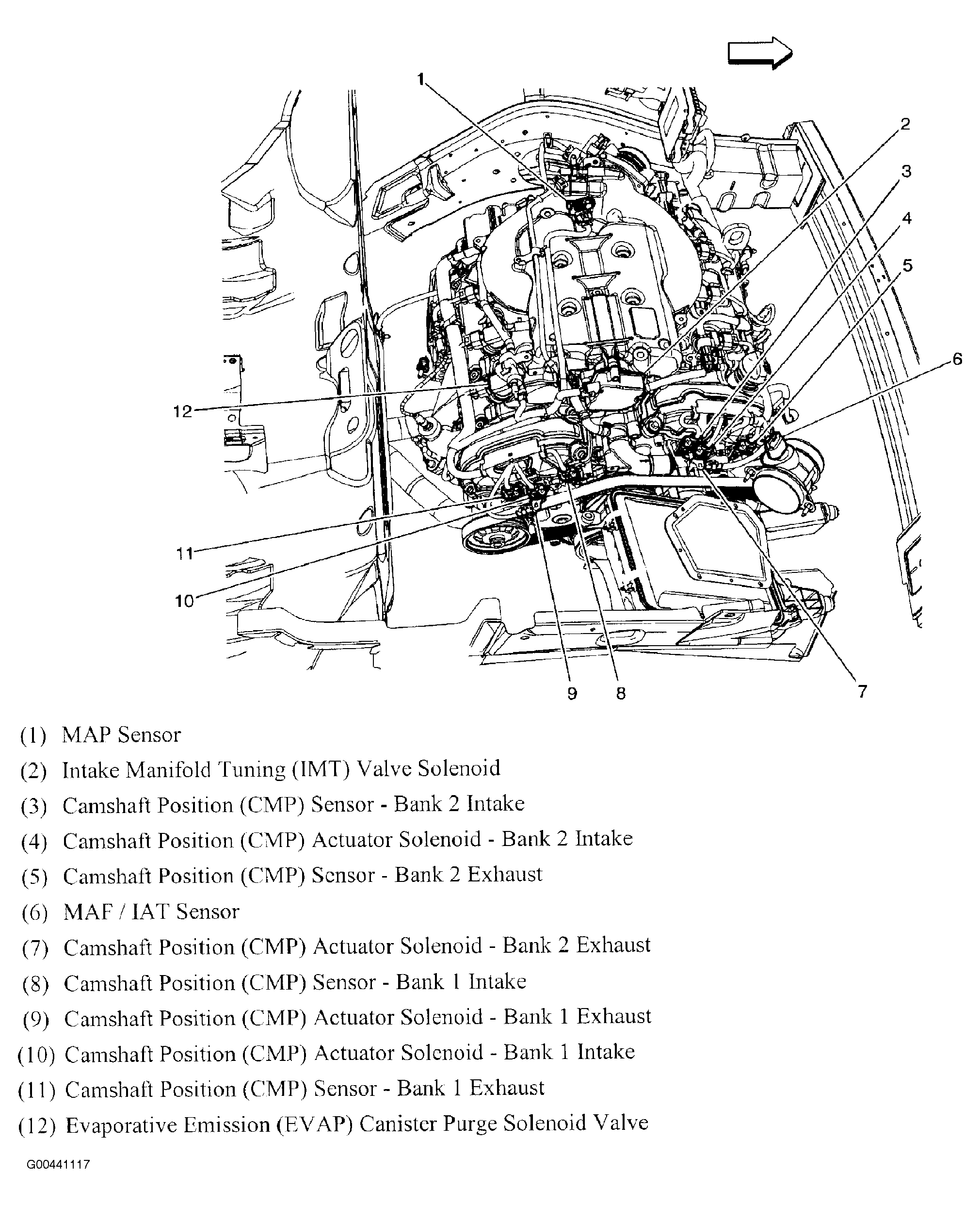

Fig 73: Top Of Engine (3.6L)

G00441117

Courtesy of GENERAL MOTORS CORP.

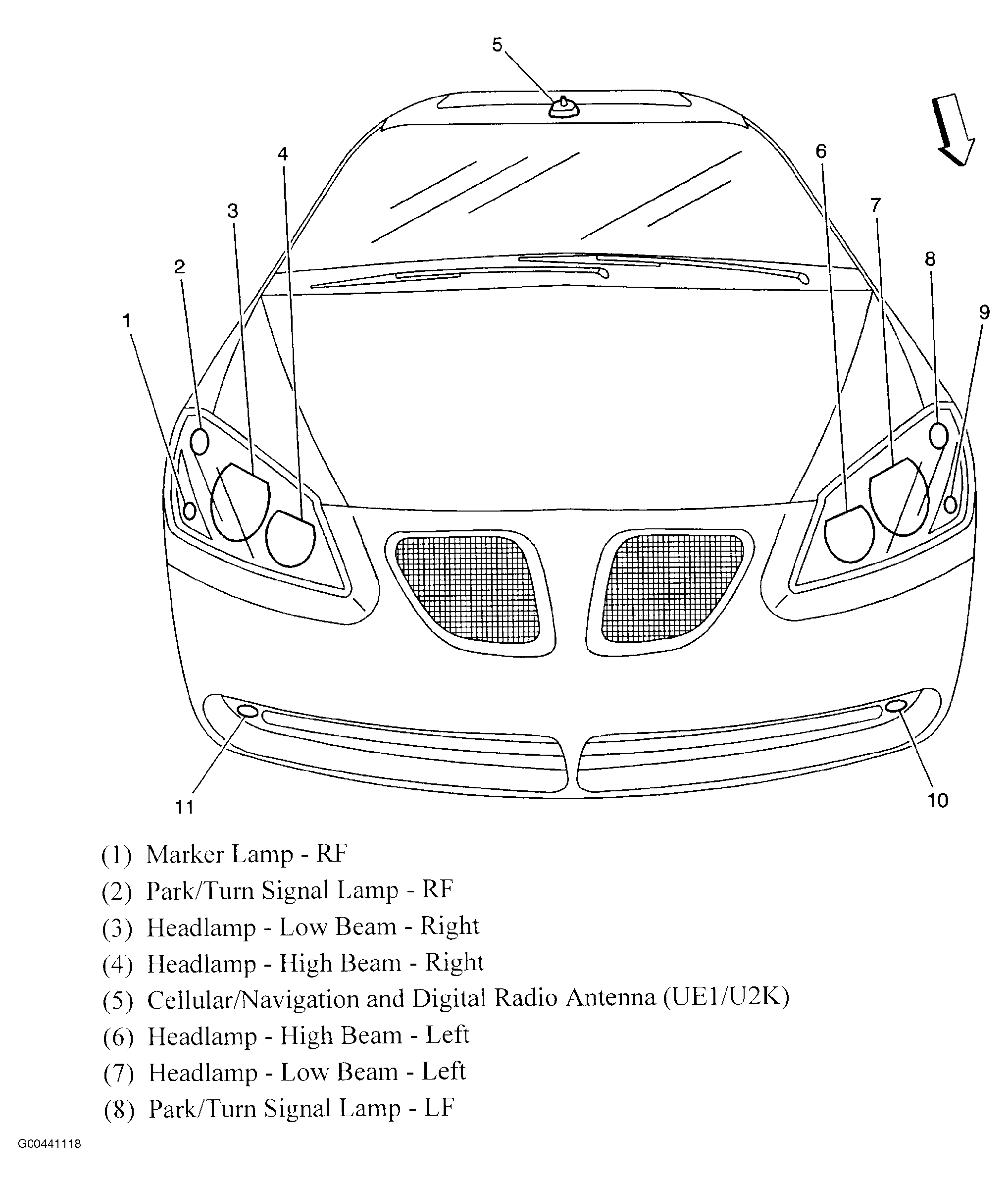

Fig 74: Front Of Vehicle

G00441118

Courtesy of GENERAL MOTORS CORP.

Fig 75: Rear Of Engine (3.5L)

G00441119

Courtesy of GENERAL MOTORS CORP.

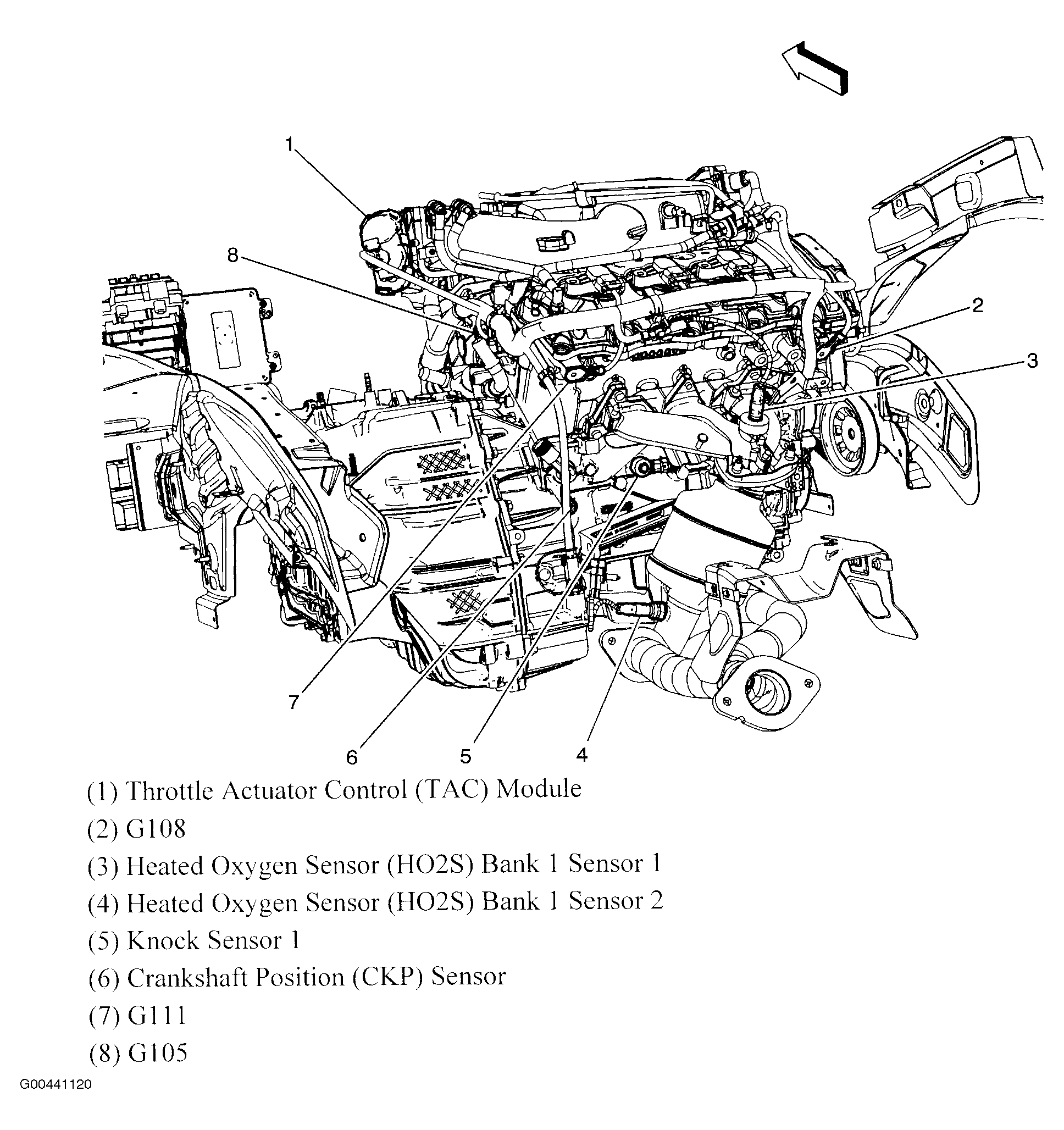

Fig 76: Rear Of Engine (3.6L)

G00441120

Courtesy of GENERAL MOTORS CORP.

Fig 77: Rear Compartment (Convertible)

G00441121

Courtesy of GENERAL MOTORS CORP.

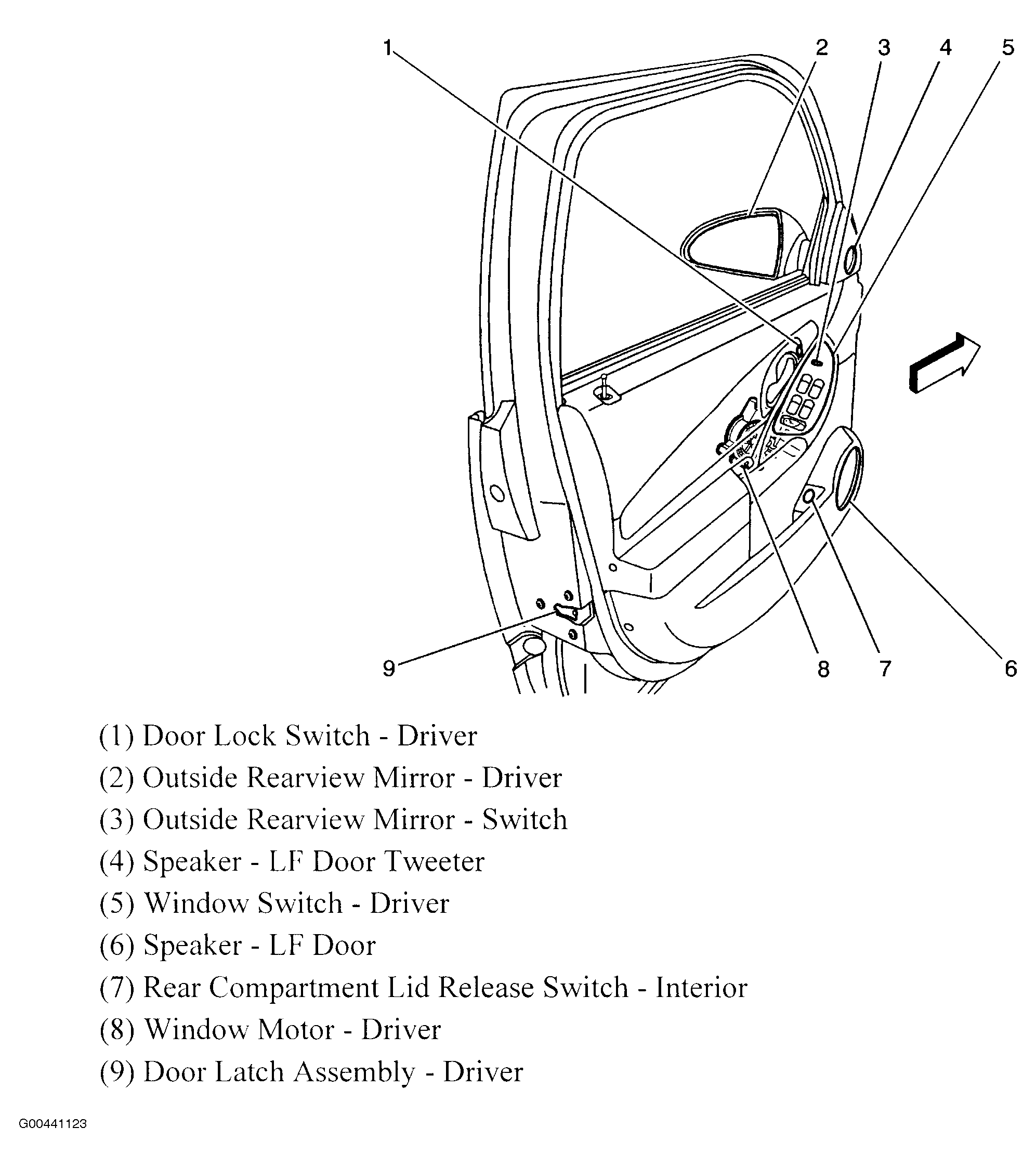

Fig 78: Left Front Door

G00441123

Courtesy of GENERAL MOTORS CORP.

Fig 79: Front Of Engine (3.6L)

G00456671

Courtesy of GENERAL MOTORS CORP.

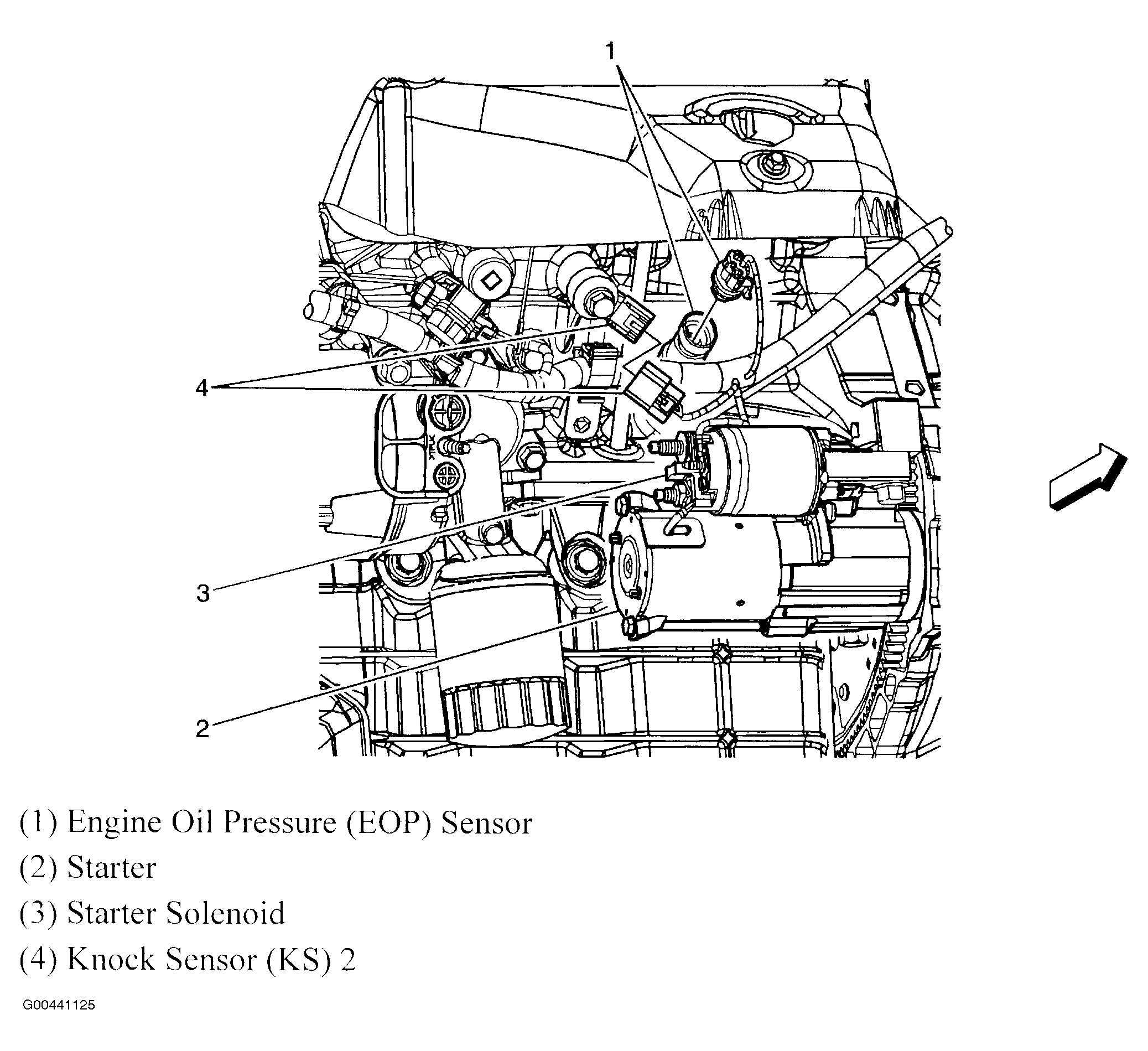

Fig 80: Lower Left Front Of Engine

G00441125

Courtesy of GENERAL MOTORS CORP.

Fig 81: Front Of Engine (3.5L)

G00456672

Courtesy of GENERAL MOTORS CORP.

Fig 82: Folding Top

G00441127

Courtesy of GENERAL MOTORS CORP.

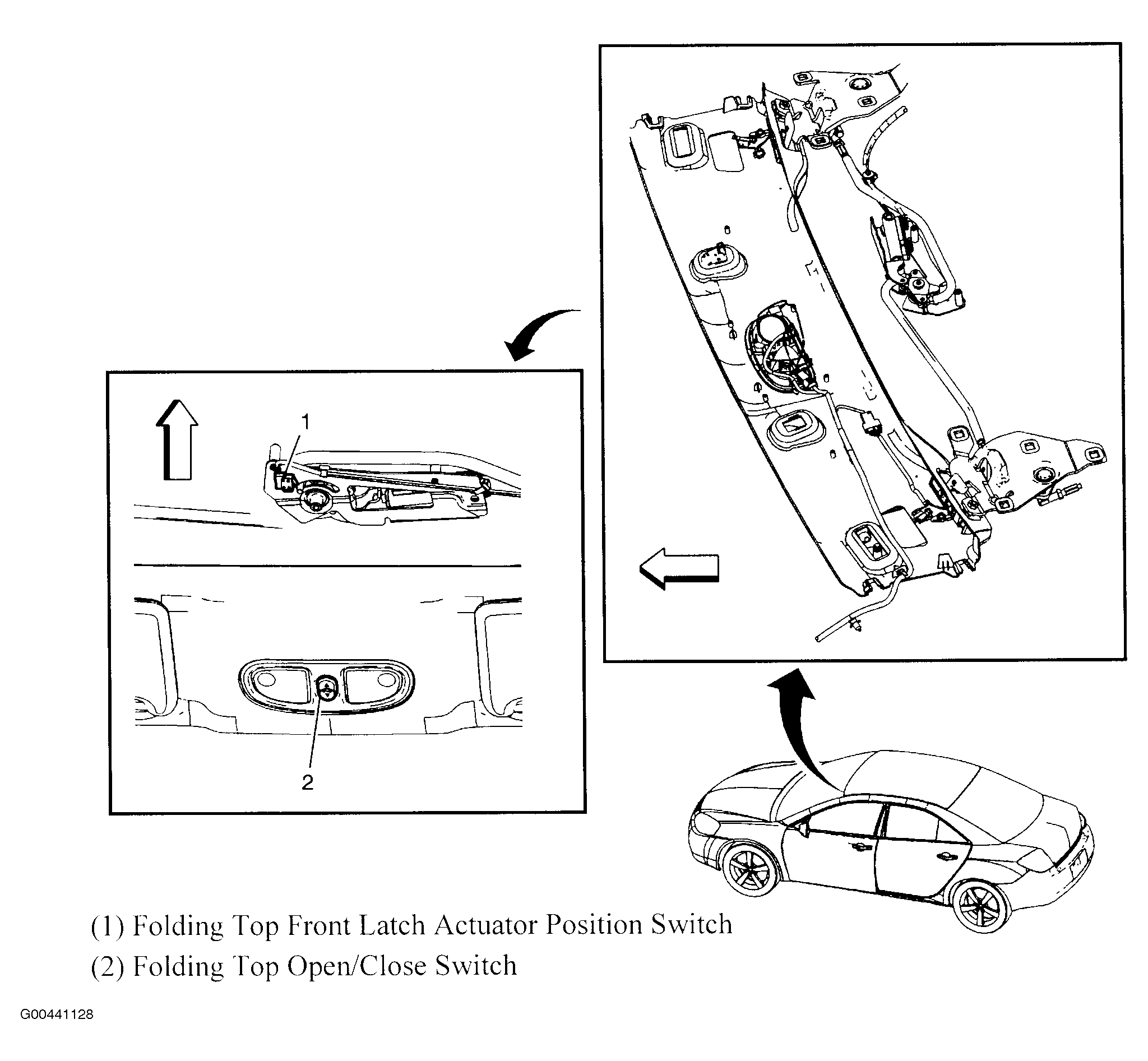

Fig 83: Folding Top

G00441128

Courtesy of GENERAL MOTORS CORP.

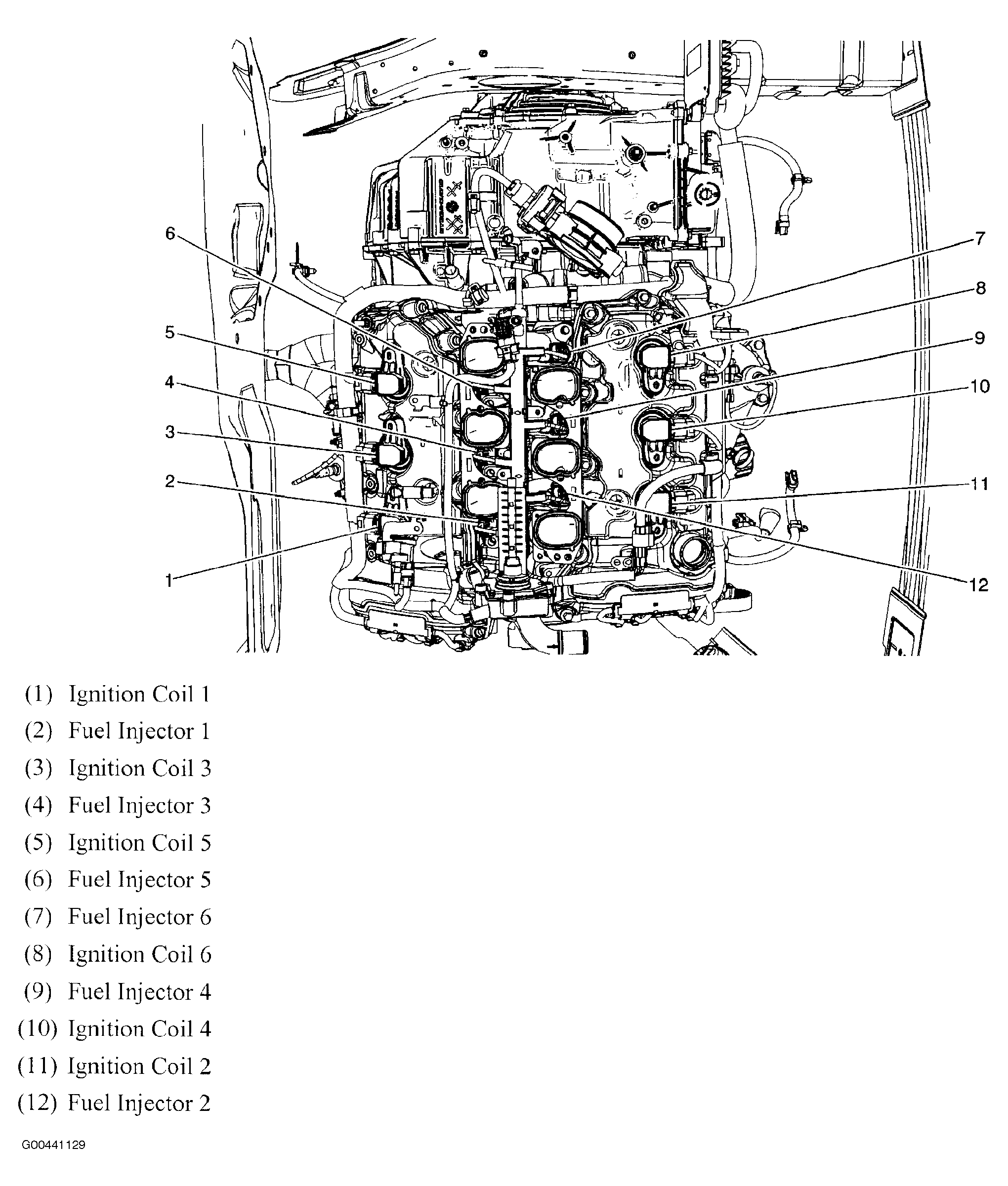

Fig 84: Top Of Engine (3.6L)

G00441129

Courtesy of GENERAL MOTORS CORP.

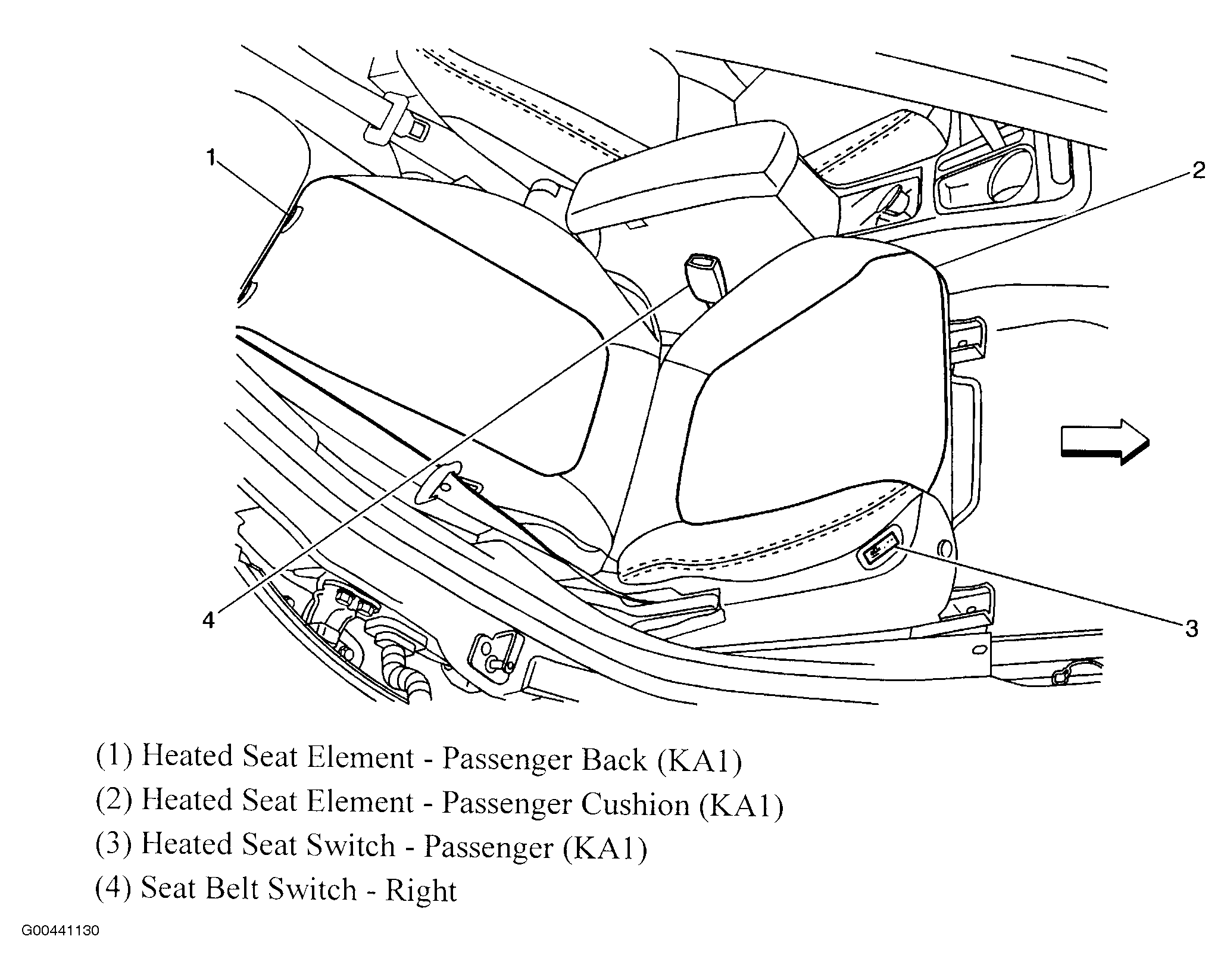

Fig 85: Passenger Seat

G00441130

Courtesy of GENERAL MOTORS CORP.

Fig 86: Front Passenger Seat

G00441132

Courtesy of GENERAL MOTORS CORP.

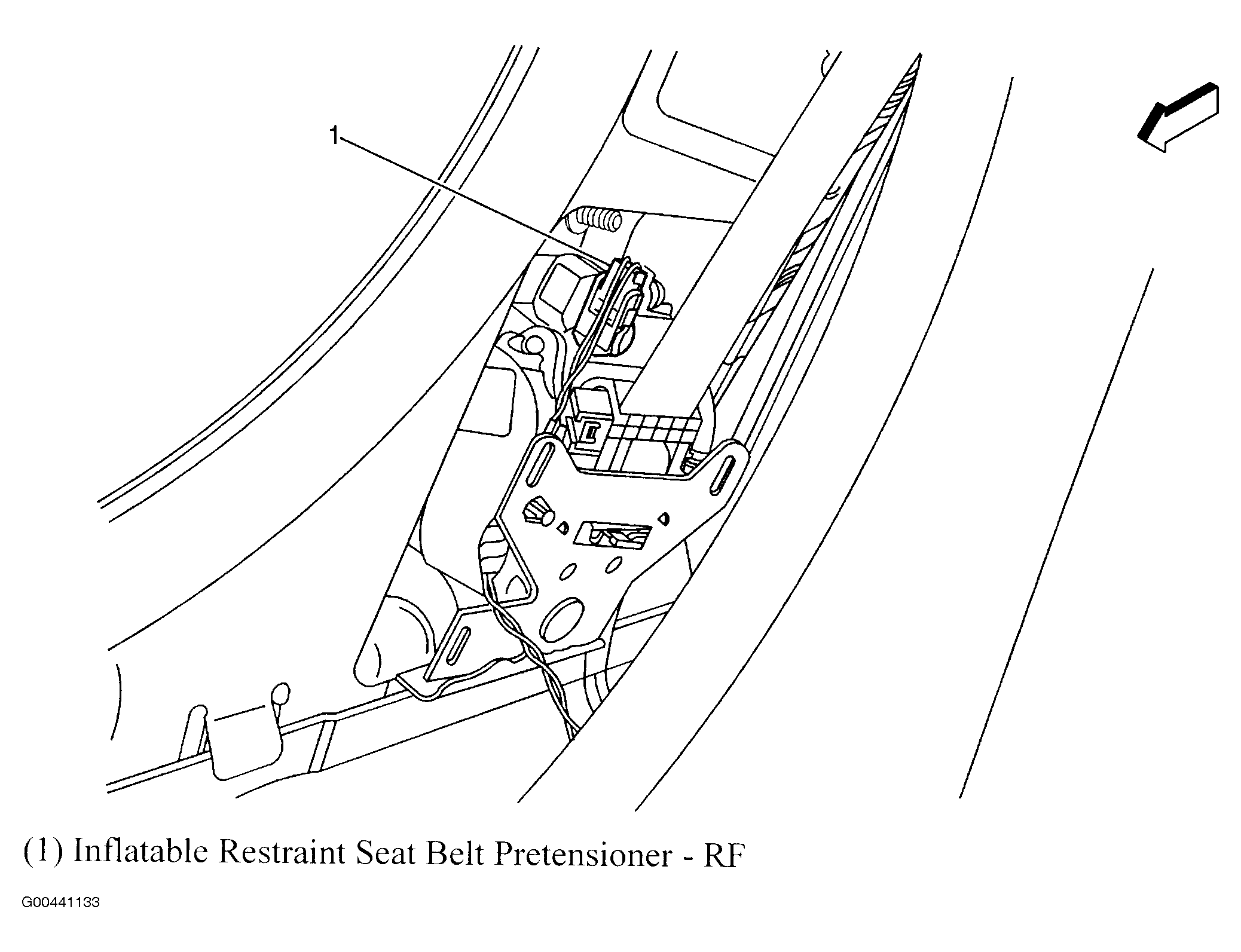

Fig 87: Lower Right "B" Pillar

G00441133

Courtesy of GENERAL MOTORS CORP.

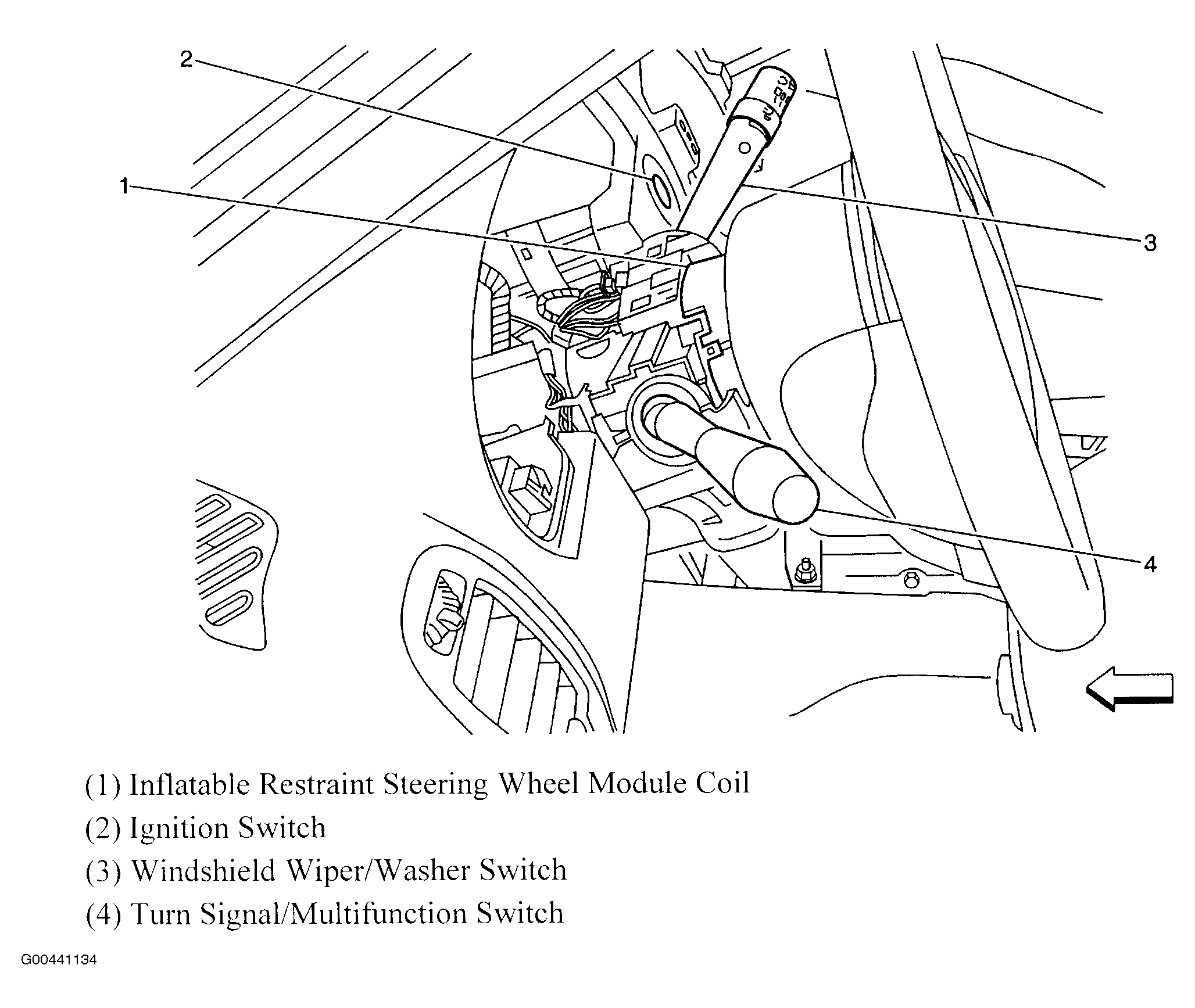

Fig 88: Top Of Steering Column

G00441134

Courtesy of GENERAL MOTORS CORP.

Fig 89: Folding Top

G00441135

Courtesy of GENERAL MOTORS CORP.

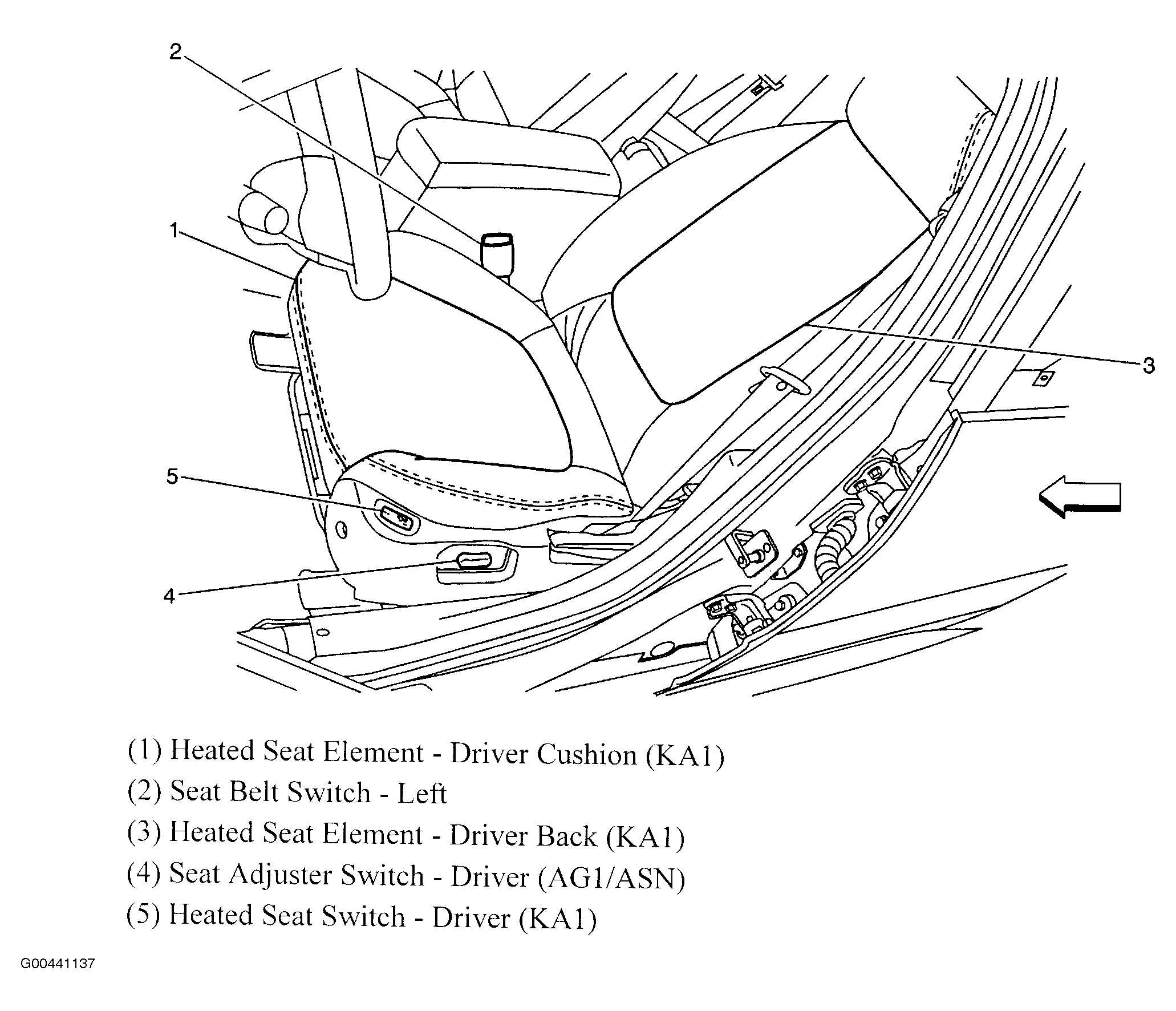

Fig 90: Driver Seat

G00441137

Courtesy of GENERAL MOTORS CORP.

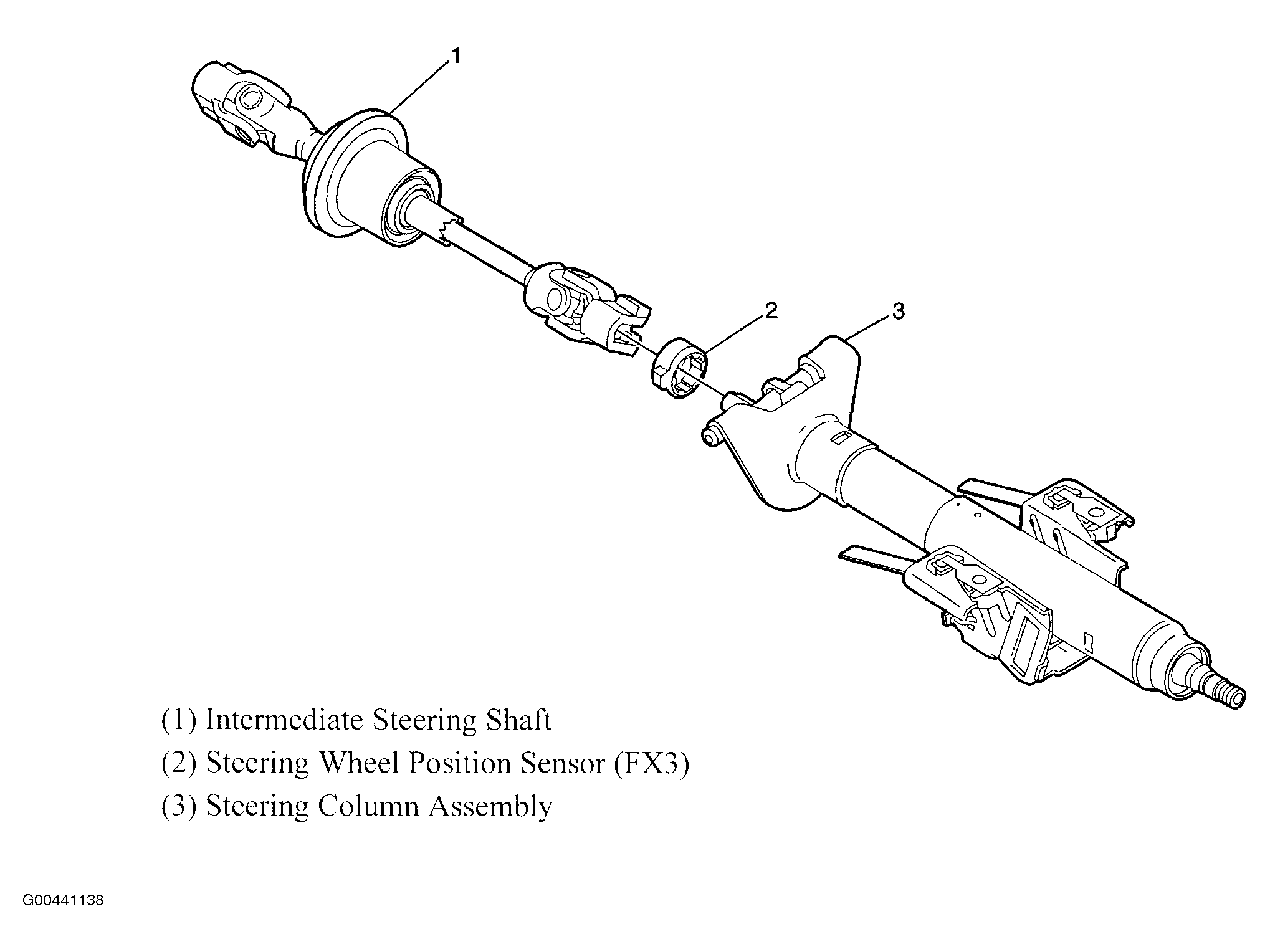

Fig 91: Steering Column Assembly

G00441138

Courtesy of GENERAL MOTORS CORP.

Fig 92: Sunroof Assembly

G00441139

Courtesy of GENERAL MOTORS CORP.

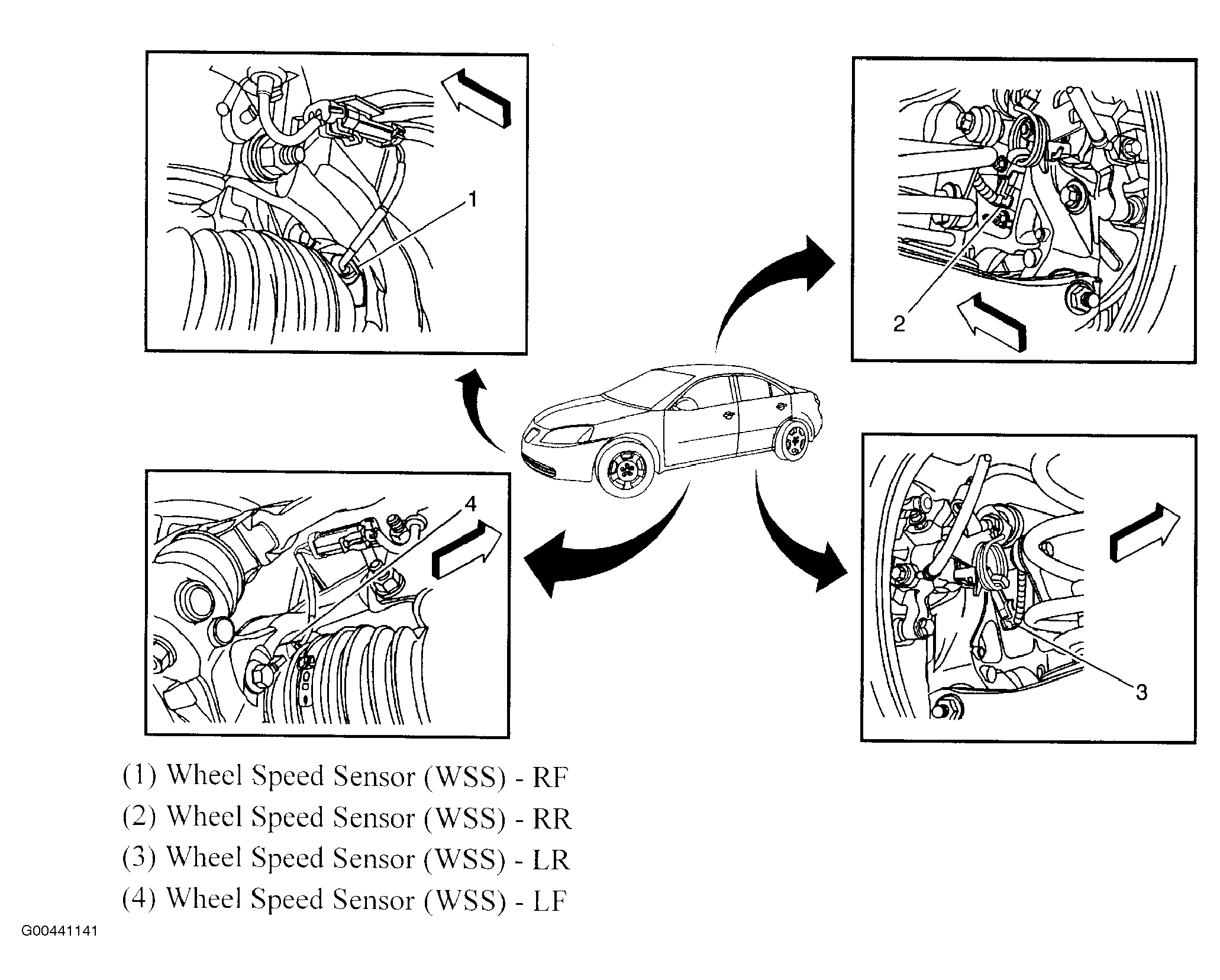

Fig 93: Wheel Speed Sensors

G00441141

Courtesy of GENERAL MOTORS CORP.

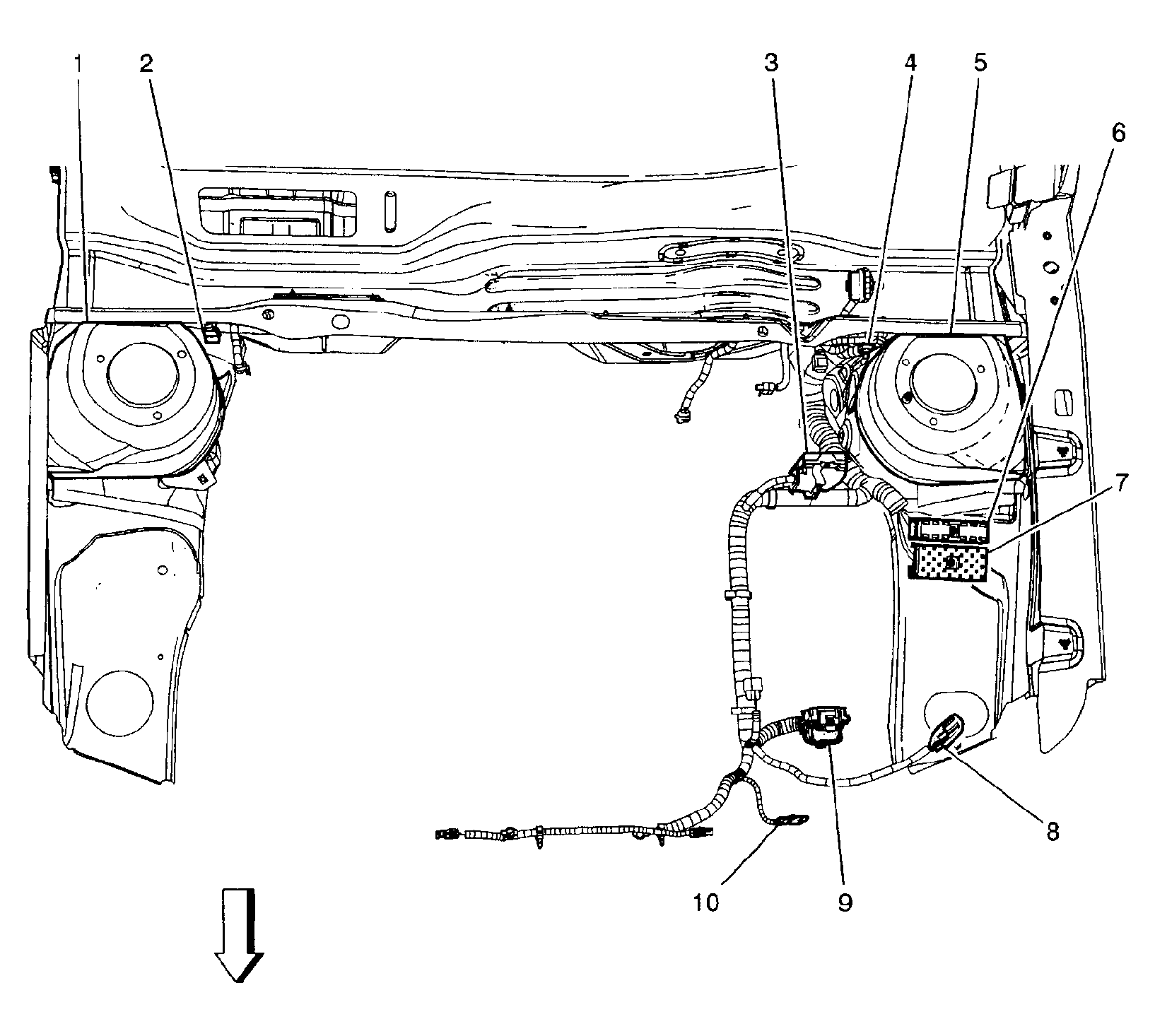

Fig 94: Engine Compartment (Coupe)

G00456674

Courtesy of GENERAL MOTORS CORP.

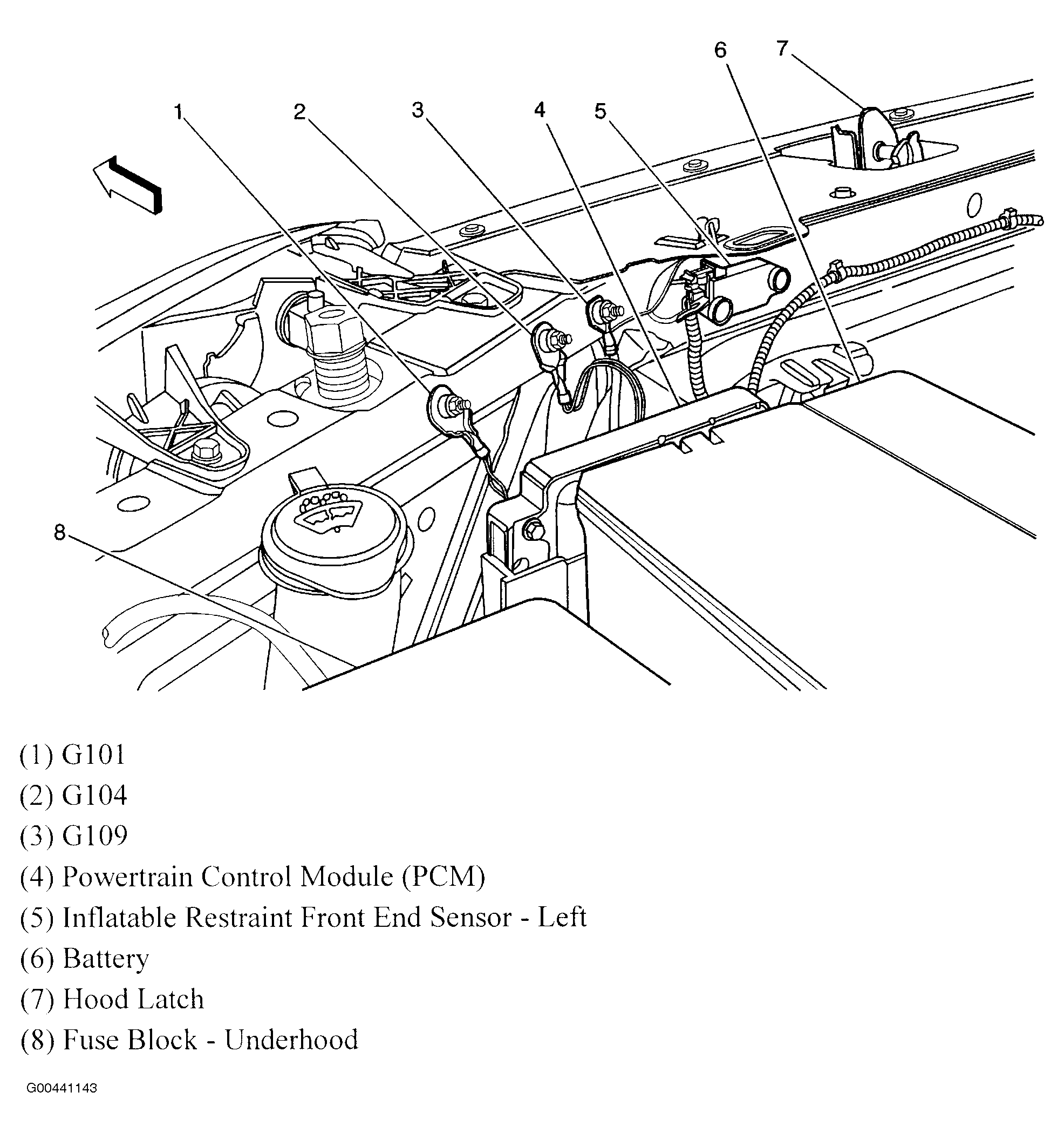

Fig 95: Left Side Of Core Support

G00441143

Courtesy of GENERAL MOTORS CORP.

Fig 96: Rear Of Engine (3.6L)

G00456676

Courtesy of GENERAL MOTORS CORP.

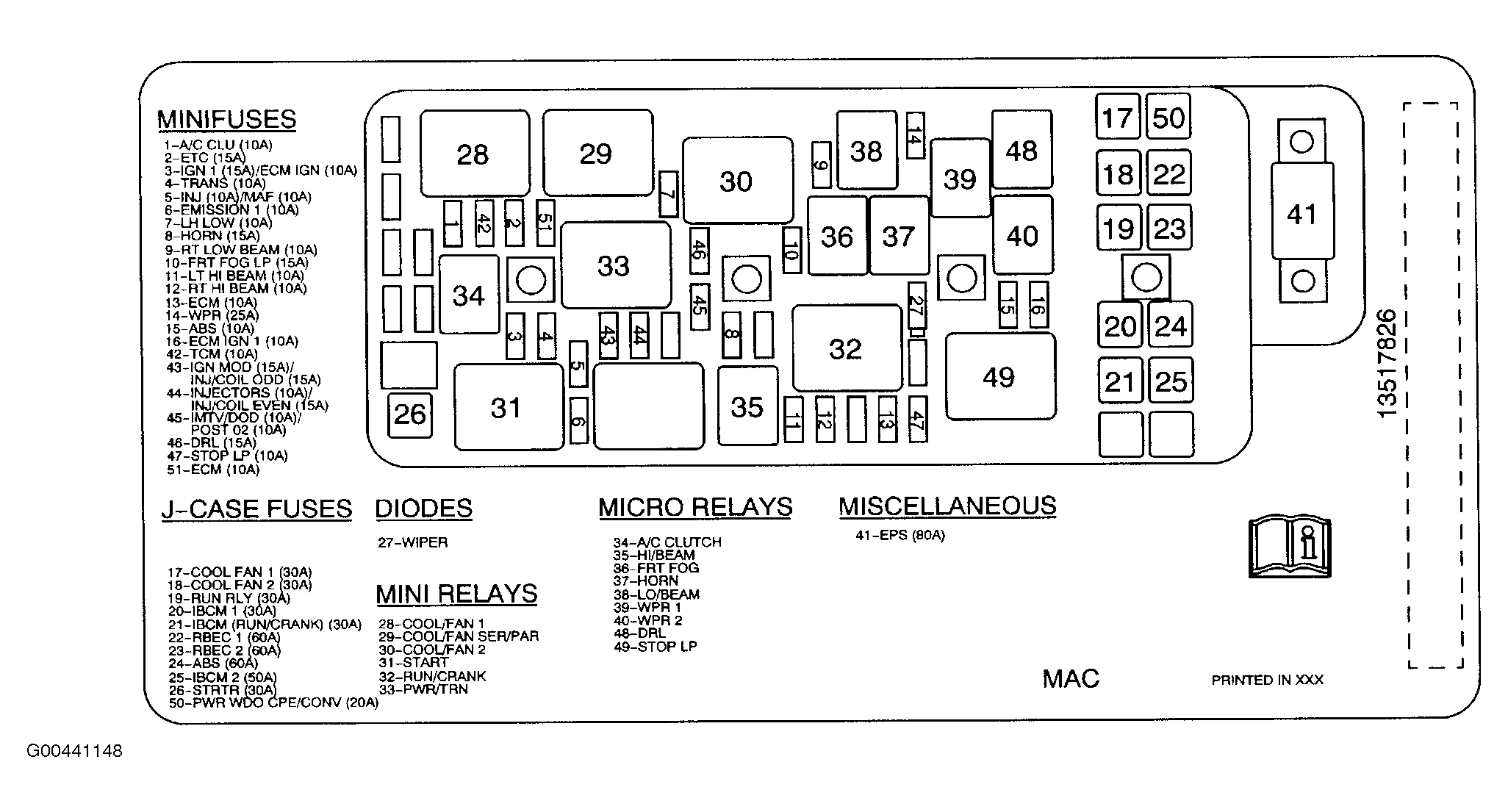

Fig 97: Underhood Fuse Block

G00441148

Courtesy of GENERAL MOTORS CORP.

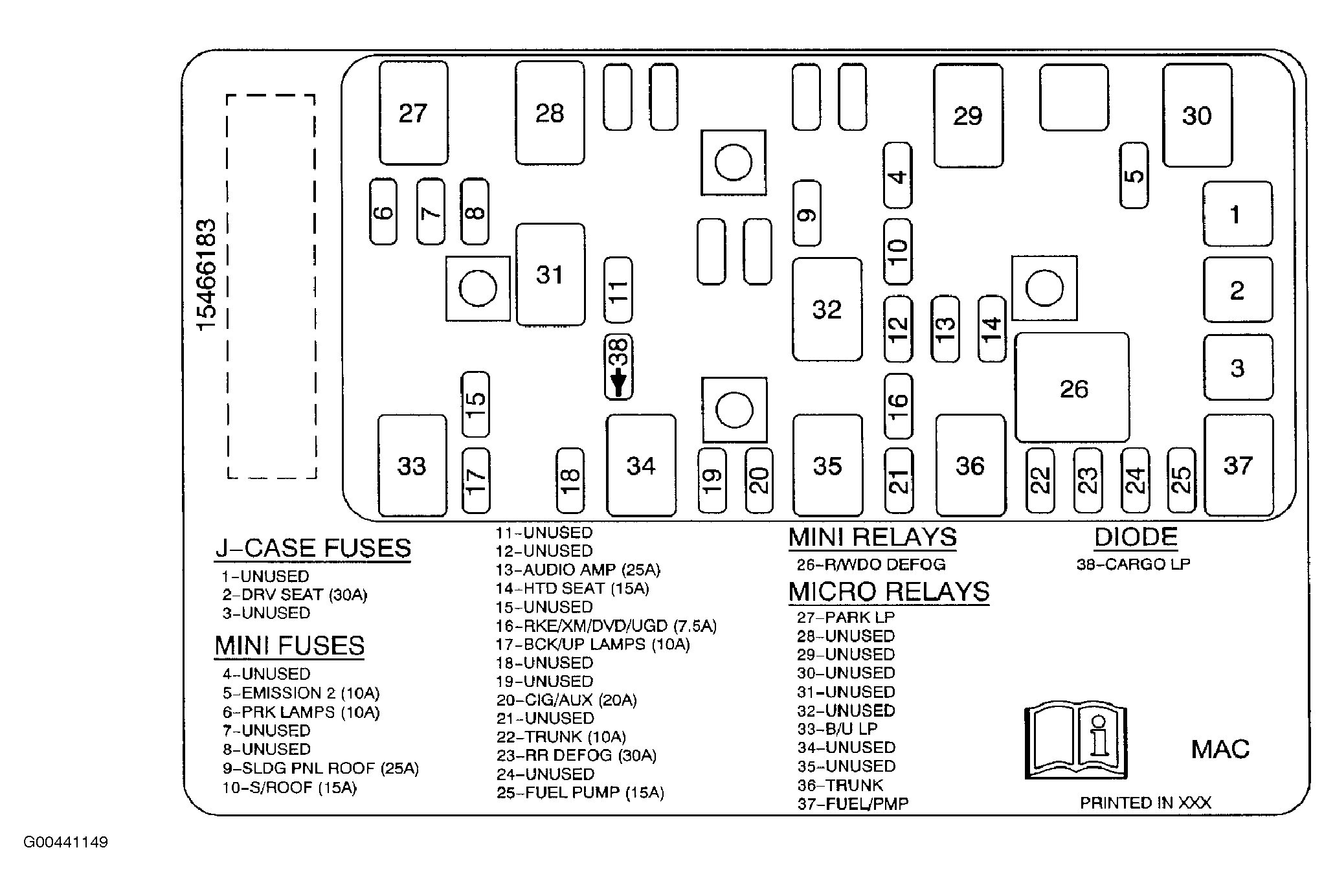

Fig 98: Rear Fuse Block

G00441149

Courtesy of GENERAL MOTORS CORP.

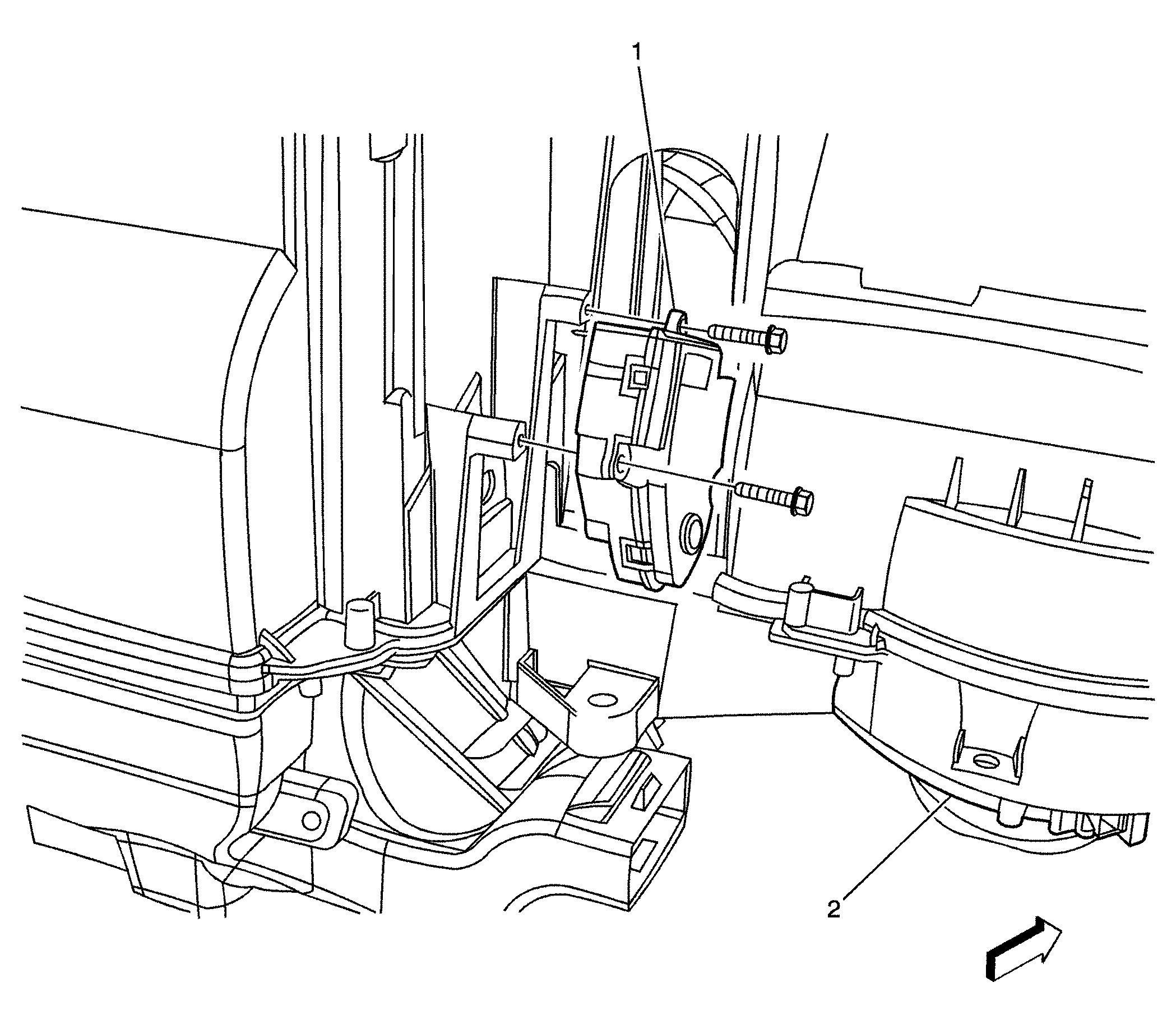

Fig 99: Lower Right Side Of Dash

G00456677

Courtesy of GENERAL MOTORS CORP.

Fig 100: Right Rear Of Roof, Under Headliner

G00456678

Courtesy of GENERAL MOTORS CORP.

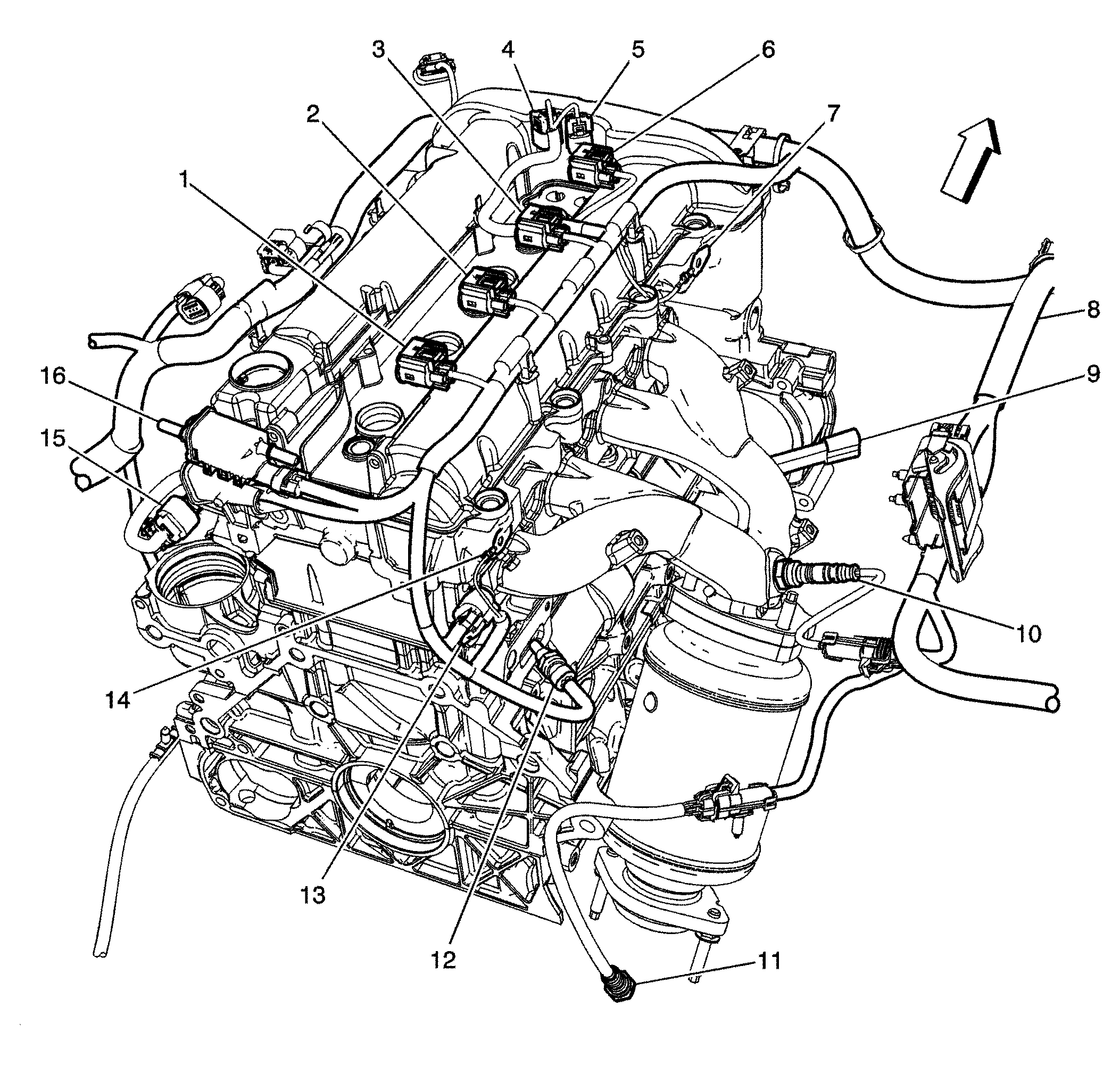

Fig 101: Top Of Engine (LE5)

G00456679

Courtesy of GENERAL MOTORS CORP.

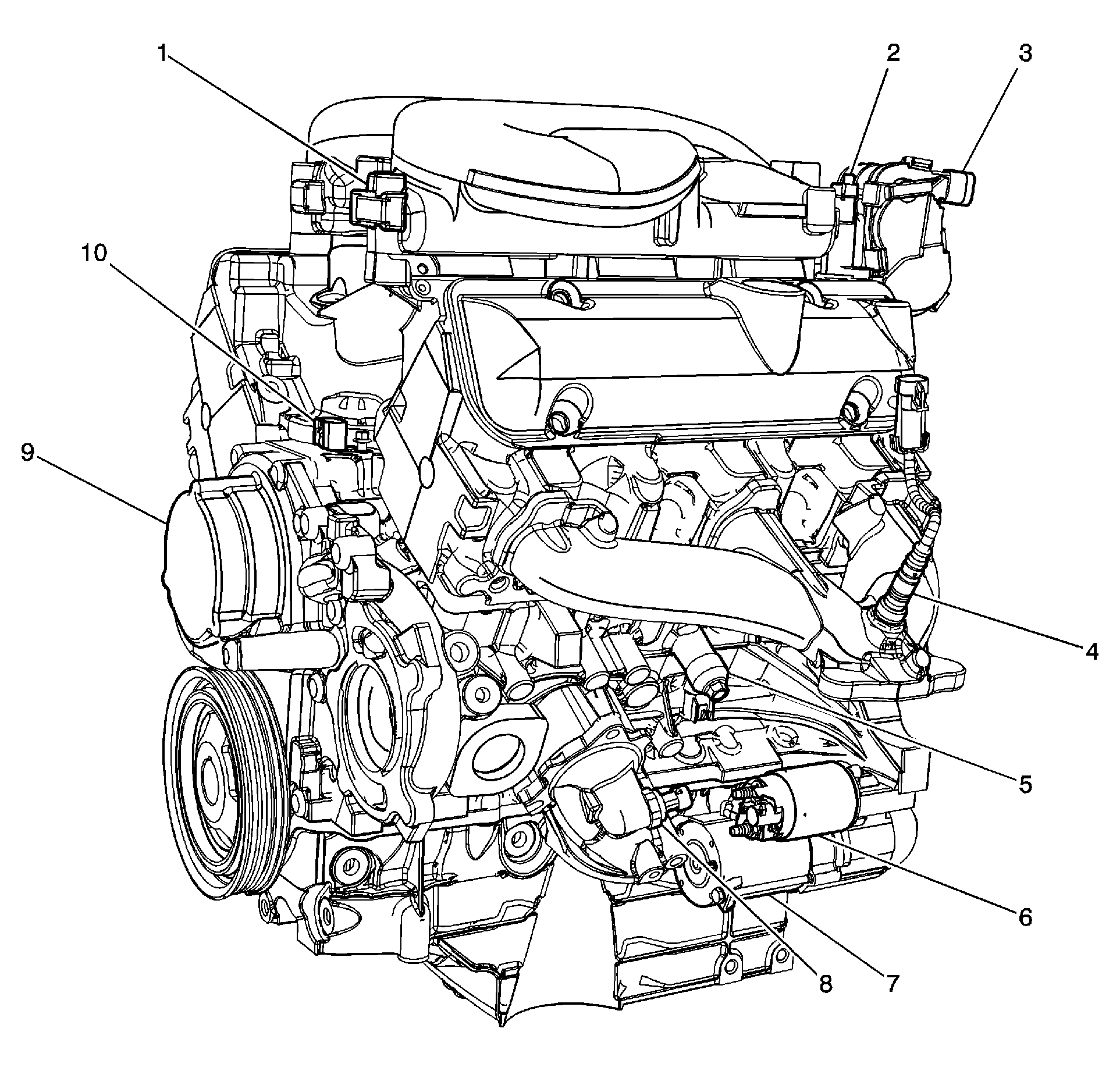

Fig 102: Front & Left Side Of Engine (LZ9)

G00456680

Courtesy of GENERAL MOTORS CORP.

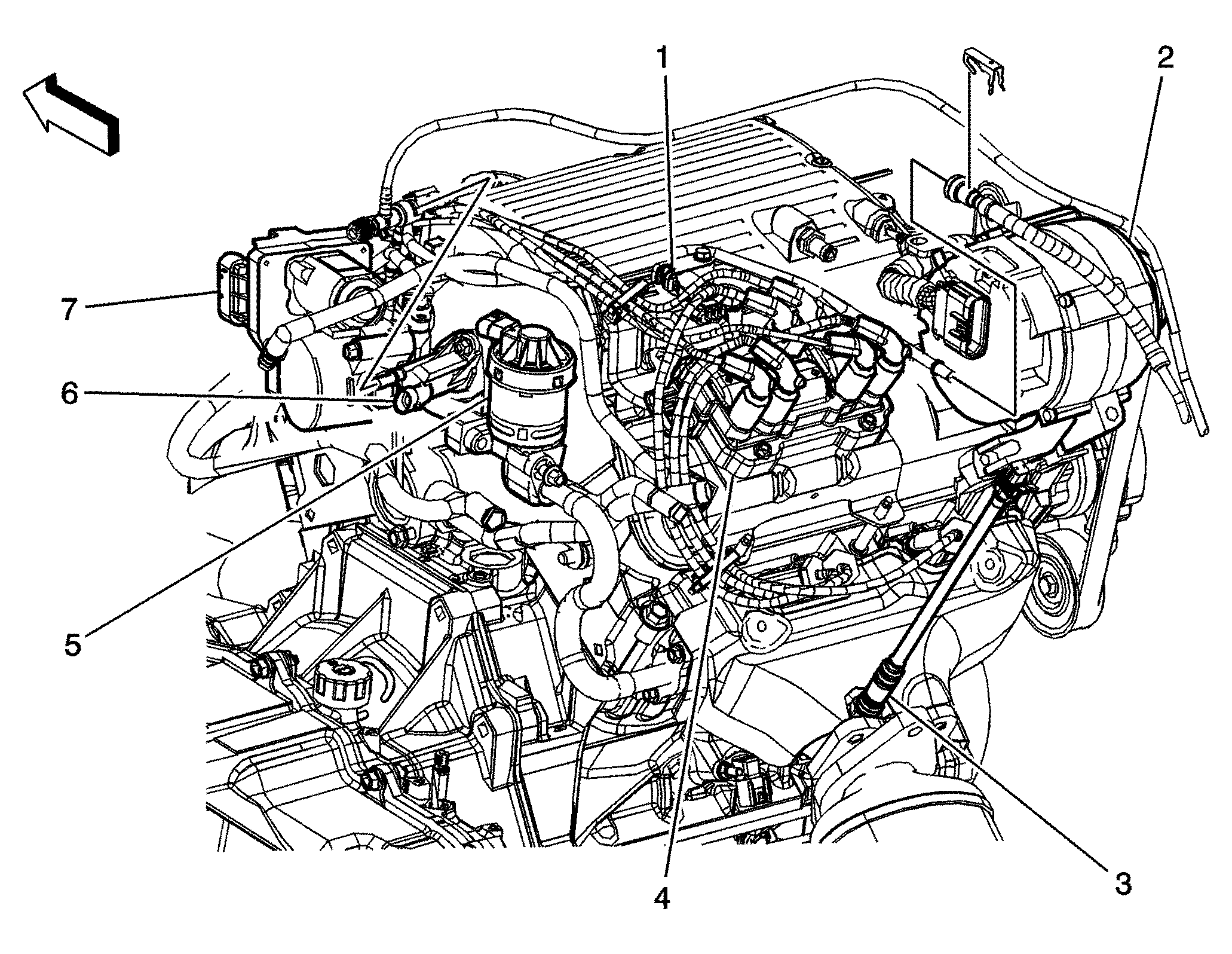

Fig 103: Top Right Rear Of Engine

G00456681

Courtesy of GENERAL MOTORS CORP.

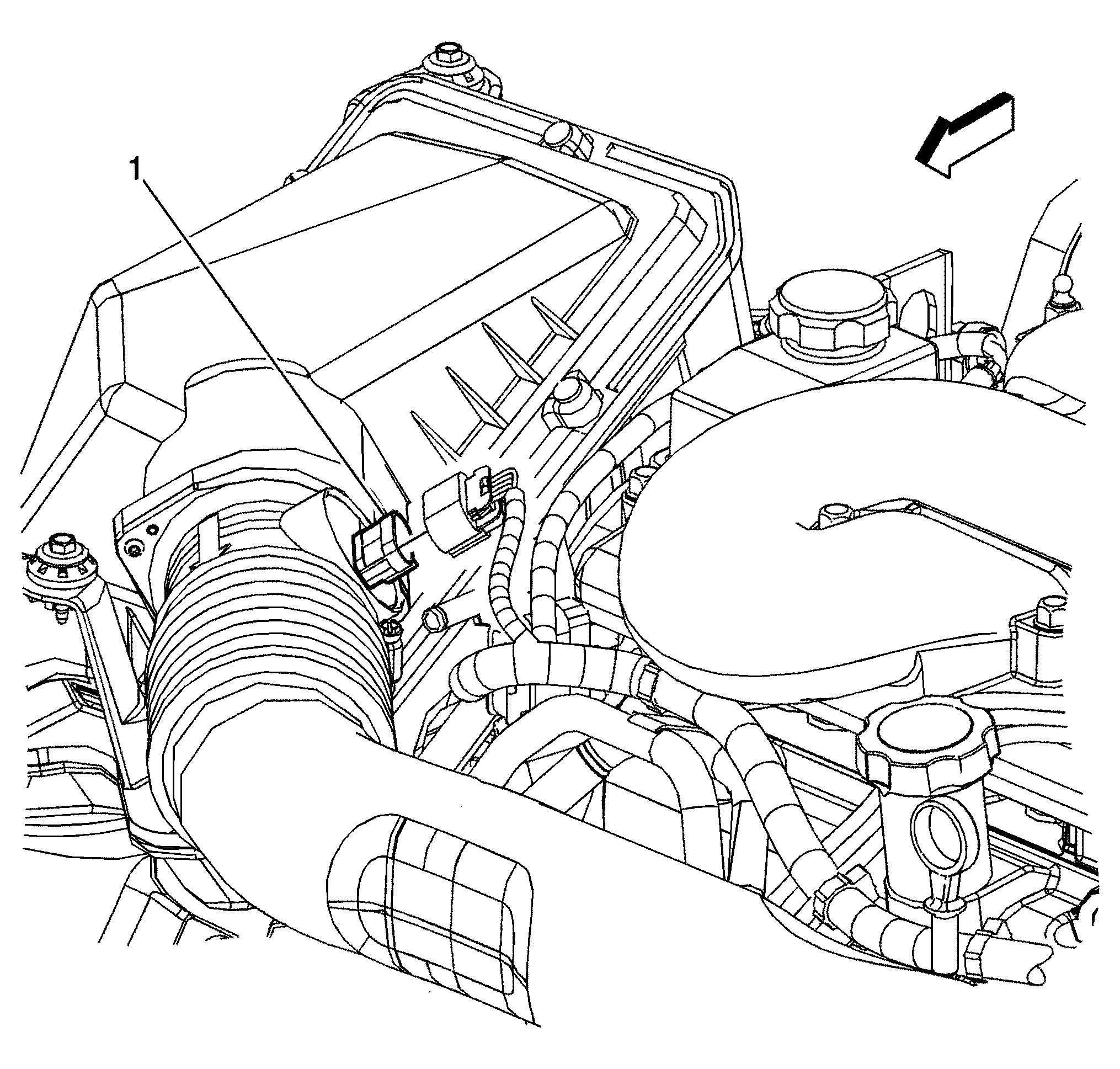

Fig 104: Top Of Engine (LZ9)

G00456682

Courtesy of GENERAL MOTORS CORP.
