Underhood Fuse Block
Electrical Center Identification Views

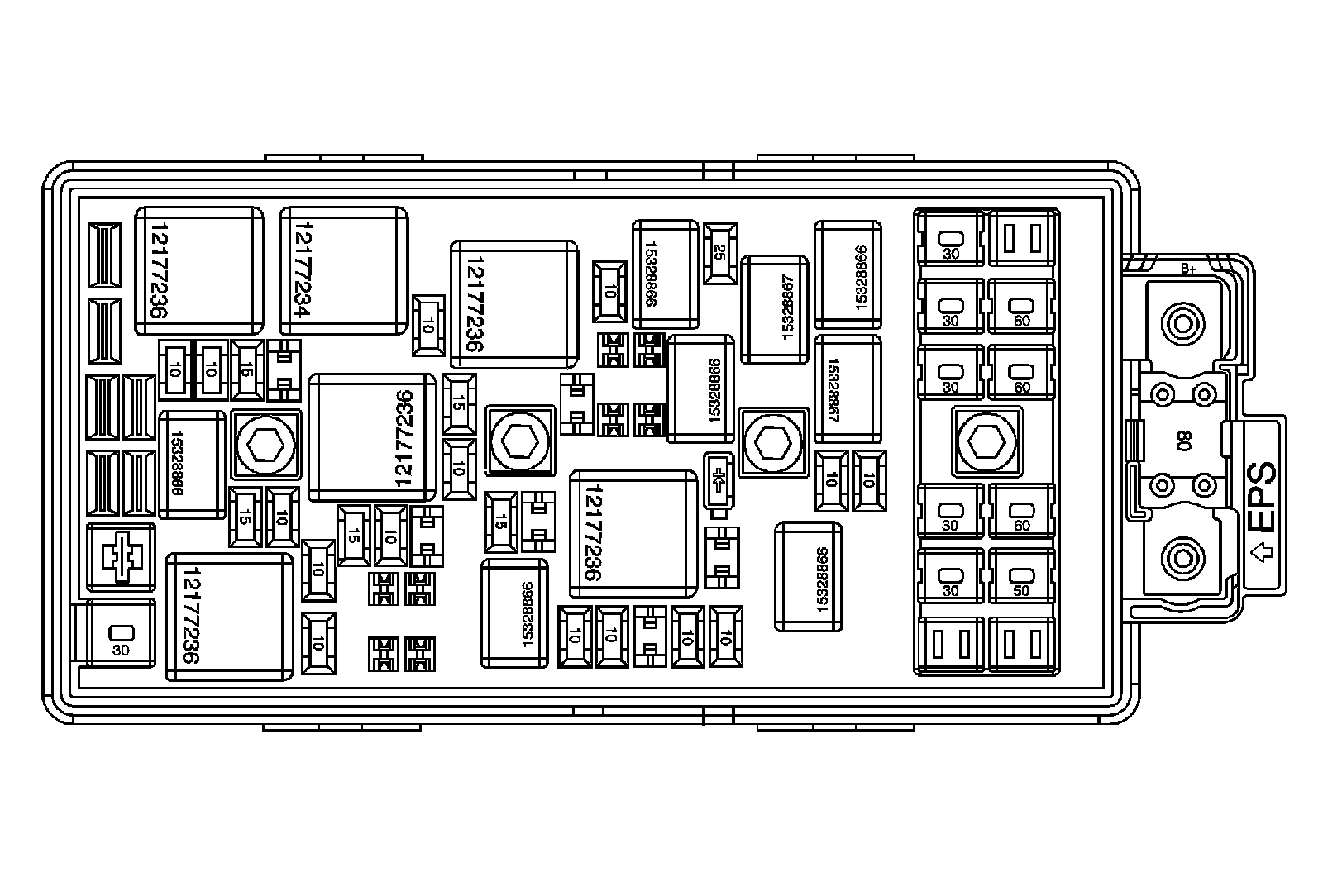

Fuse Block - Underhood Top View (LE5)
Fuse Block - Underhood Bottom View

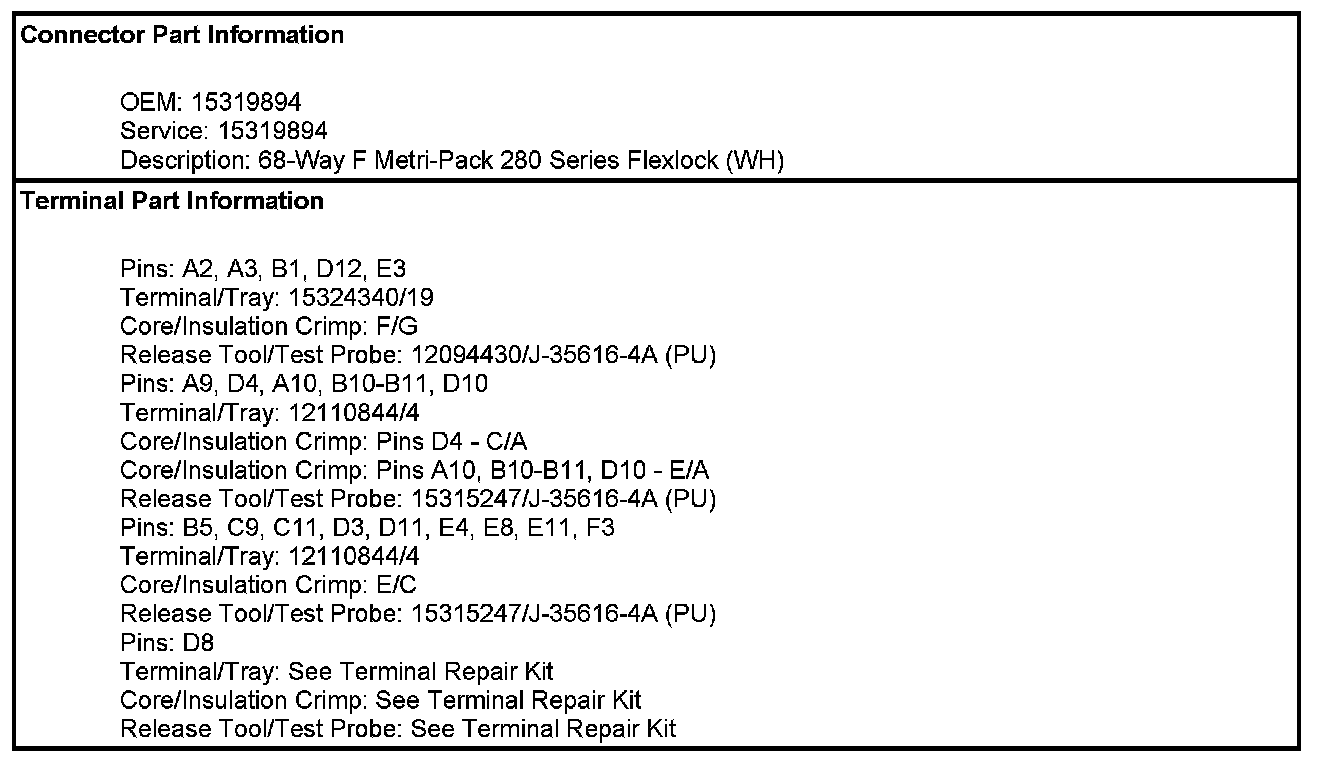

Fuse Block - Underhood X1 (LE5/LZ9)

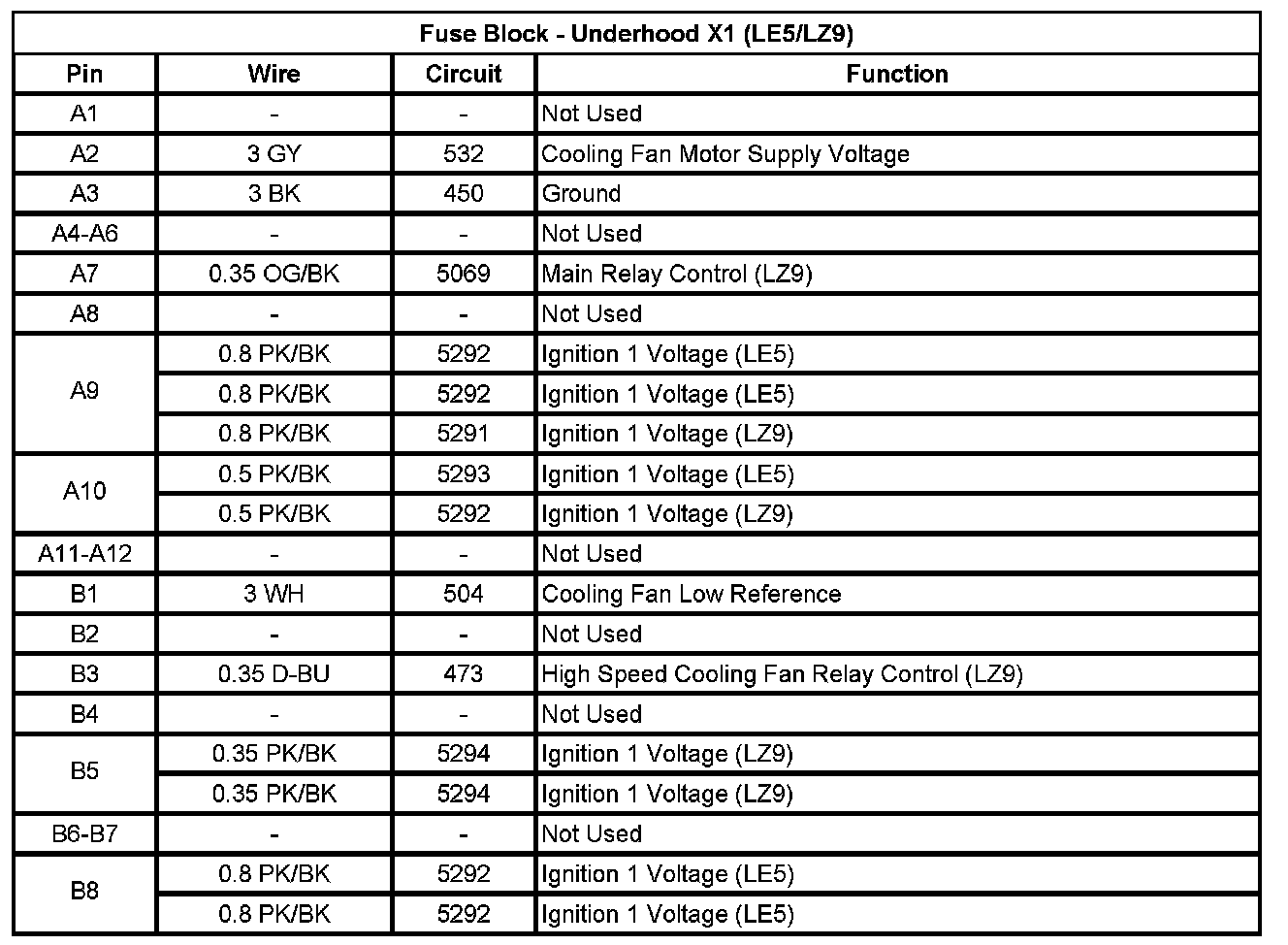

Fuse Block - Underhood X1 (LE5/LZ9) (Pin A1 To B8):

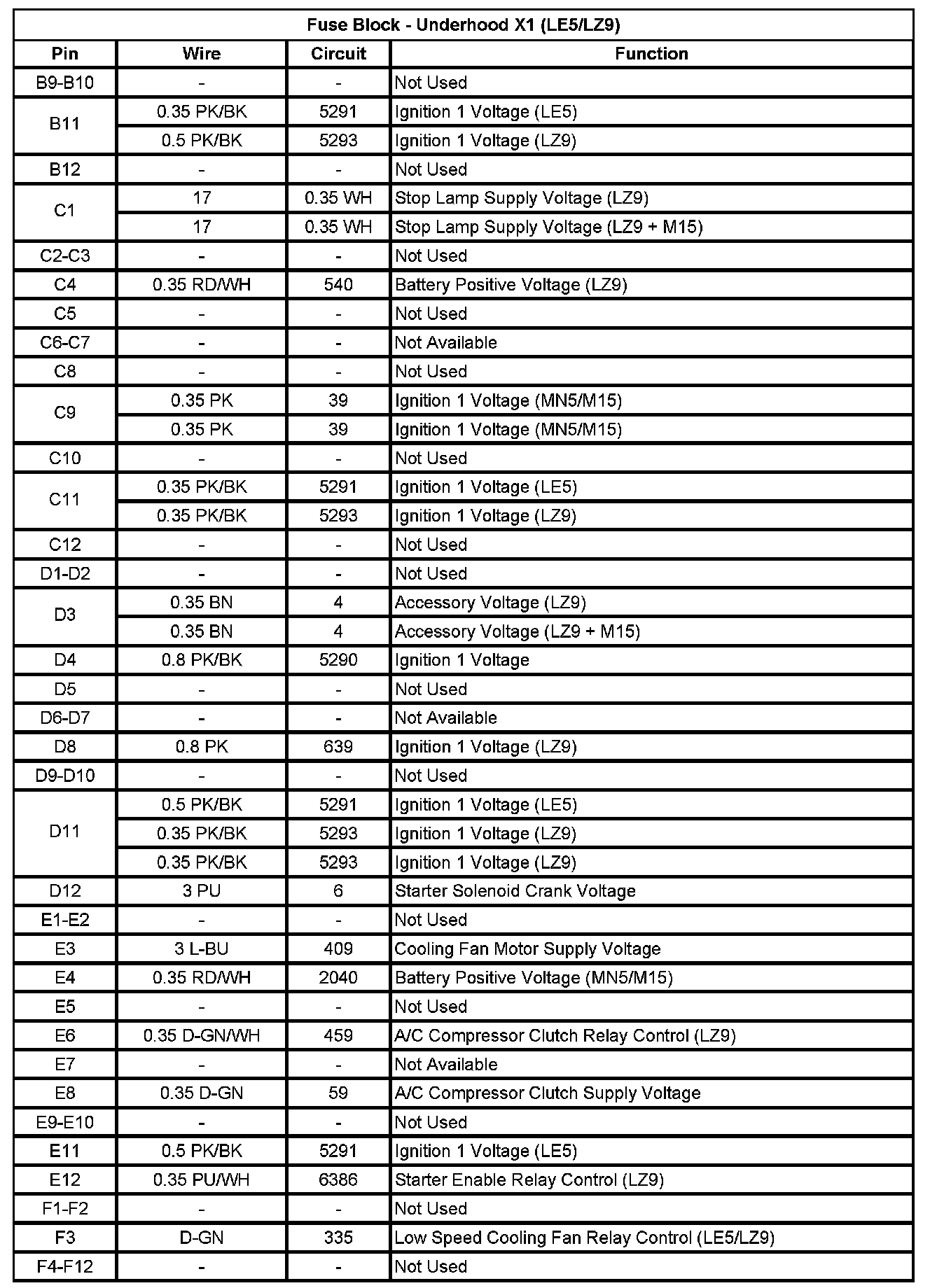

Fuse Block - Underhood X1 (LE5/LZ9) (Pin B9 To F12):
Fuse Block - Underhood X2
Fuse Block - Underhood X2 (Pin A1 To C7):
Fuse Block - Underhood X2 (Pin C8 To F12):
Fuse Block - Underhood X3
Fuse Block - Underhood X4
