Removal Procedure

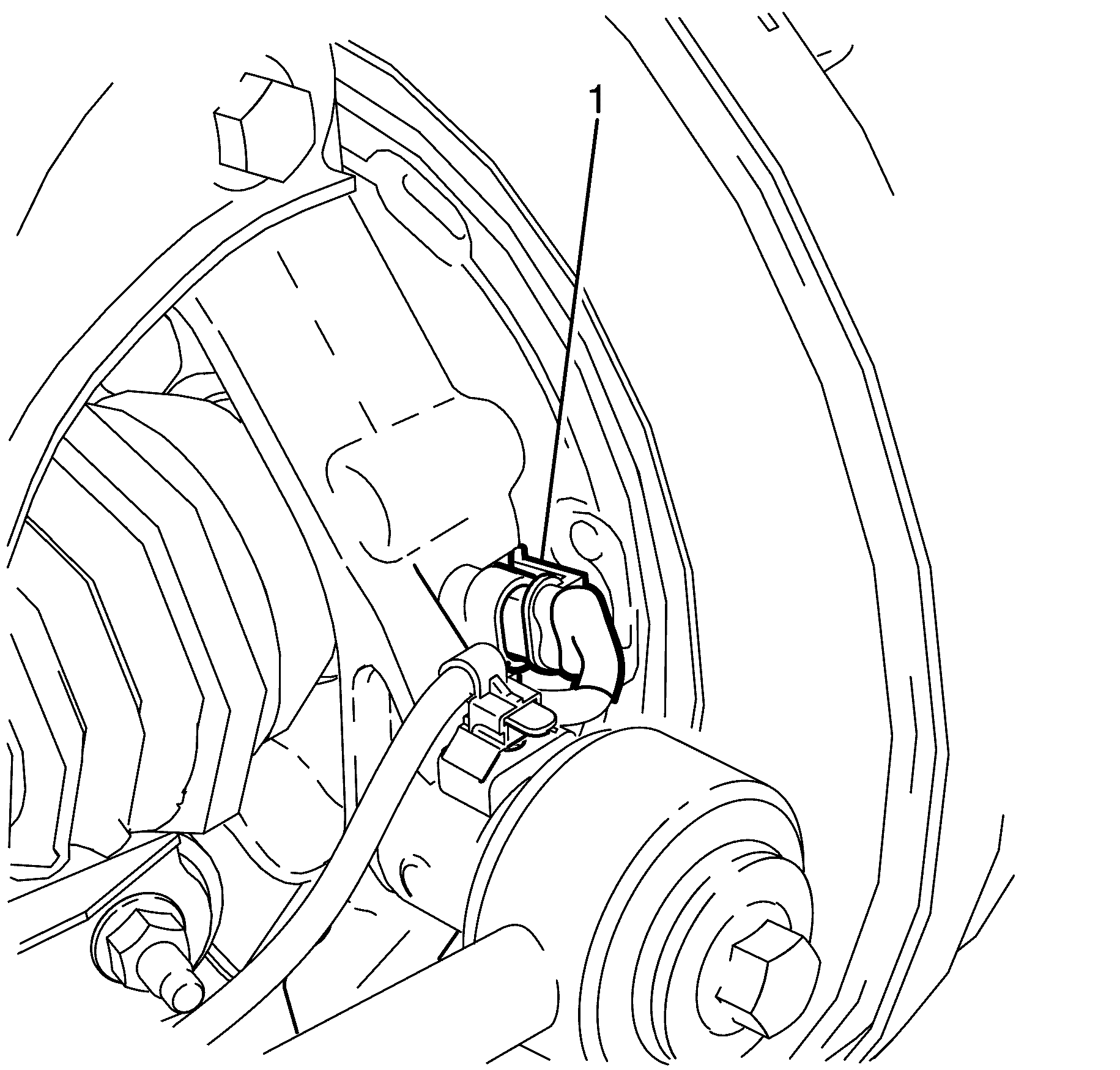

Fig 1: Identifying Wheel Speed Sensor Jumper Harness Electrical Connector

GM1943660

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Safety Glasses Caution .

CAUTION: Refer to Vehicle Lifting Caution .

CAUTION: Refer to Brake Dust Caution .

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the rear wheels. Refer to Tire and Wheel Removal and Installation .
Disconnect the wheel speed sensor electrical connector (1).

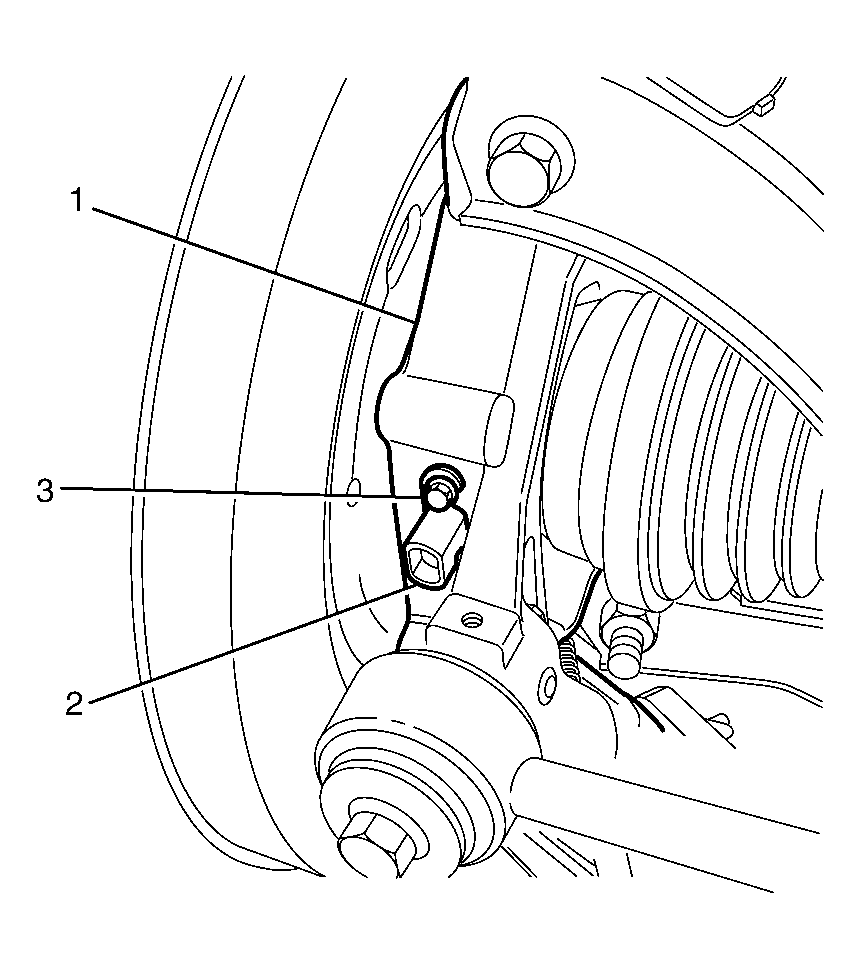

Fig 2: Identifying Wheel Speed Sensor

GM1943659

Courtesy of GENERAL MOTORS CORP.

Remove the wheel speed sensor to knuckle retaining bolt (3).
Remove the wheel speed sensor (2) from the knuckle (1).
