Power Steering Component Views

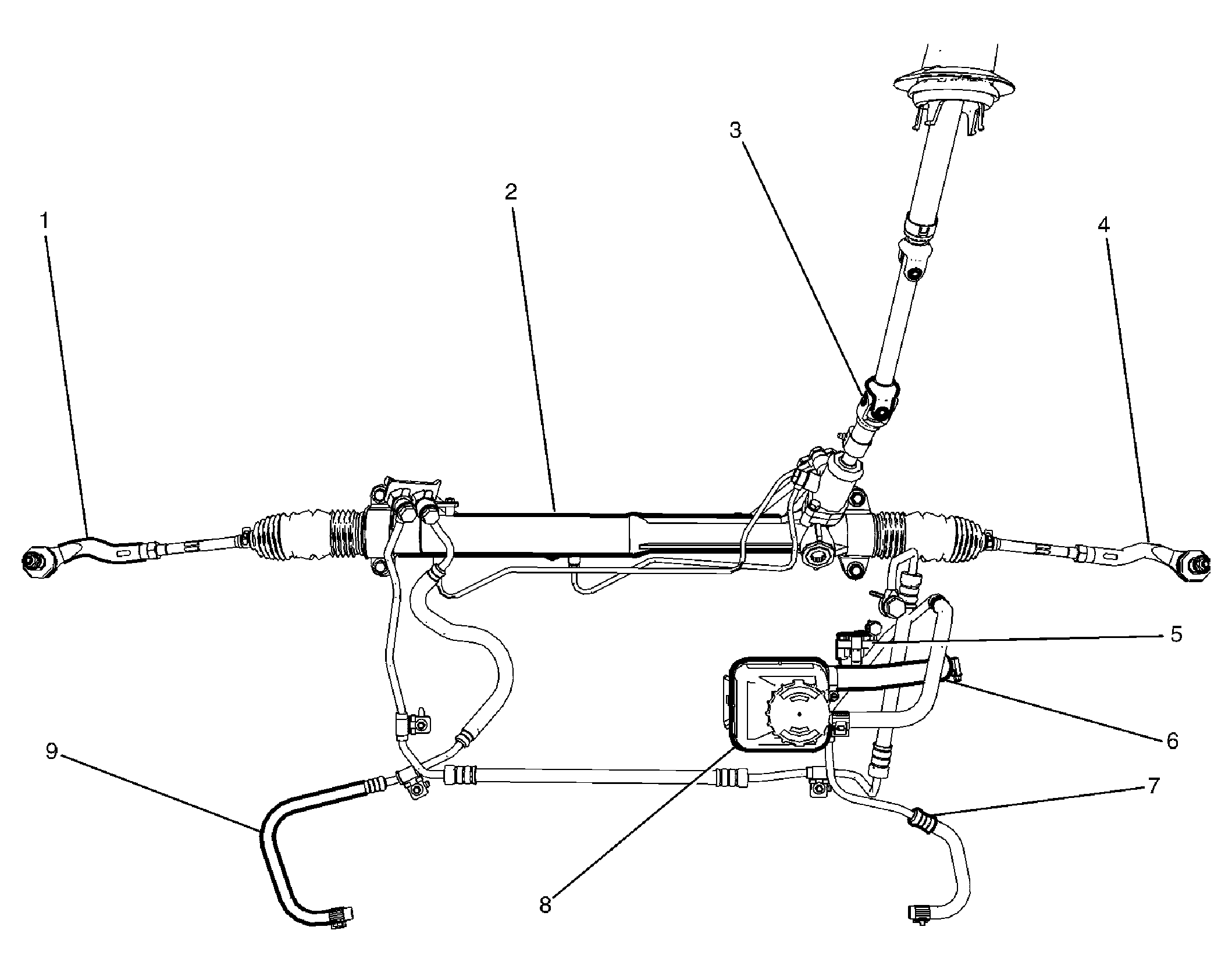

Fig 1: Power Steering Components
GM1957104Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Right Tie Rod End
2 Intermediate Steering Shaft
3 Power Steering Rack
4 Left Tie Rod End
5 Power Steering Pump
6 Fluid Reservoir Outlet Pipe/Hose
7 Fluid Reservoir Inlet Pipe/Hose
8 Fluid Reservoir
9 Power Steering Gear Outlet Pipe/Hose
