Powertrain Component Views

Powertrain Component Views (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)

Engine Controls Components - Bank 1




1 - Ignition Coil 5
2 - Ignition Coil 3
3 - Ignition Coil 1
4 - Throttle Body Assembly
5 - Knock Sensor (KS) - Bank 1

Engine Controls Components - Bank 2




1 - Ignition Coil 2
2 - Ignition Coil 4
3 - Ignition Coil 6
4 - Engine Coolant Temperature (ECT) sensor
5 - Knock Sensor (KS) - Bank 2
6 - Engine Oil level Sensor
7 - Engine Oil Pressure (EOP) Sensor

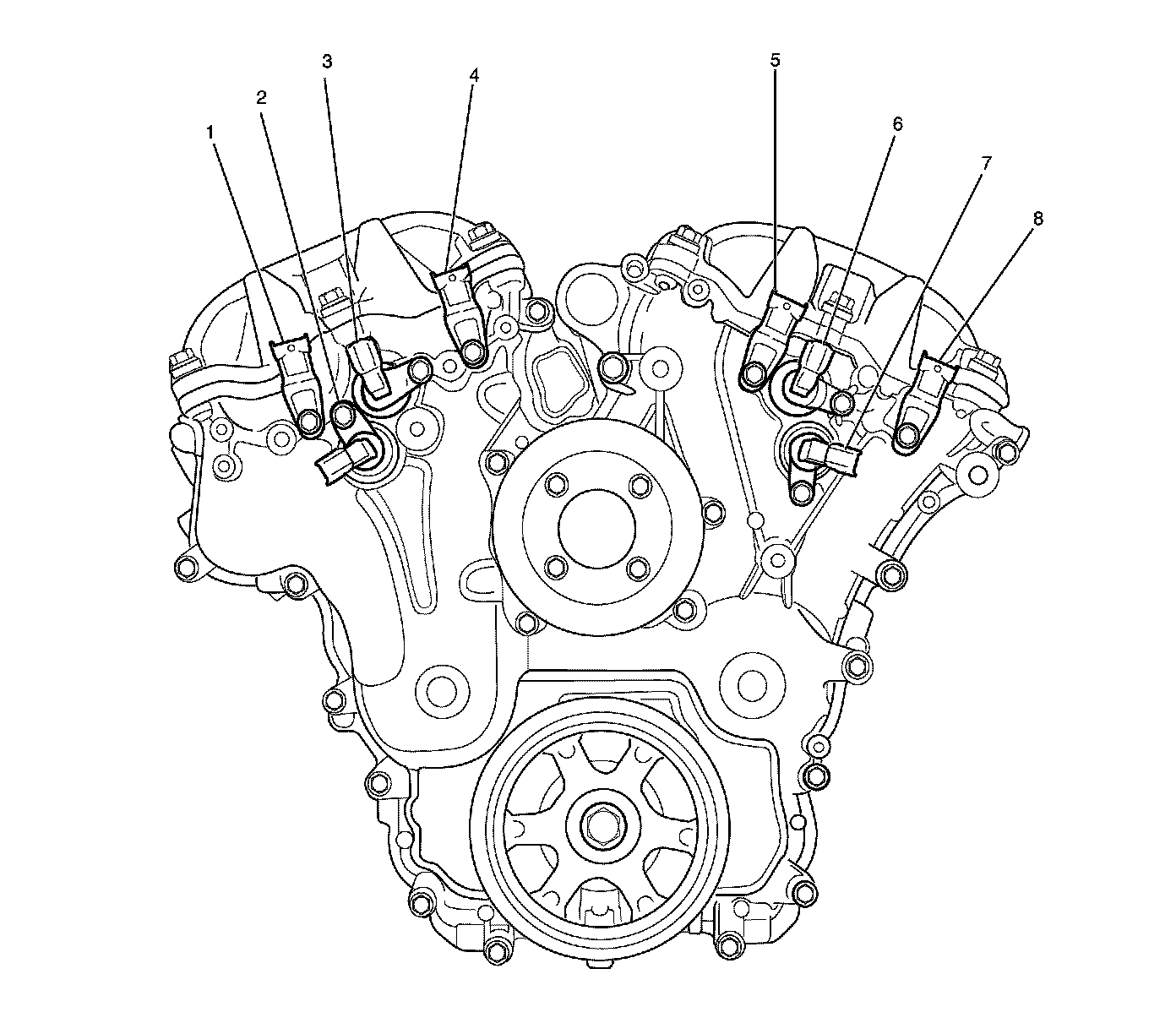

CMP Sensors and CMP Actuator Solenoids LY7




1 - Camshaft Position (CMP) Sensor - Exhaust Bank 1
2 - Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 1
3 - Camshaft Position (CMP) Actuator Solenoid - Intake Bank 1
4 - Camshaft Position (CMP) Sensor - Intake Bank 1
5 - Camshaft Position (CMP) Sensor - Intake Bank 2
6 - Camshaft Position (CMP) Actuator Solenoid - Intake Bank 2
7 - Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 2
8 - Camshaft Position (CMP) Sensor - Exhaust Bank 2

Top Left of the Engine




1 - Upper Inlet Manifold
2 - Air Filter Assembly
3 - Air Mass Meter
4 - Throttle Body Assembly

Right Rear of Engine




1 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
2 - Intake Manifold Runner Control (IMRC) Solenoid

Front of Engine (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)




1 - Engine Control Module (ECM)
2 - Throttle Actuator Control (TAC) Module
3 - Alternator

Exhaust Pipes




1 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1
2 - HO2S - Bank 1 Sensor 1
3 - HO2S - Bank 1 Sensor 2
4 - HO2S - Bank 2 Sensor 2

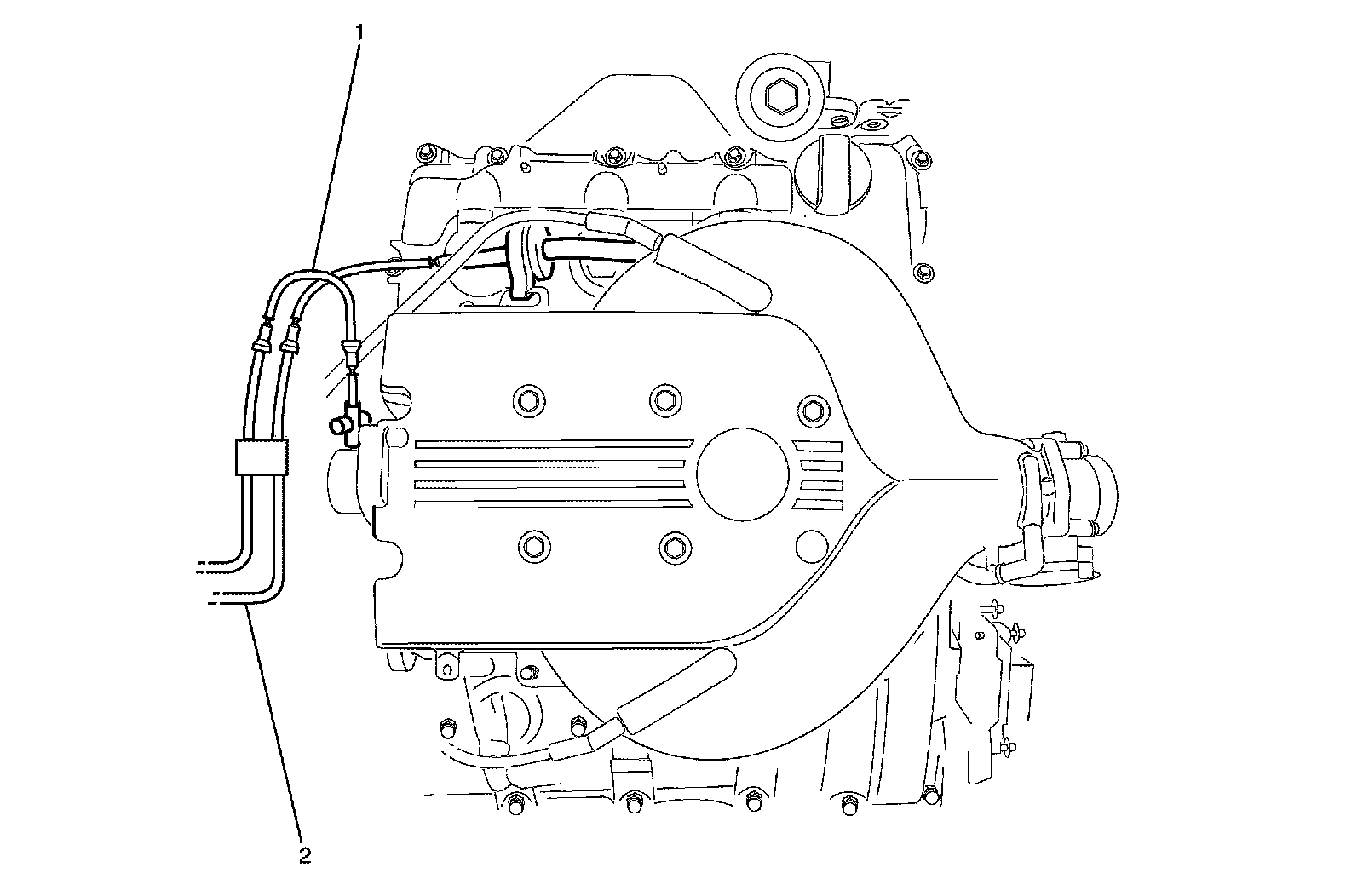

Fuel and EVAP Lines




1 - Fuel Supply Tube to Tank
2 - EVAP Line to Tank

Pedal Switches and Sensors




1 - Accelerator Pedal Position Sensor
