Connector Views



Component Connector End Views

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Exhaust (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)

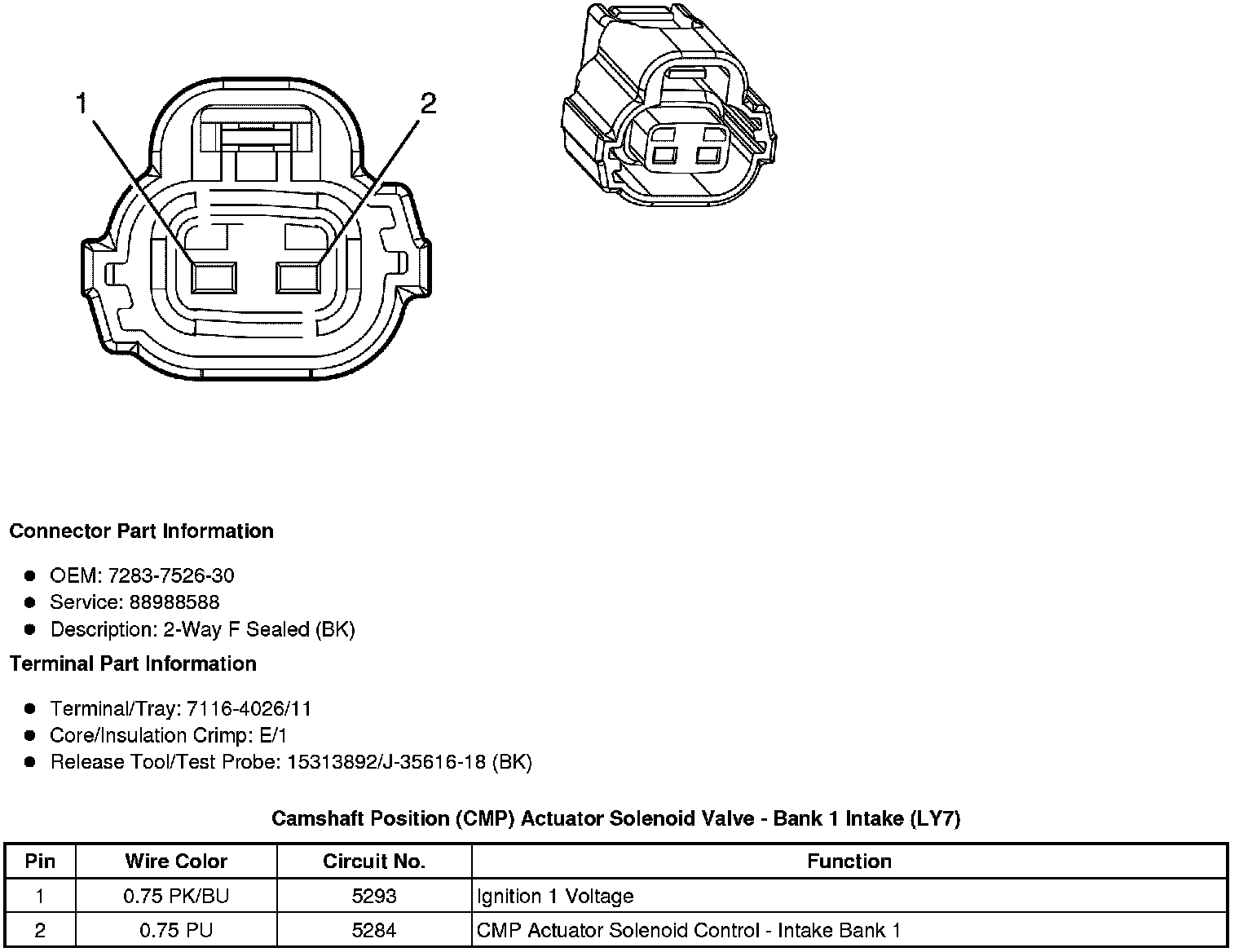

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Intake (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)






Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Exhaust (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)






Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Intake (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)

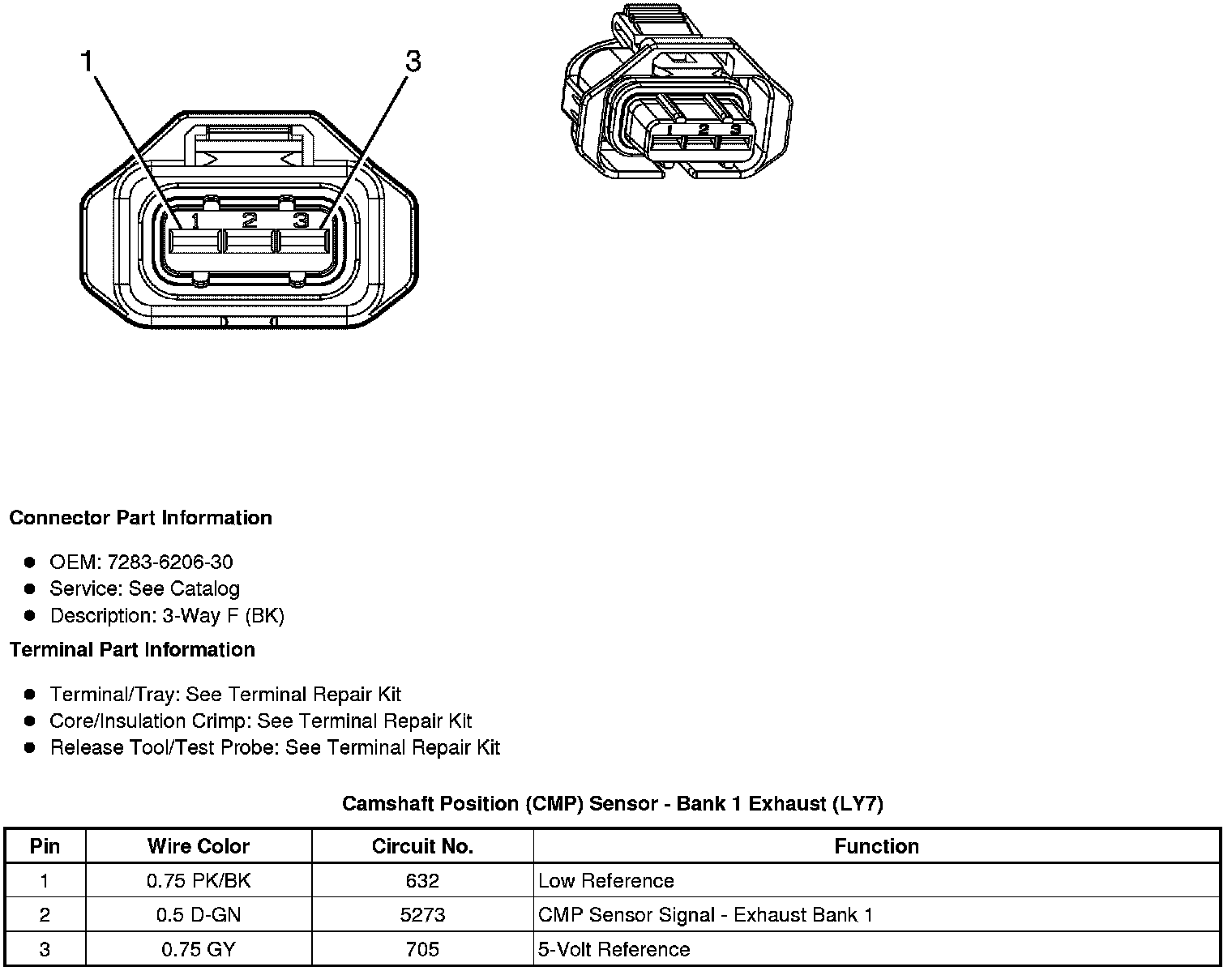

Camshaft Position (CMP) Sensor - Bank 1 Exhaust (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)

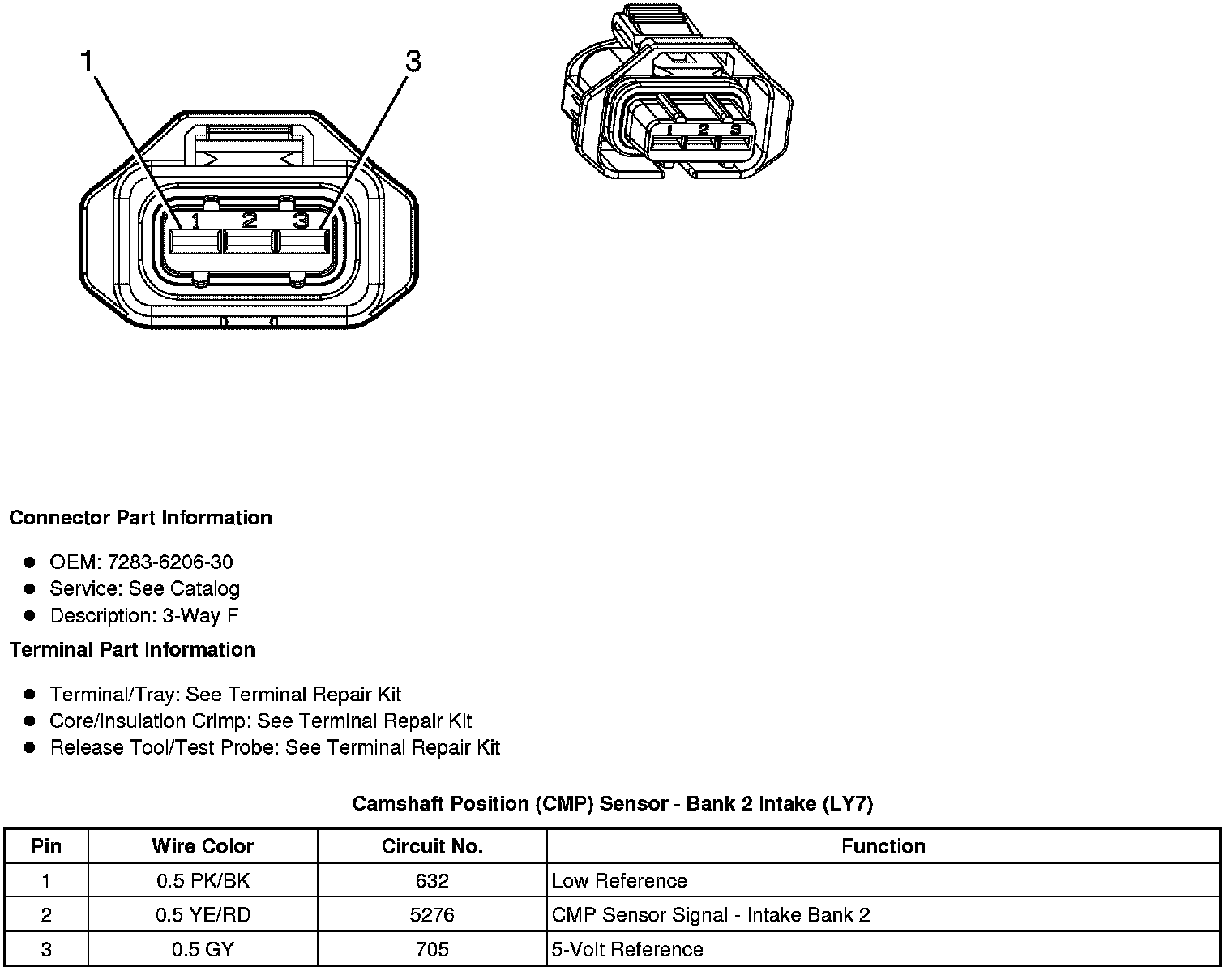

Camshaft Position (CMP) Sensor - Bank 1 Intake (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)






Camshaft Position (CMP) Sensor - Bank 2 Exhaust (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)






Camshaft Position (CMP) Sensor - Bank 2 Intake (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)






Camshaft Position (CMP) Sensor (L76 - Gas 8 Cyl, 6.0L SFI, V8)
