Connector Views



Component Connector End Views

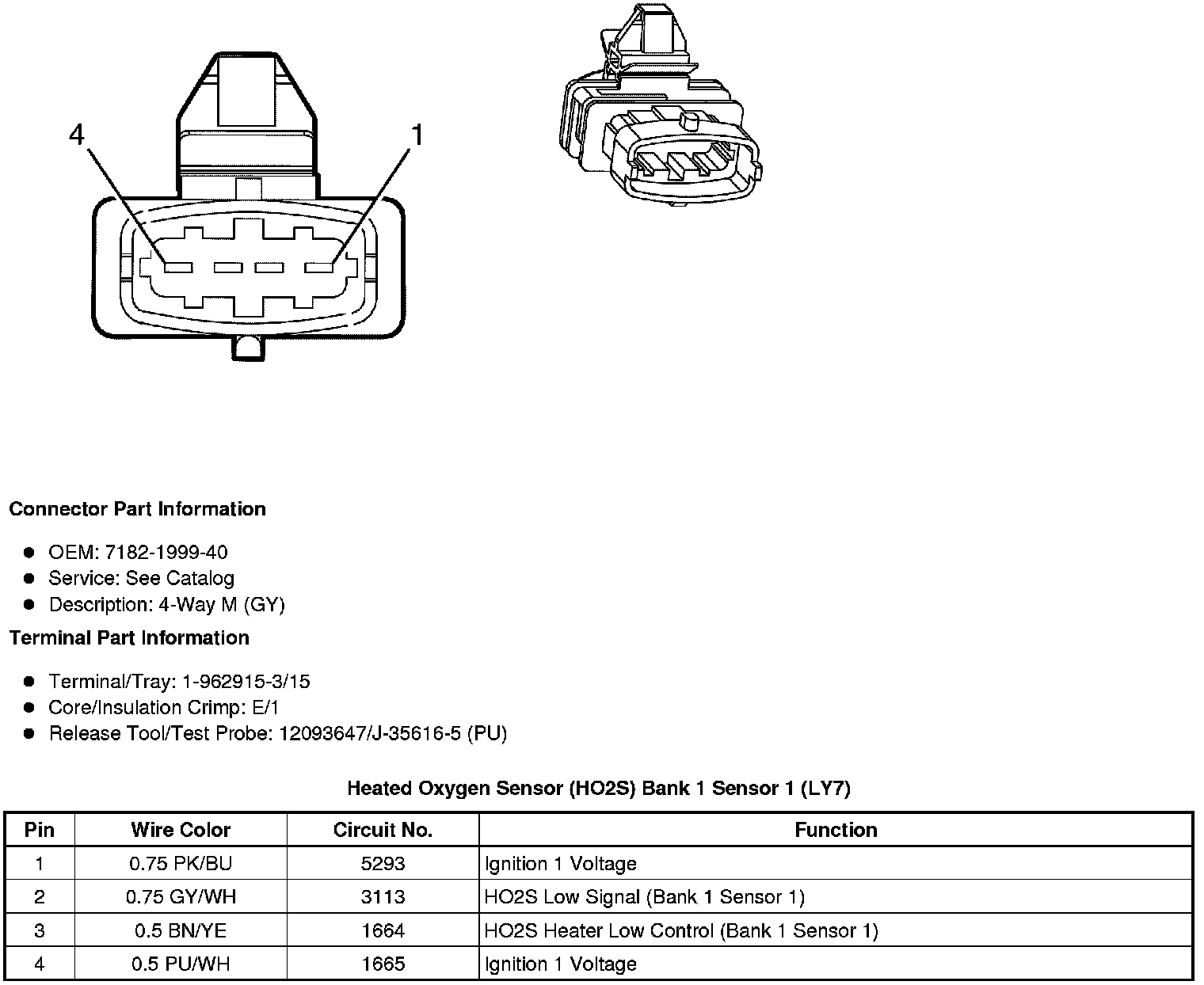

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)






Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 (L76 - Gas 8 Cyl, 6.0L SFI, V8)

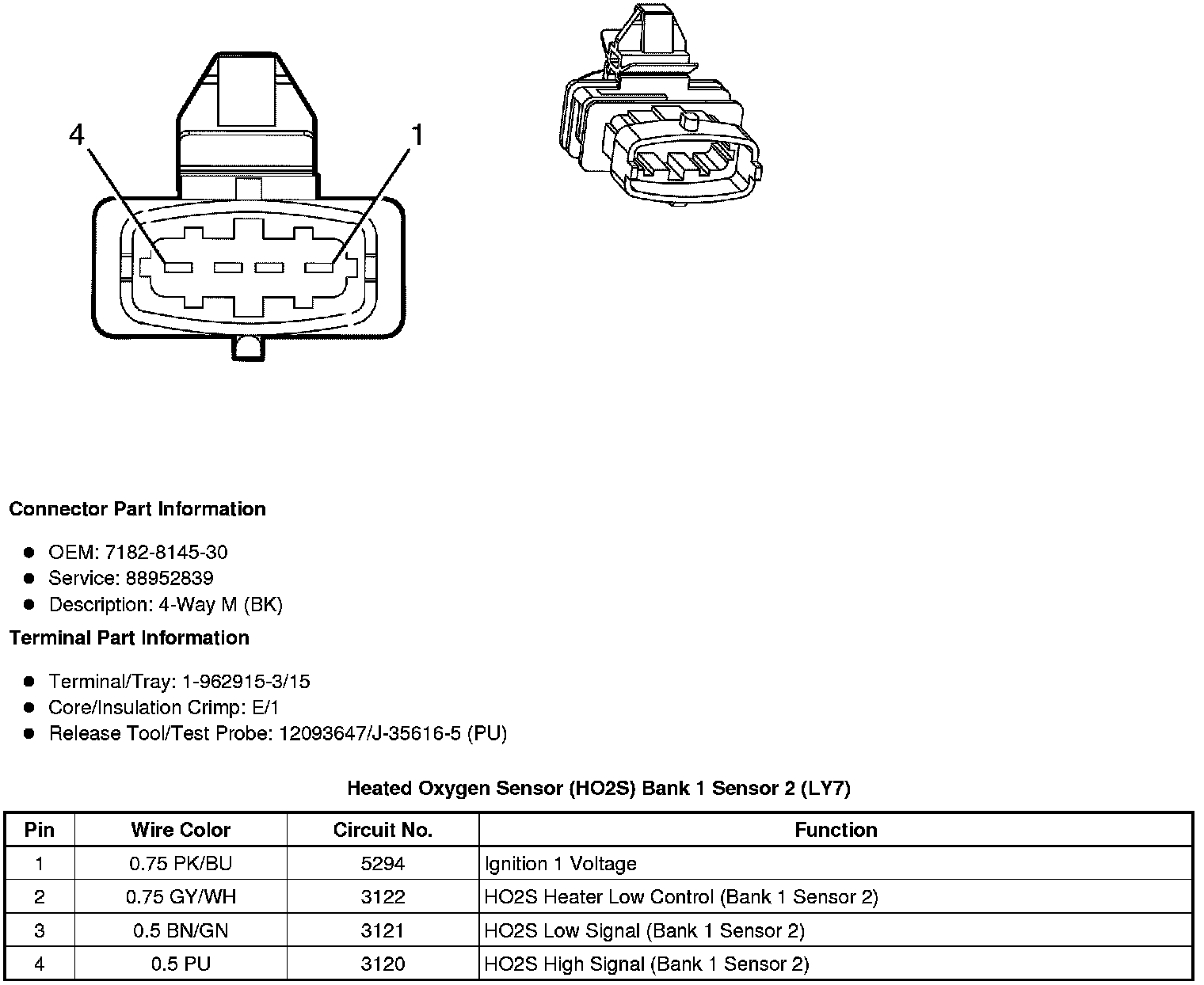

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)






Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 (L76 - Gas 8 Cyl, 6.0L SFI, V8)

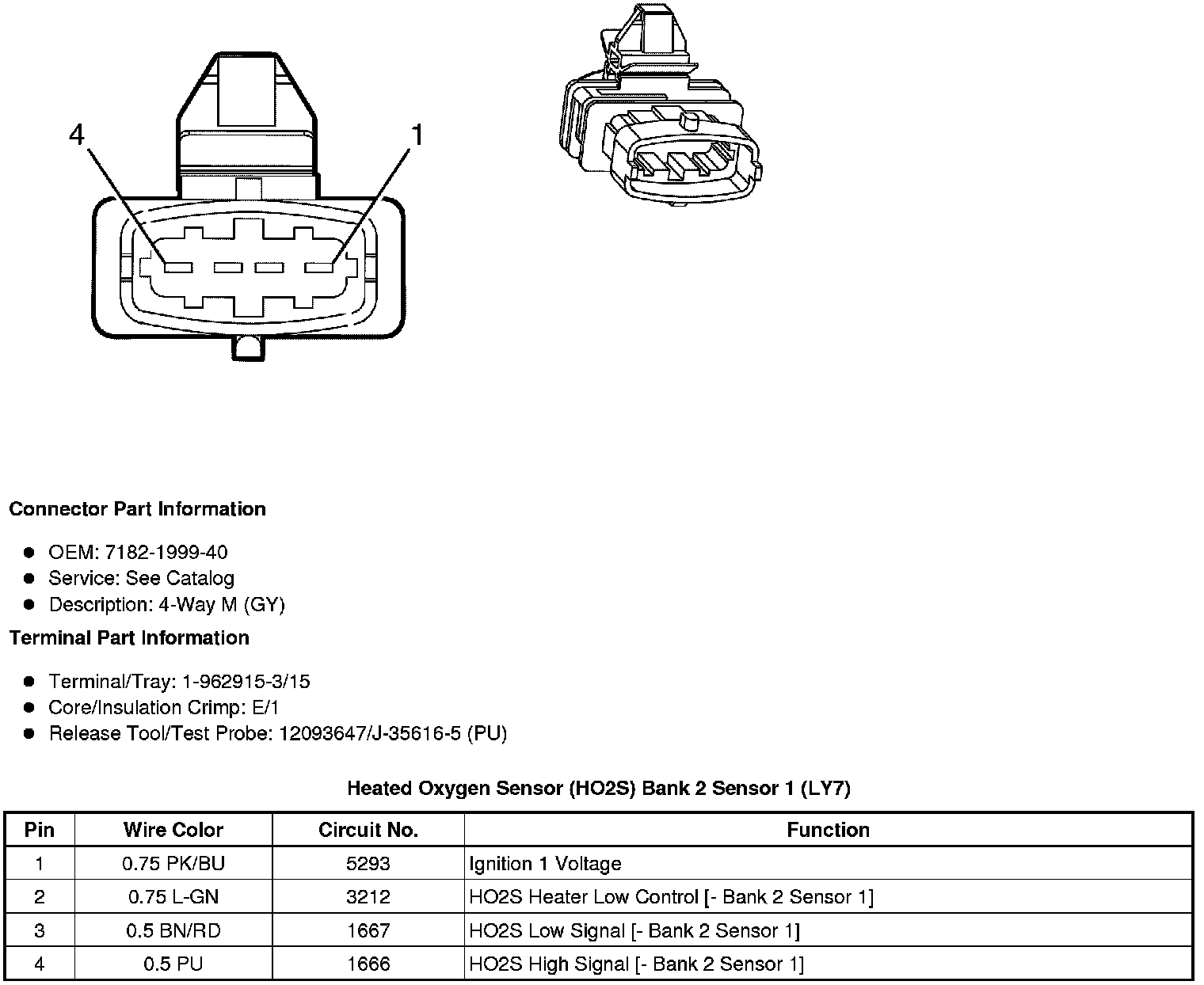

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)






Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 (L76 - Gas 8 Cyl, 6.0L SFI, V8)

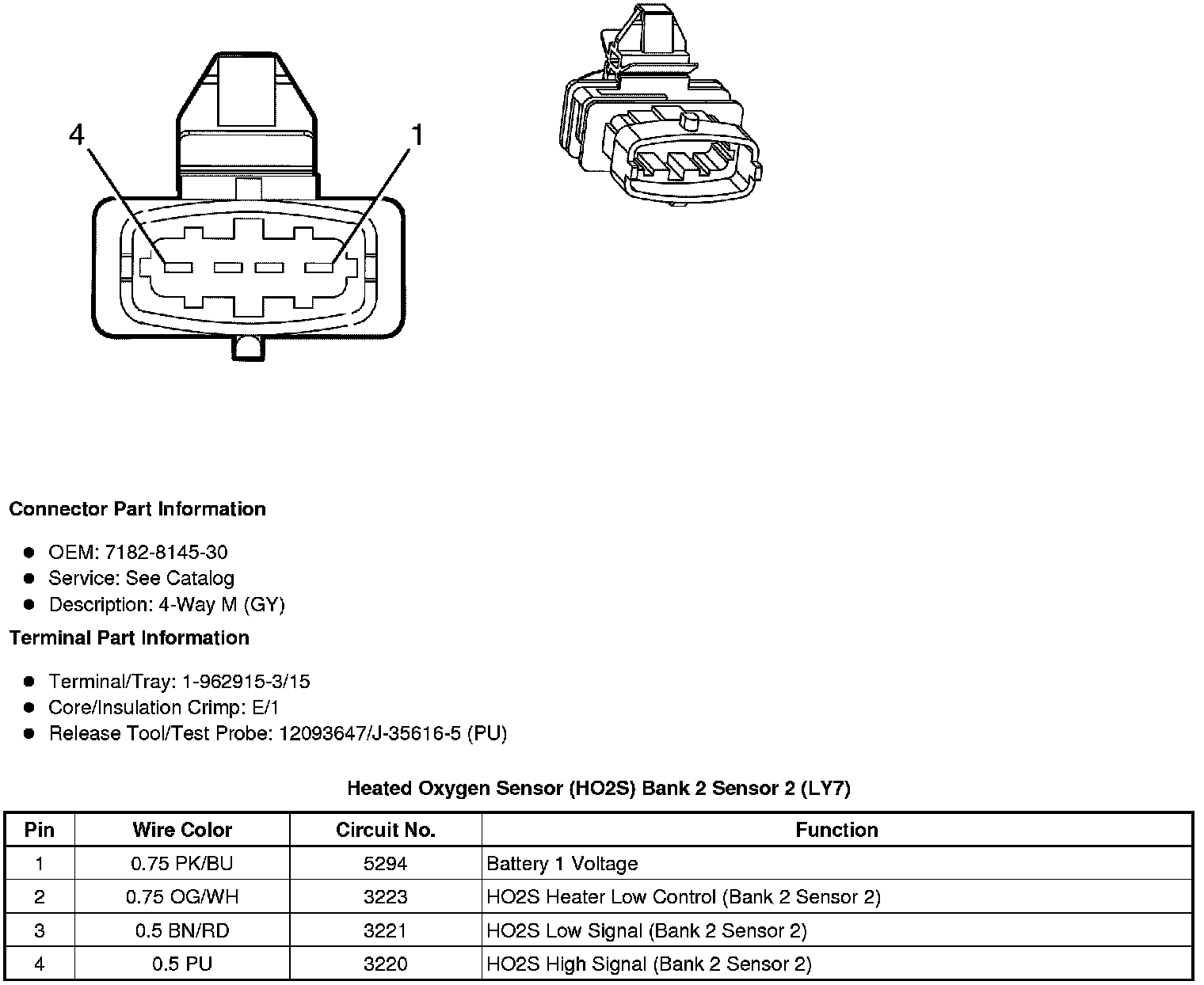

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)






Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 (L76 - Gas 8 Cyl, 6.0L SFI, V8)
