Power Window Switch



Component Connector End Views

Door Lock/Window Switch X1

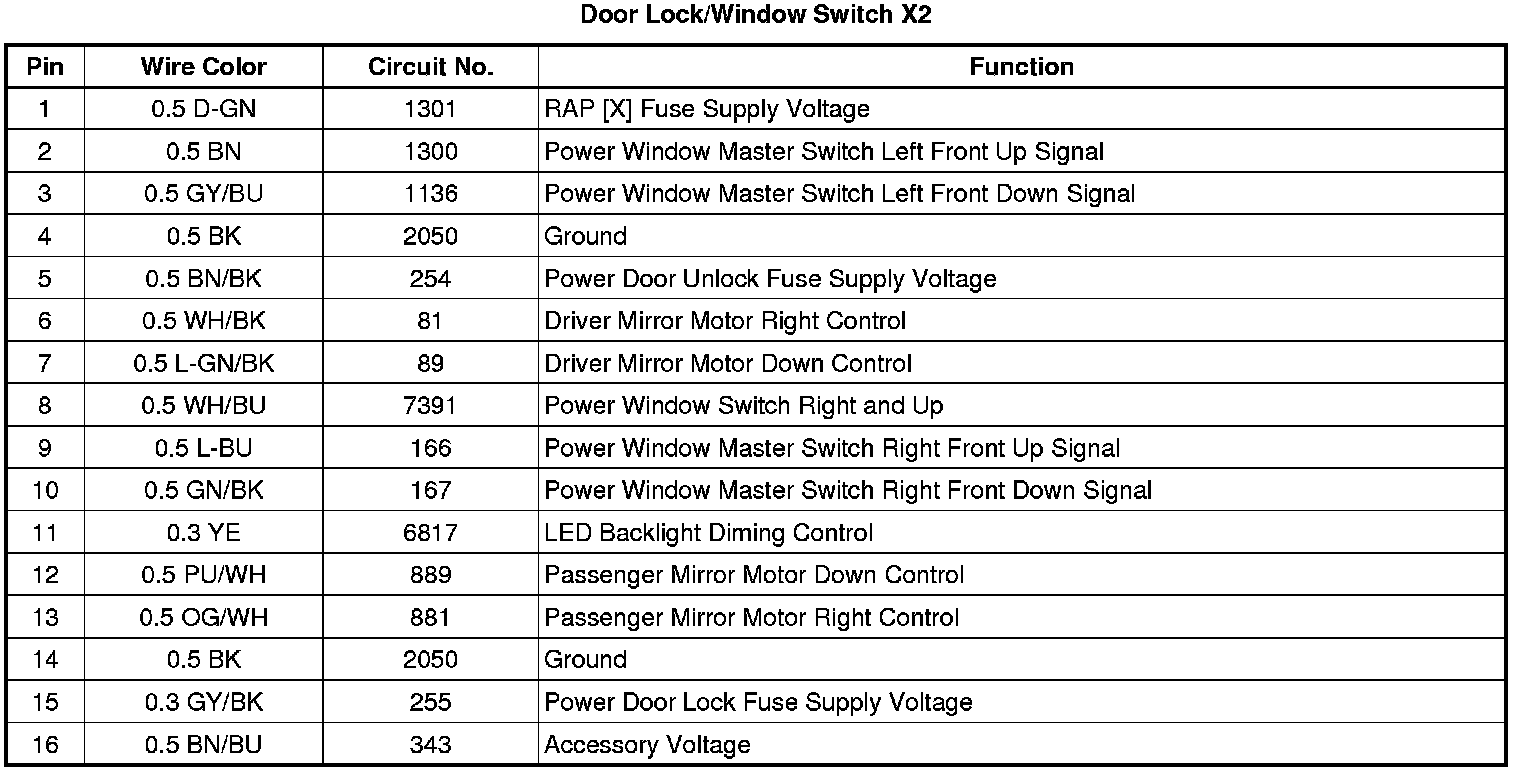

Door Lock/Window Switch X2















Component Connector End Views

Window Switch - Left Rear














Window Switch - Right Rear
