Body Control System Schematics

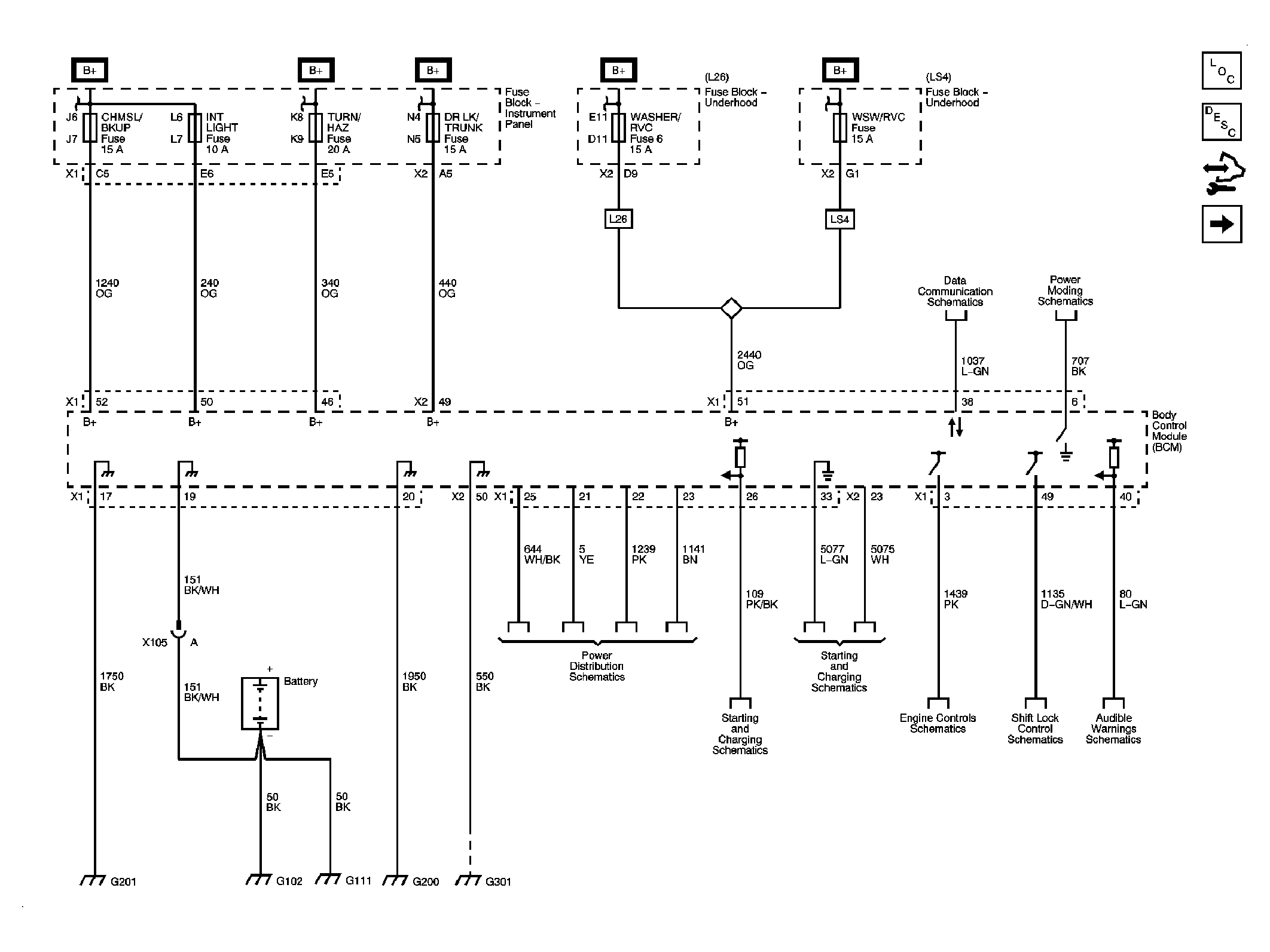

Fig 1: Body Control Power, Ground, and References - Schematic

Courtesy of GENERAL MOTORS CORP.

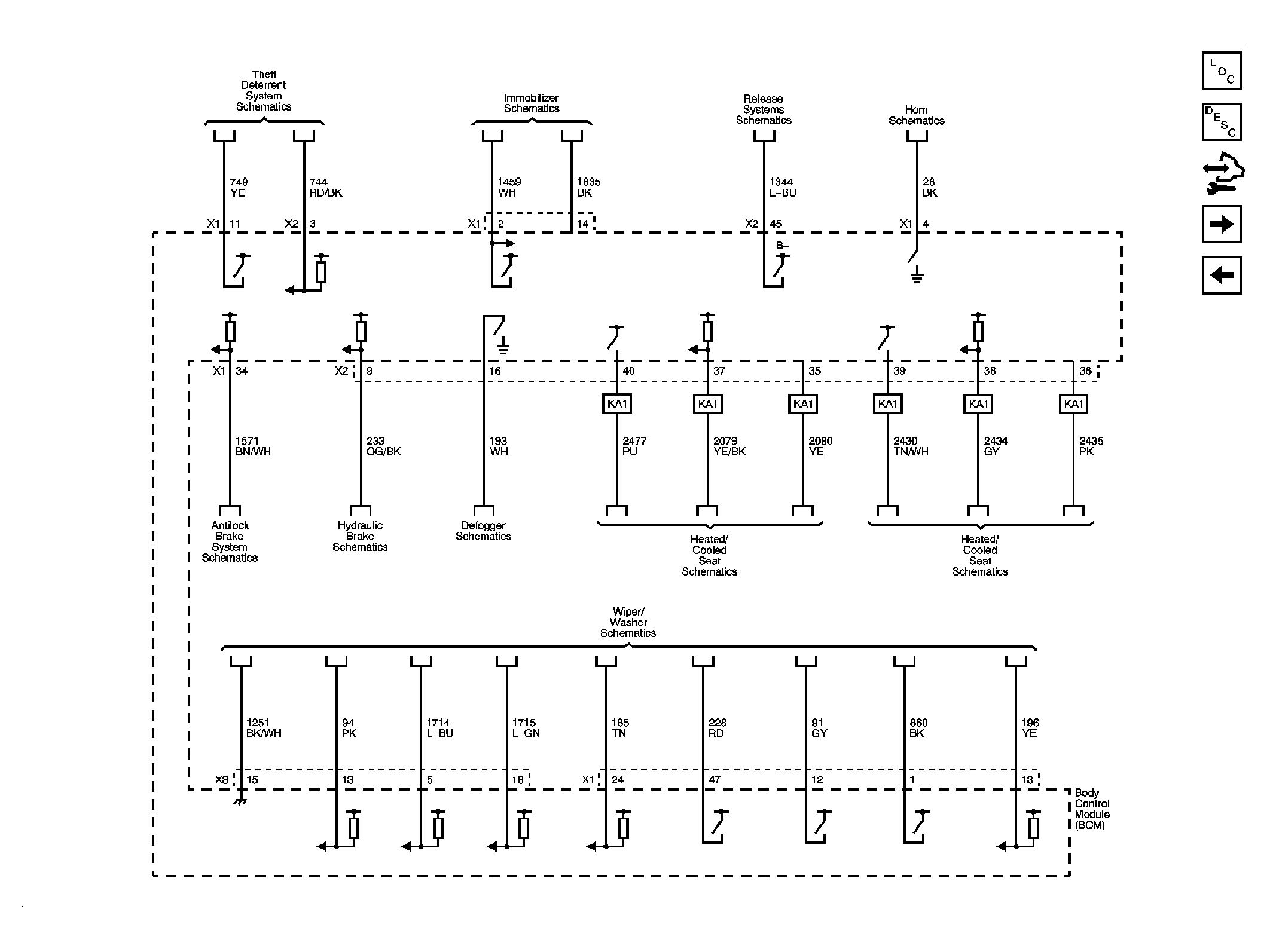

Fig 2: Theft Deterrent, Keyless Entry, Body Rear End, Horns, ABS, Brake Warning, Defogger, Heated Seats, and Wiper/Washer System References - Schematic

Courtesy of GENERAL MOTORS CORP.

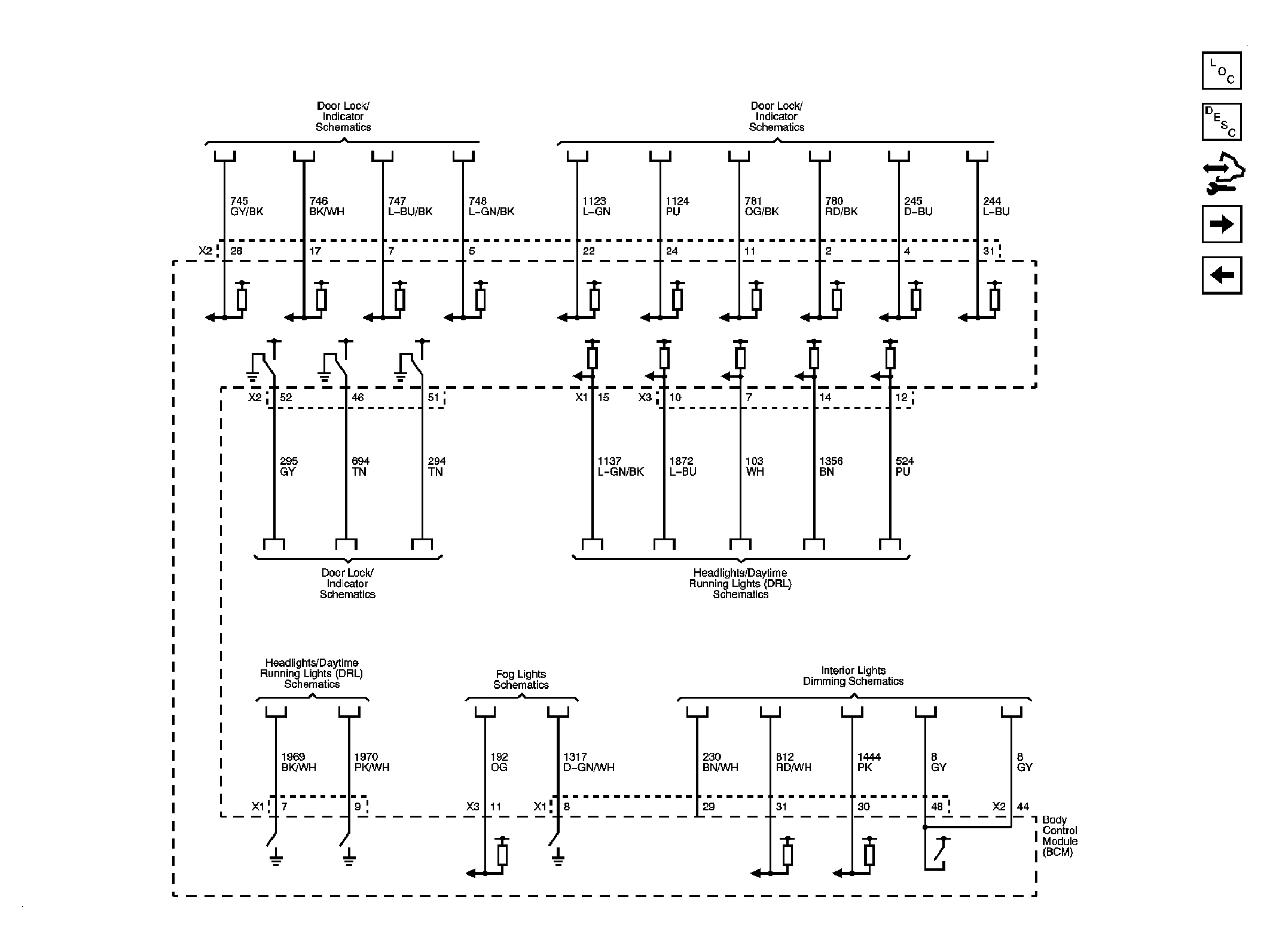

Fig 3: Door Lock/Indicator and Lighting System References - Schematic (1 of 2)

Courtesy of GENERAL MOTORS CORP.

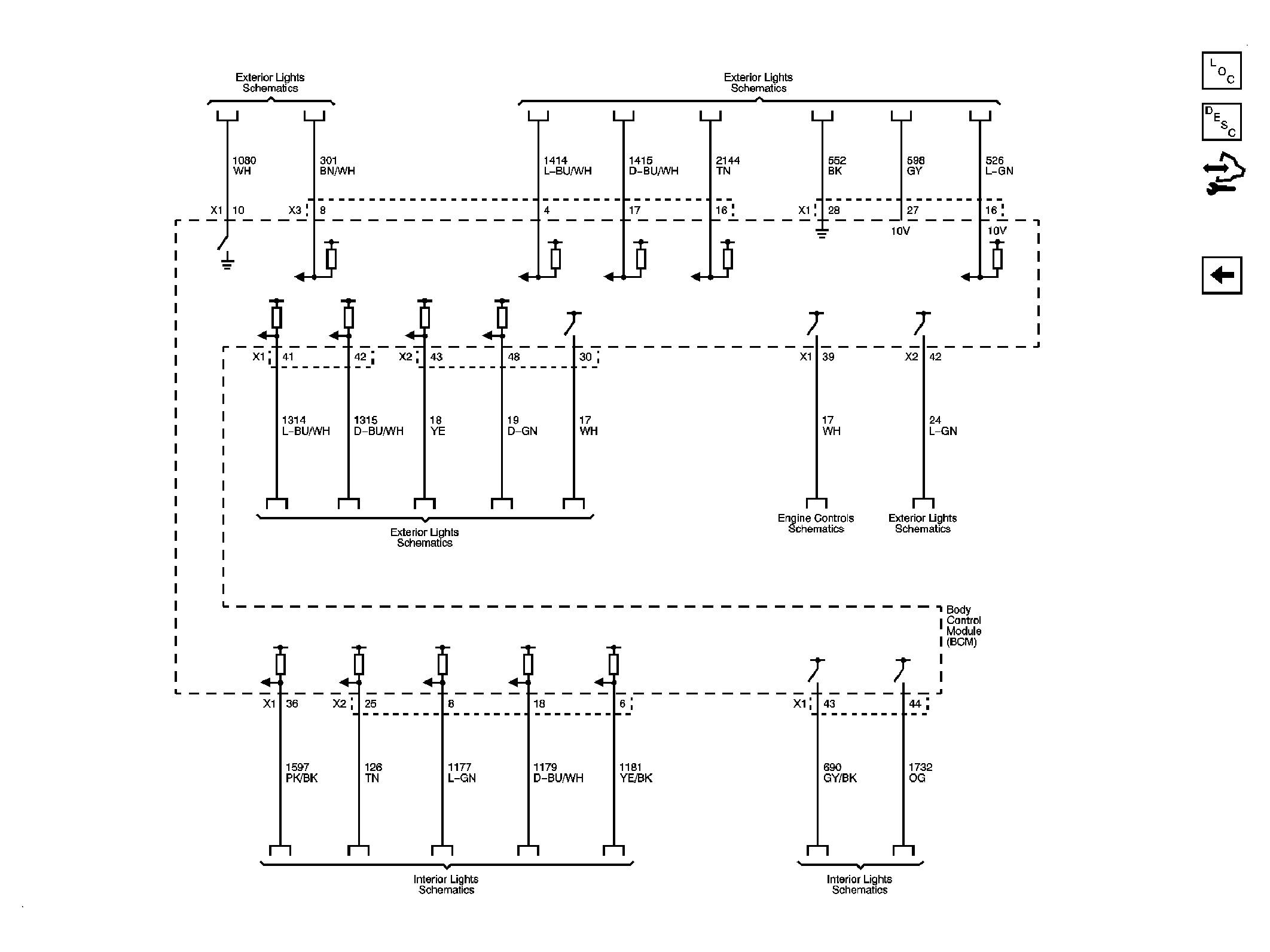

Fig 4: Door Lock/Indicator and Lighting System References - Schematic (2 of 2)

Courtesy of GENERAL MOTORS CORP.
