Antilock Brake System Schematics

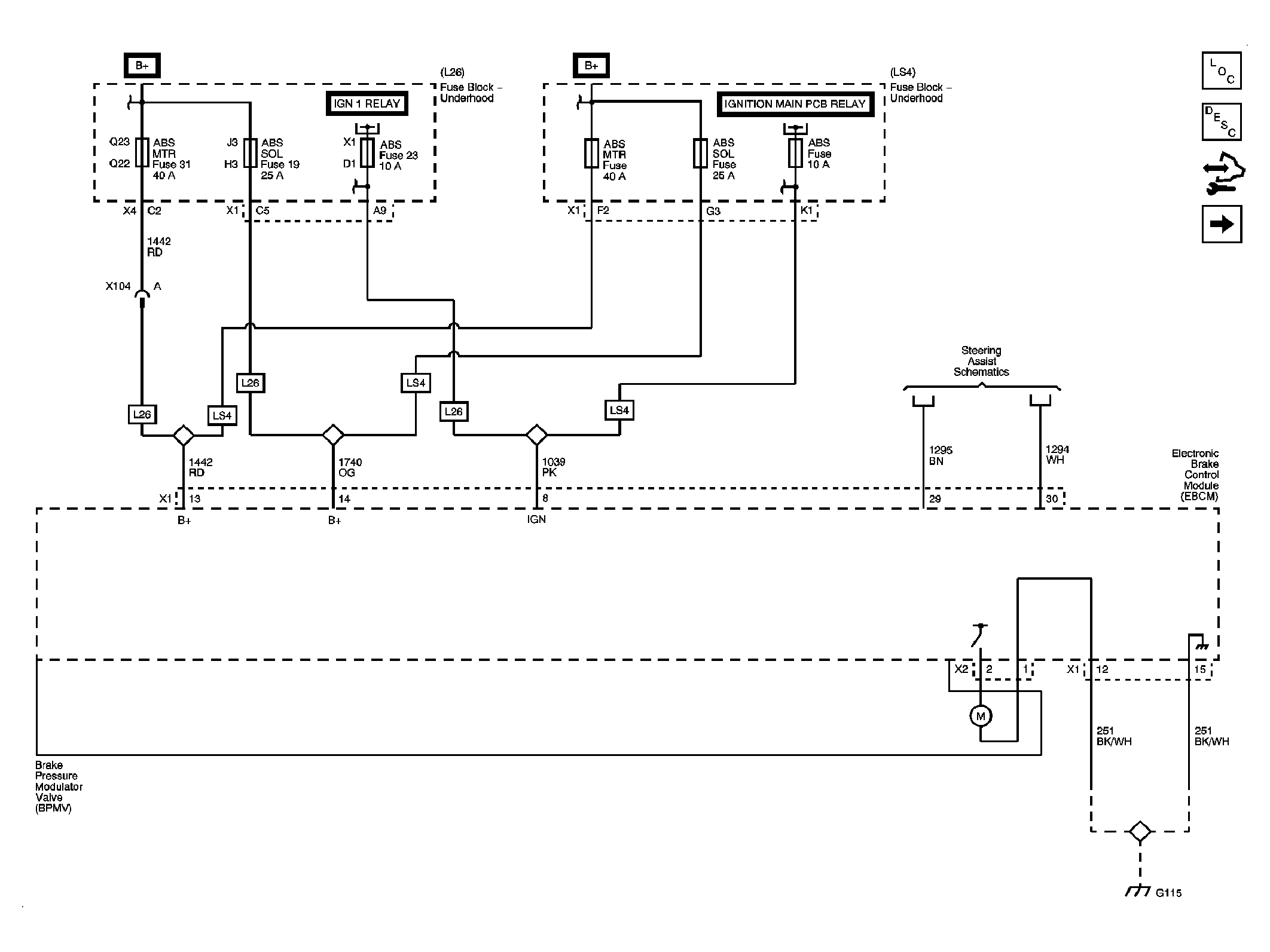

Fig 1: Power, Ground, and Brake Pressure Modulator - Schematic

Courtesy of GENERAL MOTORS CORP.

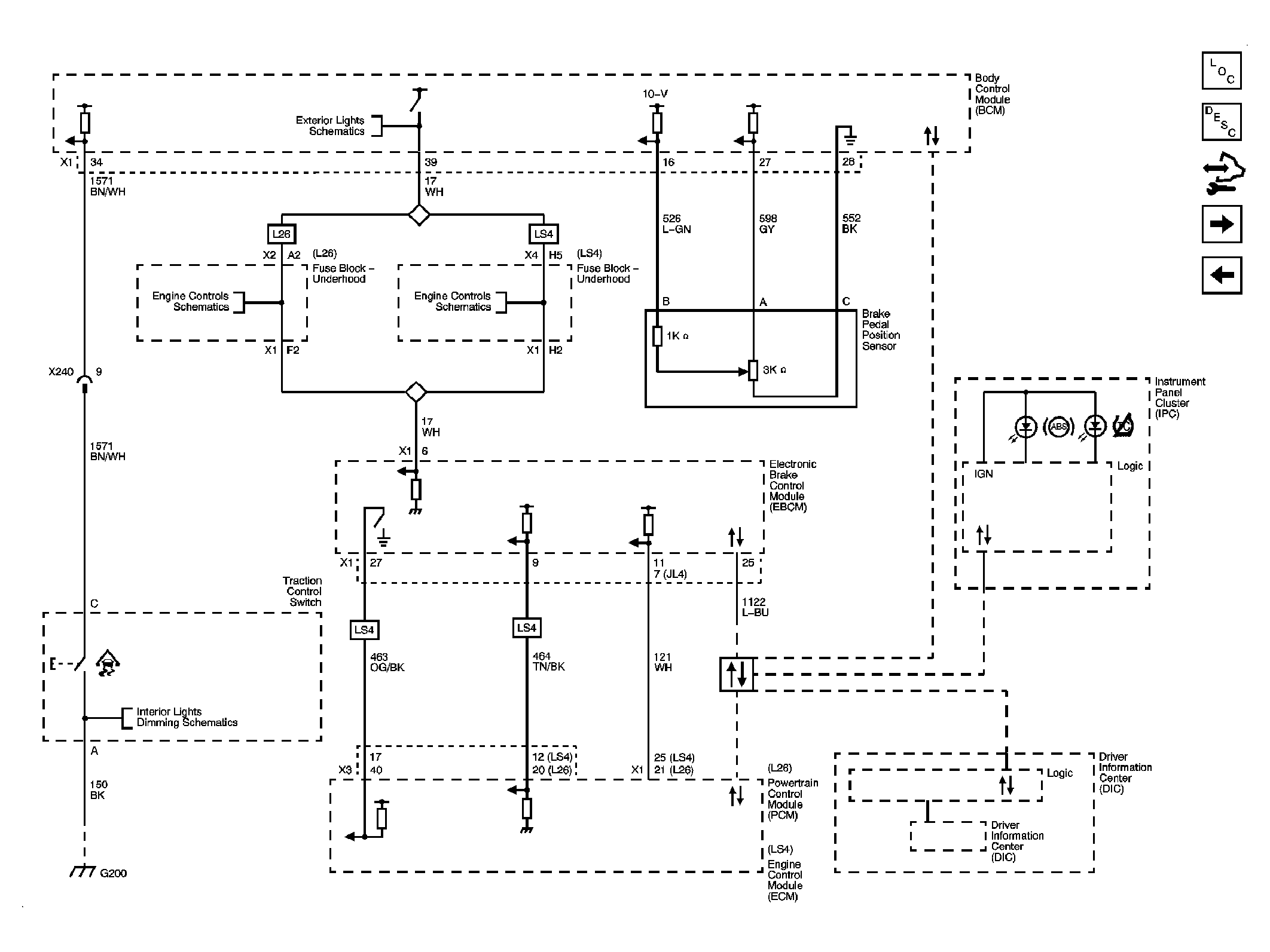

Fig 2: Indicator, ABS, Stability, and Traction Controls - Schematic

Courtesy of GENERAL MOTORS CORP.

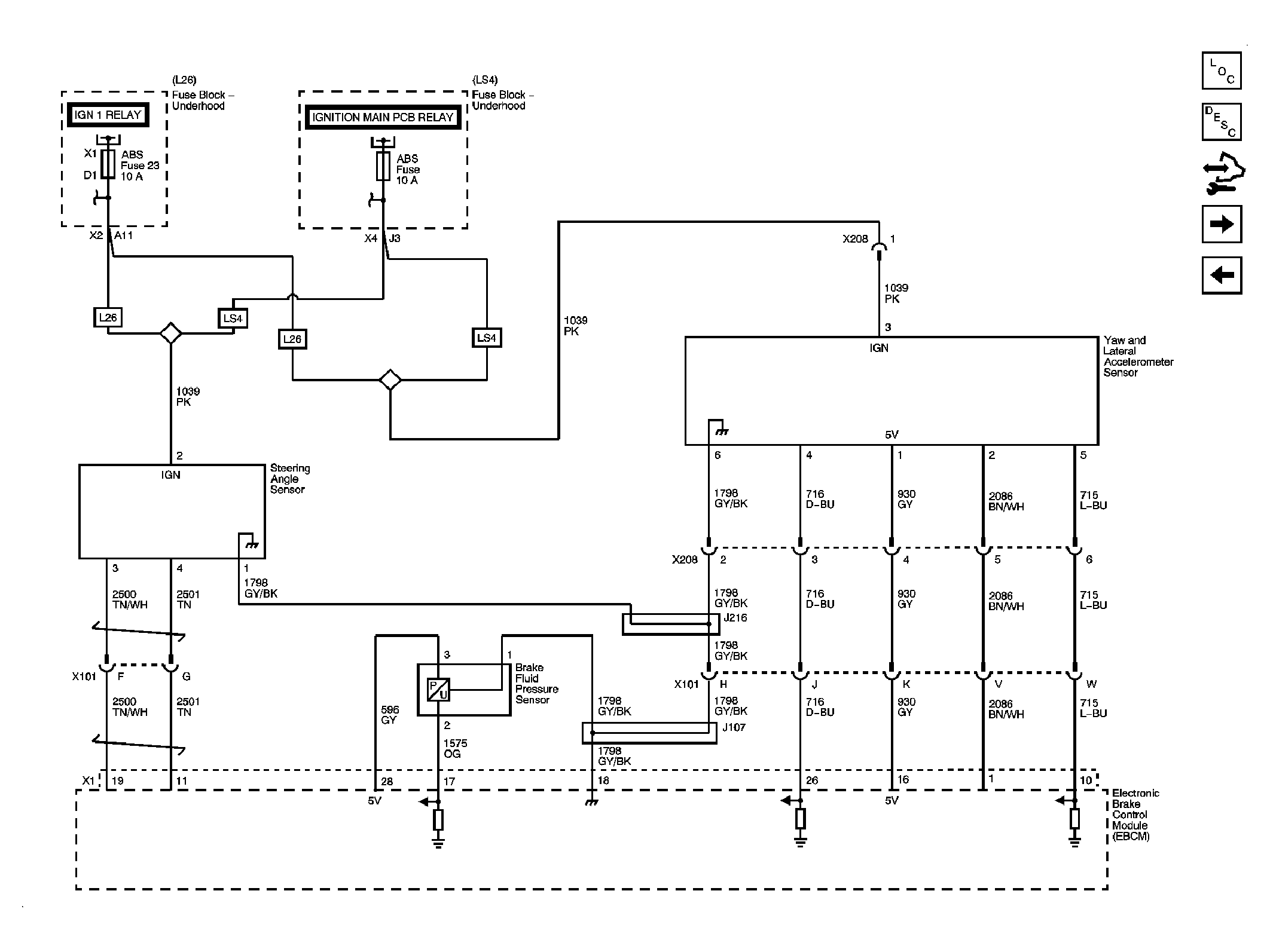

Fig 3: Stability Controls Sensors (JL4) - Schematic

Courtesy of GENERAL MOTORS CORP.

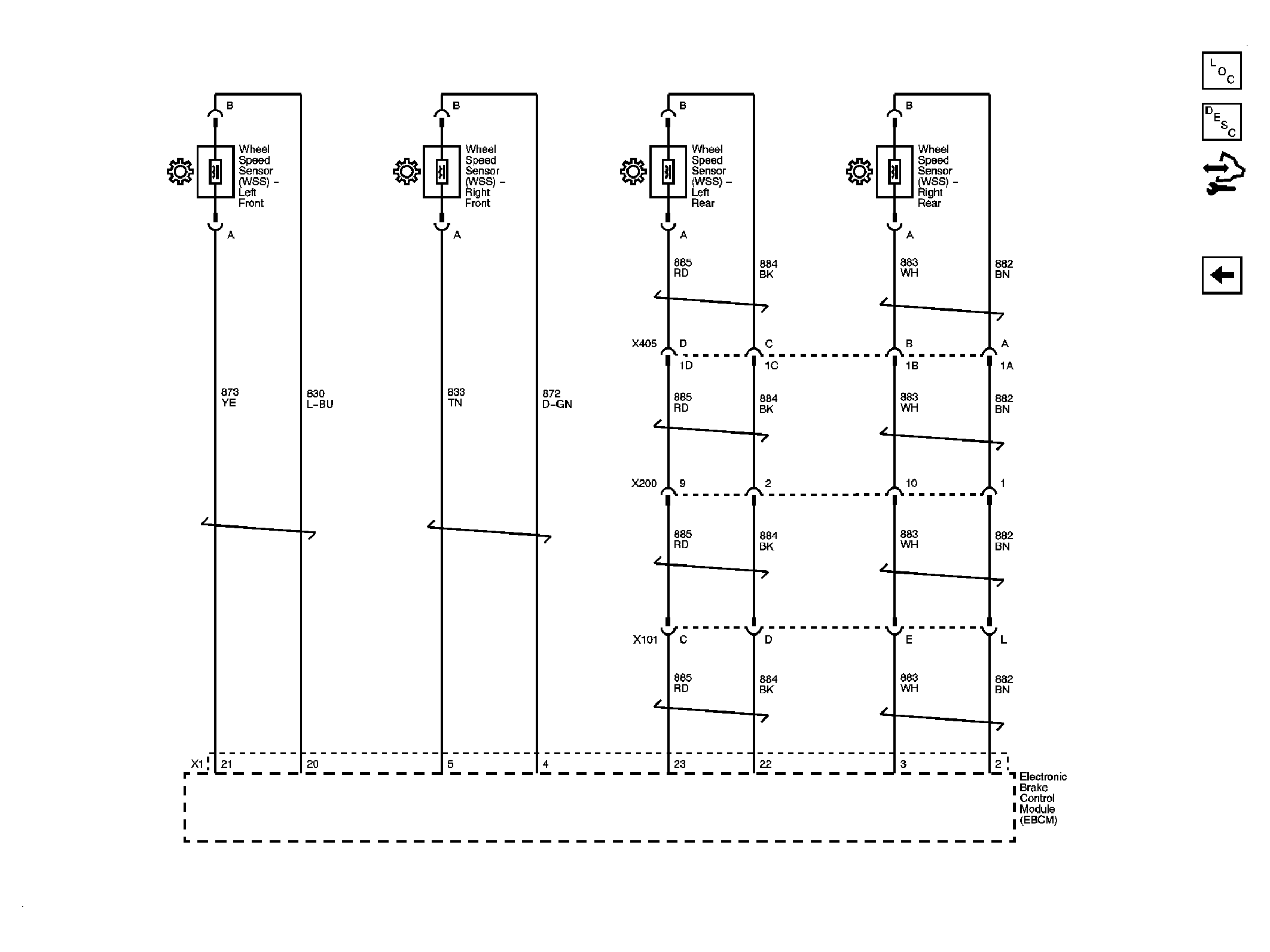

Fig 4: Wheel Speed Sensors - Schematic

Courtesy of GENERAL MOTORS CORP.
