Passenger Compartment/Roof Component Views

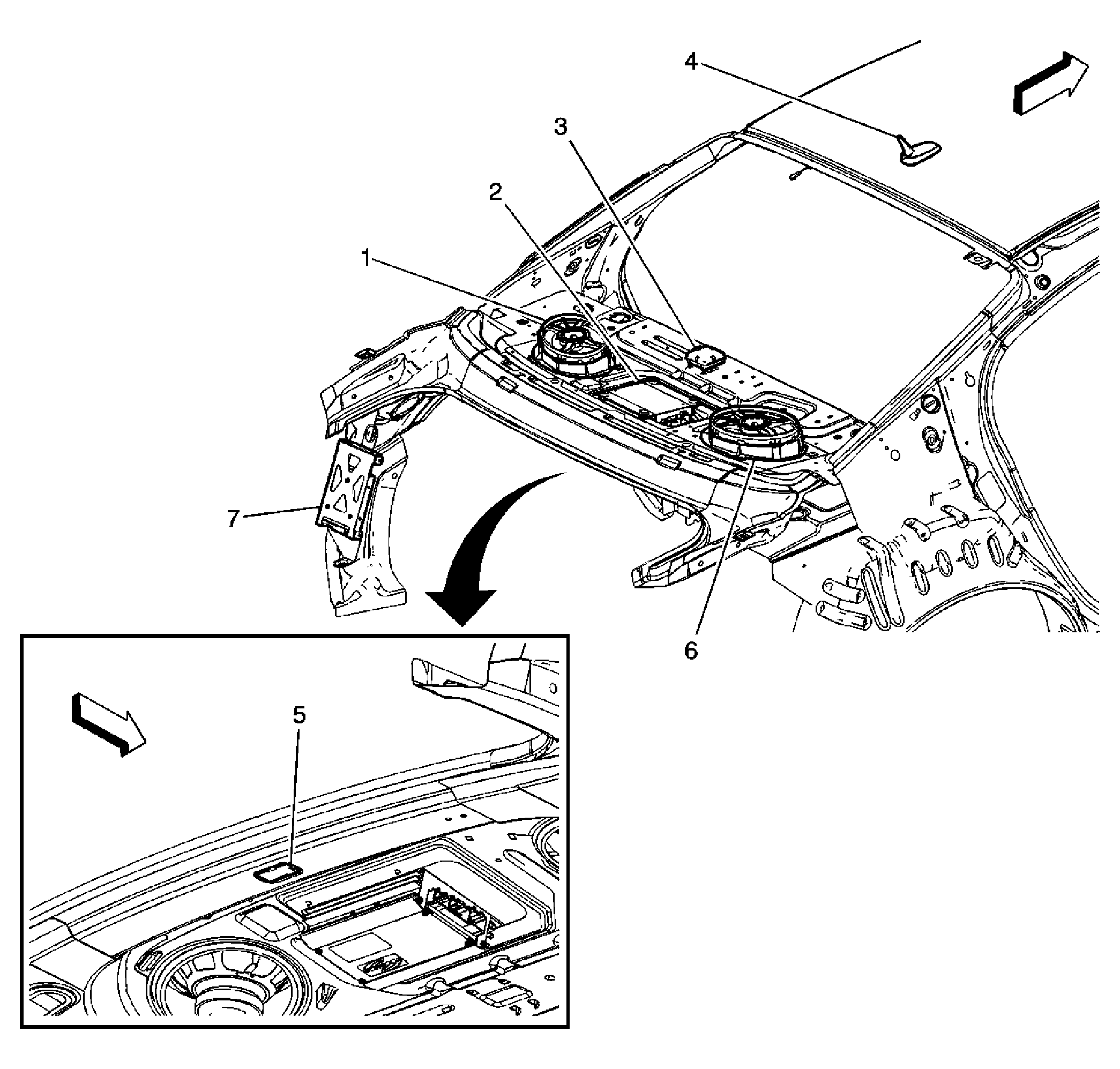

Fig 1: Rear Window Shelf Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker-LH
2	Audio Amplifier (U87)
3	Electronic Compass Module
4	Radio/Digital/Navigational Antenna
5	Rear Compartment Courtesy Lamp
6	Speaker-RH
7	Digital Radio Receiver

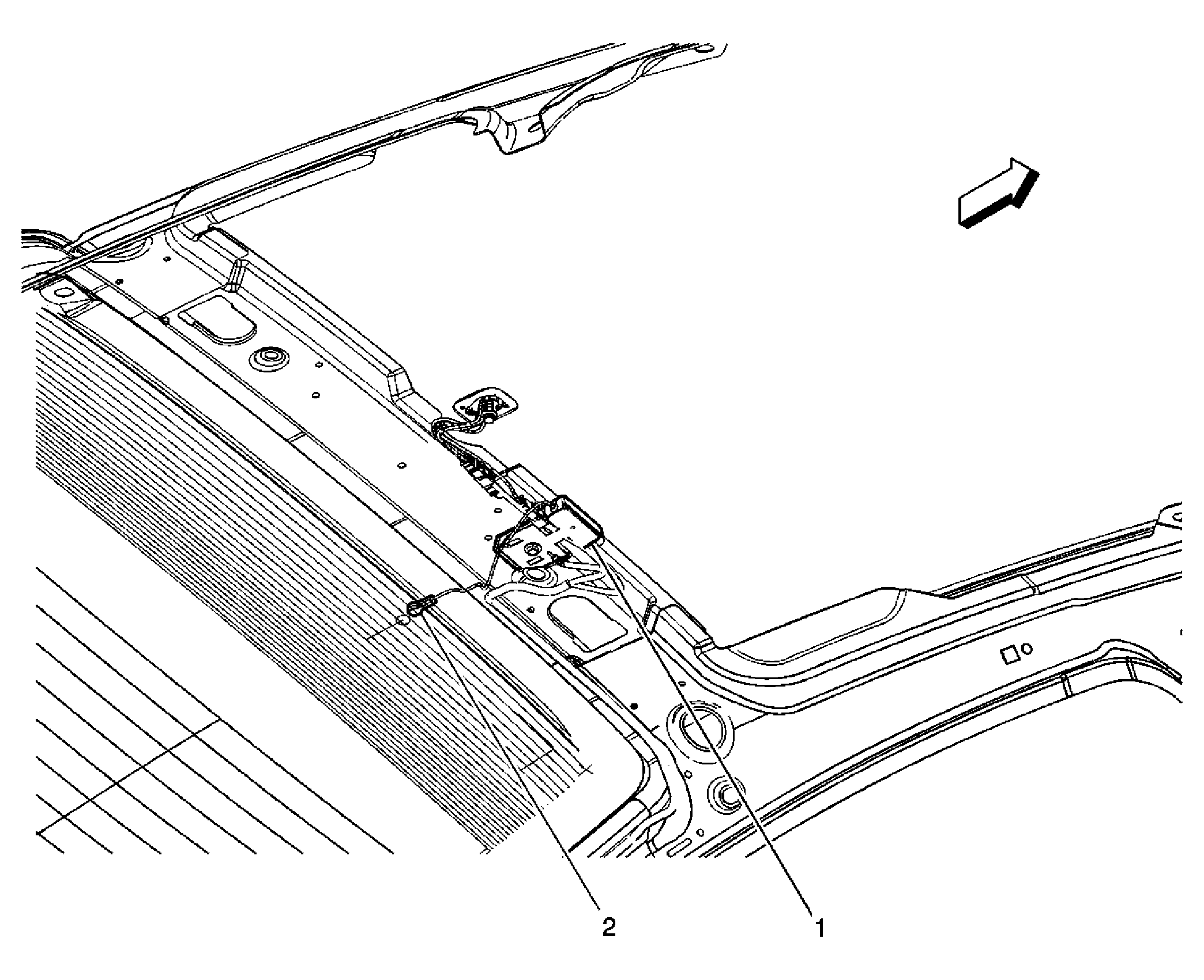

Fig 2: Above Rear Window Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio Antenna Module
2	Radio Rear Window Antenna

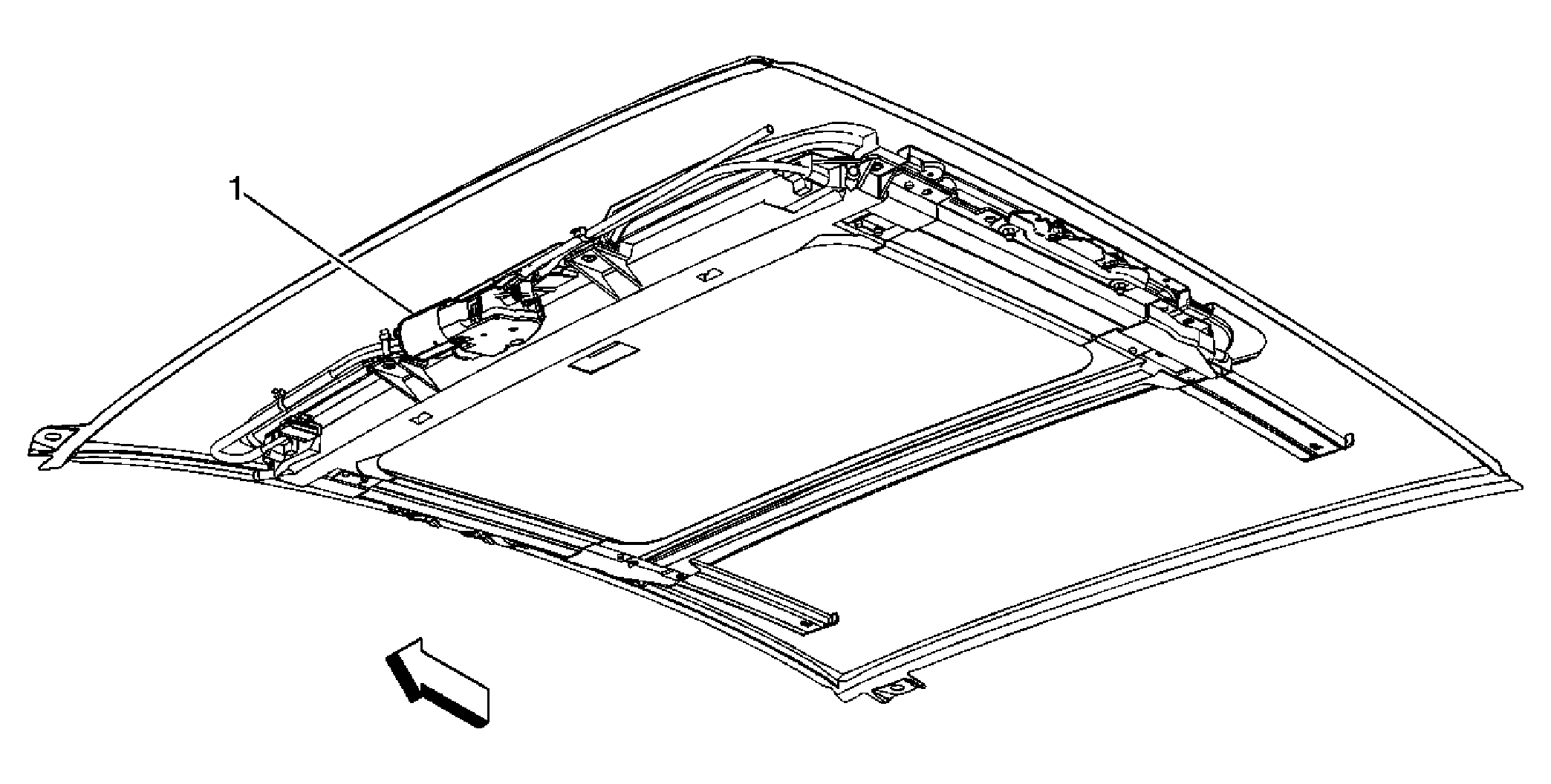

Fig 3: Sunroof Component

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Motor

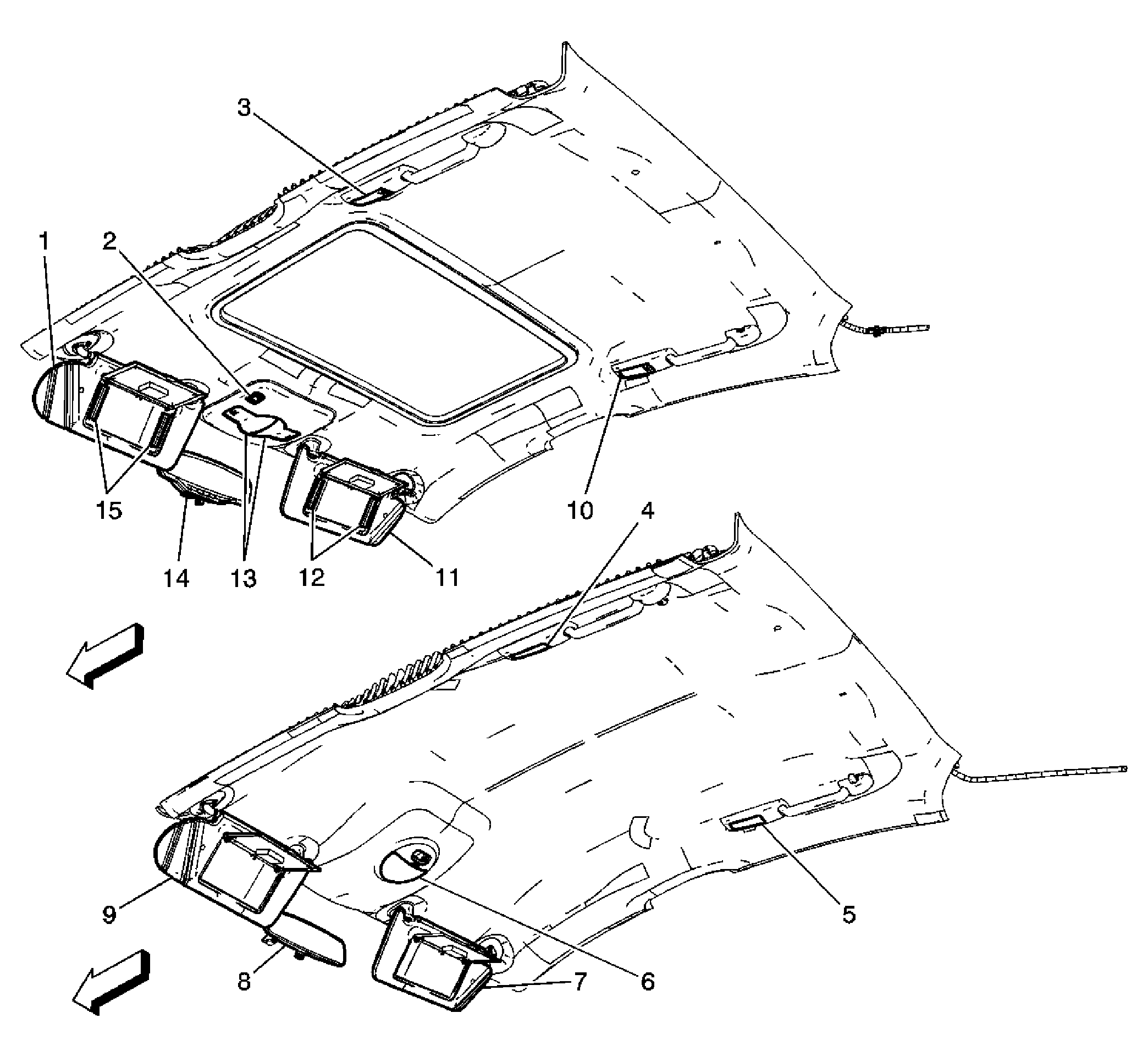

Fig 4: Roof/Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunshade - Left
2	Sunroof Switch (CF5)
3	Roof Rail Courtesy/Reading Lamp - Left (CF5)
4	Roof Rail Courtesy/Reading Lamp - Left (-CF5)
5	Roof Rail Courtesy/Reading Lamp - Right (-CF5)
6	Dome Lamp (-CF5)
7	Sunshade - Right
8	Inside Rearview Mirror
9	Sunshade - Left (-CF5)
10	Roof Rail Courtesy/Reading Lamp - Right (CF5)
11	Sunshade - Right (-CF5)
12	Vanity Mirror Lamp - Right (CF5)
13	Overhead Console Courtesy/Reading Lamp - Driver/Passenger (CF5)
14	Inside Rearview Mirror (UE1)
15	Vanity Mirror Lamp - Left (CF5)
