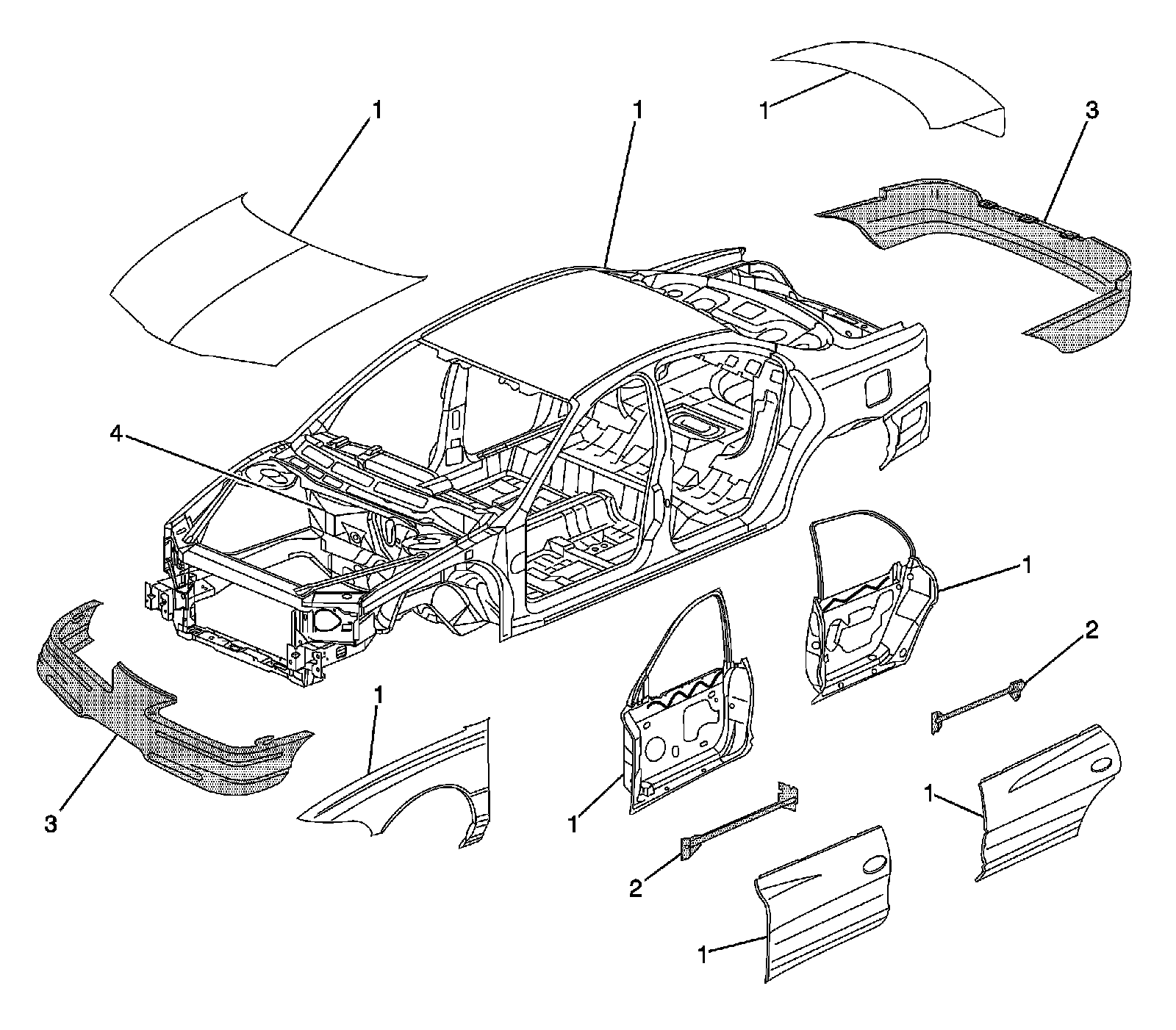

Panel Identification



Panel Identification




1 - Two-Sided Galvanized Steel (TSGS)
1 - Two-Sided Galvanized Steel (TSGS)
1 - Two-Sided Galvanized Steel (TSGS)
1 - Two-Sided Galvanized Steel (TSGS)
1 - Two-Sided Galvanized Steel (TSGS)
1 - Two-Sided Galvanized Steel (TSGS)
1 - Two-Sided Galvanized Steel (TSGS)
1 - Two-Sided Galvanized Steel (TSGS)
2 - High-Strength Low-Alloy Steel (HSLA)
2 - High-Strength Low-Alloy Steel (HSLA)
3 - Thermoplastic Olefin (TPO)
3 - Thermoplastic Olefin (TPO)
4 - Laminated Steel (Front of Dash only)
