Fuse Block: Locations

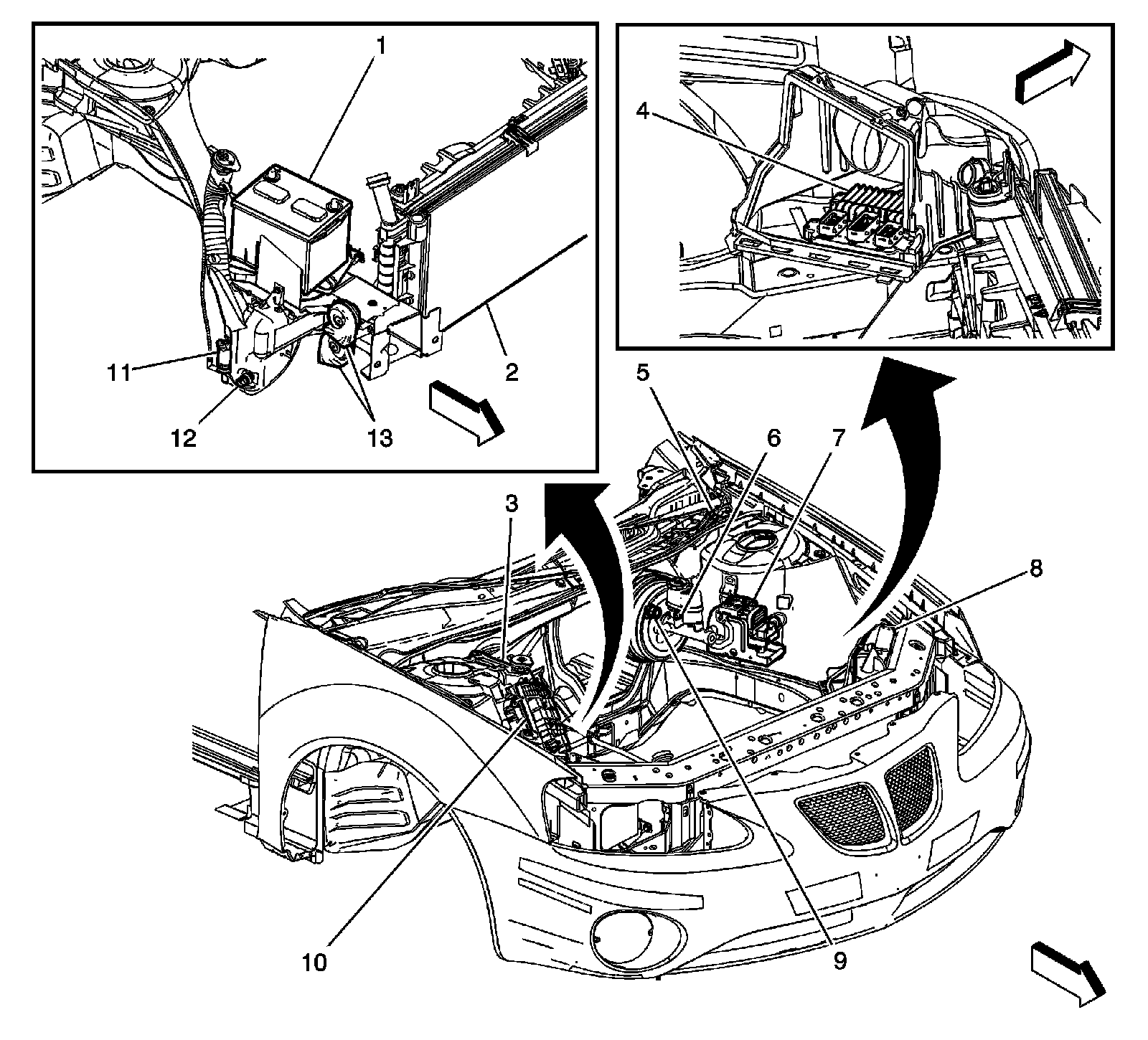

Front Engine Compartment (L26 - 3.8L)




1 - Battery
2 - Condensor Radiator Fan Module (CRFM)
3 - Reservoir Coolant Recovery
4 - Engine Control Module (ECM)
5 - Windshield Wiper Motor
6 - Brake Fluid Level Switch
7 - Electronic Brake Control Module (EBCM)
8 - Air Induction
9 - Brake Booster Vacuum Sensor
10 - Fuse Block - Underhood
11 - Windshield Washer Fluid Pump
12 - Windshield Washer Fluid Level Switch
13 - Horn Assembly
