Fuse Block Instrument Panel Connector Views



Electrical Center Identification Views

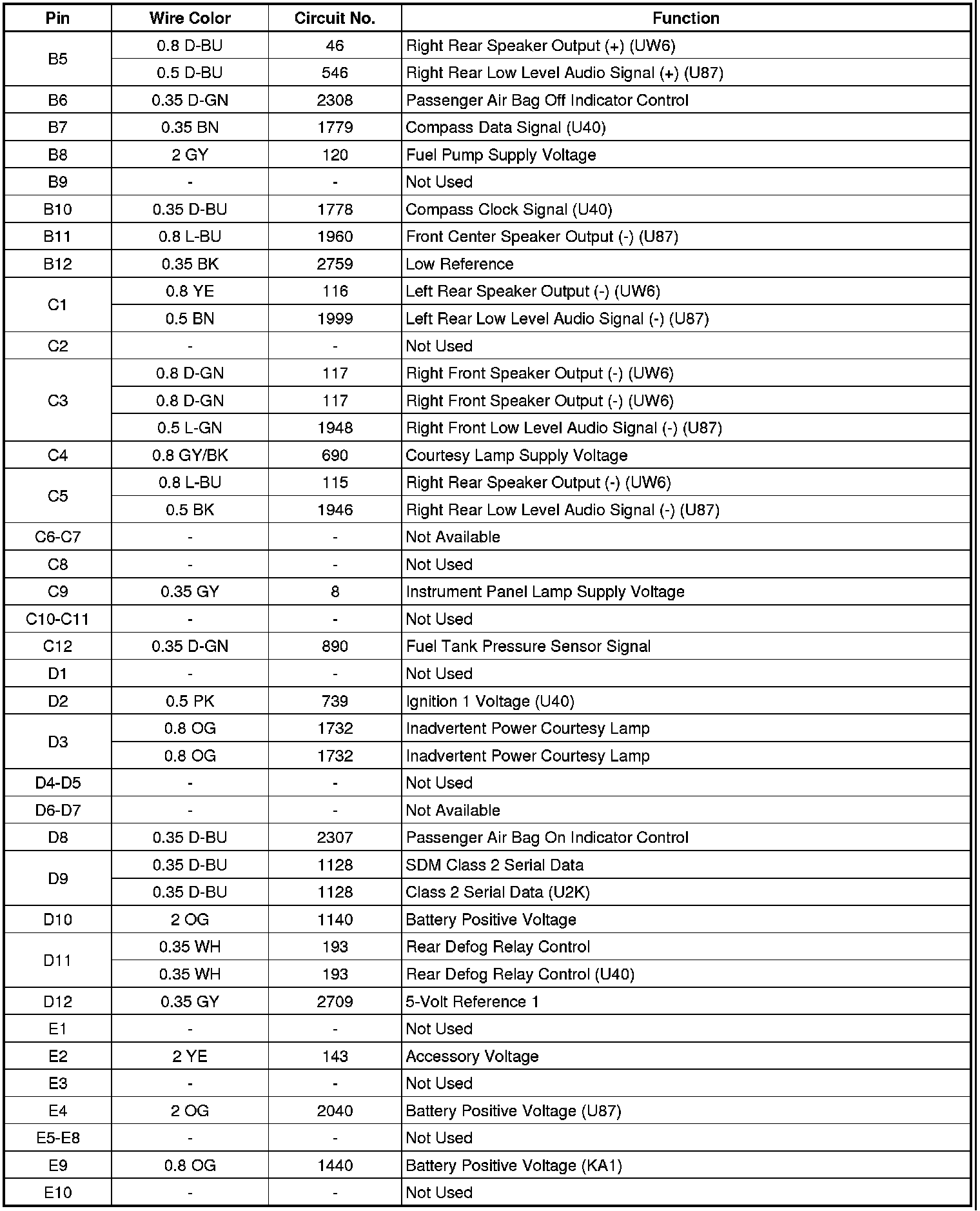

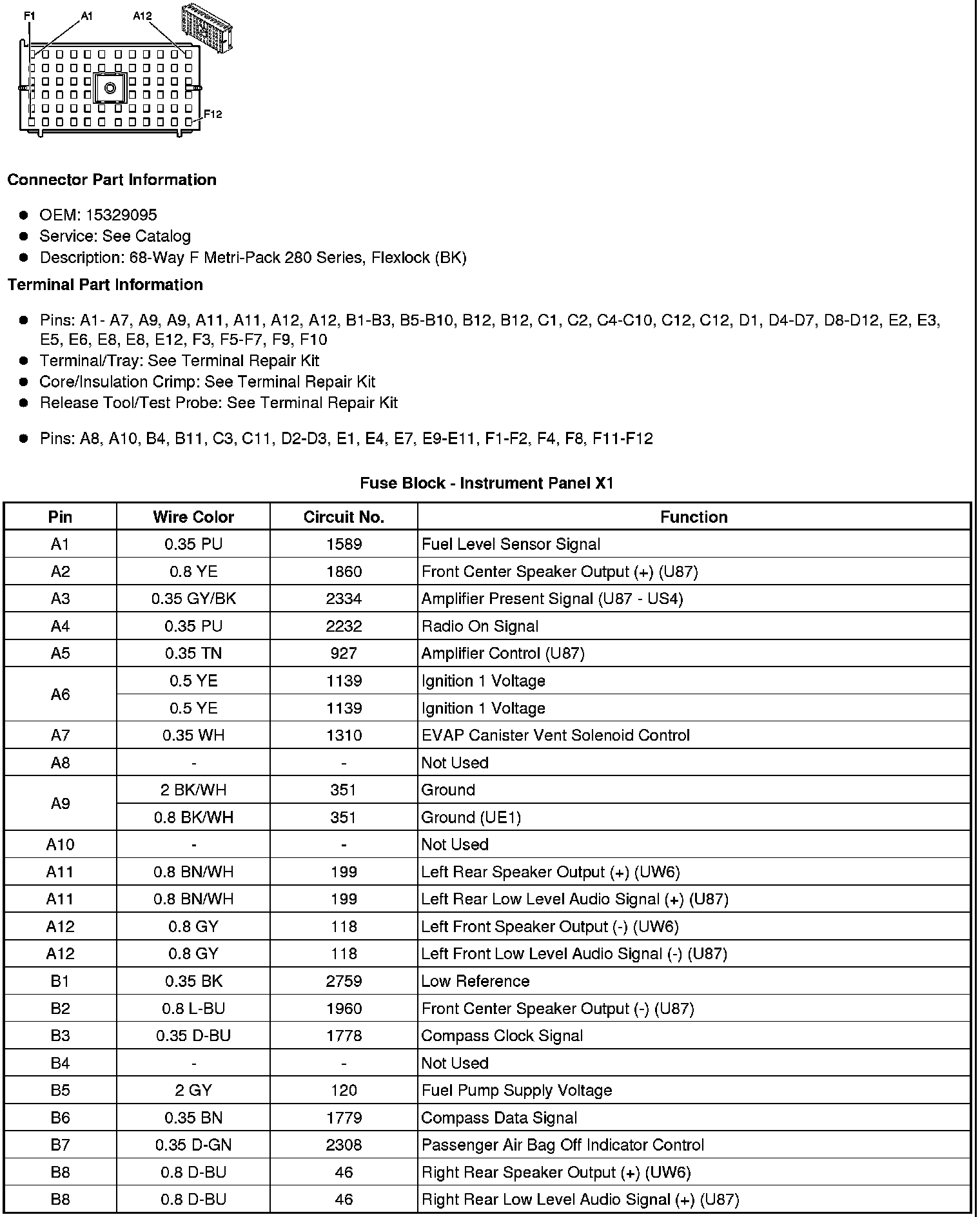

Fuse Block - Instrument Panel X1

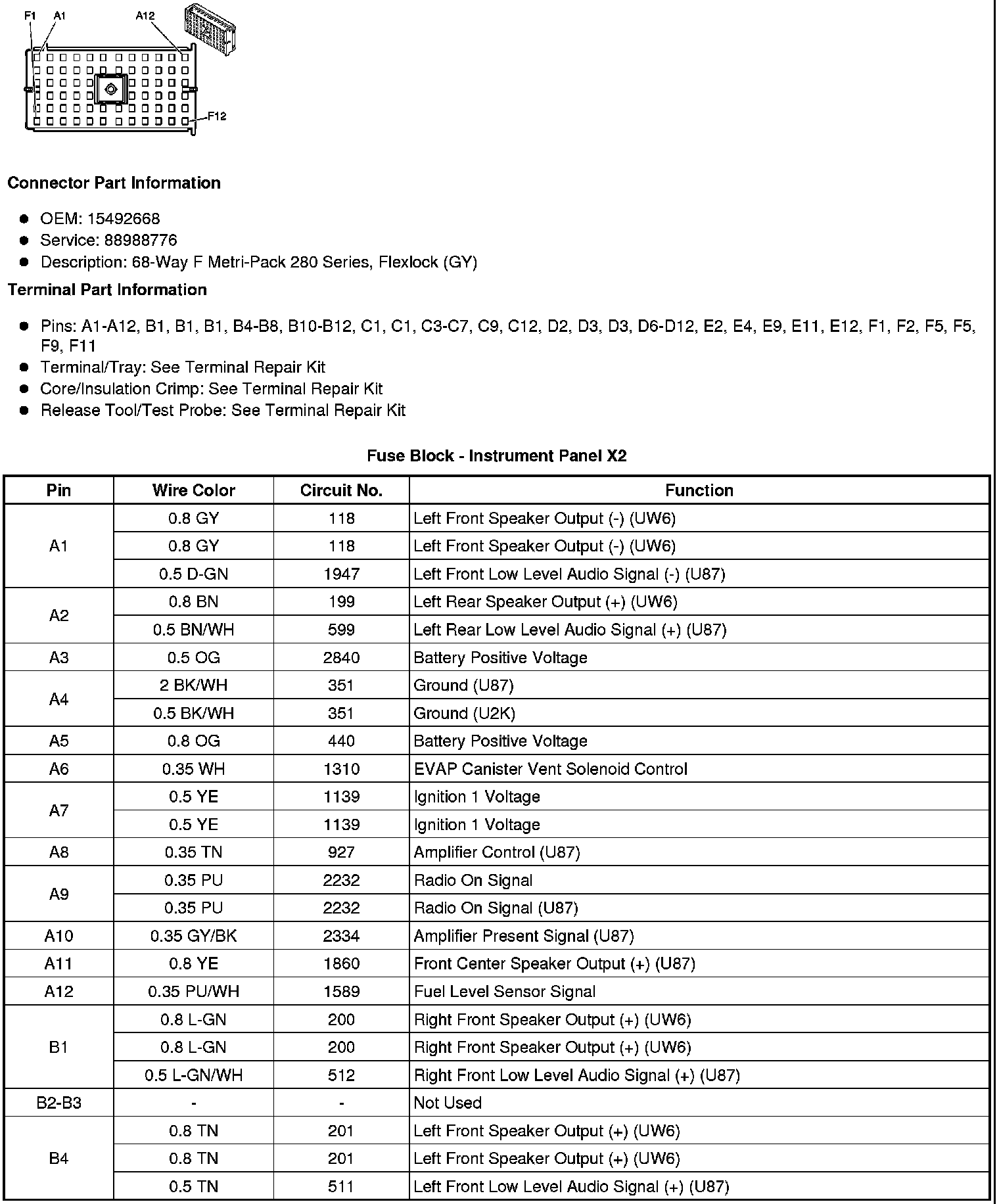

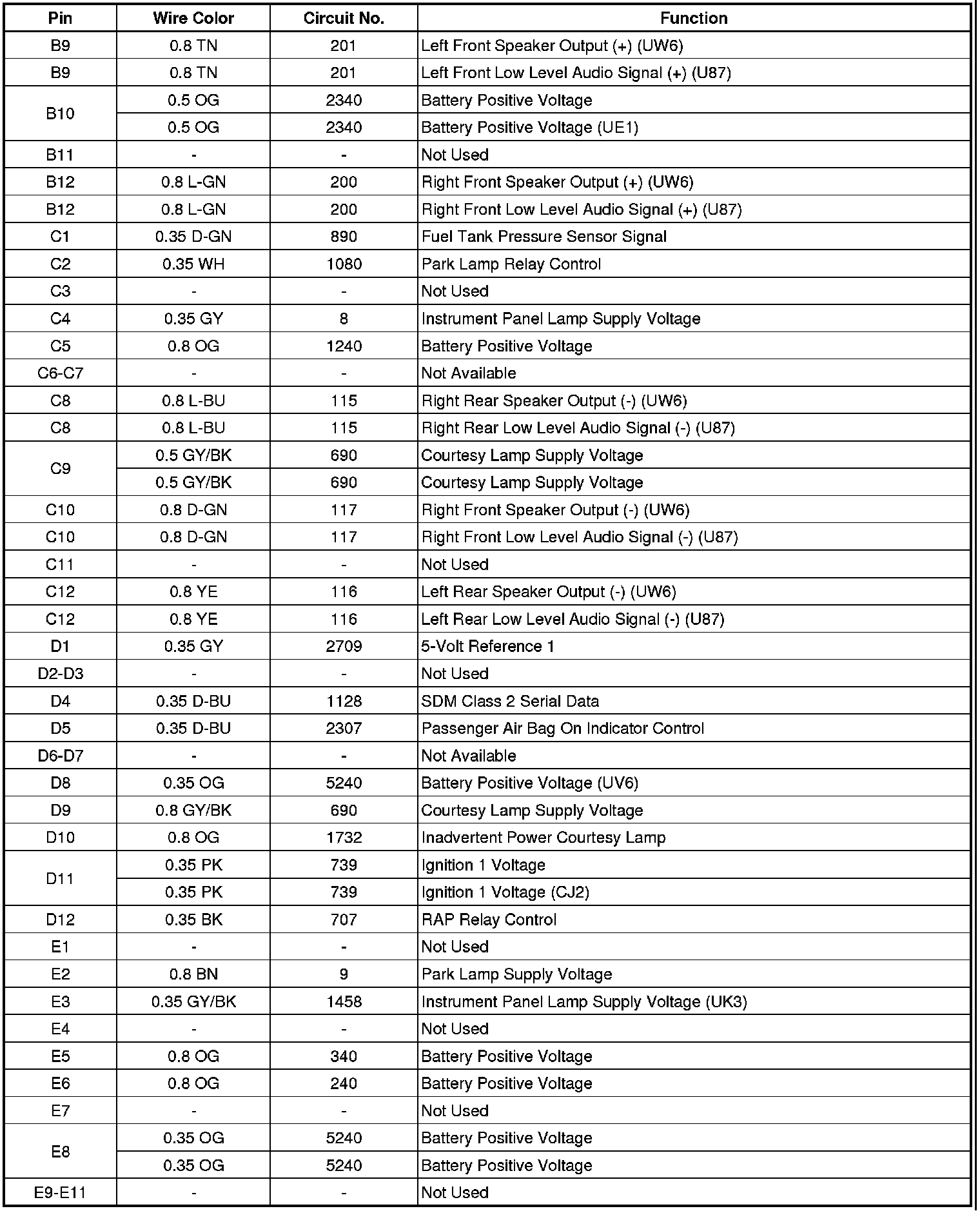

Fuse Block - Instrument Panel X2
