Fuse Block: Locations

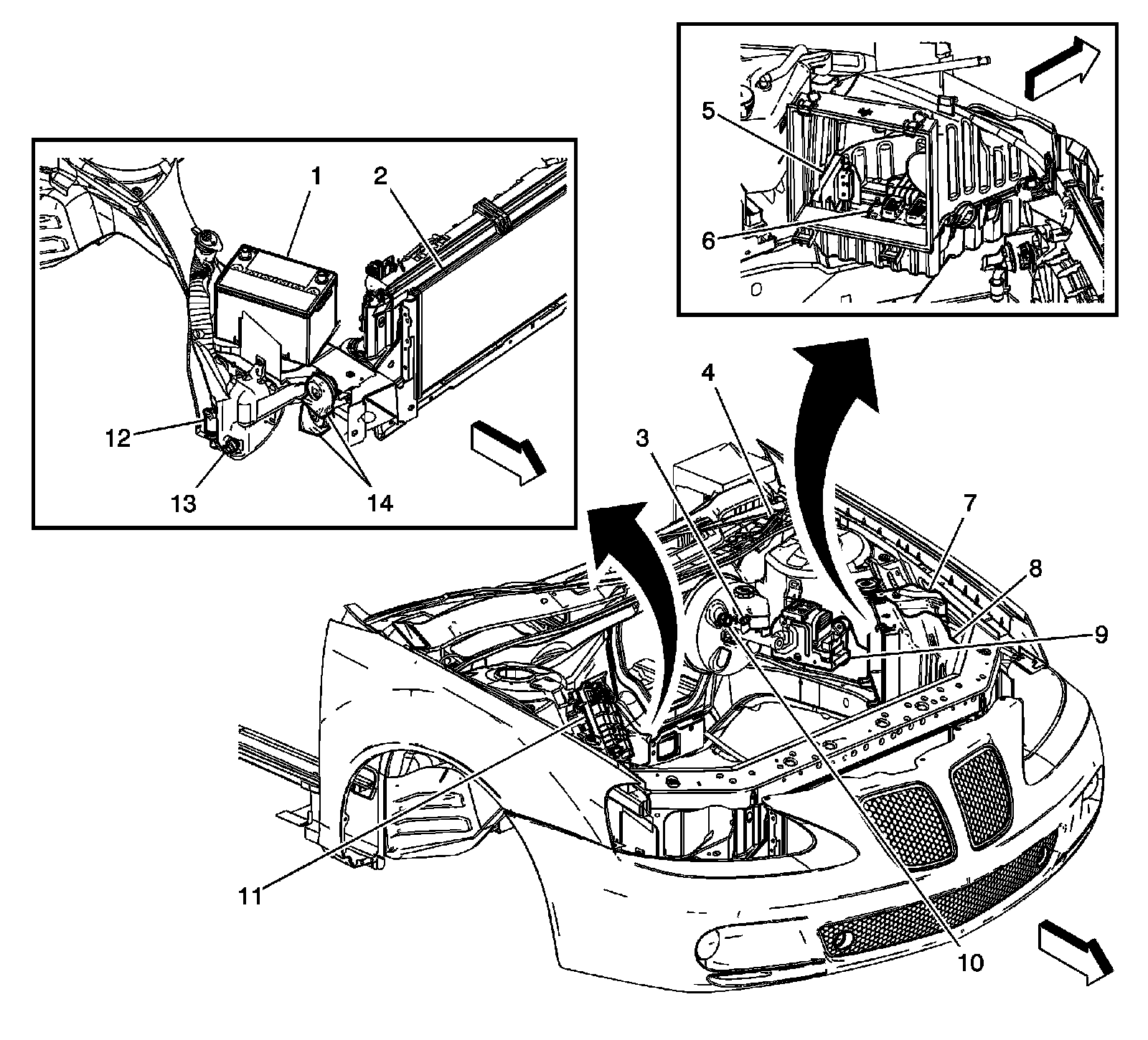

Front Engine Compartment (LS4 - 5.3L)




1 - Battery
2 - Condensor Radiator Fan Module (CRFM)
3 - Brake Fluid Level Switch
4 - Windshield Wiper Moter
5 - Transmission Control Module (TCM)
6 - Engine Control Module (ECM)
7 - Reservoir Coolant Recovery
8 - Air Induction
9 - Electronic Brake Control Module (EBCM)
10 - Brake Booster Vacuum Sensor
11 - Fuse Block - Underhood
12 - Windshield Washer Fluid Pump
13 - Windshield Washer Fluid Level Switch
14 - Horn Assembly
