Fuse Block Instrament Panel



Electrical Center Identification Views

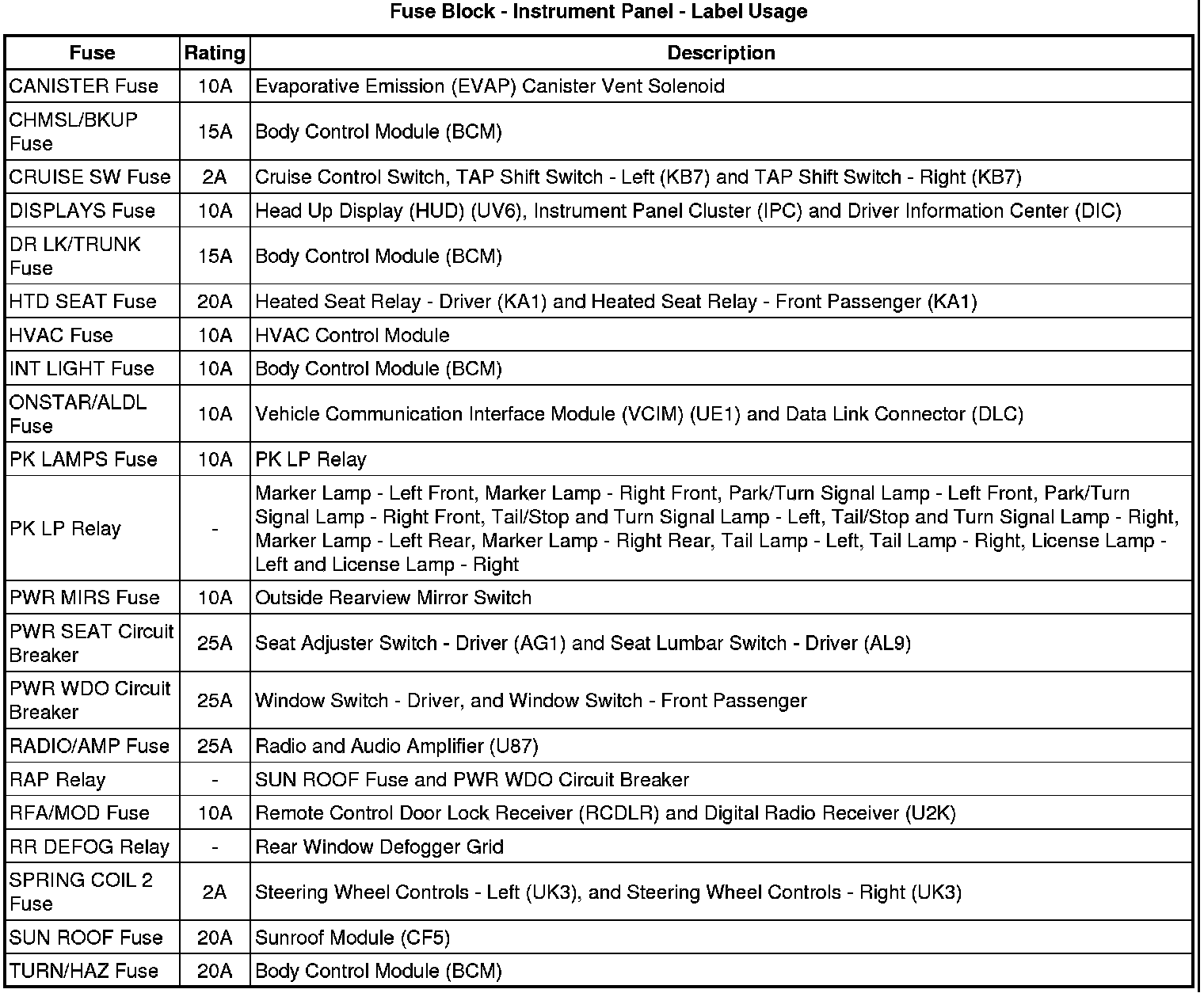

Fuse Block - Instrument Panel - Label

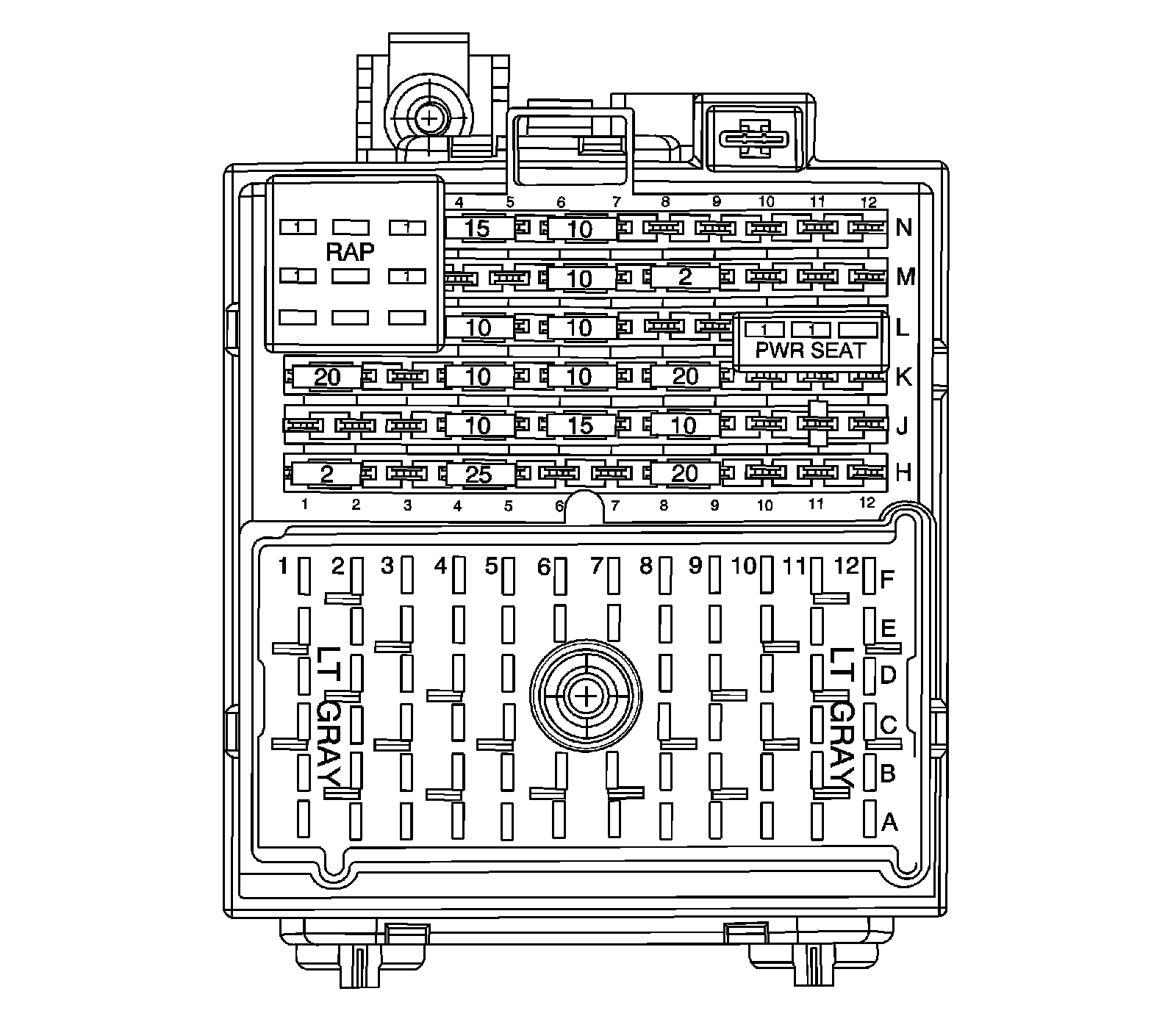

Fuse Block - Instrument Panel Top View

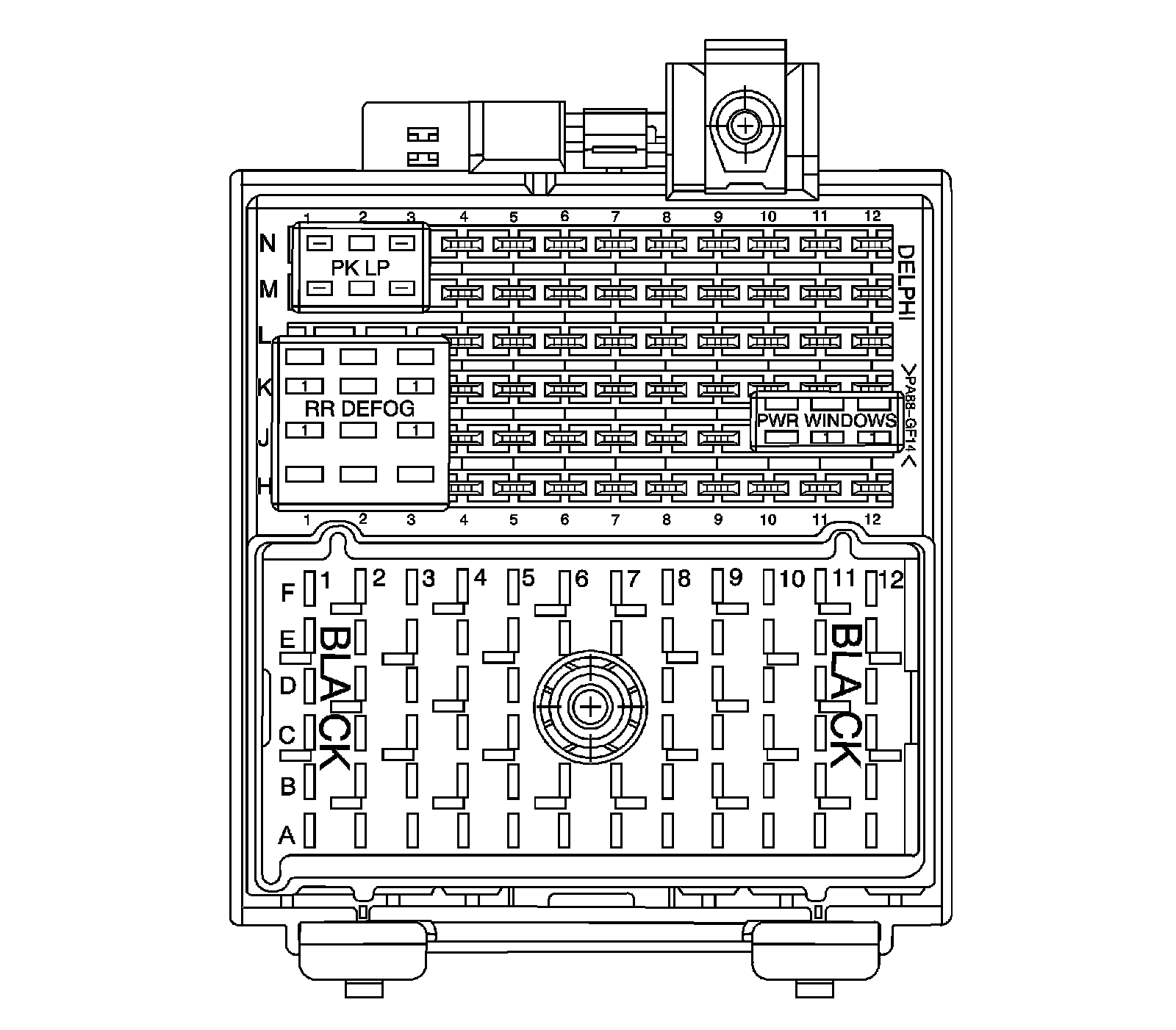

Fuse Block - Instrument Panel Bottom View
