Connector Views




Engine Coolant Temperature (ECT) Sensor (L26)

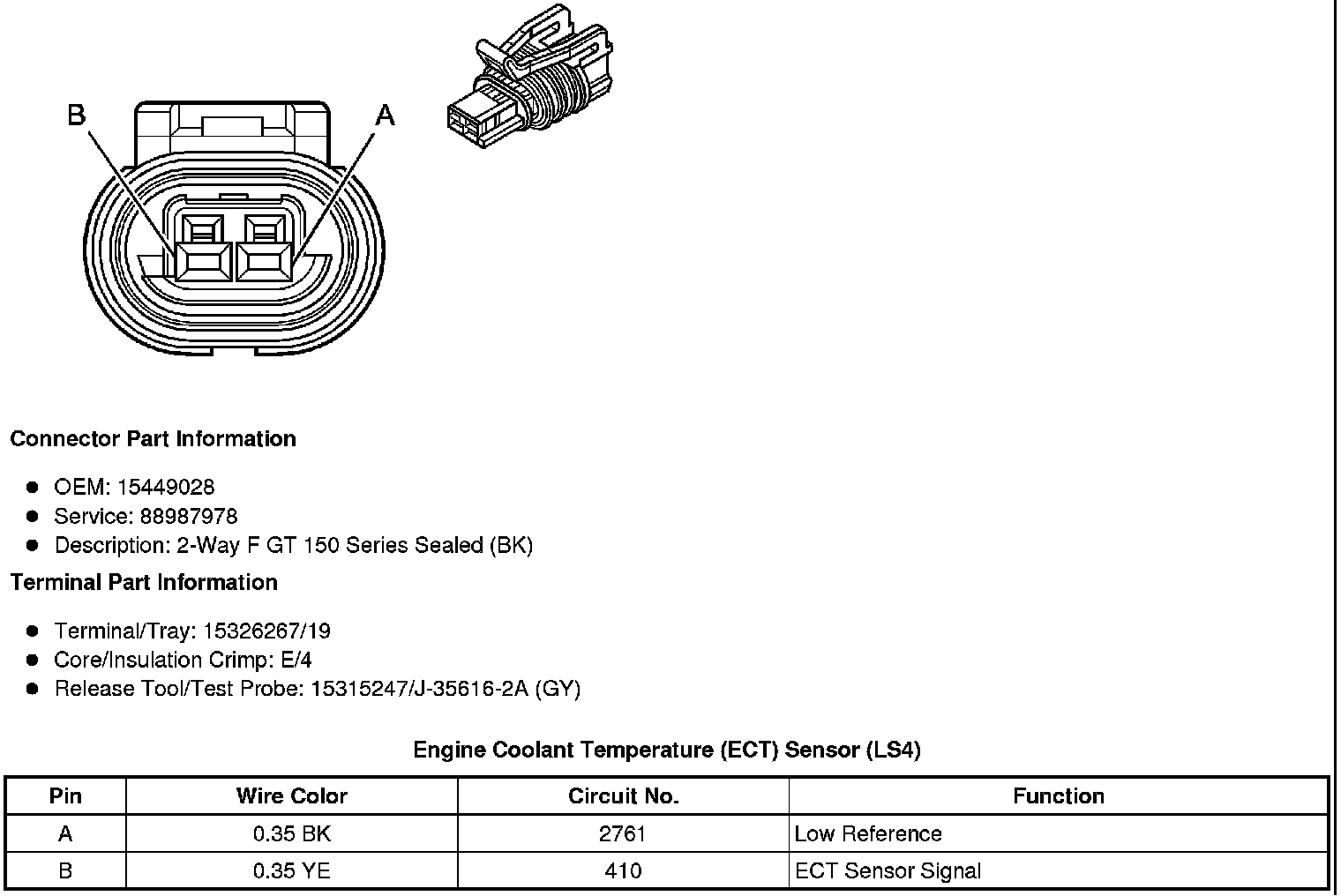

Engine Coolant Temperature (ECT) Sensor (LS4 - 5.3L)
