Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

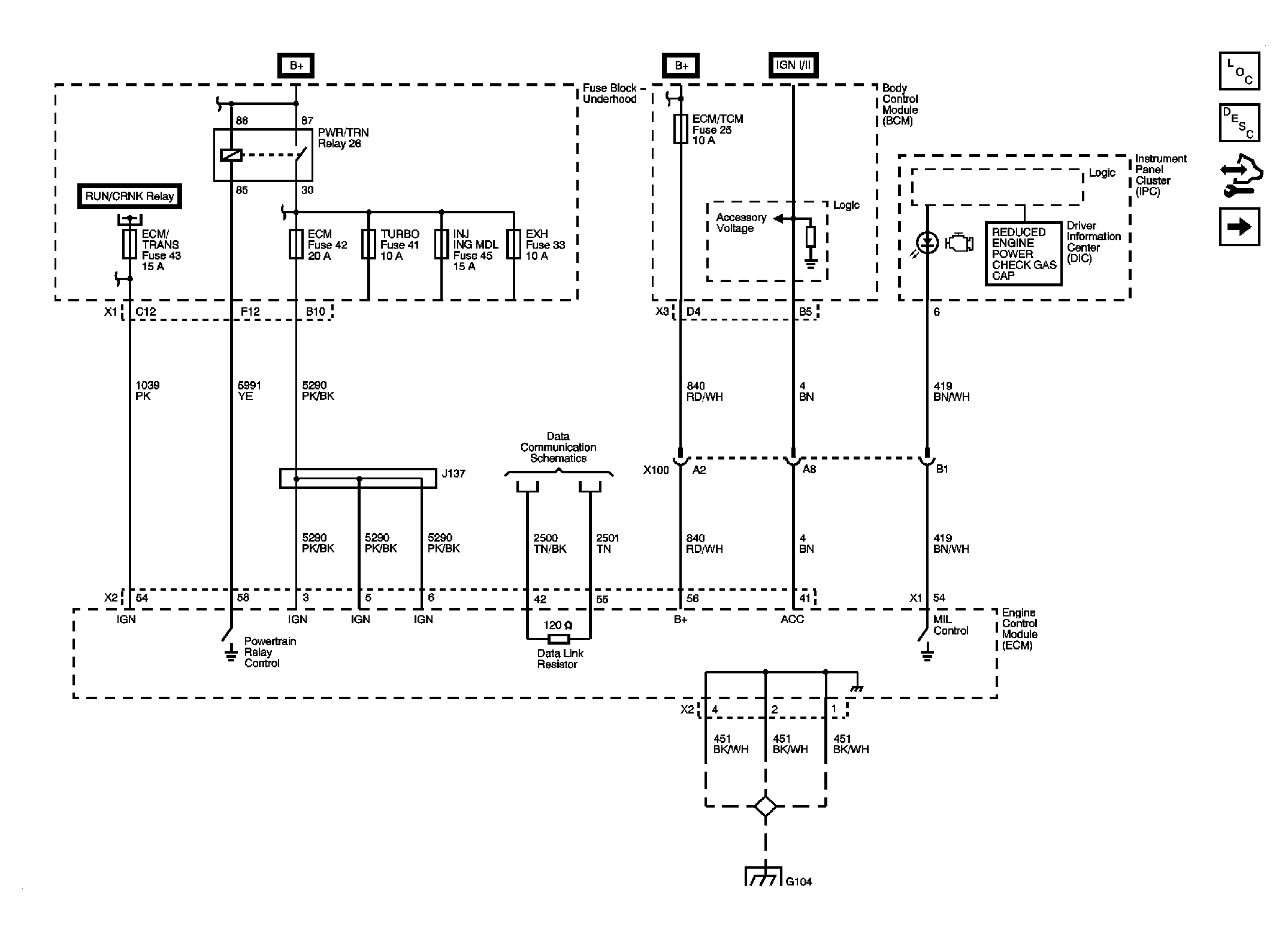

Fig 1: Power, Ground, DataLink & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

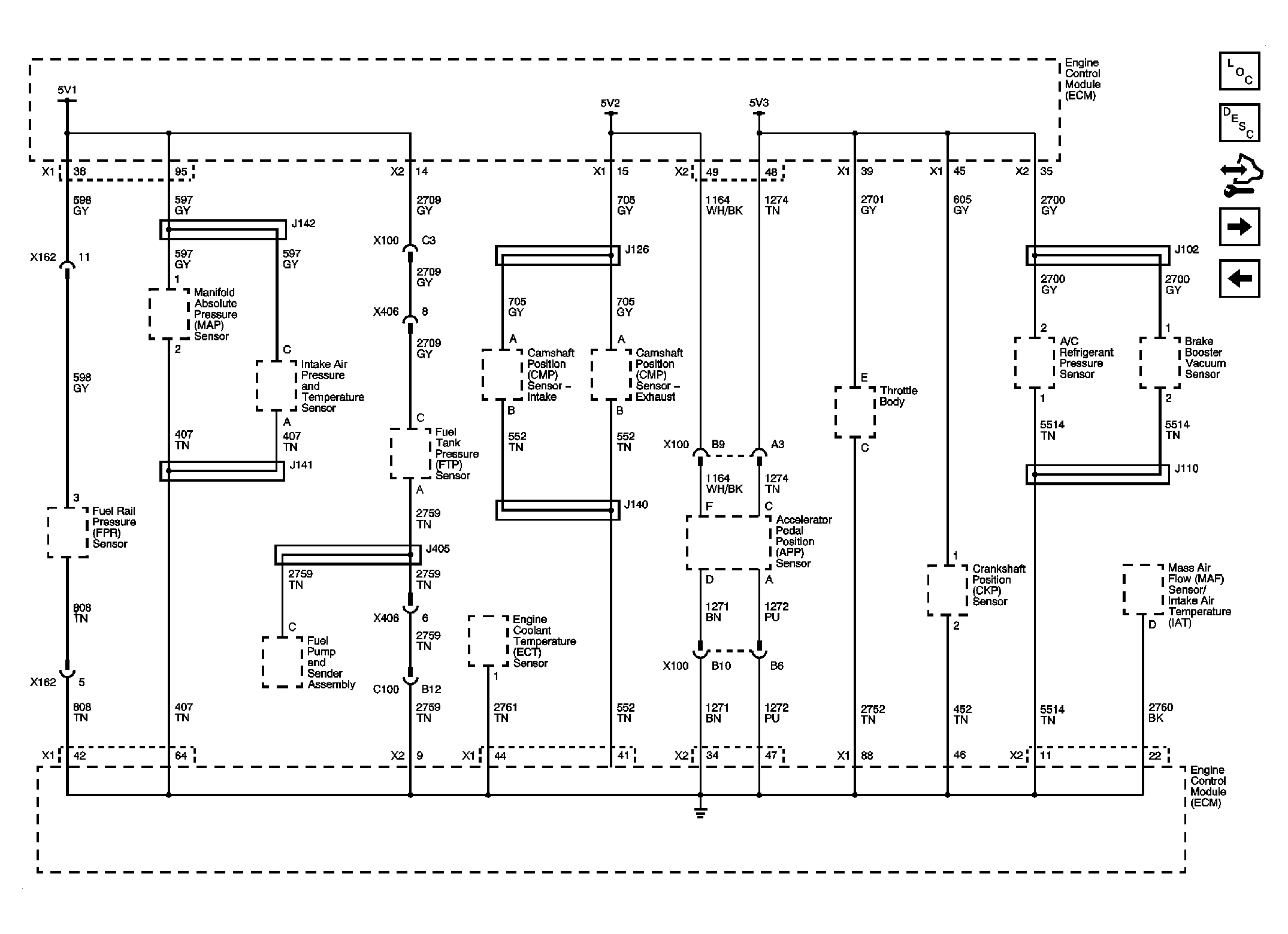

Fig 2: 5-Volt & Low Reference Schematic

Courtesy of GENERAL MOTORS CORP.

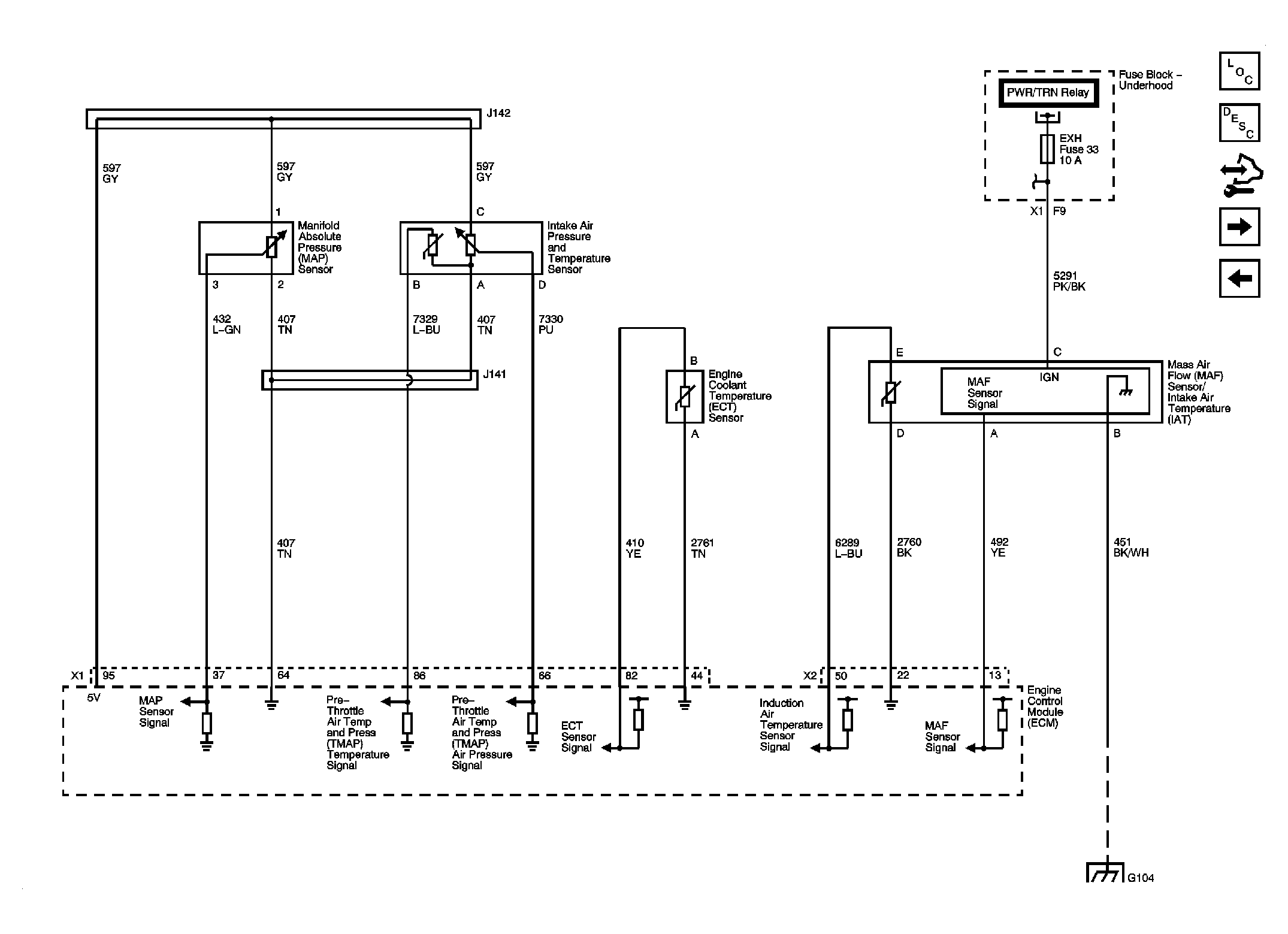

Fig 3: Engine Data Sensors - Pressure & Temperature Schematic

Courtesy of GENERAL MOTORS CORP.

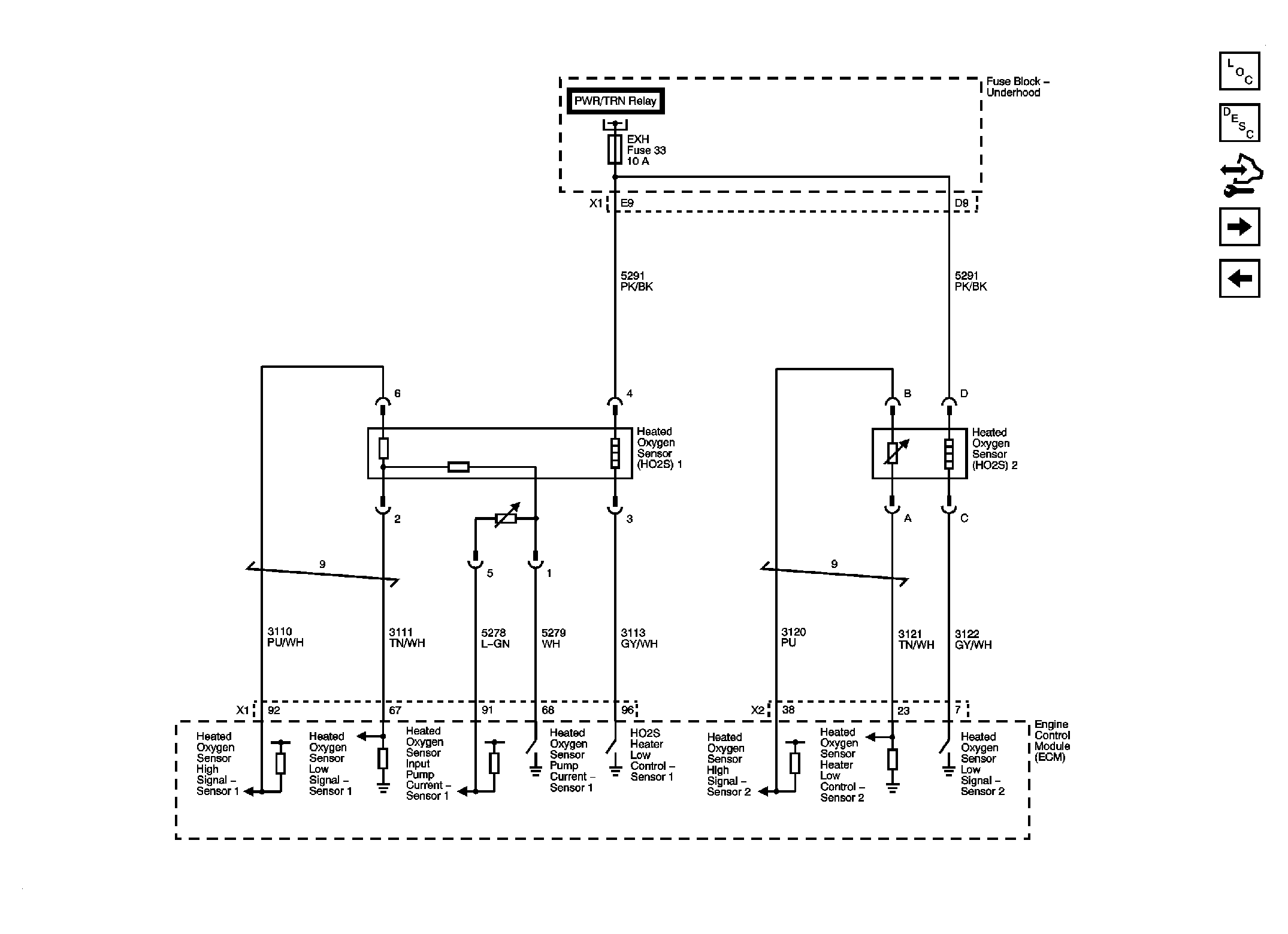

Fig 4: Engine Data Sensors - Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

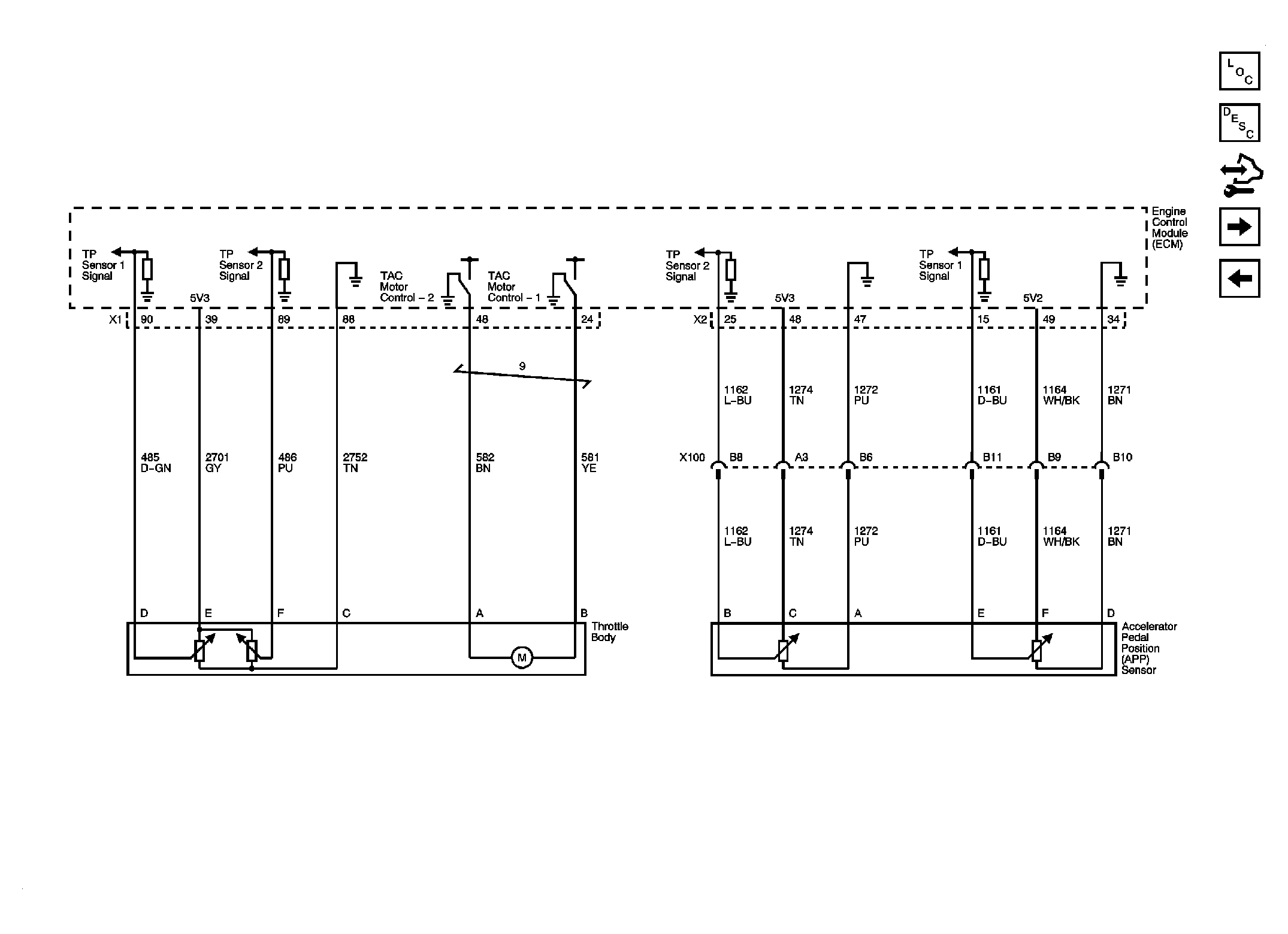

Fig 5: Engine Data Sensors - Electronic Throttle Controls Schematic

Courtesy of GENERAL MOTORS CORP.

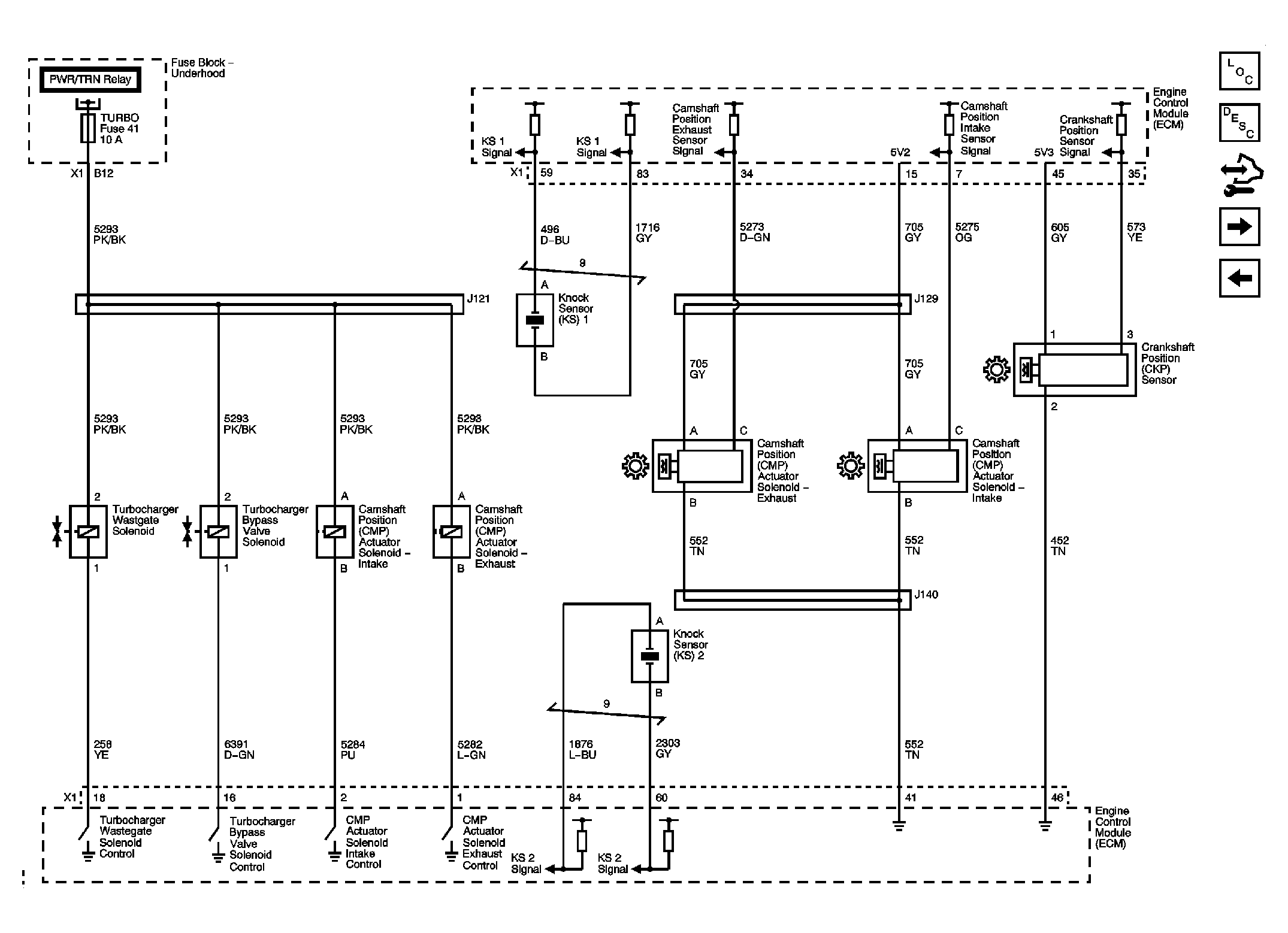

Fig 6: Ignition Controls - Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

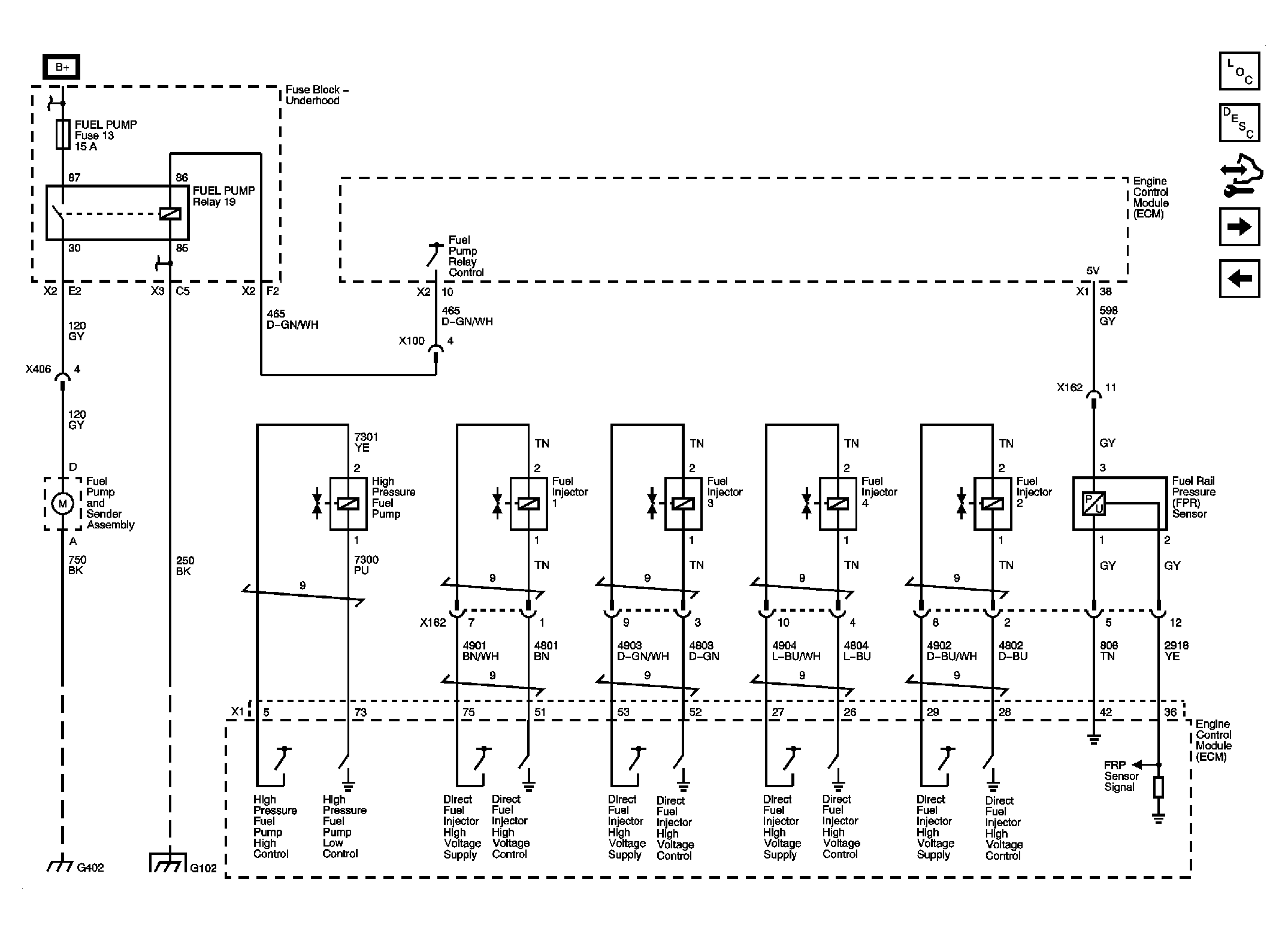

Fig 7: Fuel Controls - Fuel Pump Controls & Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

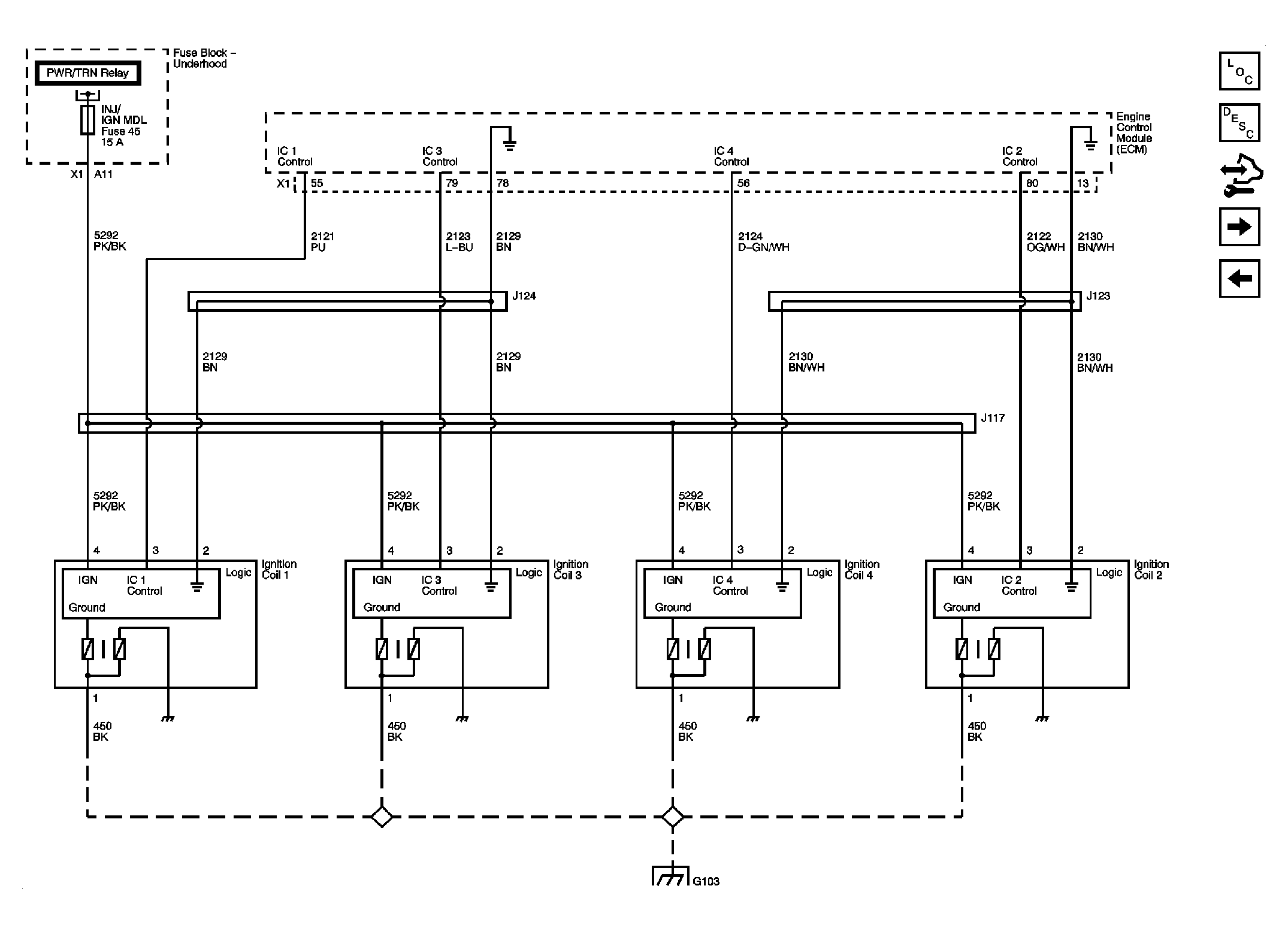

Fig 8: Ignition Controls - Ignition System Schematic

Courtesy of GENERAL MOTORS CORP.

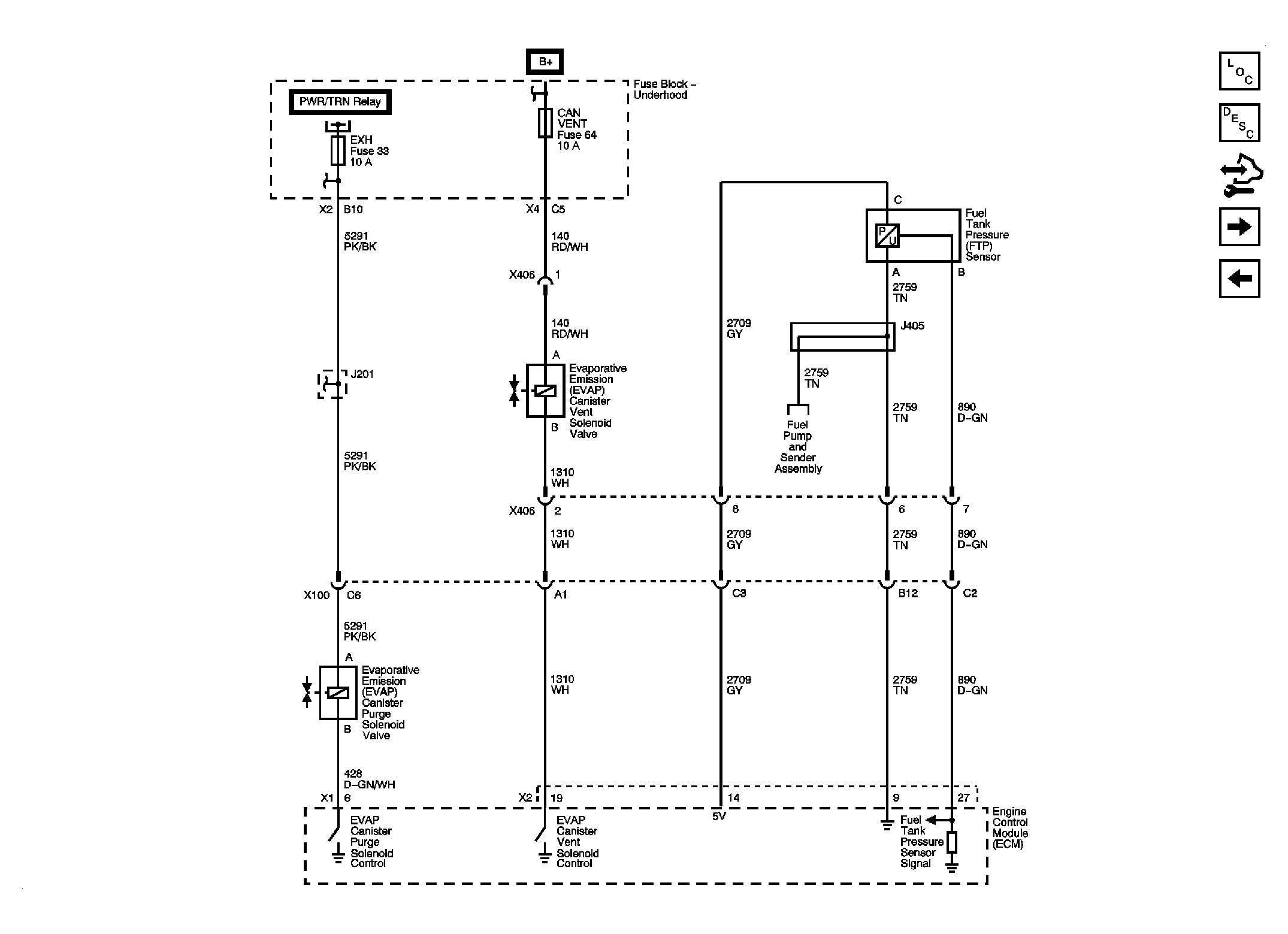

Fig 9: Fuel Controls - EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

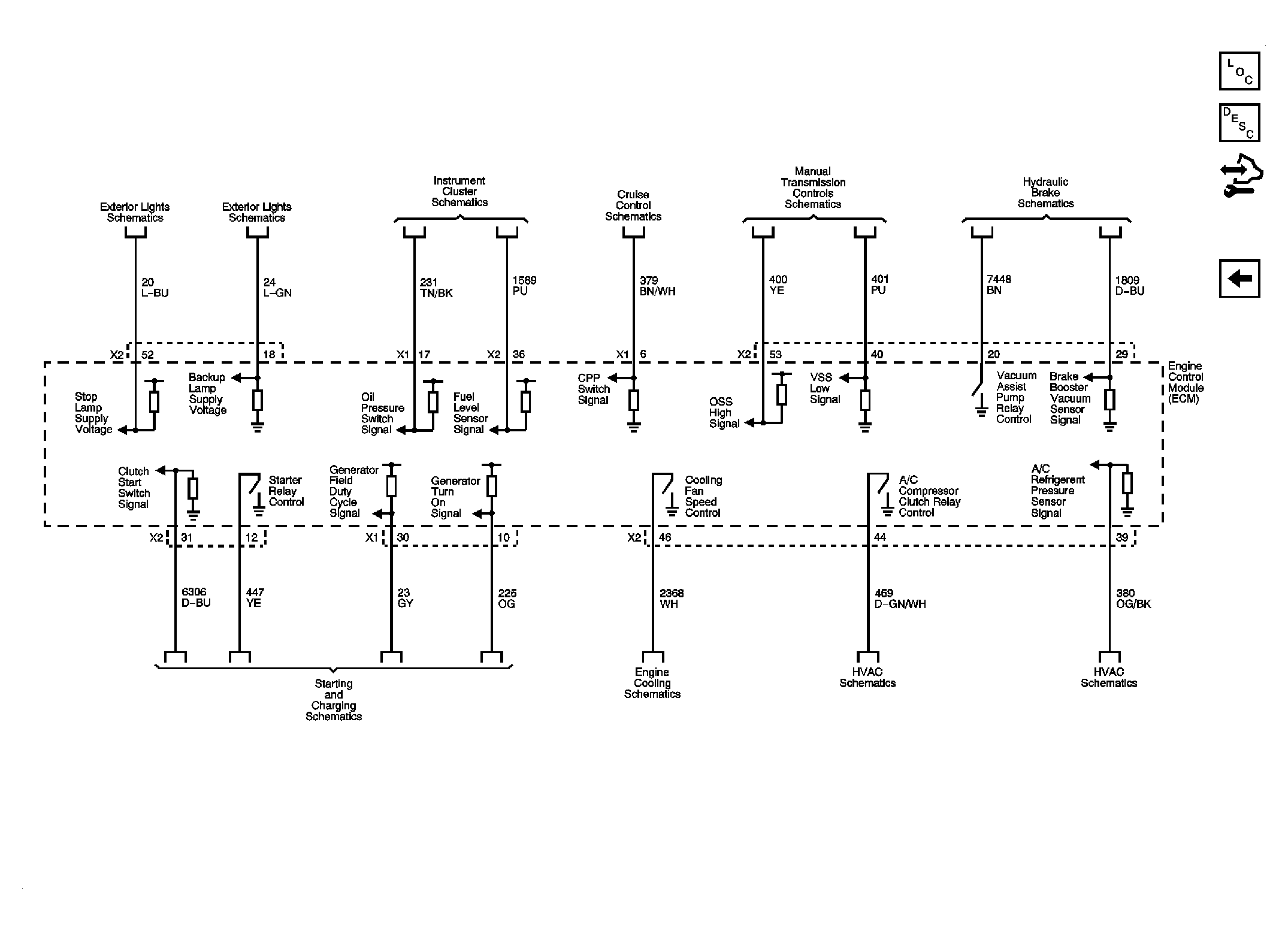

Fig 10: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
