Information Bus



Data Communication Schematics

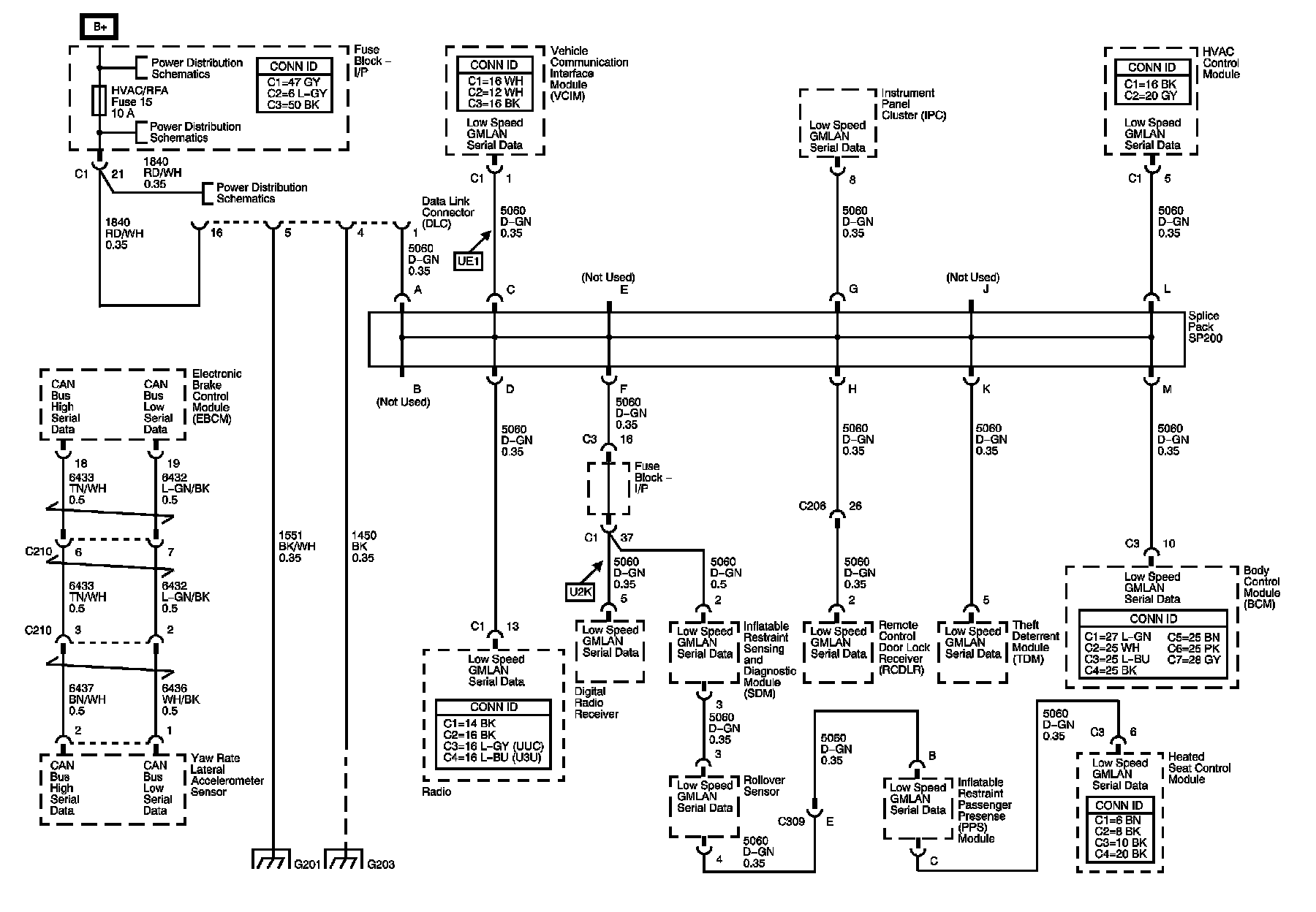

Low Speed GMLAN

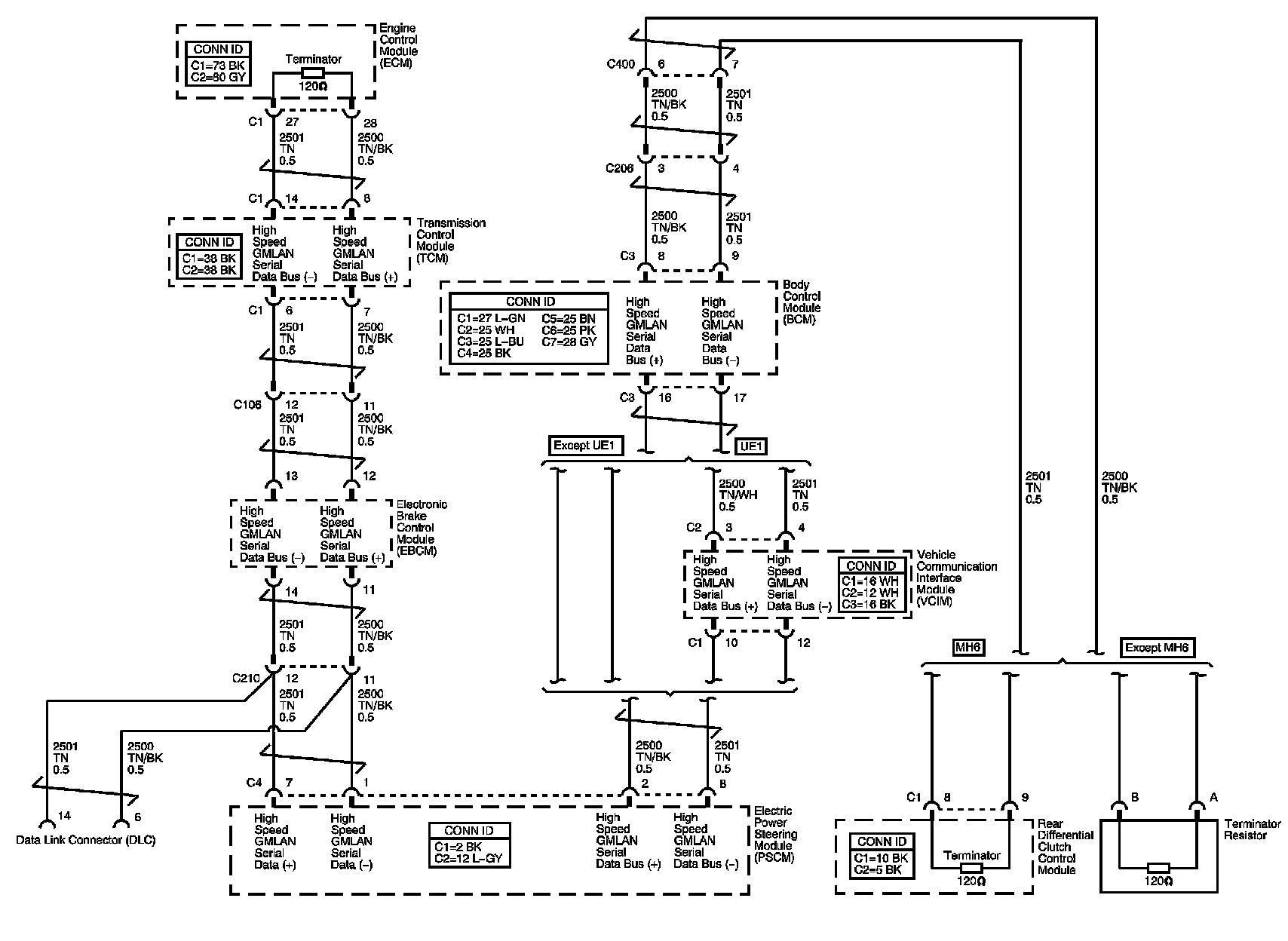

High Speed GMLAN






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
