Keyless Entry Transmitter



Vehicle Access Connector End Views

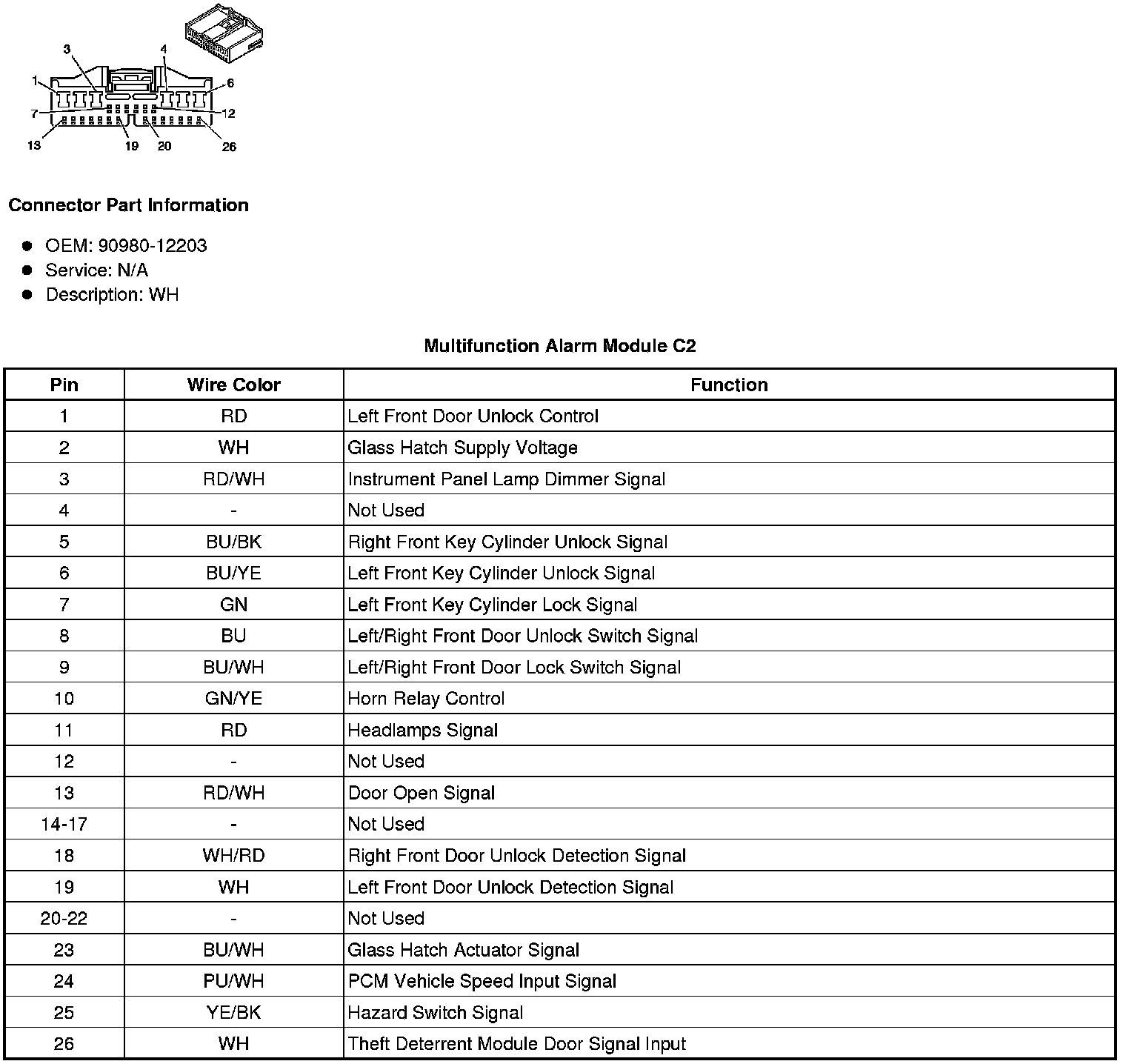

Multifunction Alarm Module C2






Remote Control Door Lock Receiver








Remote Function Connector End Views

Remote Control Door Lock Receiver
